FST16040 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> FST16040

FST16040: DescriptionRectifier Diode, Schottky, 1 Phase, 2 Element, 80A, 40V V(RRM), Silicon, POWERMOD-3; CategoryDiscrete semiconductor diode; File Size1MB，2 Pages; ManufacturerDaco Semiconductor Co., Ltd.

Download Datasheet Parametric Compare View All

FST16040 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	FST16040	-	-	View	Buy Now

FST16040 Overview

Rectifier Diode, Schottky, 1 Phase, 2 Element, 80A, 40V V(RRM), Silicon, POWERMOD-3

FST16040 Parametric

Parameter Name	Attribute value
Maker	Daco Semiconductor Co., Ltd.
package instruction	R-XSFM-D3
Reach Compliance Code	unknown
ECCN code	EAR99
application	GENERAL PURPOSE
Shell connection	ISOLATED
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.75 V
JESD-30 code	R-XSFM-D3
Maximum non-repetitive peak forward current	1000 A
Number of components	2
Phase	1
Number of terminals	3
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	80 A
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Maximum repetitive peak reverse voltage	40 V
Maximum reverse current	1000 µA
surface mount	NO
technology	SCHOTTKY
Terminal form	SOLDER LUG
Terminal location	SINGLE

Preview

Download Datasheet

View All

FST16020

DACO SEMICONDUCTOR CO.,LTD.

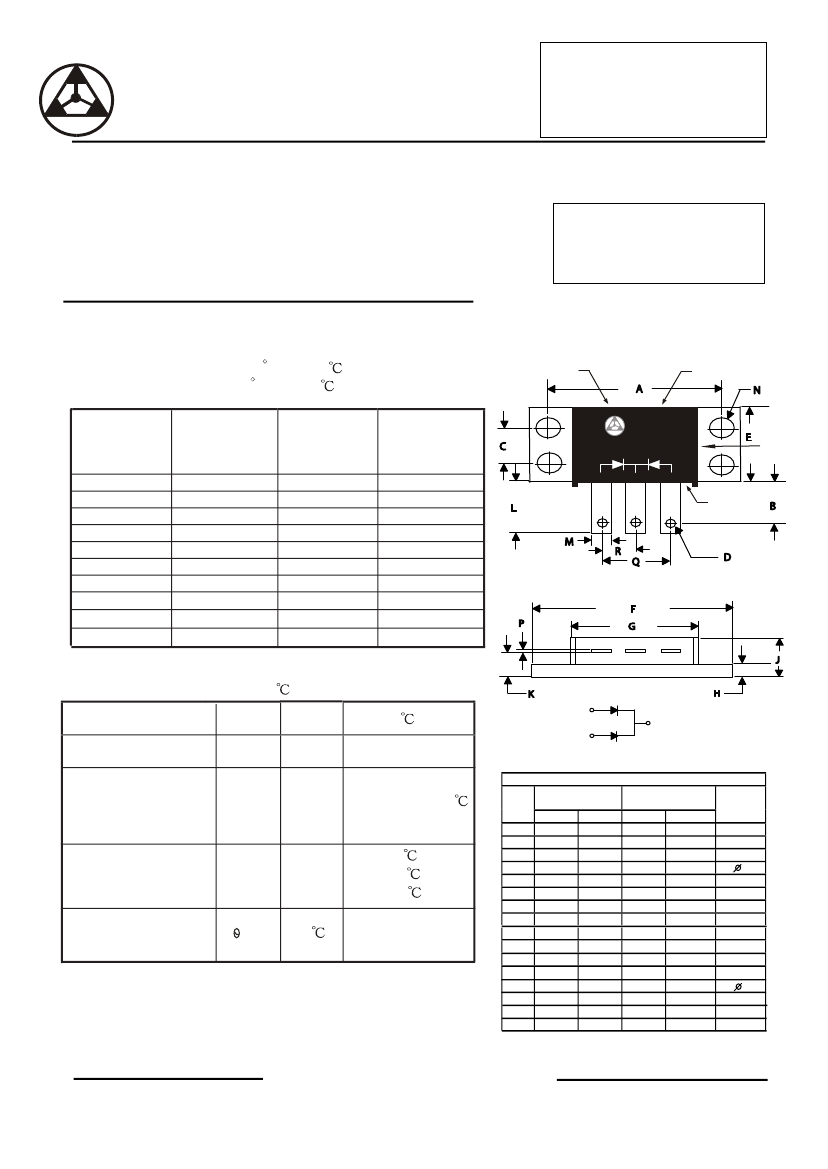

Features

Types Up to 100V V

RRM

Isolated to Plate

High Surge Capability

THRU

FST160100

SCHOTTKY DIODE MODULE TYPES 160A

160 Amp Recti er

20-100 Volts

POWER MOD

Maximum Ratings

Part Number

FST16020

FST16030

FST16035

FST16040

FST16045

FST160

100

Operating Temperature: -55 C to +150

Storage Temperature: -55 C to +150

Maximum

Recurrent

Peak Reverse

Voltage

20V

30V

35V

40V

45V

60V

80V

100V

Logo

Maximum

RMS Voltage

14V

21V

25V

28V

32V

42V

57V

70V

Maximum DC

Blocking

Voltage

20V

30V

35V

40V

45V

60V

80V

100V

DACO

FST

160XX

Polarity

Electrical Characteristics

Average Forward

Current

(Per pkg)

Peak Forward Surge

Current

(Per leg)

Unless Otherwise Specified

160A

1000A

0.75V

0.80V

0.84V

1mA

10mA

30mA

0.50

F(AV)

FSM

TC =125

PIN 1

PIN 3

PIN 2 and Plat e

8.3ms , half sine

=80 A; T

=25

Maximum

20V~45V

Instantaneous

Forward Voltage

50V~60V

(Per leg)

DIMENSIONS

DIM

INCHES

MIN

1.995

.300

.495

.182

.990

2.390

1.495

.114

-----

.256

.490

.330

.175

.035

.445

.890

MAX

2.005

.325

.505

.192

1.010

2.410

1.525

.122

0.420

.275

.510

.350

.195

.045

.455

.910

MIN

50.67

7.62

12.57

4.62

25.15

60.71

37.90

2.90

-----

6.5

12.45

4.45

0.89

11.30

22.61

Milimeters

MAX

50.93

8.26

12.83

4.88

26.65

61.21

38.70

3.10

10.67

7.0

12.95

8.90

4.95

1.14

11.56

23.11

NOTE

80V~100V

Maximum

Instantaneous

Reverse Current At

Rated DC Blocking

Voltage

(Per leg)

Maximum Thermal

Resistance Junction

To Case

(Per leg)

TJ = 25

TJ = 100

TJ = 150

R jc

NOTE :

(1)

Pulse Test: Pulse Width 300

sec,

Duty Cycle

8.38

www.dacosemi.com.tw

-1-

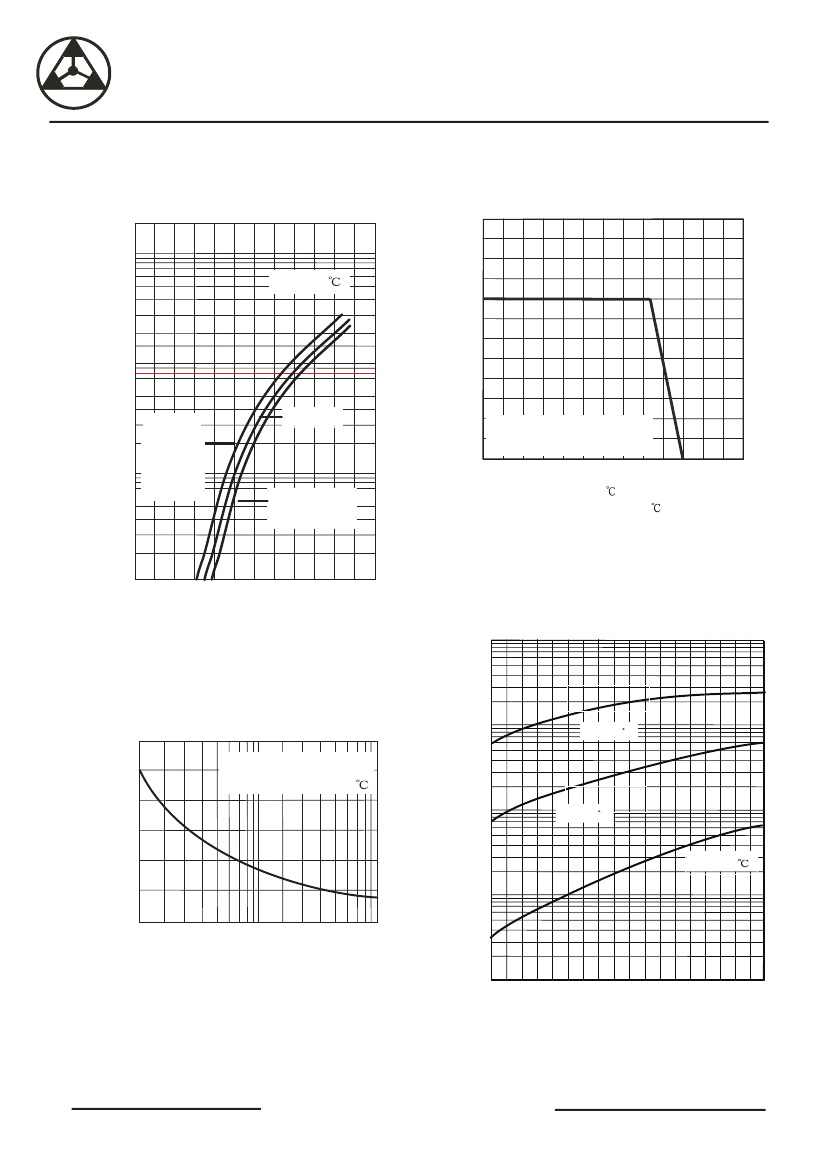

FST16040 Related Products

	FST16040	FST16080	FST16045	FST16035	FST16020	FST16030	FST16060
Description	Rectifier Diode, Schottky, 1 Phase, 2 Element, 80A, 40V V(RRM), Silicon, POWERMOD-3	Rectifier Diode, Schottky, 1 Phase, 2 Element, 80A, 80V V(RRM), Silicon, POWERMOD-3	Rectifier Diode, Schottky, 1 Phase, 2 Element, 80A, 45V V(RRM), Silicon, POWERMOD-3	Rectifier Diode, Schottky, 1 Phase, 2 Element, 80A, 35V V(RRM), Silicon, POWERMOD-3	Rectifier Diode, Schottky, 1 Phase, 2 Element, 80A, 20V V(RRM), Silicon, POWERMOD-3	Rectifier Diode, Schottky, 1 Phase, 2 Element, 80A, 30V V(RRM), Silicon, POWERMOD-3	Rectifier Diode, Schottky, 1 Phase, 2 Element, 80A, 60V V(RRM), Silicon, POWERMOD-3
package instruction	R-XSFM-D3	R-XSFM-D3	R-XSFM-D3	R-XSFM-D3	R-XSFM-D3	R-XSFM-D3	R-XSFM-D3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
application	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	0.75 V	0.84 V	0.75 V	0.75 V	0.75 V	0.75 V	0.8 V
JESD-30 code	R-XSFM-D3	R-XSFM-D3	R-XSFM-D3	R-XSFM-D3	R-XSFM-D3	R-XSFM-D3	R-XSFM-D3
Maximum non-repetitive peak forward current	1000 A	1000 A	1000 A	1000 A	1000 A	1000 A	1000 A
Number of components	2	2	2	2	2	2	2
Phase	1	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3	3
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Maximum output current	80 A	80 A	80 A	80 A	80 A	80 A	80 A
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Maximum repetitive peak reverse voltage	40 V	80 V	45 V	35 V	20 V	30 V	60 V
Maximum reverse current	1000 µA	1000 µA	1000 µA	1000 µA	1000 µA	1000 µA	1000 µA
surface mount	NO	NO	NO	NO	NO	NO	NO
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal form	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Is Samacsys	-	N	N	N	N	-	-
Base Number Matches	-	1	1	1	1	-	-
