TECHNICAL CHARACTERISTICS
MATERIAL
INSULATOR: PBT
FLAMABILITY RATING: UL94-V0
COLOR: GREEN
CONTACT PIN: BRASS (CuZn)
SURFACE OF SOLDER TAIL PLATING: TIN
5
A
ENVIRONMENTAL
OPERATING TEMPERATURE: -40 UP TO 105°C
COMPLIANCE: LEAD FREE AND ROHS
ELECTRICAL
CURRENT RATING:
WORKING VOLTAGE:
WITHSTANDING VOLTAGE:
CONTACT RESISTANCE:
UL
10A
300VAC
1.6KV
20 mOhm MAX
STANDARD
CERTIFIED E315414 / MODEL NUMBER 3195
MECHANICAL
PITCH: 5.08mm
SOLDERING: WAVE PROCESS ONLY
PACKAGING: BOX
SERIE 3195
B
C
RoHS Compliant
G
F
E
D
C
B
A
REV
11-JUN-10
DATE
PDF
FILE
JP
BY
APPROVAL: RJ
SCALE:
SHEET: 1/1
DRAW: MARVIN
PROJECTION:
GENERAL TOLERANCE
.X = +/- 0.2
.XX = +/- 0.15
UNIT: MM

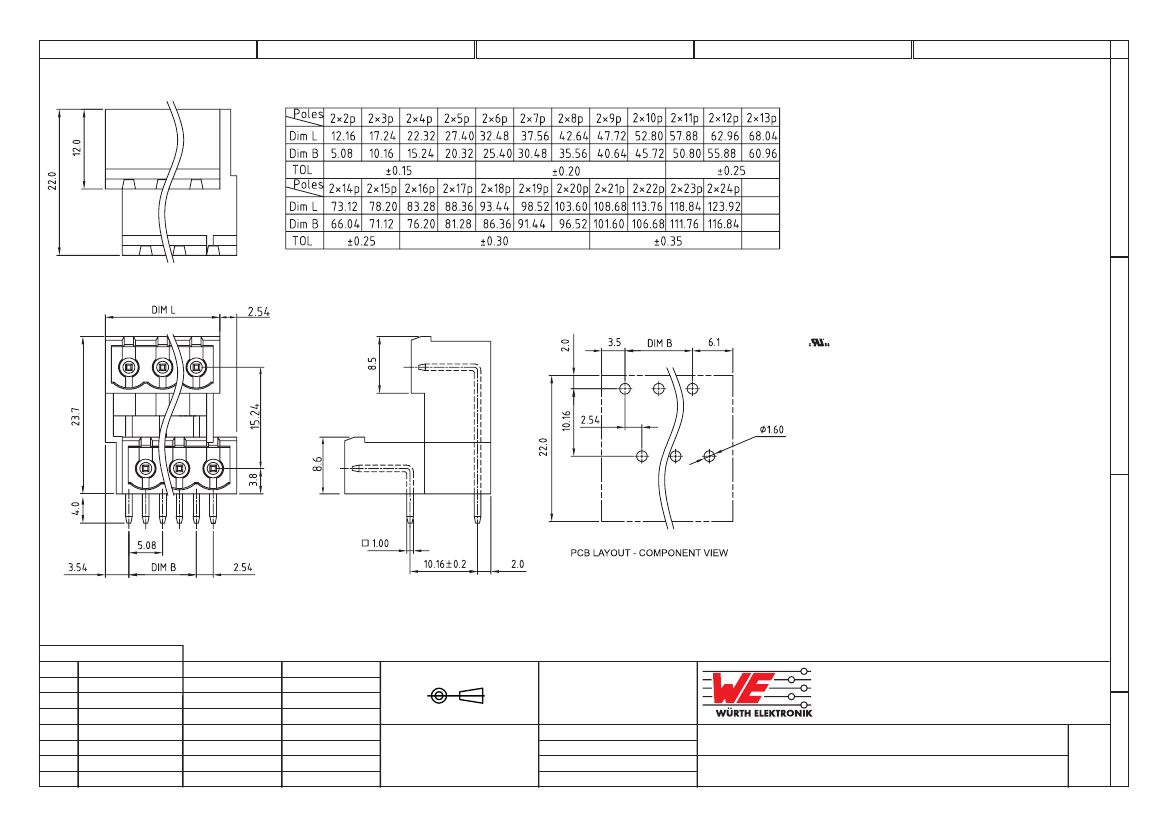

DESCRIPTION: SERIE 3195 - 5.08MM DOUBLE LEVEL HORIZONTAL MALE
PCB HEADER WITH CLOSED FLANGES TYPE WR-TBL
WERI PART NO: 691 319 510 0xx
