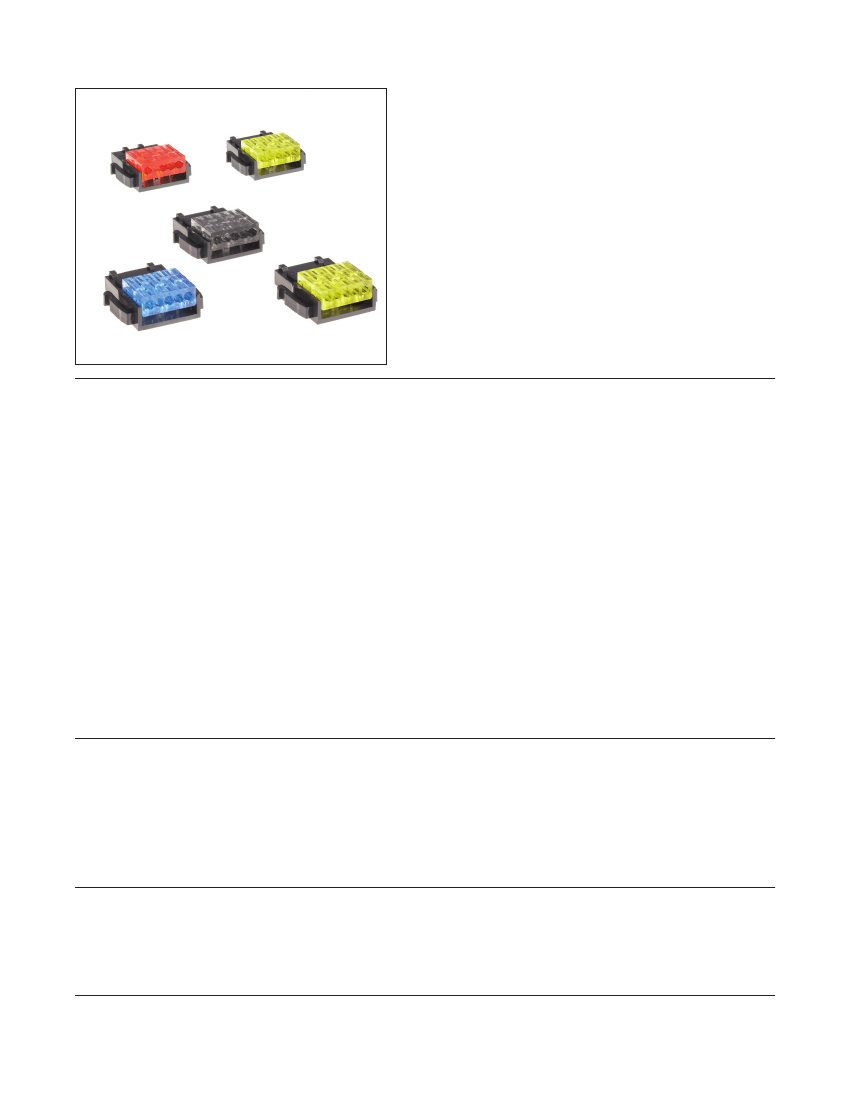

• Easy, labor saving, and reliable IDC termination
• Easy field termination with no special tooling or wire
preparation – no stripping or tinning
• Semi-Transparent color-coded covers for wire inspection
and wire retention
• CC-Link Communication Interconnect Standard
• One-Touch latching mechanism maintains a reliable
interconnection in demanding field applications and
requires only one hand to easily mate and unmate
• Polarization ensures proper interconnecting of mated pairs
• RoHS Compliant. See the Regulatory Information
Appendix (RIA) in the "RoHS compliance" section of
www.3Mconnector.com for compliance information
(RIA E1 & C1 apply).
Date Modified: September 15, 2010
TS-2273-D
Sheet 1 of 2
Physical
Insulation:
Body Material: Nylon
Cover Material: Polycarbonate
Flammability:
UL 94V-0
Body Color: Black
Cover Color: Clear, Yellow, Blue, Red
Contact:
Material: Copper Alloy
Plating:
Underplating: 2.5 µm Ni minimum
Wiping Area: 0.5 µm Au minimum
IDC Termination Area: 2.5 µm Ni minimum
Wire Accommodation:
18 & 20 AWG: PVC, TFE, Foamed PE insulation with solid or 7 - 19 stranded Tinned or
Silver Cu.
MIL-W- 16878/5 EE, MIL-W- 16878/4 E, MIL-W- 16878/1, MIL-W- 16878/2 C
CC-Link Ver 1.10 Cables
Contact 3M for additional wire accommodations
Mating Compatability:
356, 357, 358 Series (with same polarizations)
Electrical
Current Rating:
18 AWG: 10A (1 contact); 7A (2 - 5 contacts)
20 AWG: 9A (1 contact); 6A (2 - 5 contacts)
Rating Conditions: 30° C maximum temperature rise
Voltage Rating:
250 V
Insulation Resistance:
10
3
MΩ min. at 600 V
DC
Withstanding Voltage:
1,000 V
RMS
for 1 minute
Environmental
Temperature Rating:
-20°C to +75°C ambient
UL Rating:
65°C
UL File No.: E68080
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnector.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™

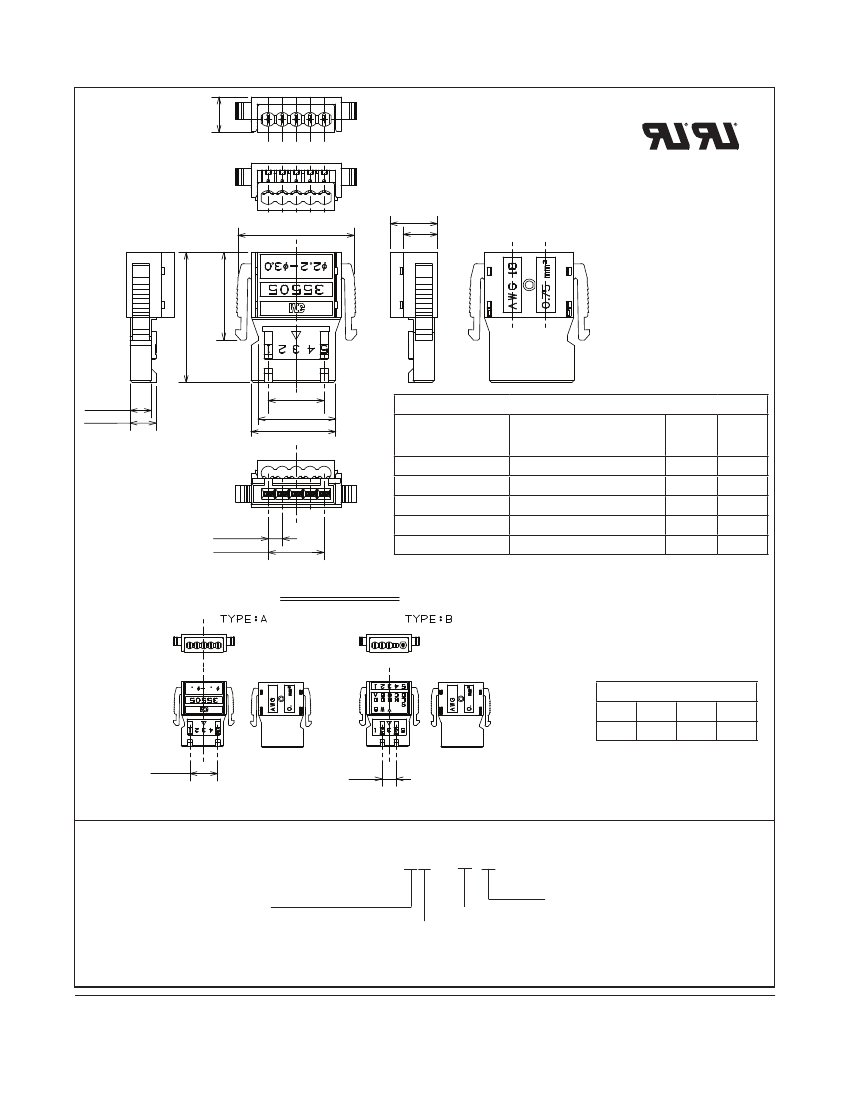

Power Clamp Wiremount Socket
3 mm, IDC, 5 Position
[0.299]
7.6
355 Series
C
10.2
[0.402]
25.0 [0.984]
7.4
[0.291]
28.0 [1.102]
18.9 [0.744]
4.6 [0.181]
5.6 [0.220]
18.2
[0.717]
12.0
[0.472]
16.7
[0.657]
Available Part Numbers
3M Part Number
35505-6080-A00 GF
35505-6180-A00 GF
35505-6200-A00 GF
35505-6200-B00 GF
35505-6000-B0M GF*
Outside
Diameter Range
of Wire
2.2 - 3.0 mm [.087 - .118"]
2.0 - 2.3 mm [.079 - .091"]
1.6 - 2.0 mm [.063 - .079"]
1.6 - 2.0 mm [.063 - .079"}
2.2 - 3.0 mm [.087 - .118"]
Wire
Gauge
18 AWG
18 AWG
20 AWG
20 AWG
20 AWG
Cover
Color
Clear
Blue
Yellow
Yellow
Red
3.00 [0.118]
12.00 [0.472]
Polarization
*35505-6000-BOM GF connects communication cable with 3 discrete and 1 drain wire. Twist drain
wire 7 or more times to tighten strands and insert into wire position #5.
mm
[Inch]
XX
XX
XX
XX
XX
XX
Tolerance Unless Noted
0
mm
±1
.0
±.3
.00
±.13
[ ] Dimensions for Reference Only
12.00 [0.472]
6.00 [0.236]
Metal Clip Accessory 79116-PCM-01M available for additional latching
security in high demand applications.
Ordering Information
35505 - 6XX0 - X0X GF
Wire Outside Diameter:
0: 2.2 – 3.0 mm
1: 2.0 – 2.3 mm
2: 1.6 – 2.0 mm
Metal Clip Accessory: 79116-PCM-01M
Polarization:
A: Type A (wide)
B: Type B (narrow)
(RIA E1 and C1 Apply)
Option:
0: 3M Original
M: Drain Wire
Wire Size:
0: 20 AWG
8: 18 AWG
TS-2273-D
Sheet 2 of 2
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnector.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
Important Notice
All statements, technical information, and recommendations related to 3M’s products are based on information believed to be reliable, but the accuracy or completeness
is not guaranteed. Before using this product, you must evaluate it and determine if it is suitable for your intended application. You assume all risks and liability associated
with such use. Any statements related to the product which are not contained in 3M’s current publications, or any contrary statements contained on your purchase order
shall have no force or effect unless expressly agreed upon, in writing, by an authorized officer of 3M.
Warranty; Limited Remedy; Limited Liability.
This product will be free from defects in material and manufacture for a period of one (1) year from the time of purchase.
3M MAKES NO OTHER WARRANTIES
INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
If this product is defective within the
warranty period stated above, your exclusive remedy shall be, at 3M’s option, to replace or repair the 3M product or refund the purchase price of the 3M product.
Except
where prohibited by law, 3M will not be liable for any indirect, special, incidental or consequential loss or damage arising from this 3M product, regardless of
