MC10EP35, MC100EP35
3.3V / 5V ECL JK Flip−Flop
Description
The MC10/100EP35 is a higher speed/low voltage version of the
EL35 JK flip−flop. The J/K data enters the master portion of the
flip−flop when the clock is LOW and is transferred to the slave, and
thus the outputs, upon a positive transition of the clock. The reset pin is
asynchronous and is activated with a logic HIGH.
The 100 Series contains temperature compensation.
Features
http://onsemi.com

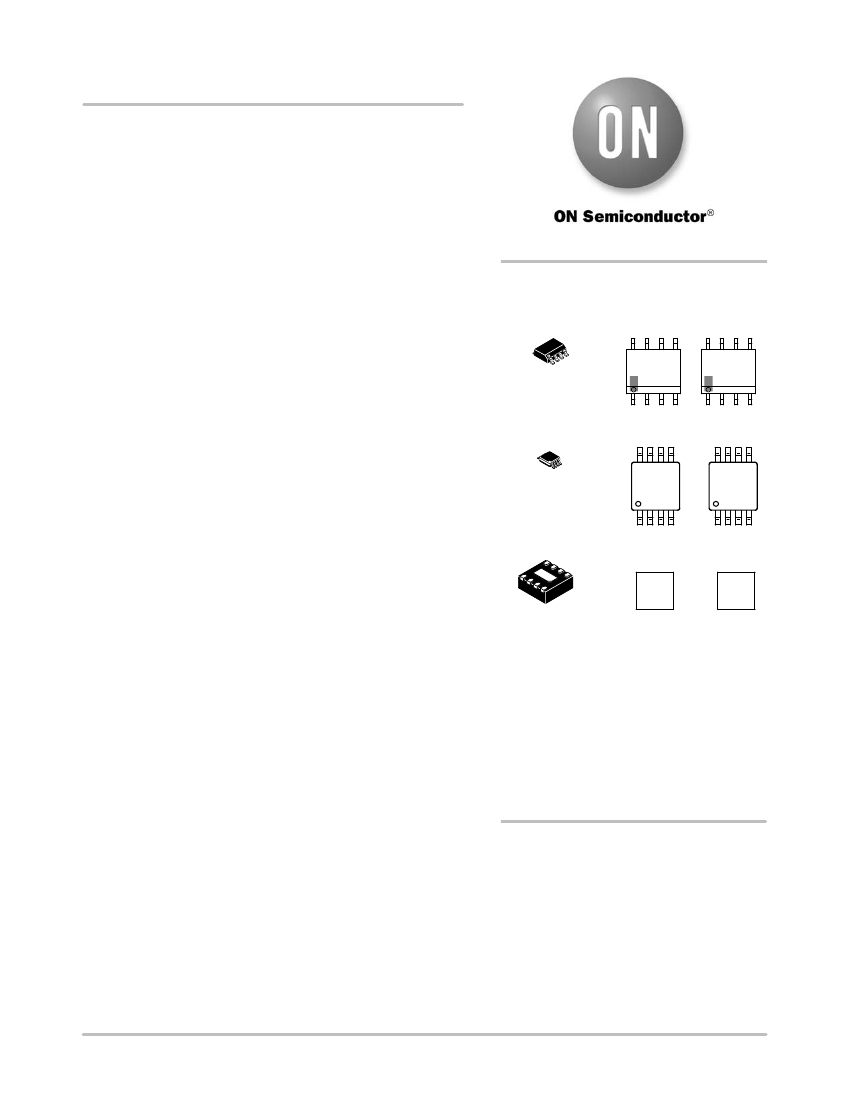

MARKING
DIAGRAMS*
8
1
SOIC−8
D SUFFIX
CASE 751
1
HEP35
ALYW
G
8
KEP35
ALYW
G
•
410 ps Propagation Delay
•
Maximum Frequency > 3 GHz Typical
•
PECL Mode Operating Range: V
CC
= 3.0 V to 5.5 V
with V
EE
= 0 V
•
NECL Mode Operating Range: V
CC
= 0 V
with V
EE
=
−3.0
V to
−5.5
V
•
Open Input Default State
8
1
•
Q Output Will Default LOW with Inputs Open or at V
EE
•
Pb−Free Packages are Available
8
1
TSSOP−8
DT SUFFIX
CASE 948R
8
HP35
ALYWG
G
8
KP35
ALYWG
G
1
1
5R MG
G
DFN8
MN SUFFIX
CASE 506AA
H
K
5R
3M
= MC10
= MC100
= MC10
= MC100
A
L
Y
W
M
G
1
4
1
= Assembly Location
= Wafer Lot
= Year
= Work Week
= Date Code
= Pb−Free Package
(Note: Microdot may be in either location)
*For additional marking information, refer to
Application Note AND8002/D.
ORDERING INFORMATION
See detailed ordering and shipping information in the package
dimensions section on page 7 of this data sheet.
©
Semiconductor Components Industries, LLC, 2006
December, 2006
−
Rev. 5
1
Publication Order Number:
MC10EP35/D
3M MG
G
4
MC10EP35, MC100EP35
Table 1. PIN DESCRIPTION
J
1
J
8
V
CC
PIN
CLK*
J*, K*
K
2
K
Flip Flop
CLK
3
R
6
Q
7
Q
RESET*
Q, Q
V
CC
V
EE
EP
FUNCTION
ECL Clock Inputs
ECL Signal Inputs
ECL Asynchronous Reset
ECL Data Outputs
Positive Supply
Negative Supply
Exposed pad must be connected to a
sufficient thermal conduit. Electrically
connect to the most negative supply or
leave floating open.
RESET
4
5
V
EE
* Pins will default LOW when left open.
Table 2. TRUTH TABLE
J
K
L-
H
L
H
X
RESET
L
L
L
L
H
CLK
Z
Z
Z
Z
X
Qn+1
Qn
L
H
Qn
L
Figure 1. 8−Lead Pinout
(Top View)
and Logic Diagram
L-
L-
H-
H-
X
Z = LOW to HIGH Transition
Table 3. ATTRIBUTES
Characteristics
Internal Input Pulldown Resistor
Internal Input Pullup Resistor
ESD Protection
Human Body Model
Machine Model
Charged Device Model
Pb Pkg
Level 1
Level 1
Level 1
Value
75 kW
N/A
> 4 kV
> 200 V
> 2 kV
Pb−Free Pkg
Level 1
Level 3
Level 1
Moisture Sensitivity, Indefinite Time Out of Drypack (Note 1)
SOIC−8
TSSOP−8
DFN8
Flammability Rating
Transistor Count
Meets or exceeds JEDEC Spec EIA/JESD78 IC Latchup Test
1. For additional information, see Application Note AND8003/D.
Oxygen Index: 28 to 34
UL−94 V−0 @ 0.125 in
77 Devices
http://onsemi.com
2
MC10EP35, MC100EP35
Table 4. MAXIMUM RATINGS
Symbol
V
CC
V
EE
V
I
I
out
T
A
T
stg
q
JA
q
JC
q
JA
q
JC
q
JA
T
sol
Parameter
PECL Mode Power Supply
NECL Mode Power Supply
PECL Mode Input Voltage
NECL Mode Input Voltage
Output Current
Operating Temperature Range
Storage Temperature Range
Thermal Resistance (Junction−to−Ambient)
Thermal Resistance (Junction−to−Case)
Thermal Resistance (Junction−to−Ambient)
Thermal Resistance (Junction−to−Case)
Thermal Resistance (Junction−to−Ambient)
Wave Solder
Pb
Pb−Free
0 lfpm
500 lfpm
Standard Board
0 lfpm
500 lfpm
Standard Board
0 lfpm
500 lfpm
<2 to 3 sec @ 248°C
<2 to 3 sec @ 260°C
8 SOIC
8 SOIC
8 SOIC
8 TSSOP
8 TSSOP
8 TSSOP
DFN8
DFN8
Condition 1
V
EE
= 0 V
V
CC
= 0 V
V
EE
= 0 V
V
CC
= 0 V
Continuous
Surge
V
I
V
CC
V
I
V
EE
Condition 2
Rating
6
−6
6
−6
50
100
−40
to +85
−65
to +150
190
130
41 to 44
185
140
41 to 44
129
84
265
265
Unit
V
V
V
V
mA
mA
°C
°C
°C/W
°C/W
°C/W
°C/W
°C/W
°C/W
°C/W
°C/W
°C
Stresses exceeding Maximum Ratings may damage the device. Maximum Ratings are stress ratings only. Functional operation above the
Recommended Operating Conditions is not implied. Extended exposure to stresses above the Recommended Operating Conditions may affect
device reliability.
http://onsemi.com
3
MC10EP35, MC100EP35
Table 5. 10EP DC CHARACTERISTICS, PECL
V
CC
= 3.3 V, V
EE
= 0 V (Note 2)
−40°C
Symbol
I
EE
V
OH
V
OL
V
IH
V
IL
I
IH
I
IL
Characteristic
Power Supply Current
Output HIGH Voltage (Note 3)
Output LOW Voltage (Note 3)
Input HIGH Voltage (Single−Ended)
Input LOW Voltage (Single−Ended)
Input HIGH Current
Input LOW Current
0.5
Min
30
2165
1365
2090
1365
Typ
40
2290
1490
Max
50
2415
1615
2415
1690
150
0.5
Min
30
2230
1430
2155
1460
25°C
Typ
40
2355
1555
Max
50
2480
1680
2480
1755
150
0.5
Min
30
2290
1490
2215
1490
85°C
Typ
40
2415
1615
Max
50
2540
1740
2540
1815
150
Unit
mA
mV
mV
mV
mV
mA
mA
NOTE: Device will meet the specifications after thermal equilibrium has been established when mounted in a test socket or printed circuit
board with maintained transverse airflow greater than 500 lfpm. Electrical parameters are guaranteed only over the declared
operating temperature range. Functional operation of the device exceeding these conditions is not implied. Device specification limit
values are applied individually under normal operating conditions and not valid simultaneously.
2. Input and output parameters vary 1:1 with V
CC
. V
EE
can vary +0.3 V to
−2.2
V.
3. All loading with 50
W
to V
CC
−
2.0 V.
Table 6. 10EP DC CHARACTERISTICS, PECL
V
CC
= 5.0 V, V
EE
= 0 V (Note 4)
−40°C
Symbol
I
EE
V
OH
V
OL
V
IH
V
IL
I
IH
I
IL
Characteristic
Power Supply Current
Output HIGH Voltage (Note 5)
Output LOW Voltage (Note 5)
Input HIGH Voltage (Single−Ended)
Input LOW Voltage (Single−Ended)
Input HIGH Current
Input LOW Current
0.5
Min
30
3865
3065
3790
3065
Typ
40
3940
3190
Max
50
4115
3315
4115
3390
150
0.5
Min
30
3930
3130
3855
3130
25°C
Typ
40
4055
3255
Max
50
4180
3380
4180
3455
150
0.5
Min
30
3990
3190
3915
3190
85°C
Typ
40
4115
3315
Max
50
4240
3440
4240
3515
150
Unit
mA
mV
mV
mV
mV
mA
mA
NOTE: Device will meet the specifications after thermal equilibrium has been established when mounted in a test socket or printed circuit
board with maintained transverse airflow greater than 500 lfpm. Electrical parameters are guaranteed only over the declared
operating temperature range. Functional operation of the device exceeding these conditions is not implied. Device specification limit
values are applied individually under normal operating conditions and not valid simultaneously.
4. Input and output parameters vary 1:1 with V
CC
. V
EE
can vary +2.0 V to
−0.5
V.
5. All loading with 50
W
to V
CC
−
2.0 V.
Table 7. 10EP DC CHARACTERISTICS, NECL
V
CC
= 0 V; V
EE
=
−5.5
V to
−3.0
V (Note 6)
−40°C
Symbol
I
EE
V
OH
V
OL
V
IH
V
IL
I
IH
I
IL
Characteristic
Power Supply Current
Output HIGH Voltage (Note 7)
Output LOW Voltage (Note 7)
Input HIGH Voltage (Single−Ended)
Input LOW Voltage (Single−Ended)
Input HIGH Current
Input LOW Current
0.5
Min
30
−1135
−1935
−1210
−1935
Typ
40
−1010
−1810
Max
50
−885
−1685
−885
−1610
150
0.5
Min
30
−1070
−1870
−1145
−1870
25°C
Typ
40
−945
−1745
Max
50
−820
−1620
−820
−1545
150
0.5
Min
30
−1010
−1810
−1085
−1810
85°C
Typ
40
−885
−1685
Max
50
−760
−1560
−760
−1485
150
Unit
mA
mV
mV
mV
mV
mA
mA
NOTE: Device will meet the specifications after thermal equilibrium has been established when mounted in a test socket or printed circuit
board with maintained transverse airflow greater than 500 lfpm. Electrical parameters are guaranteed only over the declared
operating temperature range. Functional operation of the device exceeding these conditions is not implied. Device specification limit
values are applied individually under normal operating conditions and not valid simultaneously.
6. Input and output parameters vary 1:1 with V
CC
.
7. All loading with 50
W
to V
CC
−
2.0 V.
http://onsemi.com
4
京公网安备 11010802033920号
EEWORLD
