SNJ54ALS29826FK datasheet, PDF

Datasheet> All Categories > logic> logic> SNJ54ALS29826FK

SNJ54ALS29826FK: DescriptionBus Driver, ALS Series, 1-Func, 8-Bit, Inverted Output, TTL, CQCC28; Categorylogic logic; File Size858KB，7 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric Compare View All

SNJ54ALS29826FK Overview

Bus Driver, ALS Series, 1-Func, 8-Bit, Inverted Output, TTL, CQCC28

SNJ54ALS29826FK Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Rochester Electronics
package instruction	QCCN,
Reach Compliance Code	unknown
Other features	CLEAR AND CLOCK ENABLE; TRIPLE OUTPUT ENABLE
series	ALS
JESD-30 code	S-CQCC-N28
JESD-609 code	e0
length	11.43 mm
Logic integrated circuit type	BUS DRIVER
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	28
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	INVERTED
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	2.03 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	11.43 mm

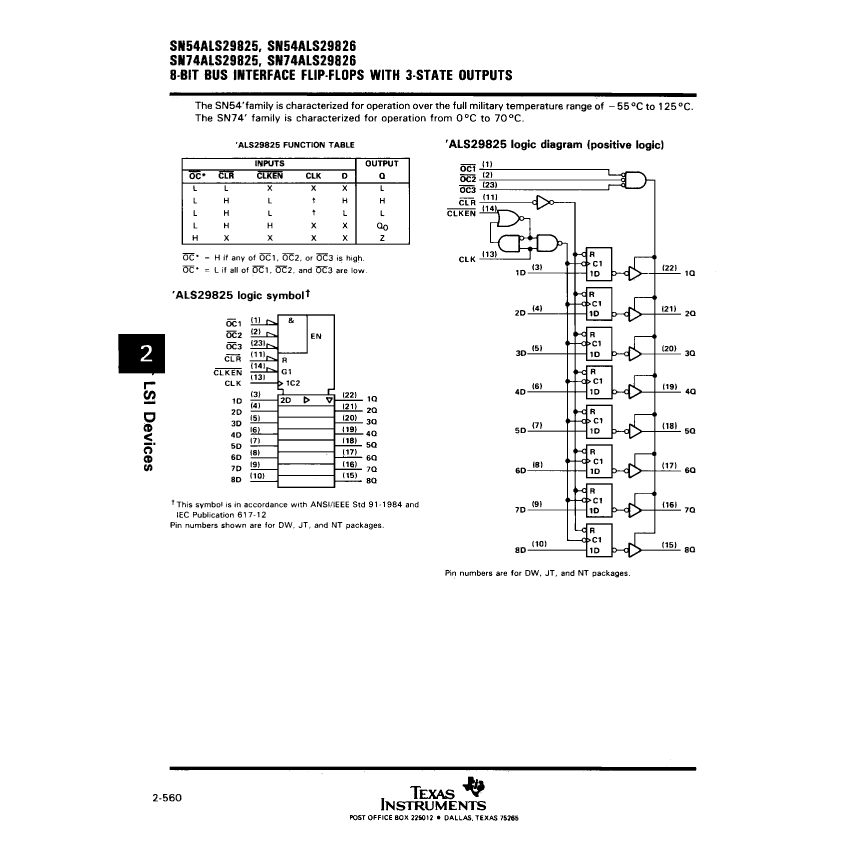

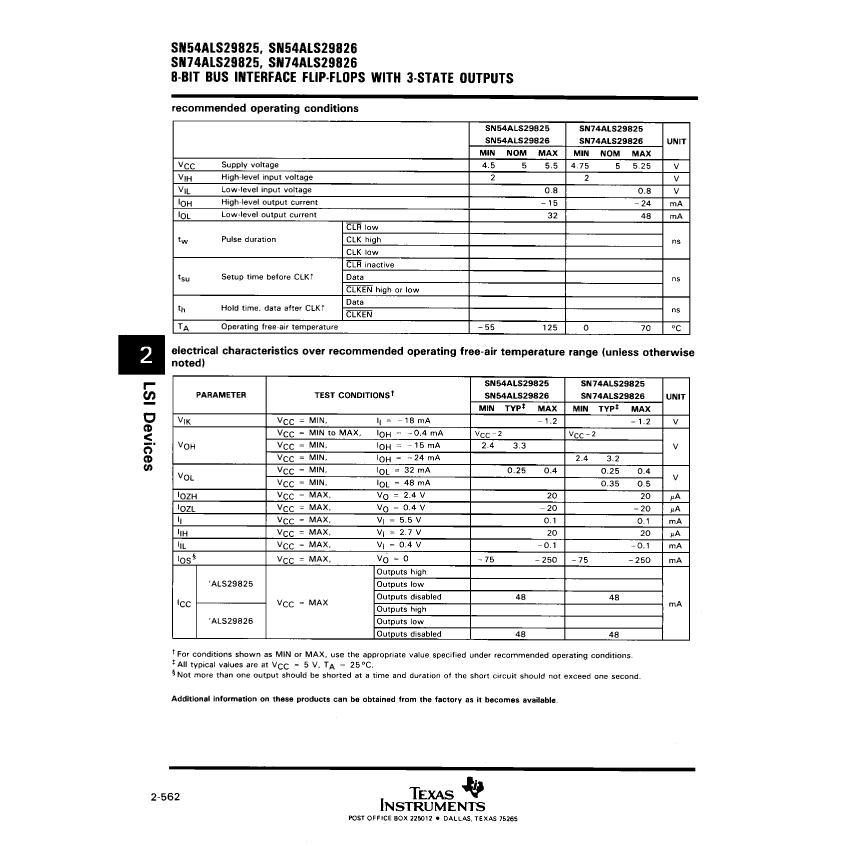

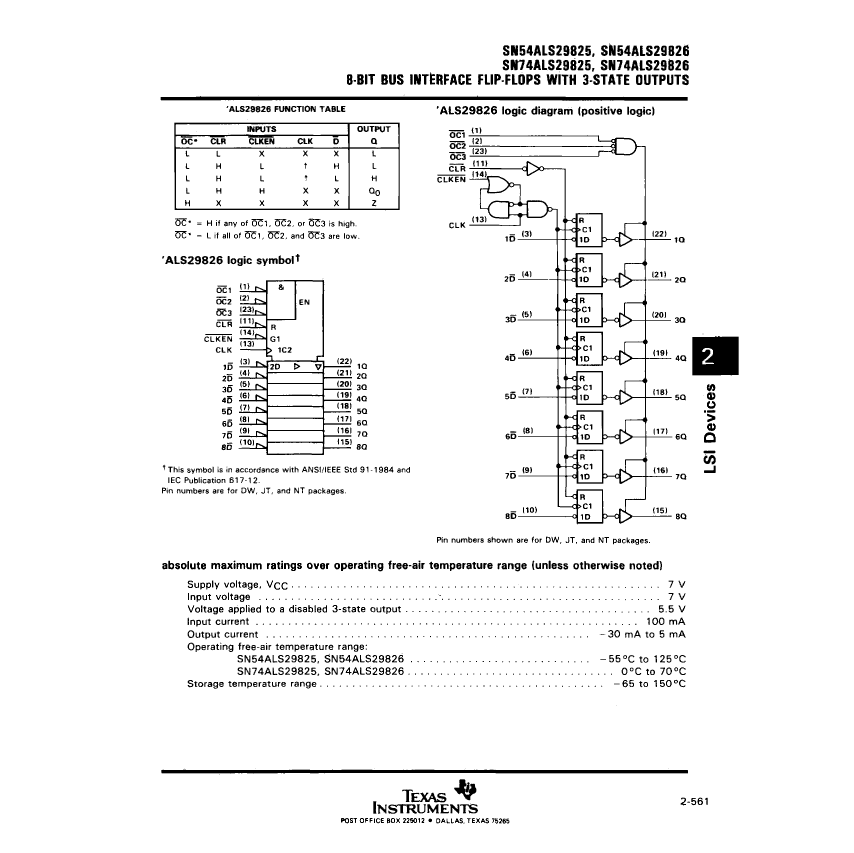

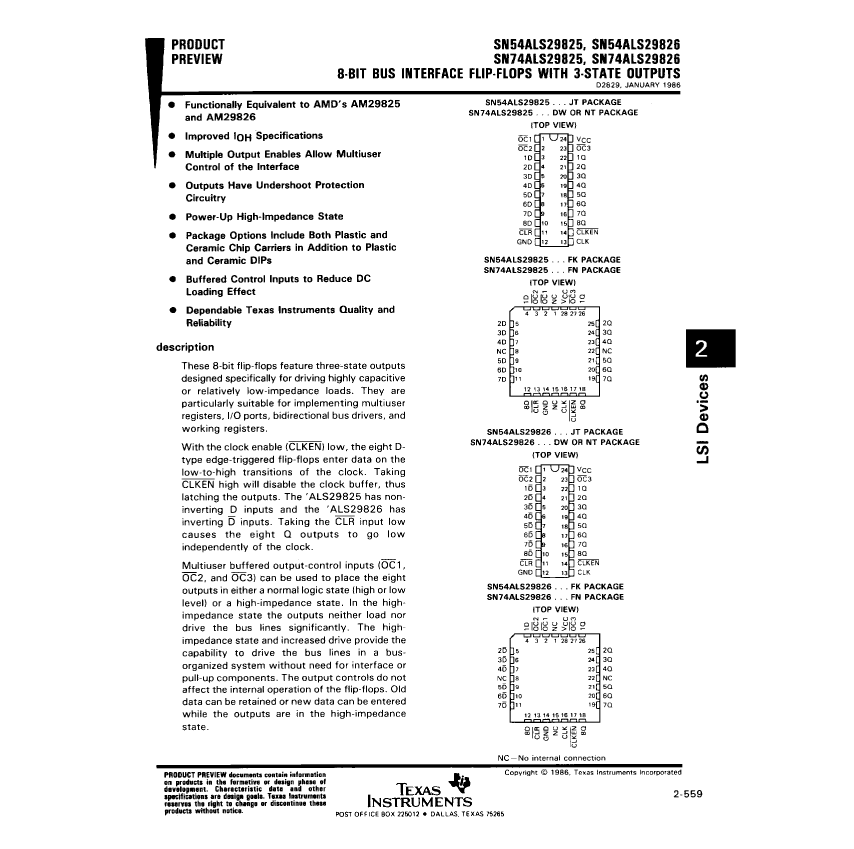

Preview

Download Datasheet

View All

D ts e t

aa h e

R c e t r lc r nc

o h se Ee to is

Ma u a t r dCo o e t

n fc u e

mp n n s

R c e tr b a d d c mp n ns ae

o h se rn e

o oet r

ma ua trd u ig ete dewaes

n fcue sn i r i/ fr

p rh s d f m te oiia s p l r

uc a e r

o h r n l u pi s

o R c e tr waes rce td f m

r o h se

fr e rae r

te oiia I. Al rce t n ae

r nl P

l e rai s r

d n wi tea p o a o teOC

o e t h p rv l f h

P r aetse u igoiia fcoy

at r e td sn r n la tr

ts p o rmso R c e tr e eo e

e t rga

r o h se d v lp d

ts s lt n t g aa te p o u t

e t oui s o u rne

rd c

me t o e c e teOC d t s e t

es r x e d h

M aa h e.

Qu l yOv riw

e ve

• IO- 0 1

S 90

•A 92 cr ct n

S 1 0 et ai

• Qu l e Ma ua trr Ls (

ai d

n fcues it QML MI- R -

) LP F

385

•C a sQ Mitr

lay

•C a sVS a eL v l

p c ee

• Qu l e S p l r Ls o D sr uos( L )

ai d u pi s it f it b tr QS D

•R c e trsacic l u pir oD A a d

o h se i

r ia s p l t L n

me t aln u t a dD A sa d r s

es lid sr n L tn ad .

R c e tr lcrnc , L i c mmi e t

o h se Ee t is L C s o

tdo

s p ligp o u t ta s t f c so r x e t-

u pyn rd cs h t ai y u tme e p ca

t n fr u lya daee u loto eoiial

i s o q ai n r q a t h s r n l

s p l db id sr ma ua trr.

u pi

e yn ut

y n fcues

T eoiia ma ua trr d ts e t c o a yn ti d c me t e e t tep r r n e

h r n l n fcue’ aa h e a c mp n ig hs o u n r cs h ef ma c

a ds e ic t n o teR c e tr n fcue v rino ti d vc . o h se Ee t n

n p c ai s f h o h se ma ua trd eso f hs e ie R c e tr lcr -

isg aa te tep r r n eo i s mio d co p o u t t teoiia OE s e ic -

c u rne s h ef ma c ft e c n u tr rd cs o h r n l M p c a

t n .T pc lv le aefr eee c p r o e o l. eti mii m o ma i m rt g

i s ‘y ia’ au s r o rfrn e up s s ny C r n nmu

r xmu ai s

ma b b s do p o u t h rceiain d sg , i lt n o s mpetsig

y e a e n rd c c aa tr t , e in smuai , r a l e t .

z o

0 3 ohs E cr i , L . lRg s eevd 7 1 0 3

e e oc

T l r m r, l s v iw wrcl . m

o e n oe p ae it w . e c o

o ec

SNJ54ALS29826FK Related Products

	SNJ54ALS29826FK	SN54ALS29826FK	SN74ALS29826FN	SNJ54ALS29825FK	SN54ALS29825FK	SN74ALS29825FN	SNJ54ALS29825JT	SN54ALS29826JT	SNJ54ALS29826JT
Description	Bus Driver, ALS Series, 1-Func, 8-Bit, Inverted Output, TTL, CQCC28	ALS SERIES, 8-BIT DRIVER, INVERTED OUTPUT, CQCC28	Bus Driver, ALS Series, 1-Func, 8-Bit, Inverted Output, TTL, PQCC28	Bus Driver, ALS Series, 1-Func, 8-Bit, True Output, TTL, CQCC28	ALS SERIES, 8-BIT DRIVER, TRUE OUTPUT, CQCC28	Bus Driver, ALS Series, 1-Func, 8-Bit, True Output, TTL, PQCC28	Bus Driver, ALS Series, 1-Func, 8-Bit, True Output, TTL, CDIP24	ALS SERIES, 8-BIT DRIVER, INVERTED OUTPUT, CDIP24	Bus Driver, ALS Series, 1-Func, 8-Bit, Inverted Output, TTL, CDIP24
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	CLEAR AND CLOCK ENABLE; TRIPLE OUTPUT ENABLE	CLEAR AND CLOCK ENABLE; TRIPLE OUTPUT ENABLE	CLEAR AND CLOCK ENABLE; TRIPLE OUTPUT ENABLE	CLEAR AND CLOCK ENABLE; TRIPLE OUTPUT ENABLE	CLEAR AND CLOCK ENABLE; TRIPLE OUTPUT ENABLE	CLEAR AND CLOCK ENABLE; TRIPLE OUTPUT ENABLE	CLEAR AND CLOCK ENABLE; TRIPLE OUTPUT ENABLE	CLEAR AND CLOCK ENABLE; TRIPLE OUTPUT ENABLE	CLEAR AND CLOCK ENABLE; TRIPLE OUTPUT ENABLE
series	ALS	ALS	ALS	ALS	ALS	ALS	ALS	ALS	ALS
JESD-30 code	S-CQCC-N28	S-CQCC-N28	S-PQCC-J28	S-CQCC-N28	S-CQCC-N28	S-PQCC-J28	R-CDIP-T24	R-CDIP-T24	R-CDIP-T24
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0
length	11.43 mm	11.43 mm	11.5062 mm	11.43 mm	11.43 mm	11.5062 mm	32.005 mm	32.005 mm	32.005 mm
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER
Number of digits	8	8	8	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1	1	1	1
Number of ports	2	2	2	2	2	2	2	2	2
Number of terminals	28	28	28	28	28	28	24	24	24
Maximum operating temperature	125 °C	125 °C	70 °C	125 °C	125 °C	70 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-	-55 °C	-55 °C	-	-55 °C	-55 °C	-55 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	INVERTED	INVERTED	INVERTED	TRUE	TRUE	TRUE	TRUE	INVERTED	INVERTED
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN	QCCN	QCCJ	QCCN	QCCN	QCCJ	DIP	DIP	DIP
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	IN-LINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	COMMERCIAL	Not Qualified	Not Qualified	COMMERCIAL	Not Qualified	Not Qualified	COMMERCIAL	Not Qualified
Maximum seat height	2.03 mm	2.03 mm	4.57 mm	2.03 mm	2.03 mm	4.57 mm	5.08 mm	5.08 mm	5.08 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.25 V	5.5 V	5.5 V	5.25 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.75 V	4.5 V	4.5 V	4.75 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES	NO	NO	NO
technology	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	COMMERCIAL	MILITARY	MILITARY	COMMERCIAL	MILITARY	MILITARY	MILITARY
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	NO LEAD	NO LEAD	J BEND	NO LEAD	NO LEAD	J BEND	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	11.43 mm	11.43 mm	11.5062 mm	11.43 mm	11.43 mm	11.5062 mm	7.62 mm	7.62 mm	7.62 mm
Is it Rohs certified?	incompatible	-	incompatible	incompatible	-	incompatible	incompatible	-	incompatible
package instruction	QCCN,	-	QCCJ,	QCCN,	-	QCCJ,	DIP,	-	DIP,
Base Number Matches	-	1	1	1	1	1	-	-	-
