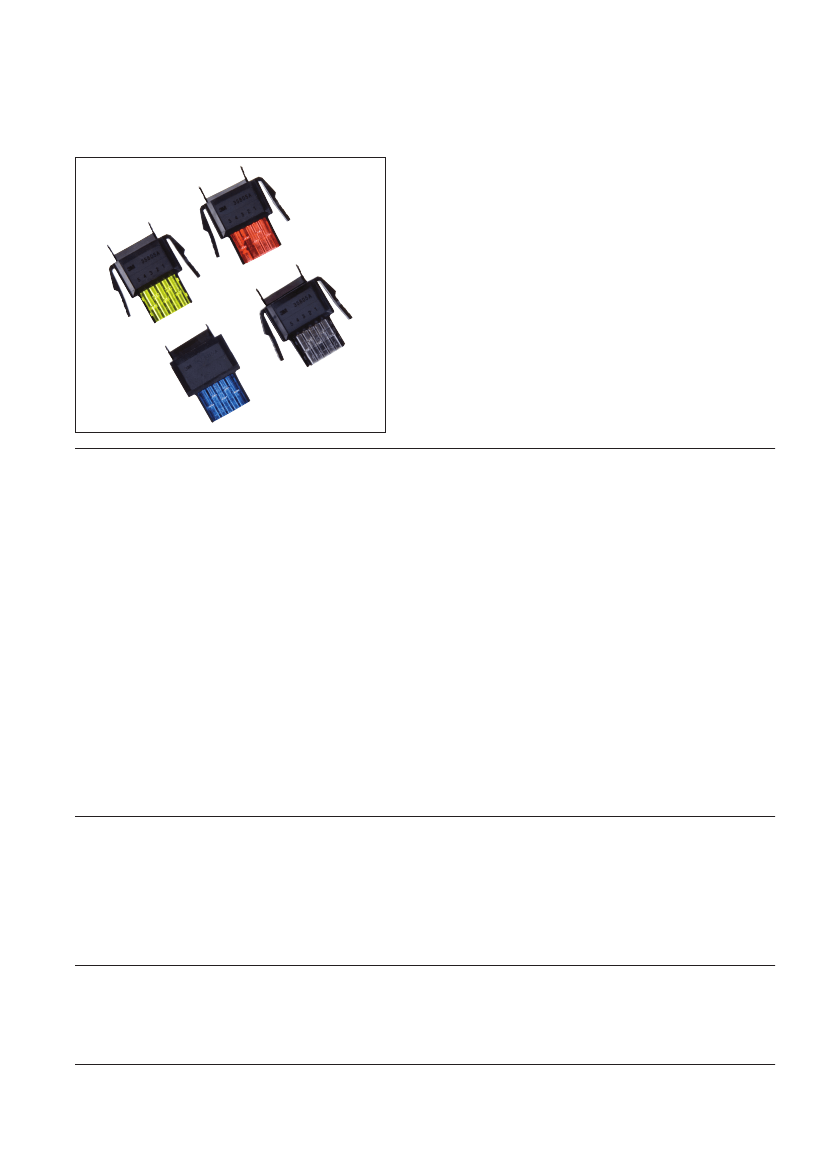

• Easy, labor saving, and reliable IDC termination
• Easy field termination with no special tooling or wire preparation
– no stripping or tinning
• Semi-Transparent color-coded covers for wire inspection and
wire retention
• CC-Link communication Interconnect Standard
• One-touch latching mechanism maintains a reliable
interconnection in demanding field applications and requires only
one hand to easily mate and unmate
• Integrated Dust Cover also provides secure locking mechanism
when mated to Wiremount Socket
• Polarization ensures proper interconnecting of mated pairs
• Quick Insertion Panel Mount option
• RoHS Compliant. See the Regulatory Information Appendix
(RIA) in the "RoHS compliance" section of www.3M.com/
Interconnects for compliance information (RIA E1 & C1 apply).
Date Modified: December 20, 2009
TS-2285-B
Sheet 1 of 3
Physical
Insulation:
Body Material: Nylon
Cover Material: Polycarbonate
Flammability: UL 94V-0
Body Color: Black
Cover Color: Clear, Yellow, Blue, Red
Contact:
Material: Copper Alloy
Plating:
Underplating: 2.5 µm Ni minimum
Wiping Area: 0.5 µm Au minimum
IDC Termination Area: 2.5 µm Au minimum
Wire Accomodation:
18 & 20 AWG: PVC, TFE, Foamed PE insulation with solid or 7 - 19 stranded Tinned or
Silver Cu.
MIL-W- 16878/5 EE, MIL-W- 16878/4 E, MIL-W- 16878/1, MIL-W- 16878/2 C
CC-Link Ver 1.10 Cables
Contact 3M for additional wire accommodations
Mating Compatability:
355, 35T Series, 35715-L010 (with same polarization)
Electrical
Current Rating:
18 AWG: 10A (1 contact); 7A (2 - 5 contacts)
20 AWG: 9A (1 contact); 6A (2 - 5 contacts)
Rating Conditions: 30° C maximum temperature rise
Voltage Rating:
250 V
Insulation Resistance:
10
3
MΩ min. at 600 V
DC
Withstanding Voltage:
1,000 V
RMS
for 1 minute
Environmental
Temperature Rating:
-20°C to +75°C ambient
UL Rating: 65° C
UL File No: E68080
3
Electronic Solutions Division
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™

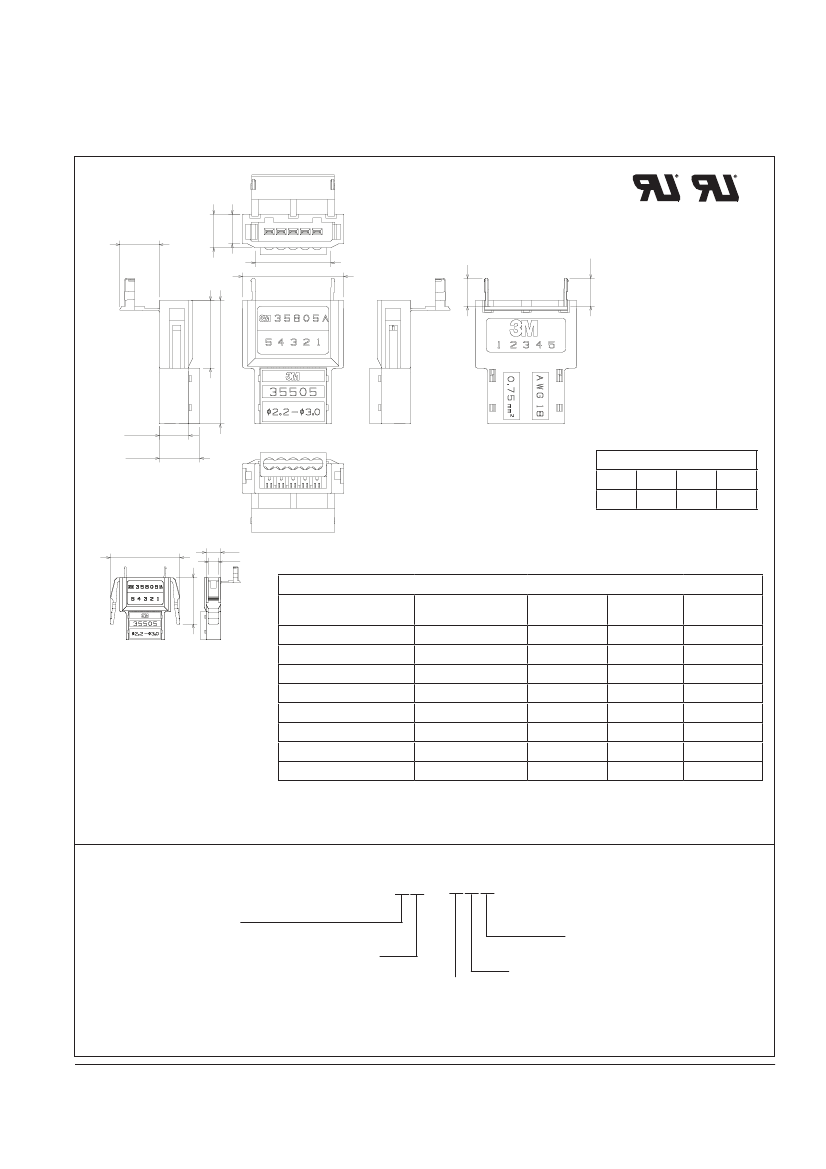

Power Clamp Wiremount Plug
3 mm, IDC, Wiremount, Panel Mount option
C
8.4
7.4
358 Series
9.9
19.0
25.4
7.0
7.0
17.0
31.0
7.4
mm
[Inch]
Tolerance Unless Noted
0
mm
±1
.0
±..3
.00
±.13
10.2
[ ] Dimensions for Reference Only
Panel Mount type
35.0
7.4
5.2
Available Part Numbers
3M Part Number
35805-6080-A00 GF
35805-6080-AP0 GF
35805-6180-A00 GF
35805-6180-AP0 GF
35805-6200-A00 GF
35805-6200-AP0 GF
35805-6000-B0M GF*
35805-6000-BPM GF*
Outside Diameter
Range of Wire
2.2 - 3.0 mm
2.2 - 3.0 mm
2.0 - 2.3 mm
2.0 - 2.3 mm
1.6 - 2.0 mm
1.6 - 2.0 mm
2.2 - 3.0 mm
2.2 - 3.0 mm
Wire Guage
18 AWG
18 AWG
18 AWG
18 AWG
20 AWG
20 AWG
20 AWG
20 AWG
Cover Color
Clear
Clear
Blue
Blue
Yellow
Yellow
Red
Red
Panel Mount
No
Yes
No
Yes
No
Yes
No
Yes
23.2
* 35805-6000-BXM GF connects communication cable with 3 discrete and 1 drain wire.
Twist drain wire 7 or more times to tighten strands and insert into wire position #5.
Ordering Information
35805 - 6XX0 - XXX - GF
Wire Outside Diameter:
0: 2.2 – 3.0 mm
1: 2.0 – 2.3 mm
2: 1.6 – 2.0 mm
Wire Size:
0: 20 AWG
8: 18 AWG
(RIA E1 and C1 Apply)
Option:
0: 3M Original
M: Drain Wire
Polarizing Key:
A: Type A (wide)
B: Type B (narrow)
Mounting Type:
0: Standard
P: Panel Mount
TS-2285-B
Sheet 2 of 3
3
Electronic Solutions Division
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Power Clamp Wiremount Plug
3 mm, IDC, Wiremount, Panel Mount option

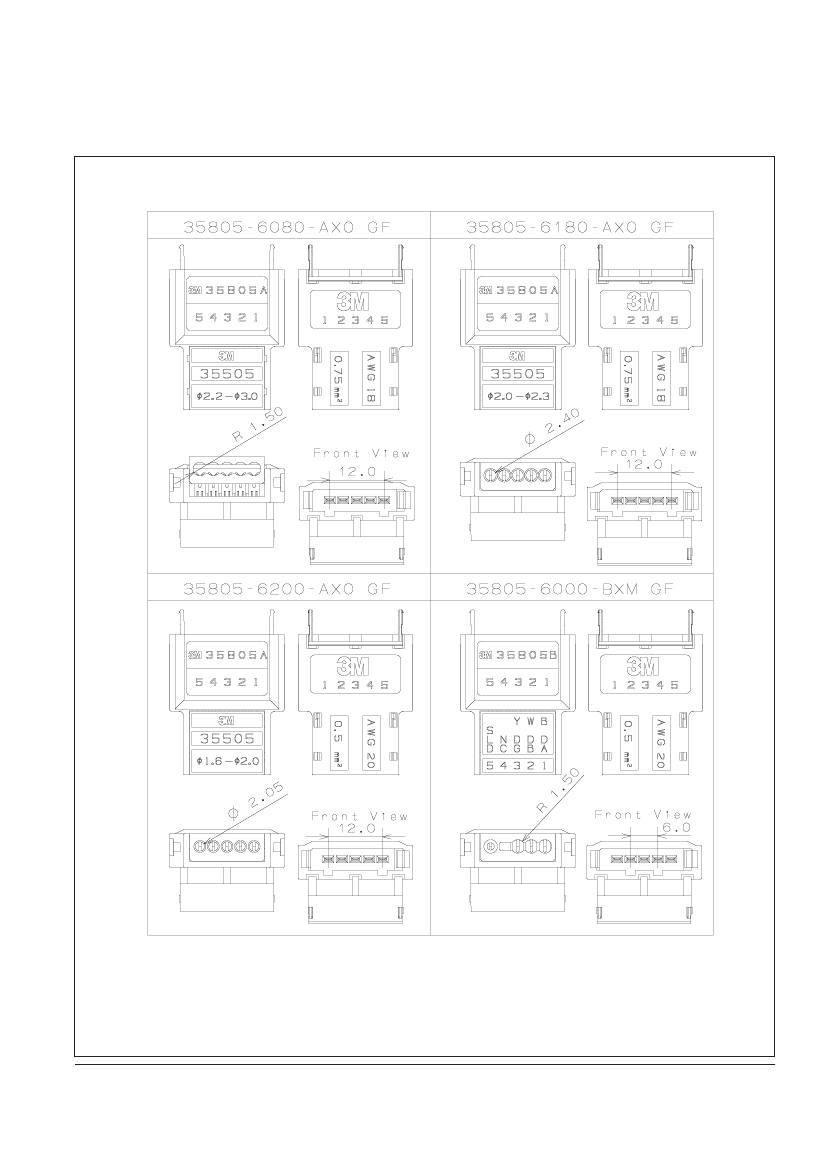

358 Series
TS-2285-B
Sheet 3 of 3
3
Electronic Solutions Division
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
Important Notice
All statements, technical information, and recommendations related to 3M’s products are based on information believed to be reliable, but the accuracy or completeness
is not guaranteed. Before using this product, you must evaluate it and determine if it is suitable for your intended application. You assume all risks and liability associated
with such use. Any statements related to the product which are not contained in 3M’s current publications, or any contrary statements contained on your purchase order
shall have no force or effect unless expressly agreed upon, in writing, by an authorized officer of 3M.
Warranty; Limited Remedy; Limited Liability.
This product will be free from defects in material and manufacture for a period of one (1) year from the time of purchase.
3M MAKES NO OTHER WARRANTIES
INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
If this product is defective within the
warranty period stated above, your exclusive remedy shall be, at 3M’s option, to replace or repair the 3M product or refund the purchase price of the 3M product.
Except
where prohibited by law, 3M will not be liable for any indirect, special, incidental or consequential loss or damage arising from this 3M product, regardless of
