HM2P88PDE120Z1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> HM2P88PDE120Z1

HM2P88PDE120Z1: DescriptionBoard Connector, 200 Contact(s), 8 Row(s), Male, Straight, Press Fit Terminal; CategoryThe connector The connector; File Size163KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

HM2P88PDE120Z1 Overview

Board Connector, 200 Contact(s), 8 Row(s), Male, Straight, Press Fit Terminal

HM2P88PDE120Z1 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	TIN LEAD
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	HM2
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	8
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	200
UL Flammability Code	94V-0

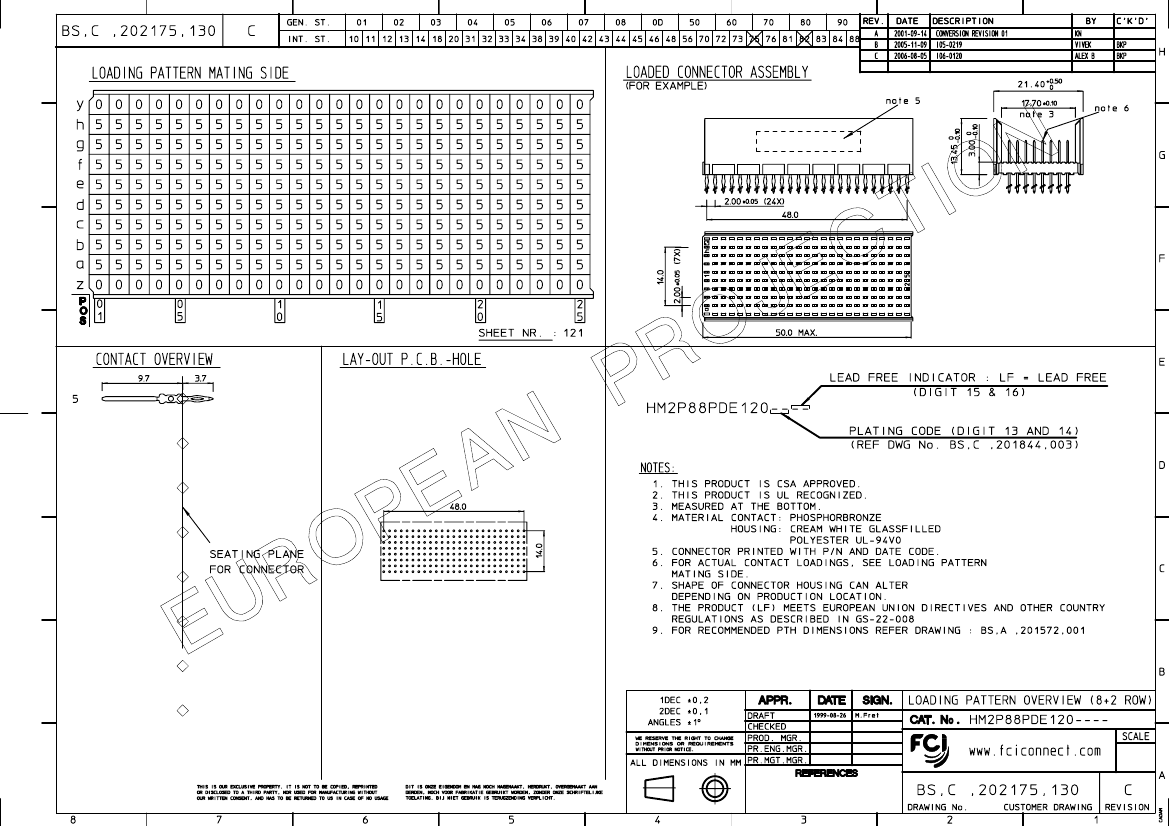

Preview

Download Datasheet

View All

PDM: Rev:C

STATUS:

Released

Printed: Dec 02, 2007

HM2P88PDE120Z1 Related Products

	HM2P88PDE120Z1	HM2P88PDE120N9	HM2P88PDE120N9LF	HM2P88PDE120E9LF	HM2P88PDE120E9	HM2P88PDE120Z1LF
Description	Board Connector, 200 Contact(s), 8 Row(s), Male, Straight, Press Fit Terminal	MPAC 8R ST PF HDR	MPAC 8R ST PF HDR	Board Connector, 200 Contact(s), 8 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE	Board Connector, 200 Contact(s), 8 Row(s), Male, Straight, Press Fit Terminal	Board Connector, 200 Contact(s), 8 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	8	8	8	8	8	8
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	200	200	200	200	200	200
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Contact completed and terminated	TIN LEAD	TIN LEAD	-	MATTE TIN	TIN LEAD	MATTE TIN
JESD-609 code	e0	e0	-	e3	e0	e3
Manufacturer's serial number	HM2	HM2	-	HM2	HM2	HM2
