GBPC25005W
THRU
GBPC2510W
Technical Data
Data Sheet N1783, Rev. A
GBPC25005W THRU GBPC2510W
SINGLE PHASE 25 AMP GLASS PASSIVATED BRIDGE RECTIFIER
Features
Glass passivated die construction
Low forward voltage drop
High current capability
High surge current capability
Plastic material-UL flammability 94V-0
This is a Pb − Free Device
All SMC parts are traceable to the wafer lot
Additional testing can be offered upon request

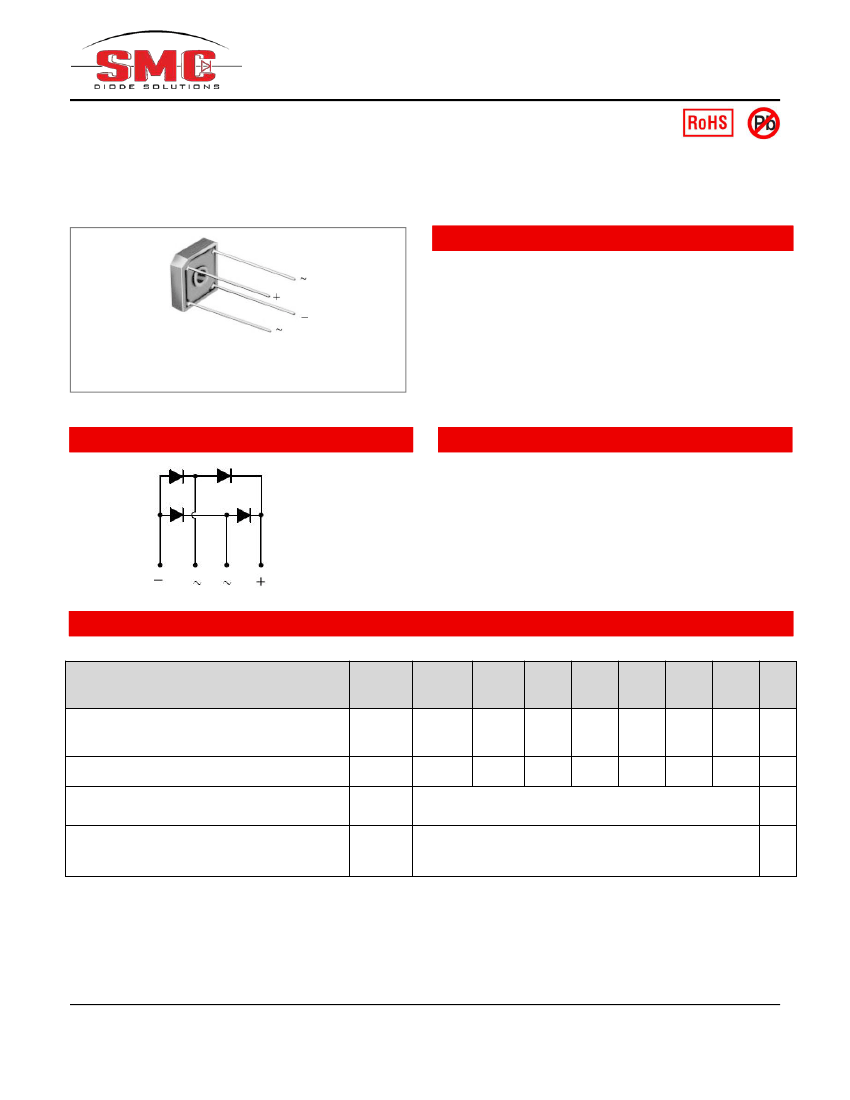

GBPC-W
Circuit Diagram
Mechanical Data
Case: GBPC-W, molded plastic
Terminals: plated leads solderable per MIL-STD-202,
Method 208
Polarity: as marked on case
Mounting position: Any
Lead Free: For RoHS / Lead Free Version
Single Phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%.
Type number
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Average Rectified Output Current (Note 1)
@ T
A
=55℃
Peak forward surge current 8.3ms single half
sine-wave superimposed on rated load (JEDEC
Method)
Symbol
V
RRM
V
RMS
I
o
I
FSM
GBPC
25005W
GBPC
2501W
GBPC
2502W
GBPC
2504W
GBPC
2506W
GBPC
2508W
GBPC
Units
2510W
Maximum Ratings:
@T
A
=25°C unless otherwise specified
50
35
100
70
200
140
400
280
25
300
600
420
800
560
1000
700
V
V
A
A
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
GBPC25005W
THRU
GBPC2510W
Technical Data
Data Sheet N1783, Rev. A
Electrical Characteristics:
@T
A
=25°C unless otherwise specified
Type number
Forward Voltage per element @I
F
=12.5A
Peak Reverse Current @T
A
=25℃
At Rated DC Blocking Voltage @T
A
=125℃
Typical Junction Capacitance (Note 2)
* Pulse width < 300 µs, duty cycle < 2%
Symbol
V
F
I
R
C
J
GBPC
25005W
GBPC
2501W
GBPC
2502W
GBPC
2504W
GBPC
2506W
GBPC
2508W
GBPC
Units
2510W
1.1
5
500
300
V
µA
pF
Thermal-Mechanical Specifications:
@T
A
=25°C unless otherwise specified
Type number
Typical Thermal Resistance Junction to Lead
Junction Temperature
Storage Temperature Range
Symbol
R
θJL
T
J
T
STG
GBPC
25005W
GBPC
2501W
GBPC
2502W
GBPC
2504W
GBPC
2506W
GBPC
2508W
GBPC
Units
2510W
2.2
-55 to +150
-55 to +150
°C
°C
Note: 1. Mounted on glass epoxy PC board with 1.3mm
2
solder pad.
2.Measured at 1.0 MHz and applied reverse voltage of 4.0V D.C.

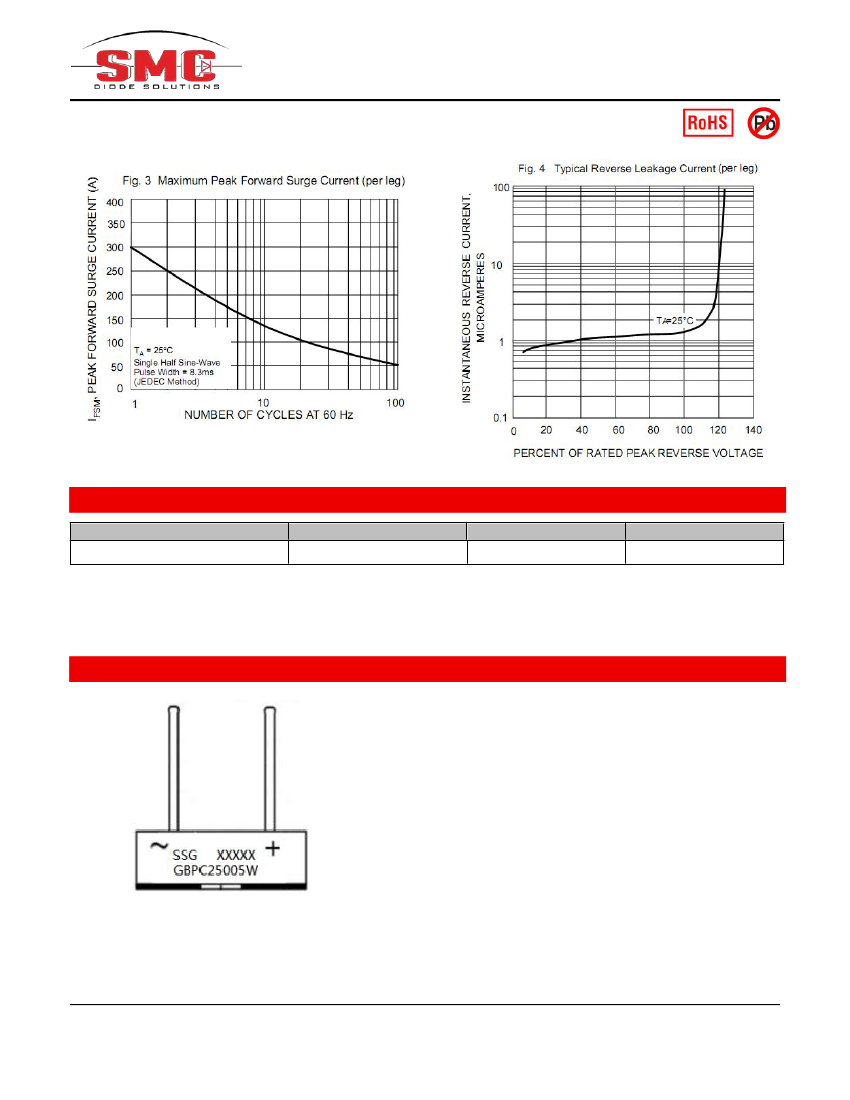

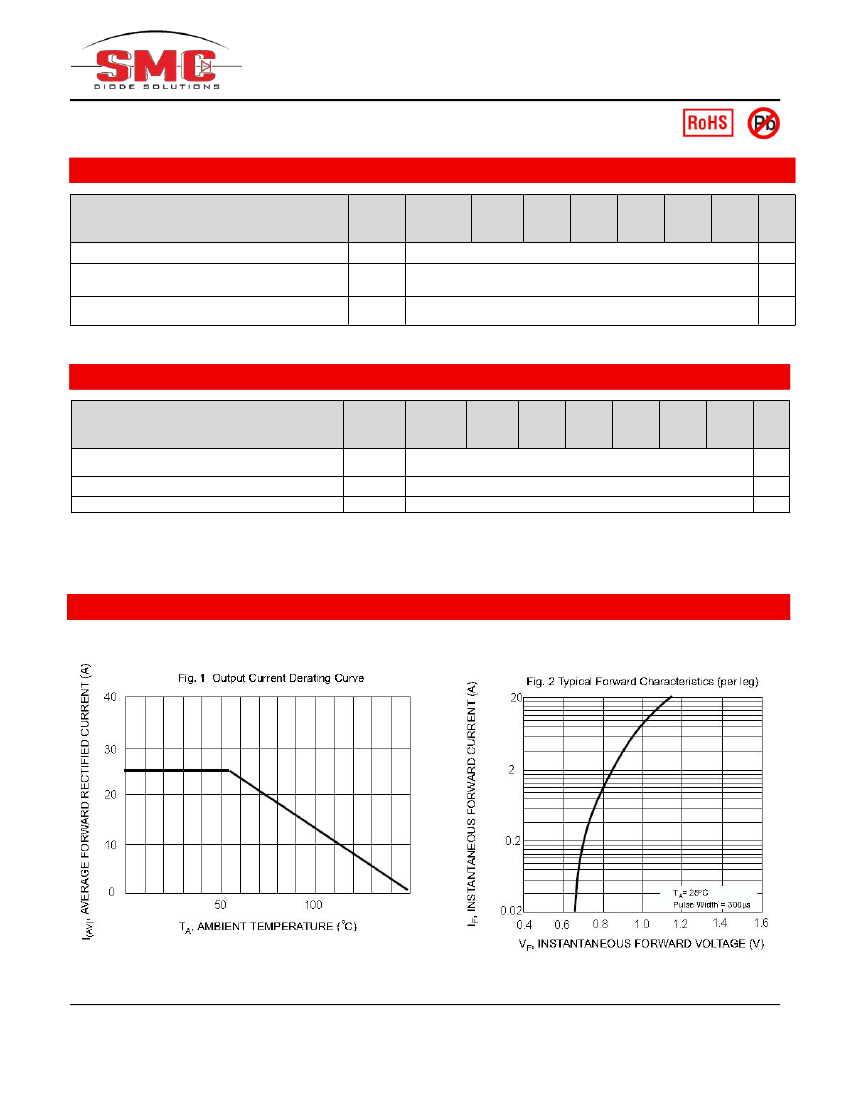

Ratings and Characteristics Curves
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
GBPC25005W
THRU
GBPC2510W
Technical Data
Data Sheet N1783, Rev. A
Ordering Information
Device
GBPC25005W-GBPC2510W
Package
GBPC-W(Pb-Free)
Plating
Pure Sn
Shipping
50pcs / box
For information on tape and reel specifications, including part orientation and tape sizes, please refer to our tape and reel packaging
specification.
Marking Diagram
Where XXXXX is YYWWL
SSG
YY
WW
L
GBPC25005W
= SSG
= Year
= Week
= Lot Number
= Type Number
Cautions：Molding
resin
Epoxy resin UL:94V-0
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
GBPC25005W
THRU
GBPC2510W
Technical Data
Data Sheet N1783, Rev. A

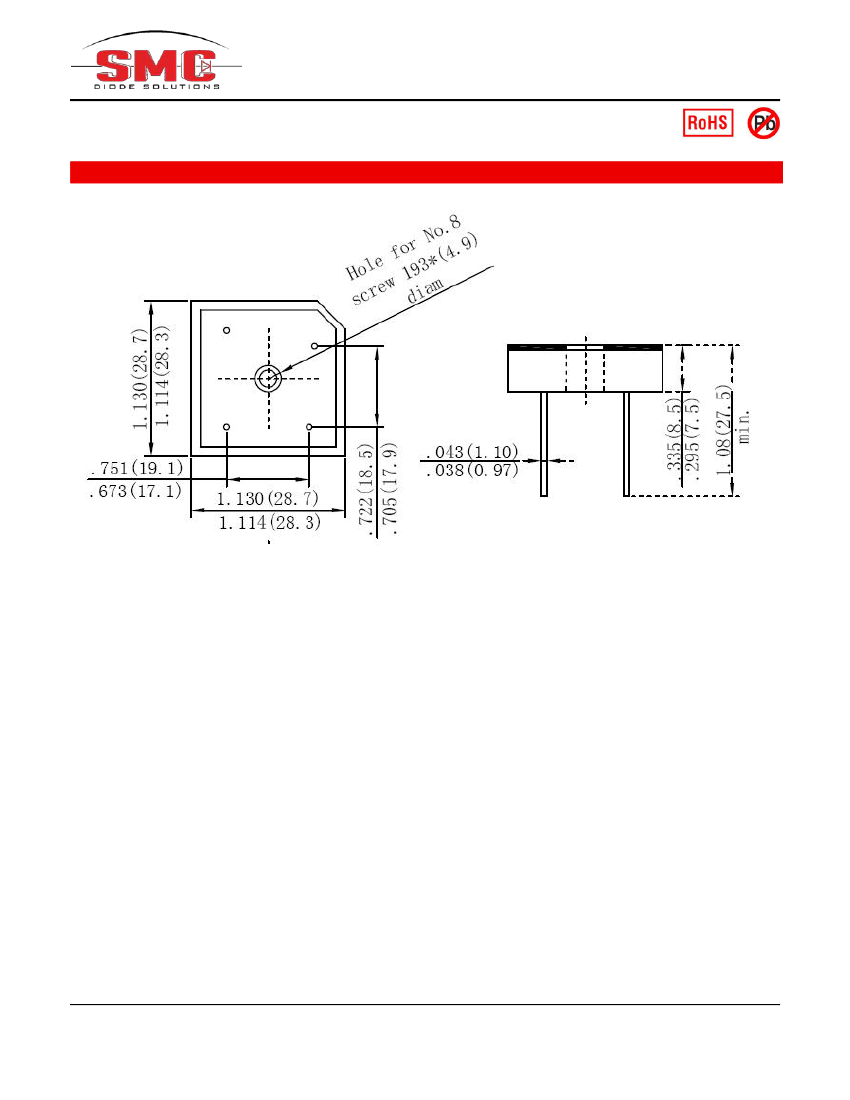

Mechanical Dimensions GBPC-W (Inches/Millimeters)
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
GBPC25005W
THRU
GBPC2510W
Technical Data
Data Sheet N1783, Rev. A
