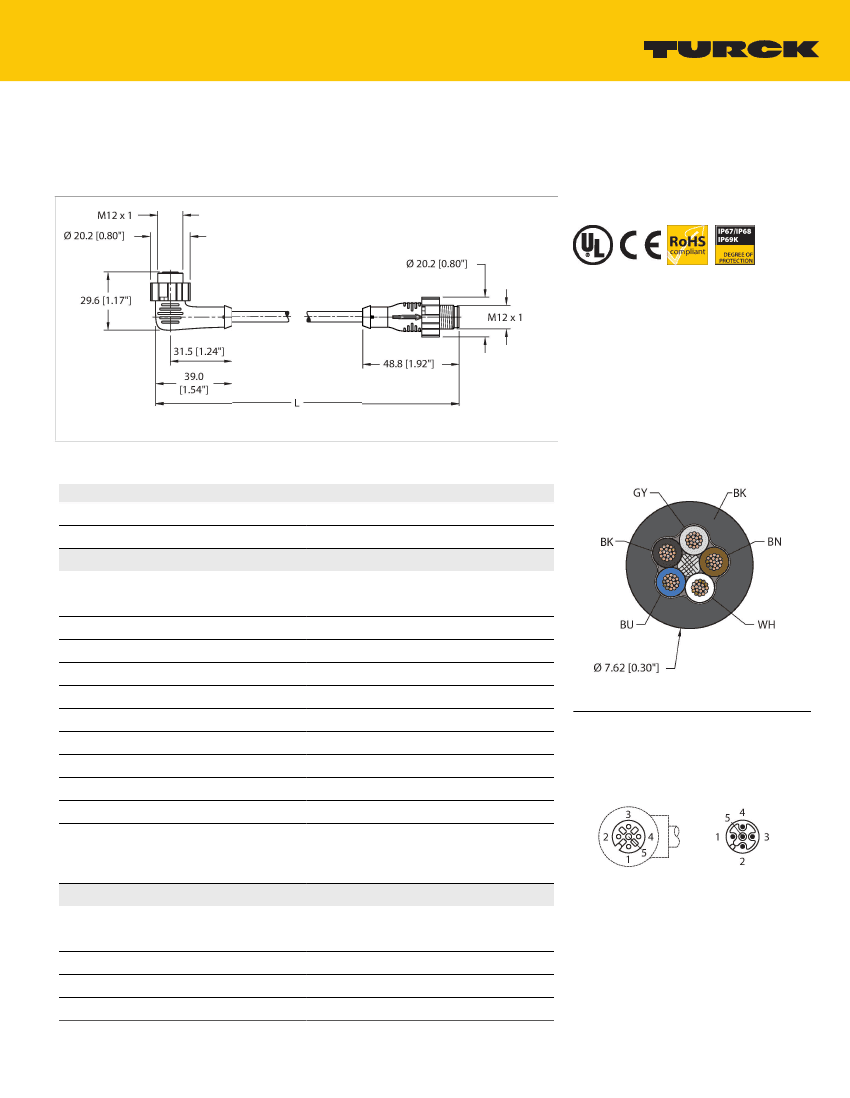

EKWT-ESRT-A5.500-GC8K-x
Actuator and Sensor Cable – Extension Cable
Features
■
M12, Female, Right angle, 5-pin, Torque sleeve
■
M12, Male, Straight, 5-pin, Torque sleeve
■
IP67, IP68, IP69K
■
Black PVC Jacket
■
Sunlight Resistant
■
-40C Cold Bend
■
Oil Resistant
■
FT4 Flame Rating
■
Flexlife® & C-Track Approved
Cable cross section
Technical data
Type
Ident. no.
Replaces
Connector A
Design specification
Number of contacts
Contacts
Contact carriers
Connector body
Coupling nut
Seal
Mechanical life
Pollution degree
Protection class
Torque sleeve
Tightening torque (range)
Connector B
Design specification
Number of contacts
Contacts
Contact carriers
Connector body
EKWT-ESRT-A5.500-GC8K-x
777043101
RKC 4.5T-x-RSC 4.5T
Female, M12 × 1, Right angle, A-code
Acc. to IEC 61076-2-101
5
Bronze, CuSn, Gold-plated
Plastic, TPU, Black
Brass, CuZn, Nickel-plated
Plastic, FKM/FPM
> 100
3
When coupled - IP67, IP68, IP69K
NEMA: 1, 3, 4, 6P, 12
Plastic, PA, Yellow
0.4 … 1 Nm
(note max. torque of mating connector!)
Male, M12 × 1, Straight, A-code
Acc. to IEC 61076-2-101
5
Bronze, CuSn, Gold-plated
Plastic, TPU, Black
Plastic, TPU, Black
EKWT-ESRT-A5.500-GC8K-x| 04/24/2019 02-27 | technical changes reserved
1|3
Plastic, TPU, Black
Contact assignment
Connector A
Connector B
TURCK Inc. | 3000 Campus Drive Minneapolis, MN 55441-2656 | Phone: 763-553-7300 | Application Support: 1-800-544-7769 | Fax 763-553-0708 | www.turck.com
Technical data
Coupling nut
Mechanical lifespan
Pollution degree
Protection class
Torque sleeve
Tightening torque
Cable data
Cable diameter
Cable jacket
Conductor diameter
Conductor material
Conductor insulation material
Cable conductor cross-section
Number of strands x O.D.
Conductor colors
Electrical properties at +20 °C
Rated voltage
Current
Mechanical and chemical properties
Bending radius (static)
Bending radius (dynamic)
Cold bend rating
Flex rating 20 x Ø
Brass, CuZn, Nickel-plated
> 100 Mating cycles
3
When coupled - IP67, IP68, IP69K
NEMA: 1, 3, 4, 6P, 12
Plastic, PA, Yellow
0.4 … 1 Nm
(note max. torque of mating connector!)
Ø 7.62 mm
PVC, Black
0.076 "
TC (Tinned Copper)
PVC
5 x 18 AWG [Similar to 0.75 mm
2
]
19 x 0.0092 "
BN, WH, BU, BK, GY
300 V
DC
/250 V
AC
5 A
≥ 5 x Ø
≥ 10 x Ø
10 million cycles*
*When properly installed @ 20°C, 50%RH, and
a cycle speed of ≤0.5 cycles per second.
C-Track
Temperature range (static)
Temperature range (dynamic)
Temperature range (installation)
Approval
Approvals
Yes
-40 °C…+105 °C
-40 °C…+105 °C
-20 °C…+105 °C
UL 2238
RoHS
CE
- Flex ratings may be reduced if used in
extreme temperatures, exposure to certain
chemicals, operating above the rated cycle
speed, or operating below the rated cable
bend radius.
EKWT-ESRT-A5.500-GC8K-x| 04/24/2019 02-27 | technical changes reserved
2|3
Diagram
-40 °C
Note
TURCK Inc. | 3000 Campus Drive Minneapolis, MN 55441-2656 | Phone: 763-553-7300 | Application Support: 1-800-544-7769 | Fax 763-553-0708 | www.turck.com
Technical data
- We reserve the right to make technical
alterations without prior notice.
Accessories
M12-TORQUE-
A900167
SLEEVE,YELLOW(10Pack)
Torque sleeve, yellow, 10 per package
TORQUE-WRENCH- A900152
SET-M12
Torque wrench set; grip with adjustable
torque 0.4 to 1.0 Nm; torque wrench set,
fork fork wrench for M12
TURCK Inc. | 3000 Campus Drive Minneapolis, MN 55441-2656 | Phone: 763-553-7300 | Application Support: 1-800-544-7769 | Fax 763-553-0708 | www.turck.com
3|3
EKWT-ESRT-A5.500-GC8K-x| 04/24/2019 02-27 | technical changes reserved
