5500.2069

Description
AC Filter 2-Stage, Broad Band Attenuation
CategoryAnalog mixed-signal IC    filter
File Size338KB,4 Pages
ManufacturerSCHURTER
Websitehttp://www.schurterinc.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

5500.2069 Overview

AC Filter 2-Stage, Broad Band Attenuation

5500.2069 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
package instructionROHS COMPLIANT PACKAGE
Reach Compliance Codecompli
Factory Lead Time10 weeks 3 days
Other featuresINDUCTANCE 5 MILLIHENRY
CertificationUL; CUL; VDE; IEC; ENEC-10
filter typeSINGLE PHASE EMI FILTER
high58 mm
high potential2700 V
Maximum leakage current3.5 mA
length100 mm
Installation typePANEL MOUNT
working frequency50Hz Hz
Maximum operating temperature100 °C
Minimum operating temperature-25 °C
physical sizeL100.0XB86.0XH58.0 (mm)/L3.937XB3.386XH2.283 (inch)
Rated current12 A
Rated voltage250 V
Terminal surfaceTIN COPPER/TIN
width86 mm
Base Number Matches1
1-Phase Line Filters
https://www.schurter.com /PG84

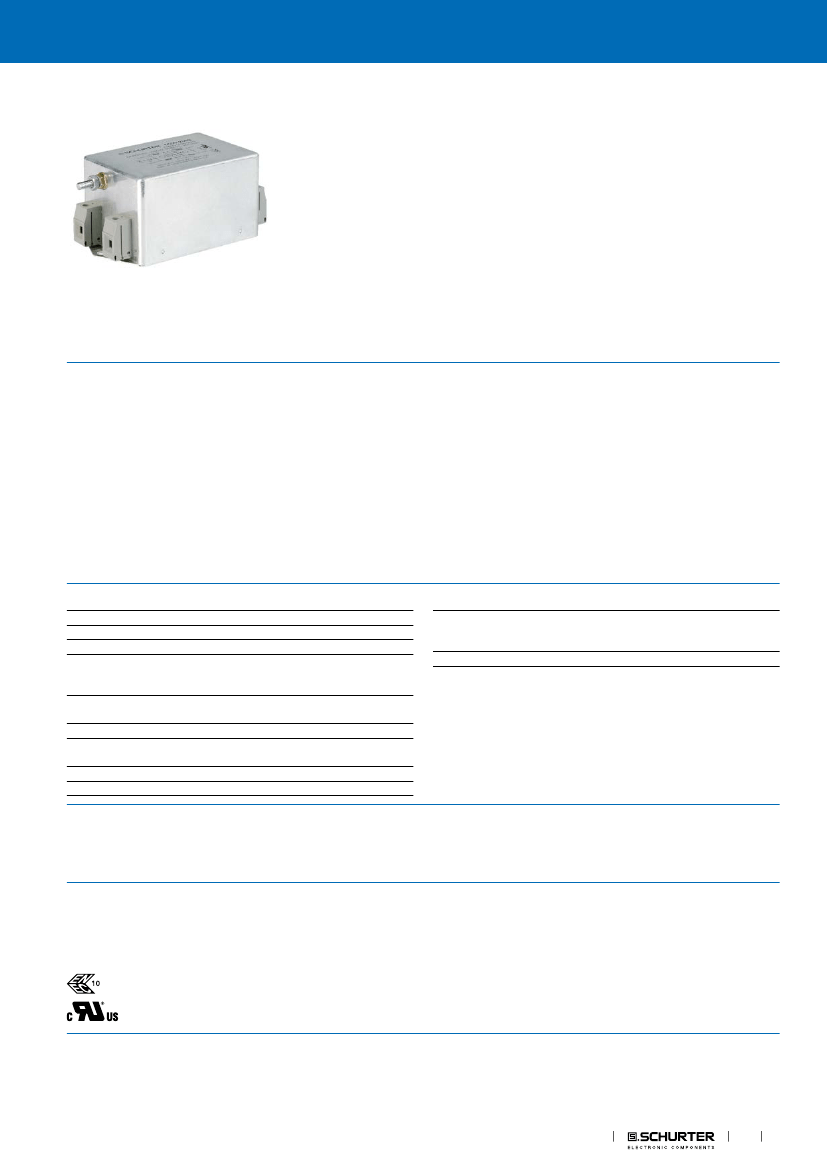

FMBB
AC Filter 2-Stage, Broad Band Attenuation
Approvals and Compliances
Description
- Line-filter in standard version
- 2 positions
- very high attenuation
Characteristics
- Designed for high current applications
- Protection against interference voltage from the mains
Possible interferences generated in the equipment are strongly attenu-
ated
- Especially designed for industrial applications such as: Frequency Con-
verters, Stepper Motor Drives, UPS-Systems, Inverters
- Suitable for use in equipment according to IEC/UL 60950
Other versions on request
- Version with wire connection
References
Weblinks
Alternative: Standard version
pdf datasheet, html-datasheet, General Product Information, Distributor-
Stock-Check, Detailed request for product, Microsite

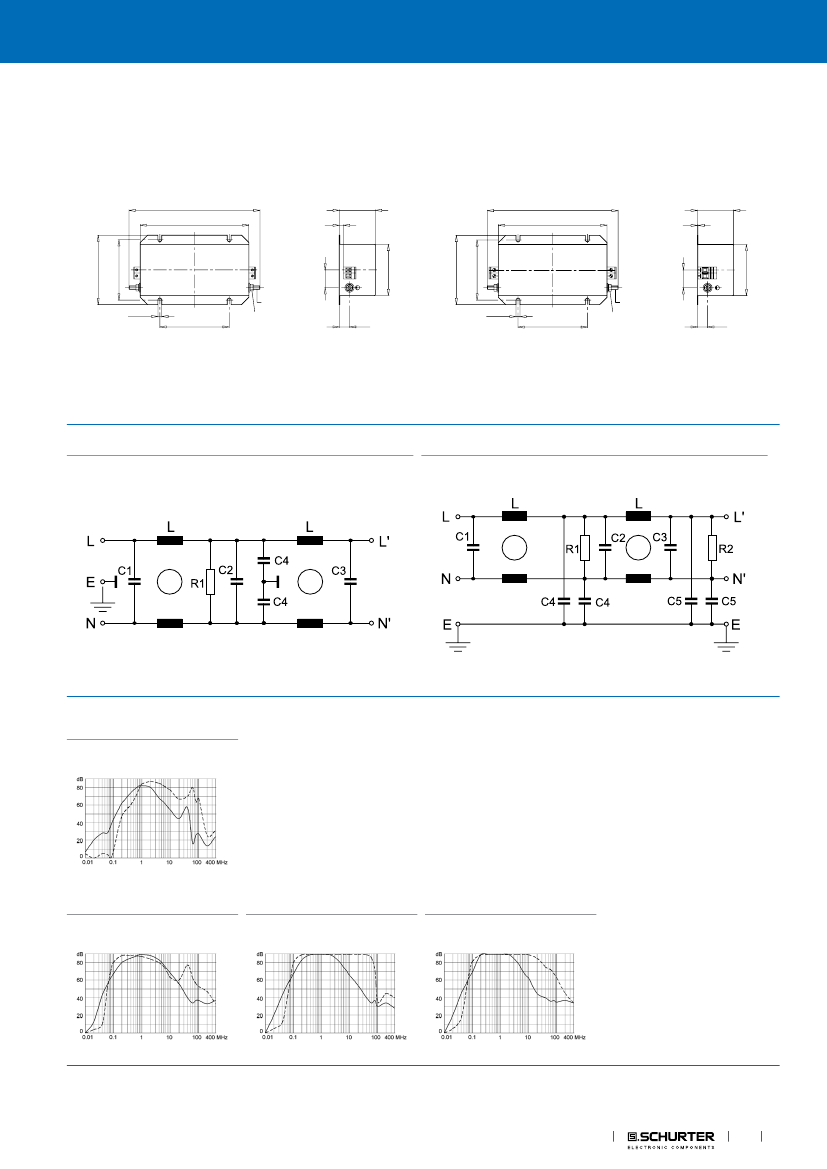

Technical Data
Ratings IEC
Ratings UL/CSA
Leakage Current
Dielectric Strength
8 - 25 A @ Ta 40 °C / 250 VAC; 50 Hz
8 - 25 A @ Ta 40 °C / 125 VAC; 60 Hz
industrial < 3.5 mA ( V / 60 Hz)
> 1.7 kVDC between L-N
> 2.7 kVDC between L/N-PE
Test voltage (2 sec)
-25 °C to 100 °C
25/100/21 acc. to IEC 60068-1
Suitable for appliances with protection
class I acc. to IEC 61140
Screw
Metal
Line Filter
Standard and Industrial Version, IEC
60939, UL 1283, CSA C22.2 no. 8
Technical Details
> 200'000 h acc. to MIL-HB-217 F
MTBF
Allowable Operation Tempe-
rature
Climatic Category
Protection Class
Terminal
Material: Housing
Approvals and Compliances
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about
Approvals
Approvals
The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.
Approval Reference Type: FMBB
Approval Logo
Certificates
VDE Approvals
UL Approvals
Certification Body
VDE
UL
Description
Certificate Number: 40004673
UL File Number: E72928
EMC Products
1

5500.2069 Related Products

5500.2069 PE423641MLAA-Z 5500.2070 5500.2071 FMBB
Description AC Filter 2-Stage, Broad Band Attenuation UltraCMOS SP4T RF Switch 50–3000 MHz AC Filter 2-Stage, Broad Band Attenuation AC Filter 2-Stage, Broad Band Attenuation AC Filter 2-Stage, Broad Band Attenuation
Is it lead-free? Lead free - Lead free Lead free -
Is it Rohs certified? conform to - conform to conform to -
Reach Compliance Code compli - compli compliant -
Factory Lead Time 10 weeks 3 days - 10 weeks 3 days 10 weeks 3 days -
Other features INDUCTANCE 5 MILLIHENRY - INDUCTANCE 3.5 MILLIHENRY INDUCTANCE 3.5 MILLIHENRY -
Certification UL; CUL; VDE; IEC; ENEC-10 - UL; CUL; VDE; IEC; ENEC-10 UL; CUL; VDE; IEC; ENEC-10 -
filter type SINGLE PHASE EMI FILTER - SINGLE PHASE EMI FILTER SINGLE PHASE EMI FILTER -
high 58 mm - 61 mm 61 mm -
high potential 2700 V - 2700 V 2700 V -
Maximum leakage current 3.5 mA - 3.5 mA 3.5 mA -
length 100 mm - 181 mm 181 mm -
Installation type PANEL MOUNT - PANEL MOUNT PANEL MOUNT -
working frequency 50Hz Hz - 50 Hz 50Hz Hz -
Maximum operating temperature 100 °C - 100 °C 100 °C -
Minimum operating temperature -25 °C - -25 °C -25 °C -
physical size L100.0XB86.0XH58.0 (mm)/L3.937XB3.386XH2.283 (inch) - L181.0XB86.0XH61.0 (mm)/L7.126XB3.386XH2.402 (inch) L181.0XB86.0XH61.0 (mm)/L7.126XB3.386XH2.402 (inch) -
Rated current 12 A - 16 A 25 A -
Rated voltage 250 V - 250 V 250 V -
Terminal surface TIN COPPER/TIN - TIN COPPER/TIN TIN COPPER/TIN -
width 86 mm - 86 mm 86 mm -
Base Number Matches 1 - 1 1 -
