1-Phase AC Filters / DC Filters
https://www.schurter.com /PG84
FMW-41

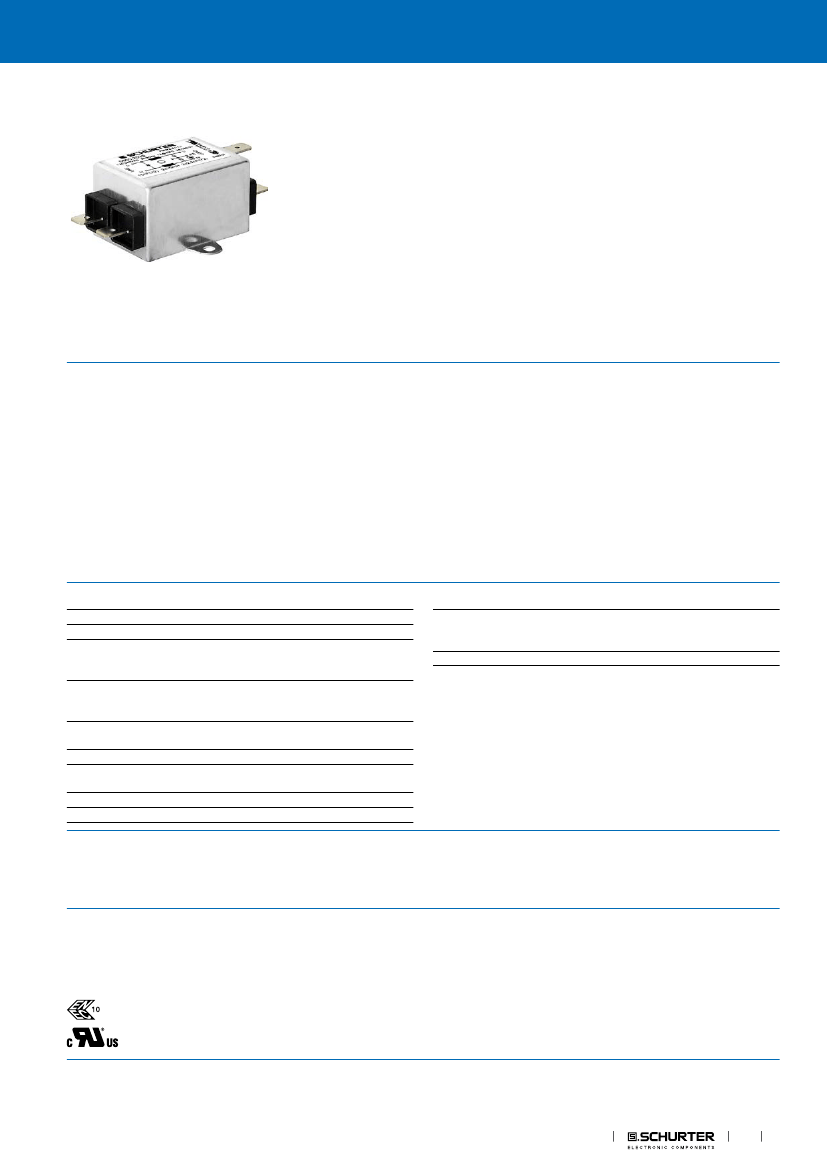

AC Filter
Approvals and Compliances
Description
- Line filter in standard and medical version
- 1-stage
- standard attenuation
Characteristics
- Designed for standard applications
- Protection against interference voltage from the mains
Possible interferences generated in the equipment are strongly attenu-
ated
- Universal line filter for standard applications
- Suitable for use in equipment according to IEC/UL 60950
Other versions on request
References
Weblinks
- Version with wire connection
- Version with varistor for overvoltage protection
Alternative: Standard version
pdf datasheet, html-datasheet, General Product Information, Distributor-
Stock-Check, Detailed request for product, Microsite
Technical Data
Ratings IEC
Ratings UL/CSA
Leakage Current
1 - 10 A @ Ta 40 °C / 250 VAC; 50 Hz
1 - 10 A @ Ta 40 °C / 125 VAC; 60 Hz
standard < 0.25 mA (250 V / 60 Hz)
medical (M5) < 5 µA resp. (M80) < 80
µA (250 V / 60 Hz)
1.7 kVDC between L-N
2.7 kVDC between L/N-PE
Test voltage (2 sec)
-25 °C to 100 °C
25/100/21 acc. to IEC 60068-1
Suitable for appliances with protection
class I acc. to IEC 61140
Quick connect terminals 6.3 x 0.8 mm
Aluminum
Line Filter
Standard and Medical Version, IEC
60939, UL 1283, CSA C22.2 no. 8
Technical Details
> 200'000 h acc. to MIL-HB-217 F
MTBF
Dielectric Strength
Allowable Operation Tempe-
rature
Climatic Category
Protection Class
Terminal
Material: Housing
Approvals and Compliances
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about
Approvals
Approvals
The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.
Approval Reference Type: FMW
Approval Logo
Certificates
VDE Approvals
UL Approvals
Certification Body
VDE
UL
Description
Certificate Number: 40004673
UL File Number: E72928
EMC Products
1
FMW-41
Product standards
Product standards that are referenced
Organization
Design
Designed according to
Designed according to
Designed according to
Designed according to
Designed according to
Designed according to
Standard
IEC 60320-1
IEC 60939
UL 498
UL 1283
CSA C22.2 no. 42
CSA C22.2 no. 8
Description
1-Phase AC Filters / DC Filters
https://www.schurter.com /PG84
Appliance couplers for household and similar general purposes
Passive filters for suppressing electromagnetic interference
Standard for Attachment Plugs and Receptacles
Electromagnetic interference filters
General Use Receptacles, Attachment Plugs, and Similar Wiring Devices
Electromagnetic interference (EMI) filters
Application standards
Application standards where the product can be used
Organization
Design
Designed for applications acc.
Designed for applications acc.
Standard
IEC/UL 60950
IEC 60601-1
Description
IEC 60950-1 includes the basic requirements for the safety of information
technologyequipment.
Medical electrical equipment - Part 1: General requirements for basic
safety and essential performance
Compliances
The product complies with following Guide Lines
Identification
Details
CE declaration of conformity
Initiator
SCHURTER AG
Description
The CE marking declares that the product complies with the applicable
requirements laid down in the harmonisation of Community legislation on
its affixing in accordance with EU Regulation 765/2008.
EU Directive RoHS 2011/65/EU
The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March
2007. It is similar to the EU directive RoHS.
On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration,
Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as
"REACH") entered into force.
Suitable for use in medical equipment according to IEC/UL 60601-1
RoHS
China RoHS
REACH
SCHURTER AG
SCHURTER AG
SCHURTER AG
Medical Equipment
SCHURTER AG
Dimension [mm]
Case 41
25 max.
(22)
6.3x0.8
67 max.
42 max.
29 max.
46max.
(9.5)
3.6
1) Line
2) Load
2
EMC Products
37
±0.3
(13)
1)
2)
1-Phase AC Filters / DC Filters
https://www.schurter.com /PG84
FMW-41

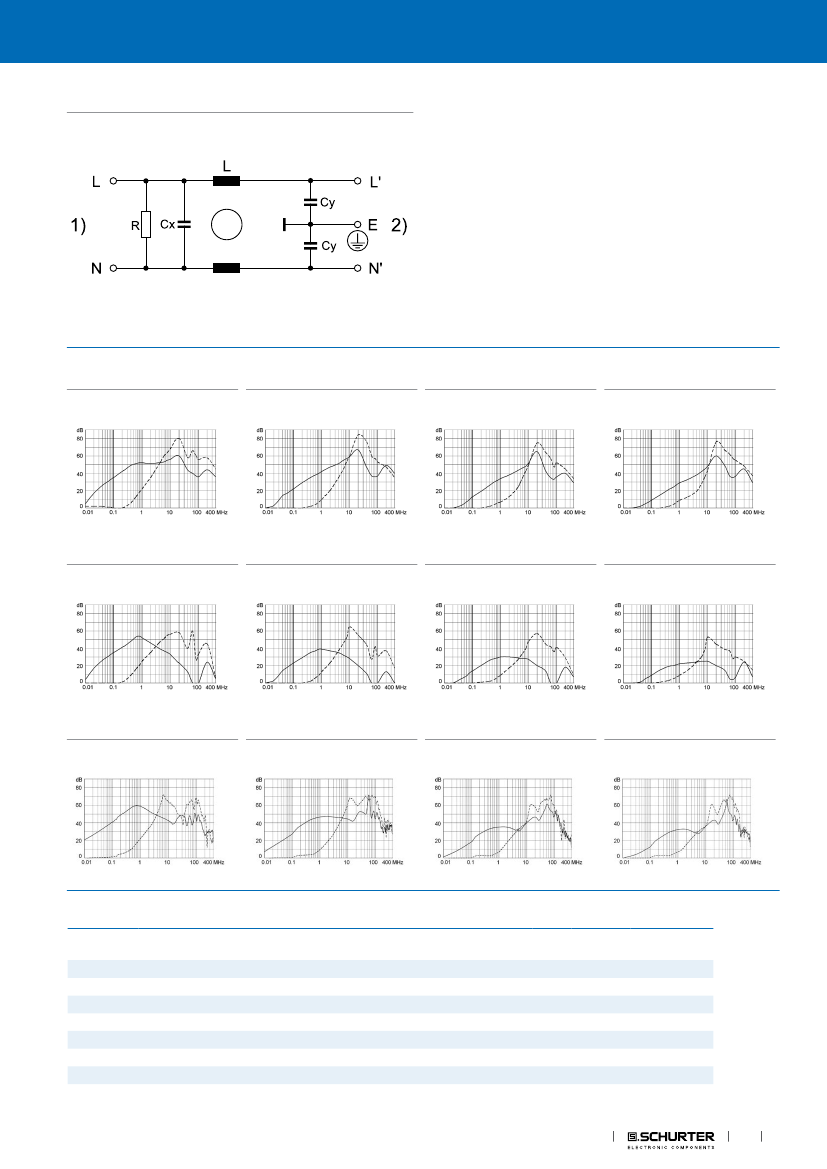

Diagrams
R and Cy according to version, see variants
1) Line, 2) Load
Attenuation Loss
Standard version
- - - - 50Ω differential mode _____ 50Ω common mode
1A
3A
6A
10 A
Medical version (M5)
1A
3A
6A
10 A
Medical version (M80)
1A
3A
6A
10 A
All Variants
Rated Current
[A]
1
3
6
10
1
3
6
10
Filter-Type
Standard Version
Standard Version
Standard Version
Standard Version
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Leakage Cur-
rent [mA]
0.25
0.25
0.25
0.25
0.005
0.005
0.005
0.005
L [mH]
2 x 10
2x2
2 x 0.8
2 x 0.4
2 x 10
2x2
2 x 0.8
2 x 0.4
Cx [nF]
15
15
15
15
15
15
15
15
Cy [nF]
2.2
2.2
2.2
2.2
-
-
-
-
R [MΩ]
-
-
-
-
1
1
1
1
Weight [g]
55 g
55 g
55 g
55 g
55 g
55 g
55 g
55 g
Order Number
5500.2039
5500.2040
5500.2041
5500.2042
5500.2098
5500.2104
5500.2100
5500.2102
█
█
█
█
█
█
EMC Products
3
FMW-41
Rated Current
[A]
1
3
6
10
█
Most Popular.
Availability for all products can be searched real-time:https://www.schurter.com/en/Stock-Check/Stock-Check-SCHURTER
Filter-Type
Medical Version (M80)
Medical Version (M80)
Medical Version (M80)
Medical Version (M80)
Leakage Cur-
rent [mA]
0.08
0.08
0.08
0.08
L [mH]
2 x 10
2x2
2 x 0.8
2 x 0.4
Cx [nF]
15
15
15
15
Cy [nF]
0.47
0.47
0.47
0.47
R [MΩ]
1
1
1
1
1-Phase AC Filters / DC Filters
https://www.schurter.com /PG84
Weight [g]
55 g
55 g
55 g
55 g
Order Number
5500.2099
5500.2105
5500.2101
5500.2103
Packaging unit
25 Pcs
4
EMC Products
