HCS161KMSH datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> HCS161KMSH

HCS161KMSH: DescriptionBinary Counter, HC/UH Series, Synchronous, Positive Edge Triggered, 4-Bit, Up Direction, CMOS, CDFP16,; Categorylogic logic; File Size241KB，8 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

HCS161KMSH Overview

Binary Counter, HC/UH Series, Synchronous, Positive Edge Triggered, 4-Bit, Up Direction, CMOS, CDFP16,

HCS161KMSH Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Harris
package instruction	DFP, FL16,.3
Reach Compliance Code	unknown
Other features	TCO OUTPUT
Counting direction	UP
series	HC/UH
JESD-30 code	R-CDFP-F16
JESD-609 code	e0
Load capacitance (CL)	50 pF
Load/preset input	YES
Logic integrated circuit type	BINARY COUNTER
MaximumI(ol)	0.004 A
Operating mode	SYNCHRONOUS
Number of digits	4
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP
Encapsulate equivalent code	FL16,.3
Package shape	RECTANGULAR
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
propagation delay (tpd)	50 ns
Certification status	Not Qualified
Filter level	38535V;38534K;883S
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
total dose	1M Rad(Si) V
Trigger type	POSITIVE EDGE

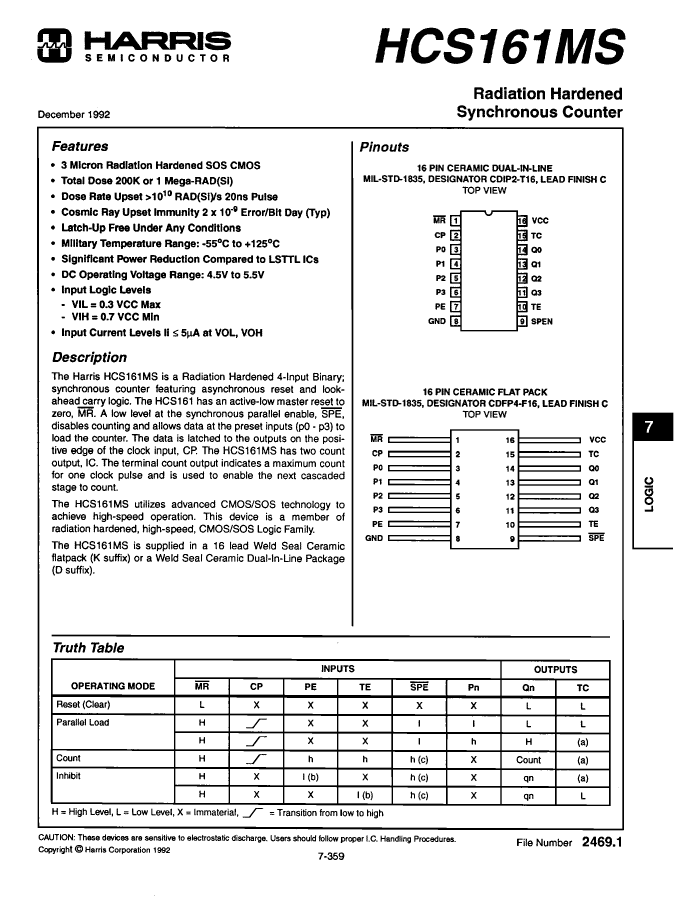

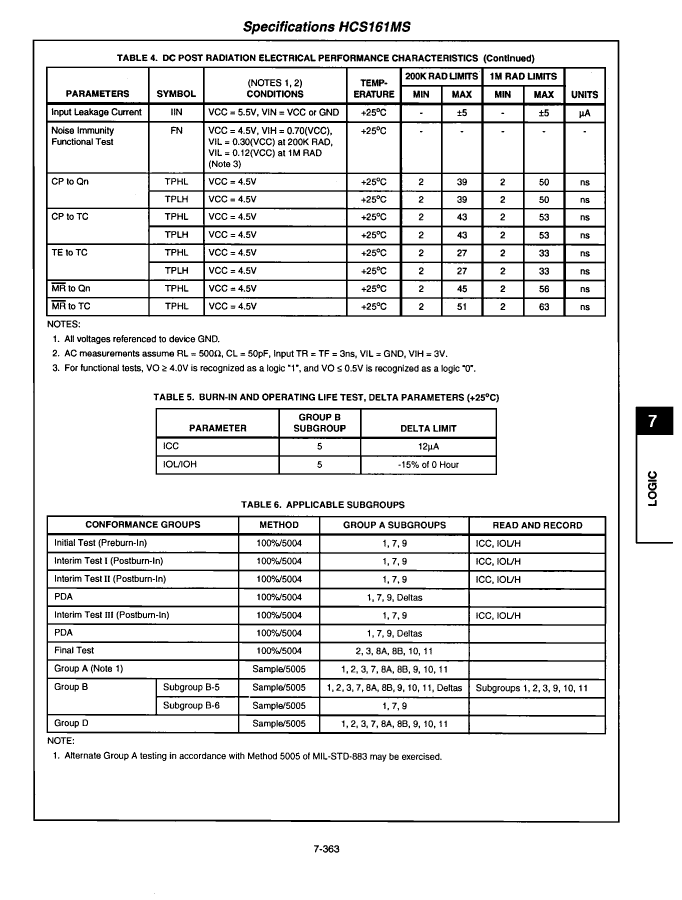

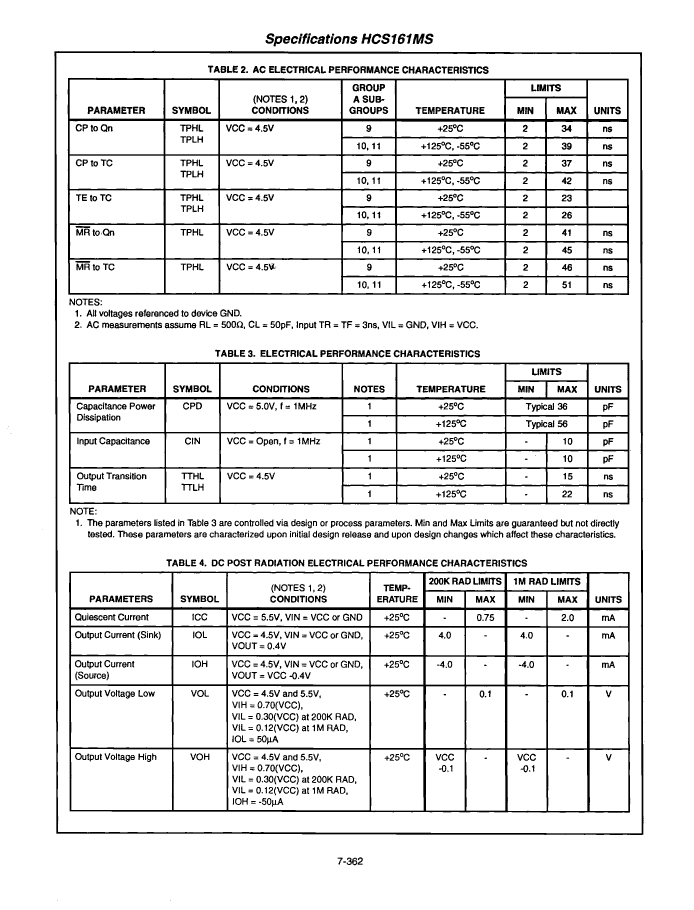

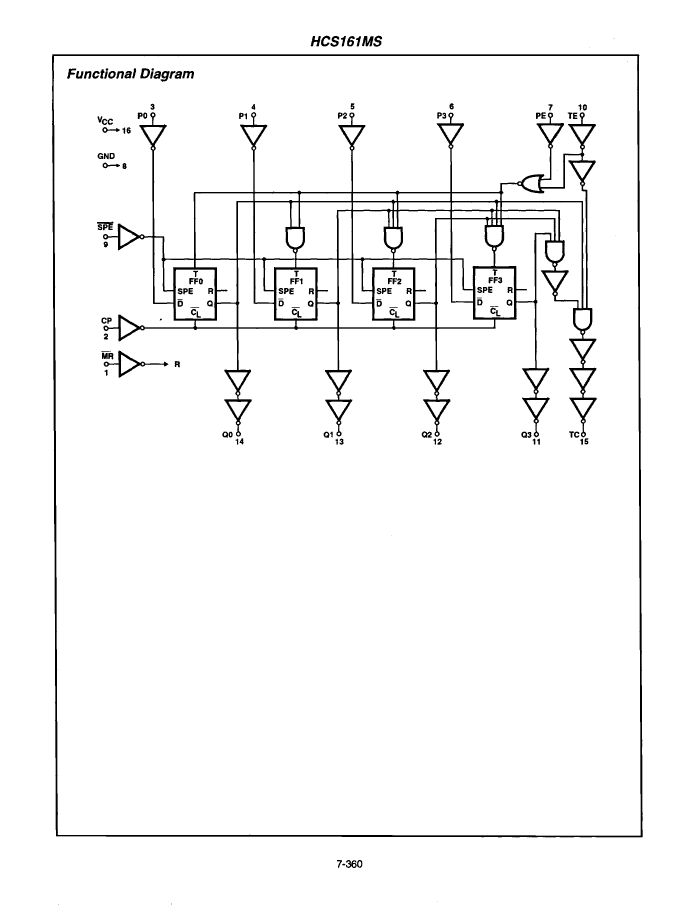

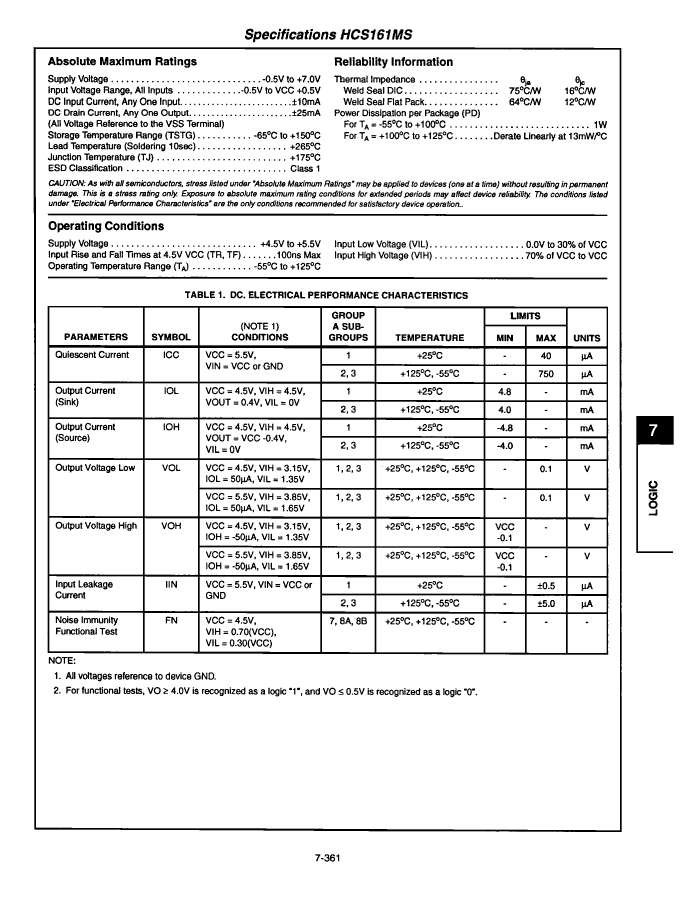

Preview

Download Datasheet

View All

HCS161KMSH Related Products

	HCS161KMSH	HCS161DMSH
Description	Binary Counter, HC/UH Series, Synchronous, Positive Edge Triggered, 4-Bit, Up Direction, CMOS, CDFP16,	Binary Counter, HC/UH Series, Synchronous, Positive Edge Triggered, 4-Bit, Up Direction, CMOS, CDIP16,
Is it Rohs certified?	incompatible	incompatible
Maker	Harris	Harris
Reach Compliance Code	unknown	unknown
Other features	TCO OUTPUT	TCO OUTPUT
Counting direction	UP	UP
series	HC/UH	HC/UH
JESD-30 code	R-CDFP-F16	R-CDIP-T16
JESD-609 code	e0	e0
Load capacitance (CL)	50 pF	50 pF
Load/preset input	YES	YES
Logic integrated circuit type	BINARY COUNTER	BINARY COUNTER
MaximumI(ol)	0.004 A	0.004 A
Operating mode	SYNCHRONOUS	SYNCHRONOUS
Number of digits	4	4
Number of functions	1	1
Number of terminals	16	16
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP	DIP
Encapsulate equivalent code	FL16,.3	DIP16,.3
Package shape	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V
propagation delay (tpd)	50 ns	50 ns
Certification status	Not Qualified	Not Qualified
Filter level	38535V;38534K;883S	38535V;38534K;883S
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	NO
technology	CMOS	CMOS
Temperature level	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	FLAT	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
total dose	1M Rad(Si) V	1M Rad(Si) V
Trigger type	POSITIVE EDGE	POSITIVE EDGE
