B067-0737-706-Z: DescriptionBoard Connector, 7 Contact(s), 1 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Plug; CategoryThe connector The connector; File Size403KB，1 Pages; ManufacturerSMP Technology Inc.

Download Datasheet Parametric Compare View All

B067-0737-706-Z Overview

Board Connector, 7 Contact(s), 1 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Plug

B067-0737-706-Z Parametric

Parameter Name	Attribute value
Maker	SMP Technology Inc.
Reach Compliance Code	unknown
Other features	ROHS COMPLIANT
body width	0.094 inch
subject depth	0.181 inch
body length	0.563 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	5000000000 Ω
Manufacturer's serial number	B067
Plug contact pitch	0.079 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	3.175 mm
Plating thickness	FLASH inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.0066 mm
Termination type	SURFACE MOUNT
Total number of contacts	7

Preview

Download Datasheet

View All

HOW TO ORDER:

B

0

6

7

-

X

3

7

-

7

0

X

-

Z

ELECTRICAL:

CURRENT: 3A

# OF CONTACTS:

CONTACT RESISTANCE: 20mΩ Max.

04 thru 40

INSULATOR RESISTANCE: 5000MΩ Min.

DIELECTRIC WITHSTANDING VOLTAGE: 500VAC For 1 MIN.

CONTACT TAIL OPTIONS:

OPERATING TEMPERATURE: -40°C to +105°C

3 - SURFACE MOUNT w/OUT POST

MAX PROCESSING TEMPERATURE: 230° For 30 ~ 60 Sec. (260° For 10 Sec.)

BODY HEIGHT:

7 - 4.4mm

PLATING OVERALL:

0 - FULL TIN

1 - FULL Au FLASH

3 - 10u" Au

4 - 15u" Au

5 - 30u" Au

RoHS

COMPLIANT

MATERIAL:

INSULATOR: Polyester, UL 94V-0 ; Nylon-6T

CONTACT: Phosphor Bronze

CONTACT PLATING: Full Gold, Full Tin, Selective Plating

Rev

0

Issued

A Revised for RoHS Compliance

SCALE:n/a

TOL. DEC.

.X +/- 0.35

.XX +/- 0.25

.XXX +/- 0.15

ANGLE +/- 5°

UNIT: mm

Drawn Checked

S.M.

A.M.

B.S.

S.M.

HOUSING OPTION:

7 - SINGLE ROW TOP ENTRY

(LONG BODY)

SELECTIVE PLATING:

6 - Au FLASH CONTACT AREA/TIN TAIL

7 - 10u" Au CONTACT AREA/TIN TAIL

8 - 15u" Au CONTACT AREA/TIN TAIL

9 - 30u" Au CONTACT AREA/TIN TAIL

Date

Appproved

S.M.

08/07/03

S.M.

12/15/06

SMP TECHNOLOGY, INC.

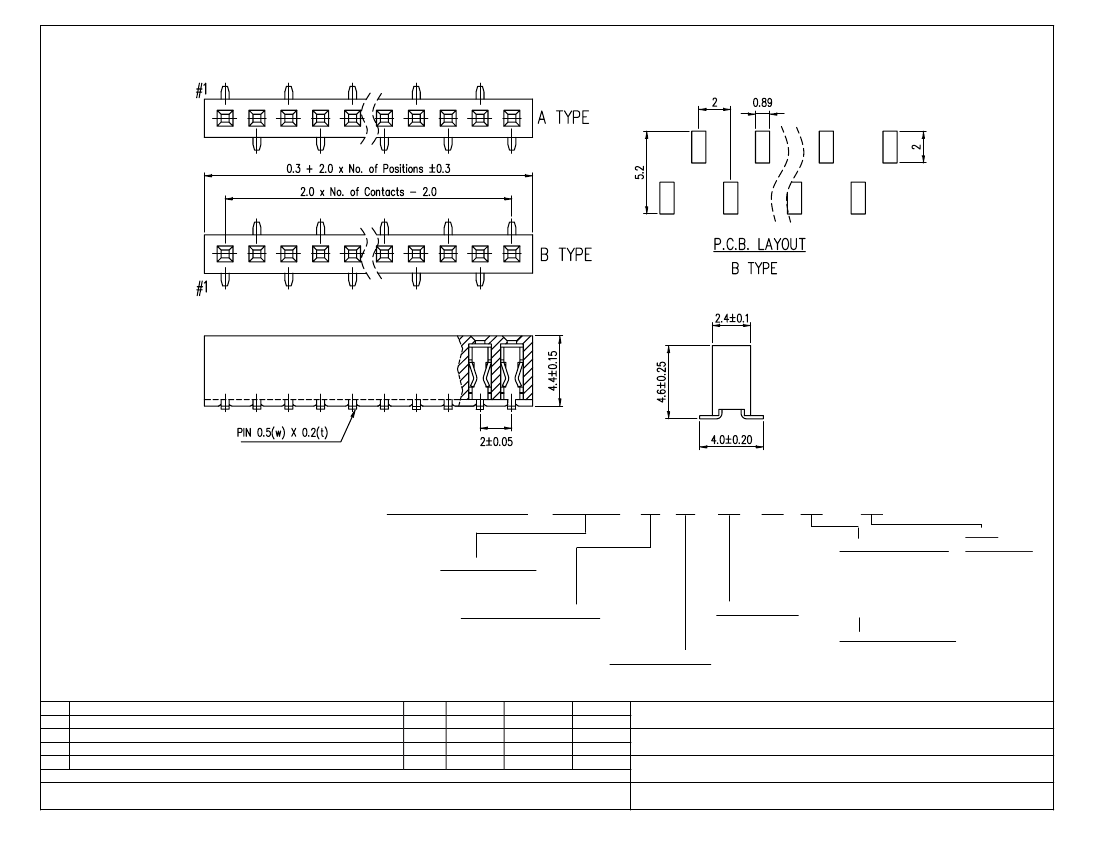

Receptacle Assembly, 2.00mm Pitch, Single Row, Surface Mount

Top Entry, Long Body, 4.4mm Height

SERIES: B067

Pg: 1

B067-0737-706-Z Related Products

	B067-0737-706-Z	B067-2137-706-Z	B067-2037-706-Z	B067-1937-706-Z	B067-0937-706-Z	VJ1812Y223KXPAR5H	10N60_V01	B067-2337-706-Z	B067-1737-706-Z
Description	Board Connector, 7 Contact(s), 1 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Plug	Board Connector, 21 Contact(s), 1 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Plug	Board Connector, 20 Contact(s), 1 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Plug	Board Connector, 19 Contact(s), 1 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Plug	Board Connector, 9 Contact(s), 1 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Plug	CAPACITOR, CERAMIC, MULTILAYER, 250 V, X7R, 0.022 uF, SURFACE MOUNT, 1812, CHIP, ROHS COMPLIANT	N-Channel 650V (D-S) Power MOSFET	Board Connector, 23 Contact(s), 1 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Plug	Board Connector, 17 Contact(s), 1 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Plug
Maker	SMP Technology Inc.	SMP Technology Inc.	SMP Technology Inc.	SMP Technology Inc.	SMP Technology Inc.	-	-	-	SMP Technology Inc.
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	compliant	-	unknown	unknown
Other features	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	-	-	ROHS COMPLIANT	ROHS COMPLIANT
body width	0.094 inch	0.094 inch	0.094 inch	0.094 inch	0.094 inch	-	-	0.094 inch	0.094 inch
subject depth	0.181 inch	0.181 inch	0.181 inch	0.181 inch	0.181 inch	-	-	0.181 inch	0.181 inch
body length	0.563 inch	1.665 inch	1.587 inch	1.508 inch	0.72 inch	-	-	1.823 inch	1.35 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	-	-	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	-	-	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU	AU	AU	AU	AU	-	-	AU	AU
Contact completed and terminated	TIN	TIN	TIN	TIN	TIN	-	-	TIN	TIN
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	-	-	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	-	-	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	-	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	-	-	20 mΩ	20 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	-	-	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	-	-	500VAC V	500VAC V
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	-	-	5000000000 Ω	5000000000 Ω
Manufacturer's serial number	B067	B067	B067	B067	B067	-	-	B067	B067
Plug contact pitch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	-	-	0.079 inch	0.079 inch
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	-	-	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	-	-	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	-	-	ONE	ONE
PCB row number	2	2	2	2	2	-	-	2	2
Number of rows loaded	1	1	1	1	1	-	-	1	1
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	125 °C	-	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-55 °C	-	-40 °C	-40 °C
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	-	-	STAGGERED	STAGGERED
PCB contact row spacing	3.175 mm	3.175 mm	3.175 mm	3.175 mm	3.175 mm	-	-	3.175 mm	3.175 mm
Plating thickness	FLASH inch	FLASH inch	FLASH inch	FLASH inch	FLASH inch	-	-	FLASH inch	FLASH inch
Rated current (signal)	3 A	3 A	3 A	3 A	3 A	-	-	3 A	3 A
Guideline	UL	UL	UL	UL	UL	-	-	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	-	-	COMMERCIAL	COMMERCIAL
Terminal pitch	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	-	-	2.0066 mm	2.0066 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	-	-	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	7	21	20	19	9	-	-	23	17
Base Number Matches	-	1	1	1	1	-	-	1	-
