0034.4215: DescriptionVERY FAST BLOW ELECTRIC FUSE, 0.25A, 125VAC, 125VDC, 100A (IR), THROUGH HOLE; CategoryCircuit protection Circuit protection; File Size447KB，3 Pages; ManufacturerSCHURTER; Websitehttp://www.schurterinc.com/; Environmental Compliance

Download Datasheet Parametric View All

0034.4215 Overview

VERY FAST BLOW ELECTRIC FUSE, 0.25A, 125VAC, 125VDC, 100A (IR), THROUGH HOLE

0034.4215 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SCHURTER
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	9 weeks
Is Samacsys	N
Other features	RATED BREAKING CAPACITY AT 125 VDC: 100 A
Fusing characteristics	VERY FAST
body height	8.8 mm
Body length or diameter	6.4 mm
Circuit protection type	ELECTRIC FUSE
JESD-609 code	e3
Joule integral nominal
Installation features	THROUGH HOLE
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
method of packing	BAG
physical size	6.4mm x 8.8mm
Pre-discharge time - minutes	4 ms
Rated breaking capacity	100 A
Rated current	0.4 A
Rated voltage (AC)	125 V
Rated voltage (DC)	125 V
Guideline	CCC; CSA; UL
surface mount	NO
Terminal surface	Tin (Sn)
Terminal shape	PIN WIRE
Base Number Matches	1

Preview

Download Datasheet

View All

Non resettable fuses

MSF 25

www.schurter.com/pg0_2

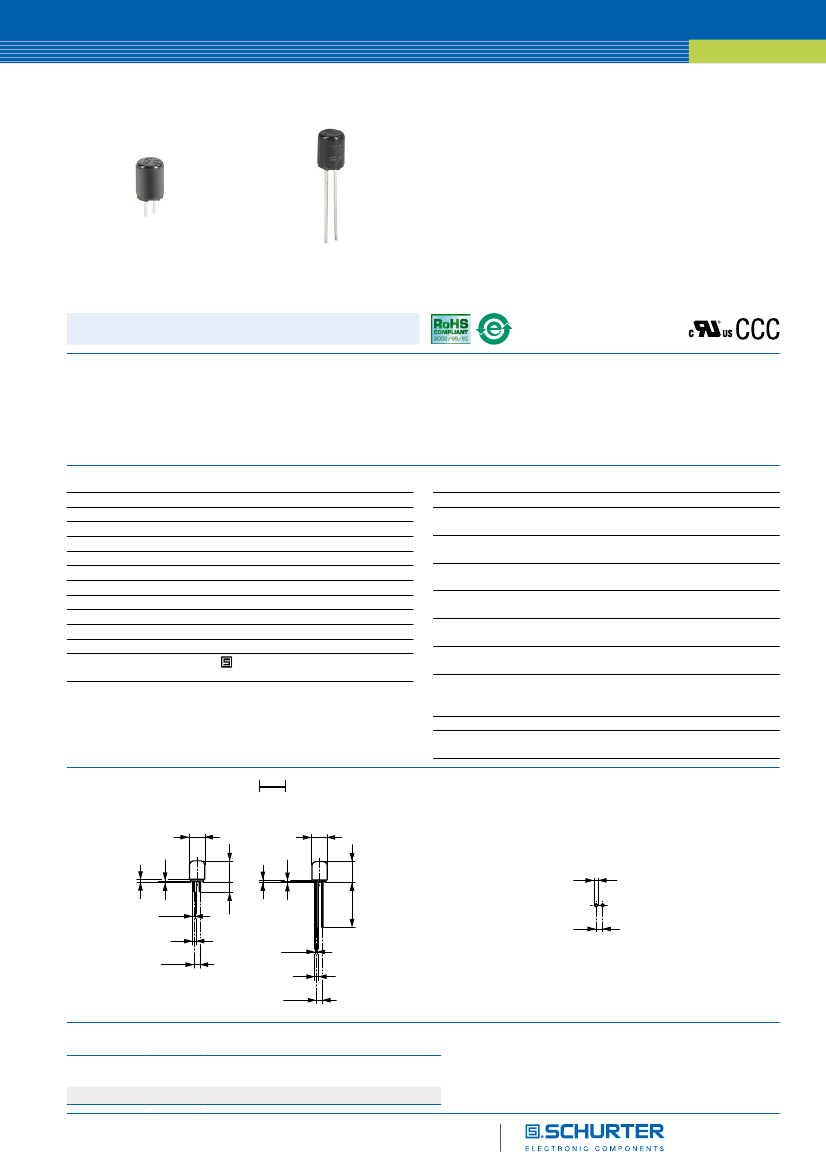

Subminiature Fuse, 6.4 mm, Quick-Acting F, 125 VAC, 125 VDC

UL 248-14 · 125 VAC · 125 VDC · Quick-Acting F

Description

Standards

Approvals

- Directly solderable on printed circuit boards

- UL 248-14

- CSA C22.2 no. 248.14

- UL File Number: E41599

General Product Information

Packaging Details

Corresponding Fuseholder FME; FMR; FMS (125V)

References

Weblinks

Approvals, RoHS, CHINA-RoHS, e-Store, Distributor-Stock-Check,

Accessories, Product Change Notification (PCN)

Technical Data

Rated Voltage

Rated Current

Breaking Capacity

Characteristic

Mounting

Admissible Ambient Air Temp.

Climatic Category

Material: Housing

Material: Terminals

Unit Weight

Storage Conditions

Product Marking

125 VAC, 125 VDC

0.1 - 5 A

100 A

Quick-Acting F

PCB,THT

-55 °C to 125 °C

55/125/21 acc. to IEC 60068-1

Thermoplastic, UL 94V-0

Tin-Plated Copper

0.34 g

0 °C to 60 °C, max. 70% r.h.

, Type, Current, Voltage, Characteri-

stic, Approvals

Soldering Methods

Solderability

Resistance to Soldering Heat

Life Test

Terminal Strength

Case Resistance

Mechanical Shock

Vibration, High Frequency

Wave, Iron

235 °C / 2 sec acc. to IEC 60068-2-20,

Test Ta, method 1

260 °C / 5 sec acc. to IEC 60068-2-20,

Test Tb, method 1A

MIL-STD-202, Method 108A

(1000h @ 0.42*In @ 70°C)

MIL-STD-202, Method 211A

(Deflection of board 1 mm for 1 minute)

acc. to EIA/IS-722, Test 4.7

>100 MΩ (between leeds and body)

MIL-STD-202, Method 213B

(Shock 50gn, half sine wave, 11 ms)

MIL-STD-202, Method 204D

(Shock 20 gn, 20 min, 10-2 kHz, 12

cyc.)

MIL-STD-202, Method 215A

min. UL 94V-1

(acc. to EIA/IS-722, Test 4.12)

Resistance to Solvents

Flammability

Dimensions

ø 6.4

0.3

6.4 mm

ø 6.4

0.3

8.8

+0.1

ø 0.62

1.8

2.54

18.8

4.3

2.54

ø 0.62

1.8

2.54

Drilling diagram

Pre-Arcing Time

Rated Current In

0.1 A - 5 A

.5 x In max. 2.0 x In max.

10 min

5 s

2.75 x In

max.

300 ms

4.0 x In max.

30 ms

0.0 x In

max.

4 ms
