Combination D-SUB Contacts
Coaxial contacts – Angled – PCB termination – 3 solder pins
Description
50 and 75 Ω design
Contact platings:
- .051 µ“ 1.3 µm Au mating side inner conductor
.032 µ“ 0.8 µm Au outer conductor
- .008 µ“ 0.2 µm Au mating side inner- and outer conductor
Quality class 1: 500 mating cycles (gold plated)
RoHS compliant – CSA listed, File No.: LR 115000-1–UL listed, File No.: E 228329

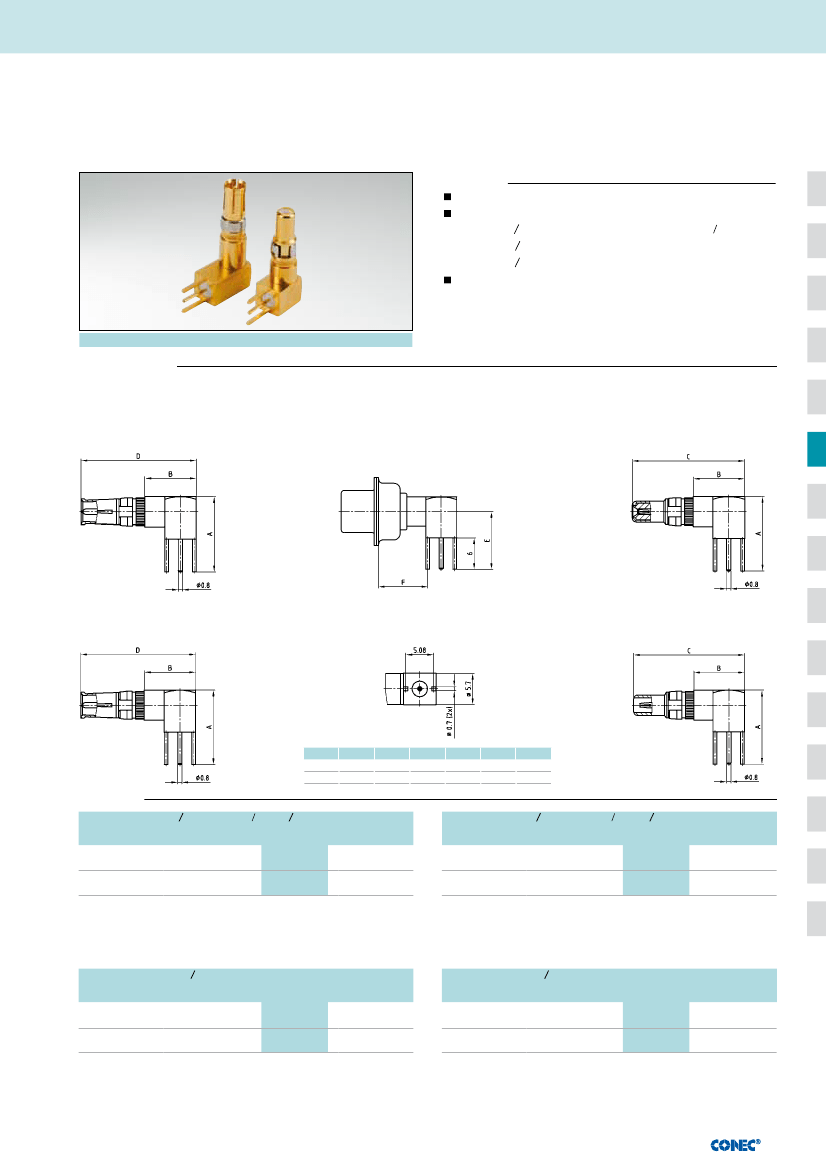

Product drawing
50 Ω version
Socket contact
Installation dimension
Plug contact
75 Ω version
Socket contact
Plug contact
Shell size
1-4
5
A
13.80
16.80
B
9.30
11.80
C
20.70
23.20
D
21.20
23.70
E
11.00
14.00
F
9.30
11.80
Order data
Socket contact
.051
µ“
1.3
µm Au inner
.032
µ“
0.8
µm Au outer conductor
Contact type
Socket 50 Ω
Socket 50 Ω
Socket 75 Ω
Socket 75 Ω
Plug contact
.051
µ“
1.3
µm Au inner
.032
µ“
0.8
µm Au outer conductor
Contact type
Plug 50 Ω
Plug 50 Ω
Plug 75 Ω
Plug 75 Ω
Shell size
1-4
5
1-4
5
Termination*
78
79
88
89
Part Number
132 J 25019 X
132 J 25029 X
132 J 35019 X
132 J 35029 X
Shell size
1-4
5
1-4
5
Termination*
78
79
88
89
Part Number
131 J 25019
131 J 25029
131 J 35019
131 J 35029
X
X
X
X
Socket contact
.008
µ“
0.2
µm Au inner- and outer conductor
Contact type
Socket 50 Ω
Socket 50 Ω
Socket 75 Ω
Socket 75 Ω
Plug contact
.008
µ“
0.2
µm Au inner- and outer conductor
Contact type
Plug 50 Ω
Plug 50 Ω
Plug 75 Ω
Plug 75 Ω
Shell size
1-4
5
1-4
5
Termination*
G9
H1
H2
H3
Part Number
132 A 25019 X
132 A 25029 X
132 A 35019 X
132 A 35029 X
Shell size
1-4
5
1-4
5
Termination*
G9
H1
H2
H3
Part Number
131 A 25019
131 A 25029
131 A 35019
131 A 35029
X
X
X
X
*Code use with part number creator
