Power entry modules without line filter
https://www.schurter.com /PG05
KP (Switch)
IEC Appliance Inlet C14 with Line Switch 1- or 2-pole
Screw-on mounting
Snap-in mounting
KPF Filter Module
(not enclosed)
C14
Approvals and Compliances
70° C
See below:

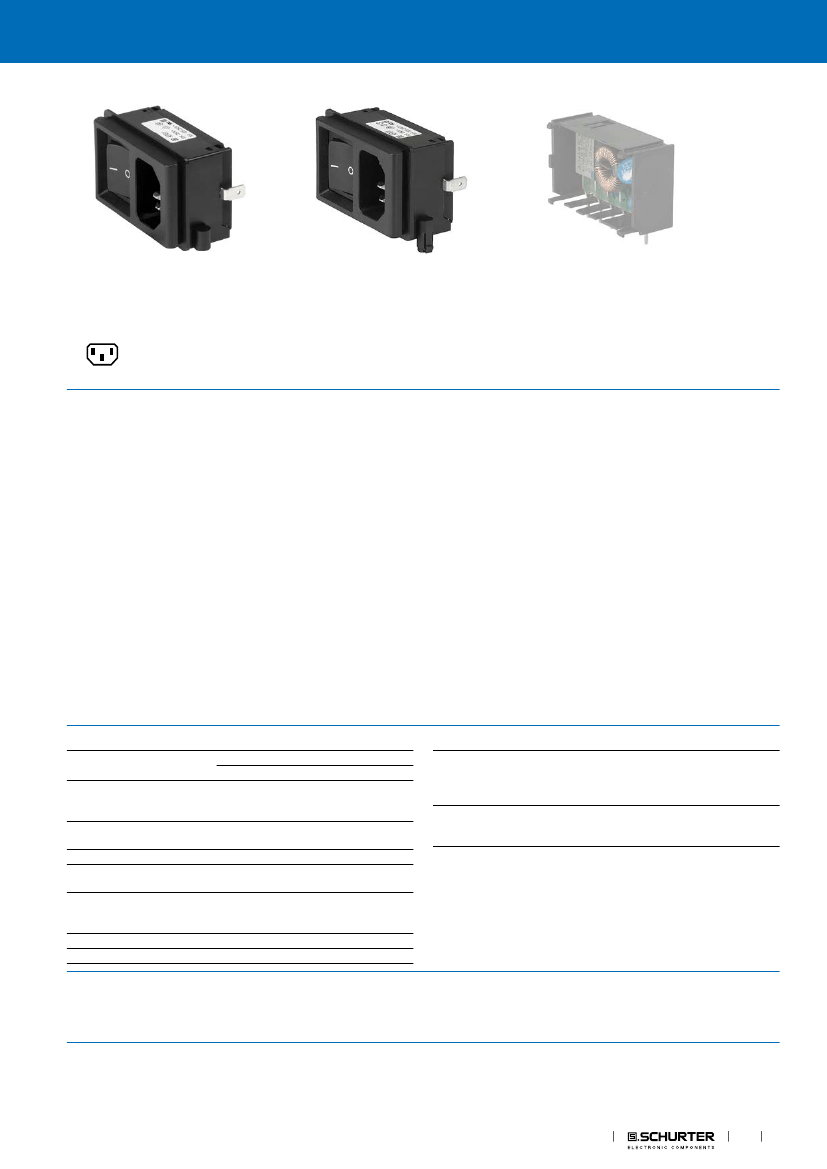

Description
- Panel mount :
Sandwich/rear-side
- 2 Functions :
Appliance Inlet Protection class I , Line Switch 1- and 2- pole
- For PCB mounting
Characteristics
- Panel mount from rear or "sandwich" between top and bottom/side to
side panels
PCB mount with snap-in or screw-on feet (self tapping screws Ø 3 x 8
mm)
- All single elements are already wired
- Line switch non-illuminated
- Insulation cover on the rear-side
- Suitable for use in equipment according to IEC/UL 60950
Other versions on request
-
-
-
-
-
Solder terminals
Quick-connect terminals
Line switch, illuminated (only 2-pole version)
Line switch with other rocker marking
For protection class II
References
Weblinks
Alternative: version with line filter
KPF
We recommend for new applications
DC21
pdf datasheet, html-datasheet, General Product Information, Distributor-
Stock-Check, Accessories, Detailed request for product, Microsite
Newly available variants corresponding to V-Lock mating cordset. The connector is equipped with a notch intended for use with the latching cordset.
The cord latching system prevents against accidental removal of the cordset.
Technical Data
Ratings IEC
Ratings UL/CSA
Dielectric Strength
10 A / 250 VAC; 50 Hz
15 A / 250 VAC; 60 Hz
> 2.3 kVAC between L-N
> 2.8 kVAC between L/N-PE
(1 min/50 Hz)
-25 °C to 70 °C
from front side IP 40 acc. to IEC 60529
Suitable for appliances with protection
class I acc. to IEC 61140
For PCB mounting Quick connect termi-
nals 4.8 x 0.8 mm
Solder terminal on request
Snap-in: 1.5/2/2.5/3 mm
Thermoplastic, black, UL 94V-0
appliance inlet/-outlet
C14 acc. to IEC 60320-1,
UL 498, CSA C22.2 no. 42 (for cold
conditions) pin-temperature 70 °C, 10 A,
Protection Class I
Rocker switch 1 or 2 pole, non-illumina-
ted, acc. to IEC 61058-1
Technical Details
Line Switch
Allowable Operation Tempe-
rature
IP-Protection
Insulation cover
Terminal
Panel Thickness S
Material: Housing
Approvals and Compliances
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about
Approvals
Approvals
The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.
Approval Reference Type: KP01
Connectors
1
KP (Switch)
Approval Logo
Certificates
VDE Approvals
UL Approvals
CSA Approvals
CQC Approvals
Certification Body
VDE
UL
CSA
CQC
Power entry modules without line filter
https://www.schurter.com /PG05
Description
Certificate Number: 40029369
UL File Number: E96454
CSA Certification Record: 38456
CCC Certificate Number: 2013010204592940
Product standards
Product standards that are referenced
Organization
Design
Designed according to
Designed according to
Designed according to
Designed according to
Standard
IEC 60320-1
IEC 61058-1
UL 498
CSA C22.2 no. 42
Description
Appliance couplers for household and similar general purposes
Switches for appliances. Part 1. General requirements
Standard for Attachment Plugs and Receptacles
General Use Receptacles, Attachment Plugs, and Similar Wiring Devices
Application standards
Application standards where the product can be used
Organization
Design
Designed for applications acc.
Standard
IEC/UL 60950
Description
IEC 60950-1 includes the basic requirements for the safety of information
technology equipment.
Compliances
The product complies with following Guide Lines
Identification
Details
CE declaration of conformity
Initiator
SCHURTER AG
Description
The CE marking declares that the product complies with the applicable
requirements laid down in the harmonisation of Community legislation on
its affixing in accordance with EU Regulation 765/2008.
EU Directive RoHS 2011/65/EU
The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March
2007. It is similar to the EU directive RoHS.
On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration,
Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as
"REACH") entered into force.
V-Lock system are based on a matching plug-dose combination. The
connector is equipped with a notch intended for use with the latching
cordset. The cord latching system prevents against accidental removal of
the cordset.
RoHS
China RoHS
REACH
SCHURTER AG
SCHURTER AG
SCHURTER AG
MicrositeV-Lock
SCHURTER AG
2
Connectors
Power entry modules without line filter
https://www.schurter.com /PG05
KP (Switch)

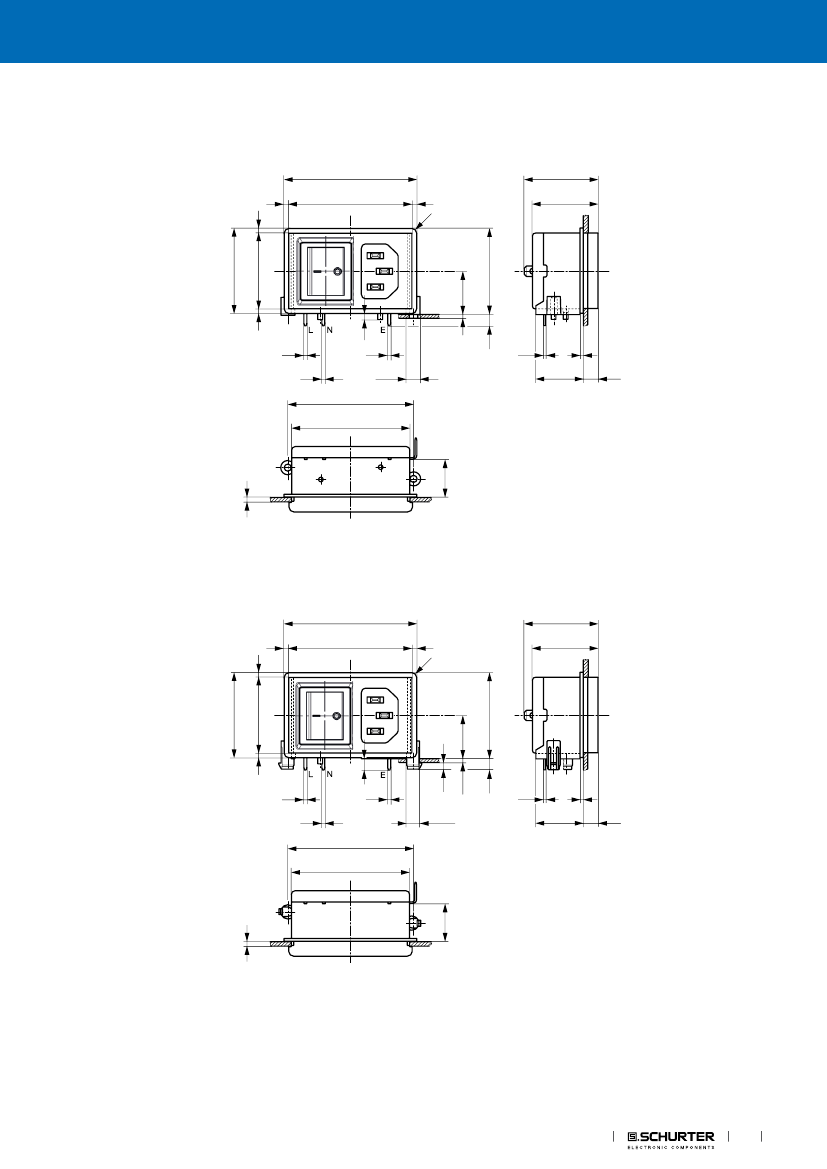

Dimensions [mm]
Screw-on mounting
56.1
2
2
52.1
2
R2
31.2
27.8
2
2.5
A
1.3
18.5
4.5
36.5
36
32
1.1
1.1
0.8
20.2
1.3
6.2
ø 5.9
53.34
50.1
A = for PCB-thickness 1.2/1.6/2.0/2.4 mm
Additional quick connect terminal 4.8 x 0.8 mm
Snap-in mounting
56.1
2
2
52.1
2
R2
S
±0.1
16
31.2
27.8
4.5
1.6
±0.1
2
2.9
18.5
1.3
1.1
53.34
50.1
4.5
36.5
36
32
1.1
0.8
20.2
1.3
6.2
ø 5.9
-0.1
0
Additional quick connect terminal 4.8 x 0.8 mm
s = panel thickness
S
±0.1
16
Connectors
3
KP (Switch)
Power entry modules without line filter
https://www.schurter.com /PG05
For 2-pole inlet/switch, 2-pole inlet
fuseholder and inlet/outlet
For combinations
Inlet/switch 1-pole, inlet/fuseholder 1-pole
53.34
25.4
7.62
3.82
27.94
+0.1
0
13.97
10.16
5.08
D1
25.4
1.6
S and X see mounting holes
+0.1
0
10.16 10.16
S
±0.1
(16.45)
D1
D2
X
±0.1
1.6
D2
d1 = 6 ± 0.05 für (snap-in)
d1 = 3.6 (screw-on)
d2 = 2.1 + 0.1/-0 (screw-on)
Dimensions without tolerance:≤ 15 = ± 0.05,
≥
15 = ± 0,1

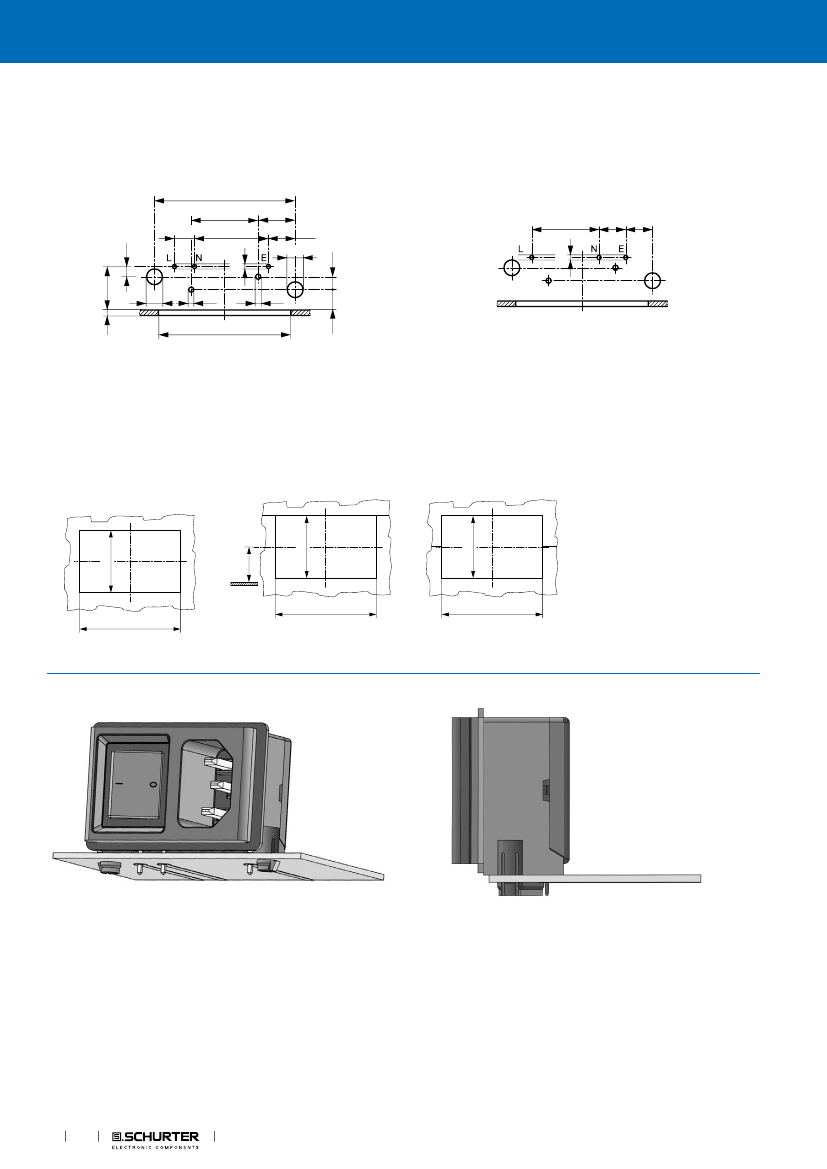

Mounting holes for backside moun-
ting
Sandwich mounting holes
7.55
Sandwich mounting holes
32.3
±0.1
32.3
±0.1
18.5
X
±0.1
52.4
±0.1
32.3
±0.1
X
±0.1
X = 48.4 at S = 1.5 and 2.5
X = 50.4 at S = 2.0 and 3.0
X = 48.4 at S = 1.5 and 2.5
X = 50.4 at S = 2.0 and 3.0
Assembly Instructions
Stable snap feet requires minimal insertion force
Module must lay flat on the PCB when soldering
4
Connectors
Power entry modules without line filter
https://www.schurter.com /PG05
KP (Switch)
Screw-on mount
uses self-tapping screws
Insertion from behind
"Sandwich" mounting with split enclosure panels

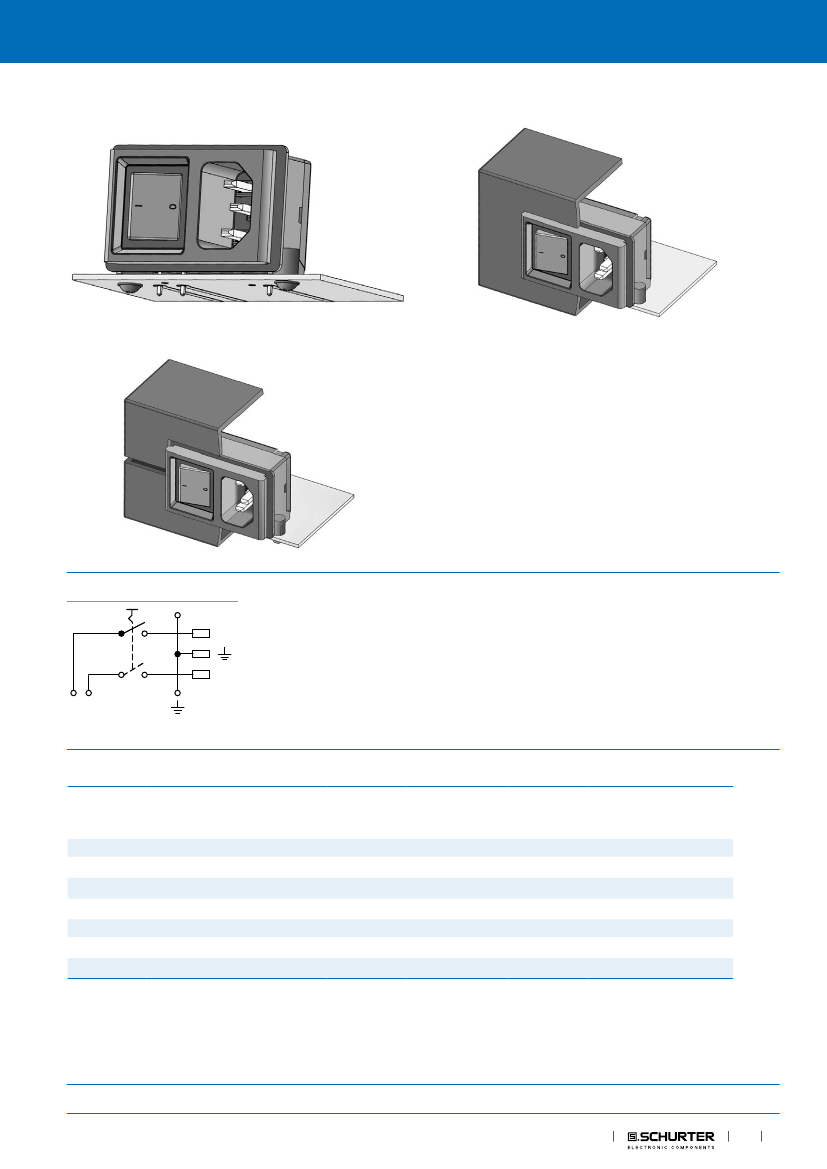

Diagrams
L
N
L N
Inlet with line switch
All Variants
Panel mounting
Snap-in
Snap-in
Snap-in
Snap-in
Screw
Screw
Screw
Screw
█
Most Popular.
Availability for all products can be searched real-time:https://www.schurter.com/en/Stock-Check/Stock-Check-SCHURTER
Type KP without cover: KP01.XXXX.XX90
Ground Terminal with solder pin: KP01.XXXX.X3XX
Panel Thickness
s [mm]
2
2
3
3
2
2
3
3
PCB [mm]
1.6
1.6
1.6
1.6
1.2/1.6/2.0/2.4
1.2/1.6/2.0/2.4
1.2/1.6/2.0/2.4
1.2/1.6/2.0/2.4
Line Switch
1-pole
2-pole
1-pole
2-pole
1-pole
2-pole
1-pole
2-pole
Fuseholder
-
-
-
-
-
-
-
-
Connector
-
-
-
-
-
-
-
-
V-Lock
Order Number
KP01.1212.11
KP01.1112.11
KP01.1213.11
KP01.1113.11
KP01.1252.11
KP01.1152.11
KP01.1253.11
KP01.1153.11
█
█
Packaging unit
50 Pcs
Connectors
5
