LAB
Passivation coating
Oxide layer
Anode
SEME
SMP SERIES
HIGH SENSITIVITY
SINGLE ELEMENT
SILICON PHOTODIODES
FEATURES:
•
•
•
•
•
•
•
•
•
•
•
•
HIGH RESPONSIVITY
WIDE RANGE OF ELEMENT SIZES
LOW LEAKAGE CURRENT
LOW CAPACITANCE
EXCELLENT LINEARITY
LOW NOISE
WIDE SPECTRAL RESPONSE
WIDE INTRINSIC BANDWIDTH
INTEGRAL OPTICAL FILTER OPTION*
EMI SCREENING MESH AVAILABLE
HERMETIC METAL PACKAGES
LOW COST
N+ type
Intrinsic Layer
Description
The SMP devices are a range of single element Silicon
P.I.N. photodiodes. The device structure has be designed
to give maximum sensitivity and high speed of response.
The device structure shown above has a high resistance
intrinsic layer sandwiched between P and N+ layers.
Various optical filters can be incorporated inside the
package to pass selected regions of the ultra-violet to
infra-red spectrum. The optical filters can be ionically
coloured glass or vapour-deposited dielectric layers on a
glass substrate. For more details of the filter permutations,
contact Semelab Plc.
APPLICATIONS:
•
•
•
•
•
•
•
•
MEDICAL INSTRUMENTS
METROLOGY
LABORATORY INSTRUMENTATION
POSITION AND PROXIMITY SENSORS
REMOTE SENSING
PHOTO-INTERRUPTORS
SMOKE DETECTORS
FIBRE OPTIC DETECTORS
Electrical Specifications
Device Type
Photodiode
element size
Area
mm
2
0.62
2.05
5.19
14.74
35.00
42.35
76.85
100.11
Linear
mm
1x1
4.5 x 0.7
2.5 x 2.5
4x4
6x6
7x7
9x9
12 x 12
(T
A
= 25°C unless otherwise stated)
Responsivity
(typical)
@900nm
A/W
0.55
0.55
0.55
0.55
0.55
0.55
0.55
0.55
Minimum
Breakdown
Voltage
@10
m
A
V
60
60
60
60
60
60
60
60
Capacitance
(typical)
@0V
pF
12
45
55
90
150
350
800
1800
@20V
pF
2.5
6
10
25
20
65
150
200
Maximum
Dark
Current
@1V
nA
0.1
0.25
0.7
2
3
4
9
12
Rise Time
(typical)
@30V
ns
4
n/a
8
9
12
13
16
19
NEP
(typical)
x 10
14
W/
Ö
Hz
7.2
n/a
9.8
19
20
24
28
30
Prelim. 8/96
SMP400
SMP525
SMP550
SMP600
SMP690
SMP900
SMP1500
SMP2000
Semelab plc.
Telephone +44(0)1455 556565. Fax +44(0)1455 552612.
E-mail:
sales@semelab.co.uk
Website:
http://www.semelab.co.uk
LAB
PHOTODIODE SELECTION TABLE
Part
Number
SMP400G-BA
SMP400G-BB
SMP400G-BC
SMP400G-BD
SMP400G-BE
SMP400G-CA
SMP400G-CB
SMP400G-CC
SMP400G-CD
SMP400G-CE
Part
Number
SMP525G-EJ
SMP525G-EK
SMP525G-EL
SMP525G-EM
SMP525G-EN
SMP525G-FJ
SMP525G-FK
SMP525G-FL
SMP525G-FM
SMP525G-FN
SMP550G-EJ
SMP550G-EK
SMP550G-EL
SMP550G-EM
SMP550G-EN
SMP550G-FJ
SMP550G-FK
SMP550G-FL
SMP550G-FM
SMP550G-FN
SMP600G-EJ
SMP600G-EK
SMP600G-EL
SMP600G-EM
SMP600G-EN
SMP600G-FJ
SMP600G-FK
SMP600G-FL
SMP600G-FM
SMP600G-FN
Part
Number
SMP690G-JPS
SMP690G-JQS
SMP690G-KPS
SMP690G-KQS
SMP900G-JP
SMP900G-JQ
SMP900G-KP
SMP900G-KQ
SMP1000G-JP
SMP1000G-JQ
SMP1000G-KP
SMP1000G-KQ
SMP2000G-MV
Photodiode
Size (mm)
1x1
1x1
1x1
1x1
1x1
1x1
1x1
1x1
1x1
1x1
Photodiode
Size (mm)
4.5 x 0.7
4.5 x 0.7
4.5 x 0.7
4.5 x 0.7
4.5 x 0.7
4.5 x 0.7
4.5 x 0.7
4.5 x 0.7
4.5 x 0.7
4.5 x 0.7
2.5 x 2.5
2.5 x 2.5
2.5 x 2.5
2.5 x 2.5
2.5 x 2.5
2.5 x 2.5
2.5 x 2.5
2.5 x 2.5
2.5 x 2.5
2.5 x 2.5
4x4
4x4
4x4
4x4
4x4
4x4
4x4
4x4
4x4
4x4
Photodiode
Size (mm)
6x6
6x6
6x6
6x6
7x7
7x7
7x7
7x7
9x9
9x9
9x9
9x9
12 x 12
SEME
SMP SERIES
TO-18
2 Leads
l
l
l
l
l
3 Leads
Low Profile
l
UV Glass
l
Lensed Cap
Standard
Bead Lens Cap
l
l
l
l
l
l
l
3 Leads
l
l
l
l
l
l
Lensed Cap
TO-39
2 Leads
l
l
l
l
l
Standard Glass
l
UV Glass
l
BG18 Filter
RG850 Filter
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
2 Leads
l
l
l
l
l
l
l
l
TO-8
Small
l
l
l
l
3 Leads
Standard Glass
l
l
l
l
l
l
UV Glass
l
l
l
l
l
l
TO-M
Multi-Leads
Standard Glass
l
l
l
l
l
l
l
l
l
l
l
l
Semelab Plc. reserve the right to change the products shown on this datasheet in the interest of improved specification. No responsibility is assumed for the use of
information contained herein, nor for any infringement of patent or rights of others that may result from such use. No license is granted by implication or otherwise
under any patent or patent right of Semelab Plc.
Semelab plc.
Telephone +44(0)1455 556565. Fax +44(0)1455 552612.
E-mail:
sales@semelab.co.uk
Website:
http://www.semelab.co.uk
Prelim. 8/96
LAB

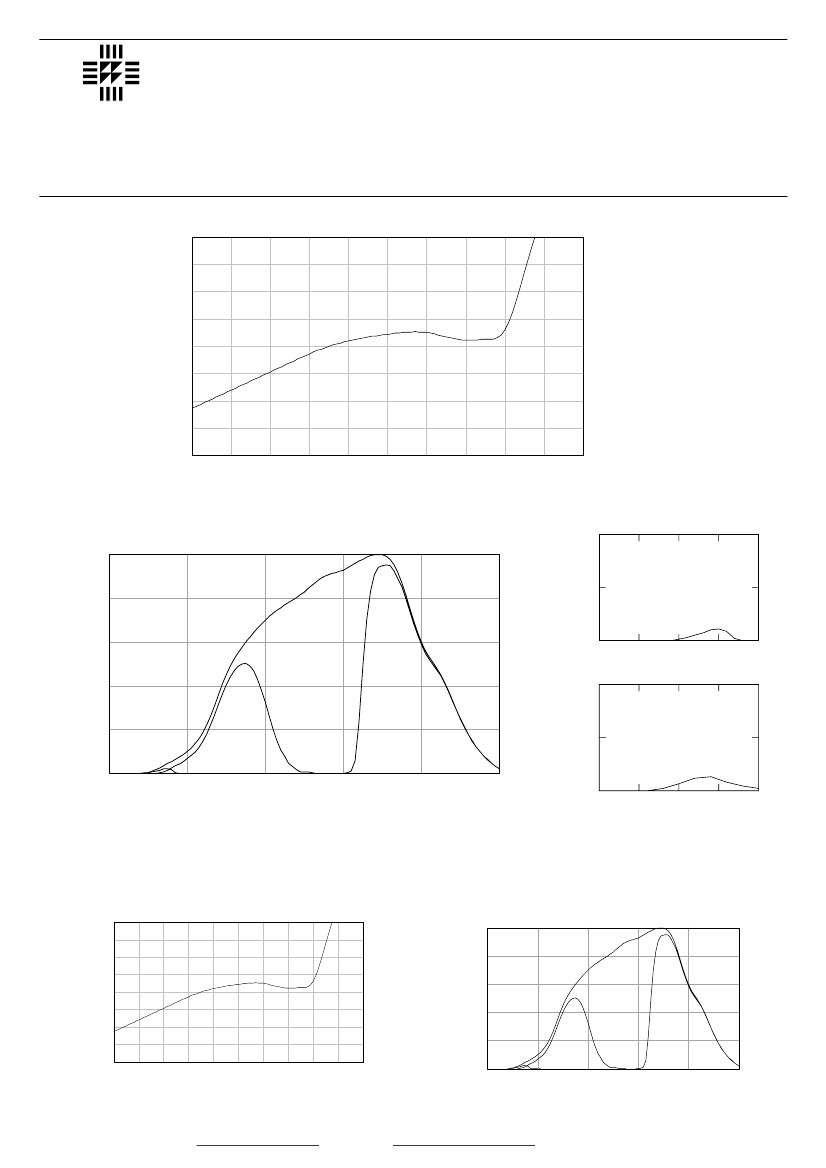

Responsivity of SMP Photodiodes vs. Temperature
1
0.75
SEME
SMP SERIES
(%)
Change in Q.E. / C
0.5
0.25
0
0.25
0.5
0.75
1
Note:
Theoretical prediction of interpolated data.
200
300
400
500
600
700
800
900
1000
1100
1200
Wavelength (nm)
Spectral Responsivity of SMP Photodiodes
with and without integral optical filters
1
0.2
U340 magnified x2
0.1
0.8
Relative Responsivity
Unfiltered
0.6
0
200
250
300
350
400
0.4
0.0001
0.2
BG18
RG850
U340 magnified x2000
U340
0
200
400
600
800
1000
1200
0
650
675
700
725
750
Wavelength (nm)
Note:
The photodiodes are operated at zero bias for best sensitivity. Operation at reverse bias will enhance further the speed
of response. Typical circuits for these configurations are show below.
Responsivity of SMP Photodiodes vs. Temperature
1
0.75
Spectral Responsivity of SMP Photodiodes
with and without integral optical filters
1
(%)
0.5
0.8
Change in Q.E. / C
Relative Responsivity
0.25
0
0.25
0.5
0.75
1
Unfiltered
0.6
0.4
0.2
BG18
RG850
200
300
400
500
600
700
800
900
1000
1100
1200
U340
0
200
400
600
800
1000
1200
Wavelength (nm)
Wavelength (nm)
Semelab plc.
Telephone +44(0)1455 556565. Fax +44(0)1455 552612.
E-mail:
sales@semelab.co.uk
Website:
http://www.semelab.co.uk
Prelim. 8/96
LAB
Responsivity of SMP Photodiodes vs. Temperature
1
0.75
SEME
SMP SERIES
Spectral Responsivity of SMP Photodiodes
with and without integral optical filters
1
(%)
0.8
Relative Responsivity
0.5
0.25
0
0.25
0.5
0.75
1
Change in Q.E. / C
Unfiltered
0.6
0.4
0.2
BG18
RG850
U340
200
300
400
500
600
700
800
900
1000
1100
1200
0
200
400
600
800
1000
1200
Wavelength (nm)
Wavelength (nm)
Standard TO–18
Lensed TO–18
0.2
0.0001
U340 magnified x2
0.1
U340 magnified x2000
0
200
250
300
350
400
0
650
675
700
725
750
Bead Lens TO–18
Semelab plc.
Low Profile TO–18
Prelim. 8/96
Telephone +44(0)1455 556565. Fax +44(0)1455 552612.
E-mail:
sales@semelab.co.uk
Website:
http://www.semelab.co.uk
LAB

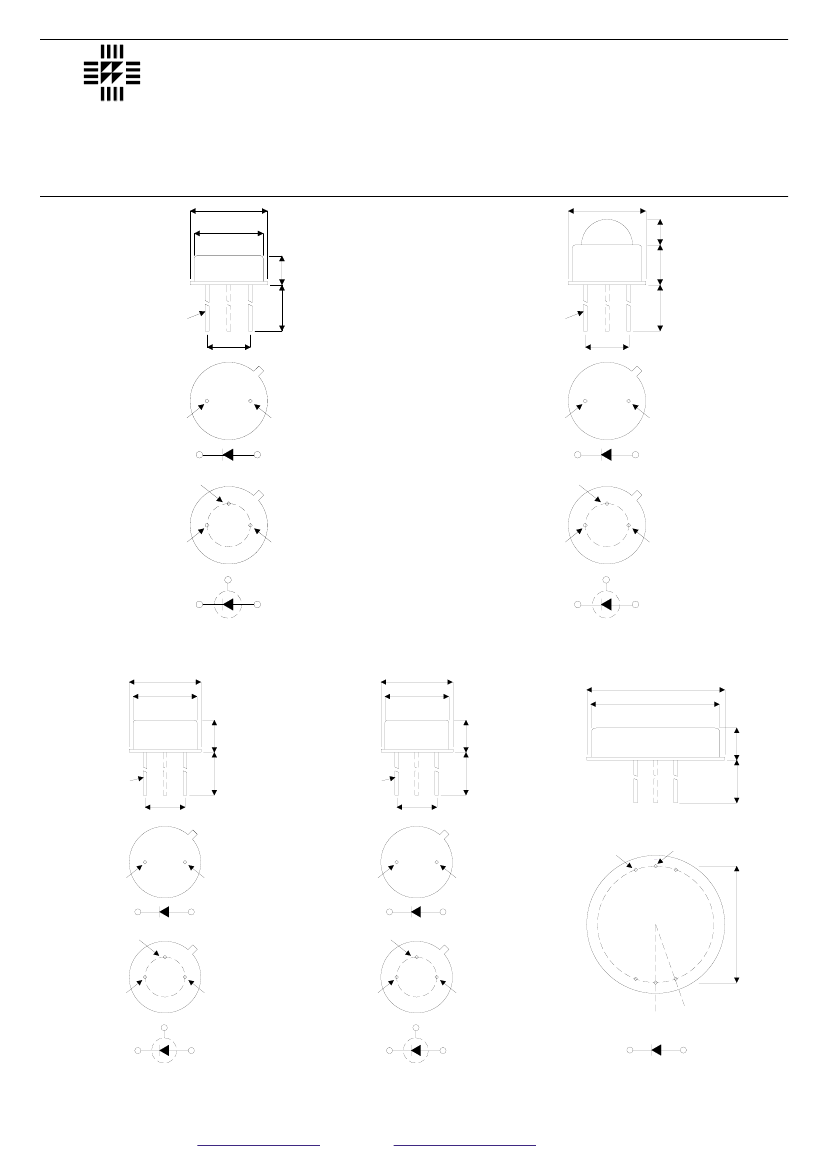

0.45
