FRJ/FRJA Series
FILTERED & SHIELDED
Modular Jack
with Superior EMI
Performance

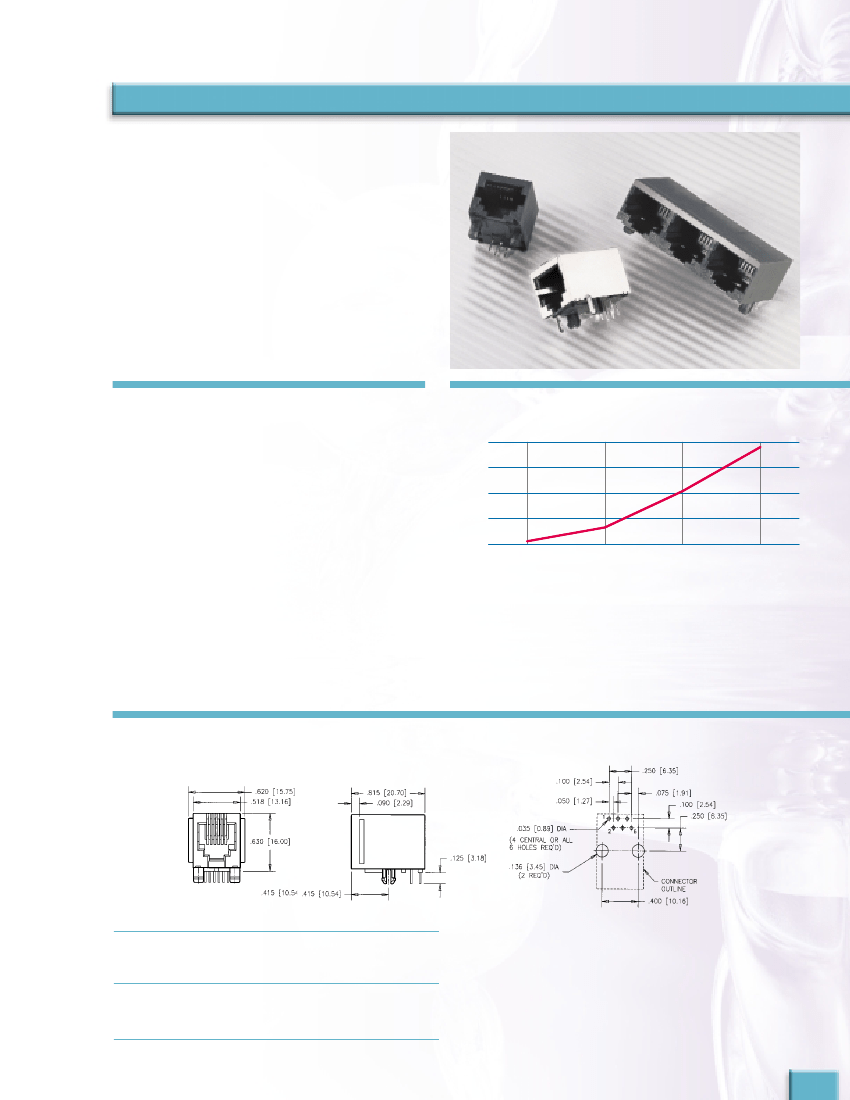

The FRJ and FRJA series of shielded and filtered modular
jacks offer low cost and effective EMC control within stan-
dard RJ-11 and RJ-45 connector footprints. EMC control is
offered by a completely shielded connector and/or with the
use of a high resistivity, high impedance ferrite block. No
board layout changes are required for its use. Simply
replace the standard non-filtered connector for superior EMC
performance.
Specifications
MATERIAL
Shield:
Contacts:
Insert:
Copper Alloy; Tin/Lead Plated
Phosphor Bronze; Gold over 30µ
inches (0.76 microns) over Ni
For FRJ, High Temperature
Resistant Nylon. For FRJA,
Thermoplastic Polyester
(Complies with UL 94V-0)
High Impedance, High Resistivity,
Ferrite Block
20 Milliohms maximum
500 Megaohms minimum
1.5 Amps
125 Volts AC
E135615
LR68598
Impedance Characteristics
200
IMPEDANCE (ohms)
150
100
50
0
Filter:
1
10
100
FREQUENCY (MHz)
1000
ELECTRICAL
Contact Resistance:
Insulation Resistance:
Current Rating:
Voltage Rating:
UL File # :
CSA File #:
6 Position Filtered - High Profile
4 Contacts:
Standard Jack:
Filtered:
6 Contacts:
Standard Jack:
Filtered:
FRJ-104
FRJ-144
FRJ-106
FRJ-146
Amphenol
®
Canada Corp. Telephone: (416) 754-5656 Fax: (416) 754-8668 E-mail: sales@amphenolcanada.com
11
FRJA Series
FILTERED & SHIELDED

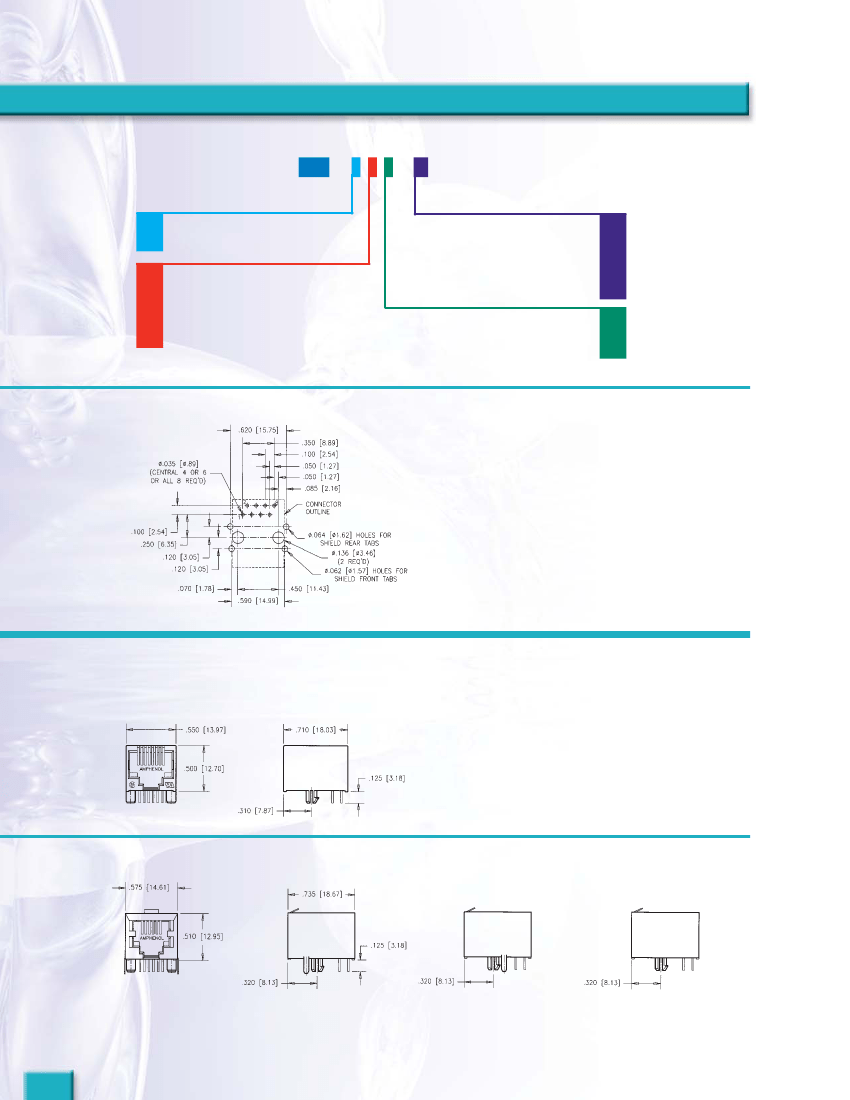

Ordering Information
FRJA
–
X X X
–
XX
X
NUMBER OF POSITIONS
4 - 8 position
6 - 6 position
OPTIONS
0 - non filtered, non shielded
1 - filtered with front tab shield
3 - shield (front tab)
4 - filtered
6 - filtered with rear tab shield
8 - shielded (rear tab)
NUMBER OF PORTS
Blank - 1 port
02 - 2 ports
03 - 3 ports
04 - 4 ports
06 - 6 ports
08 - 8 ports
NUMBER OF CONTACTS
8 - 8 contacts (8 position)
6 - 6 contacts (6 position)
4 - 4 contacts (6 position)
XX
X
X
PCB LAYOUT
Single Port (8 & 6 position)
NON-SHIELDED
SHIELDED
FRONT TAB
REAR TAB
N0 TAB
12
Amphenol
®
Canada Corp. Telephone: (416) 754-5656 Fax: (416) 754-8668 E-mail: sales@amphenolcanada.com
FRJA Series
FILTERED & SHIELDED

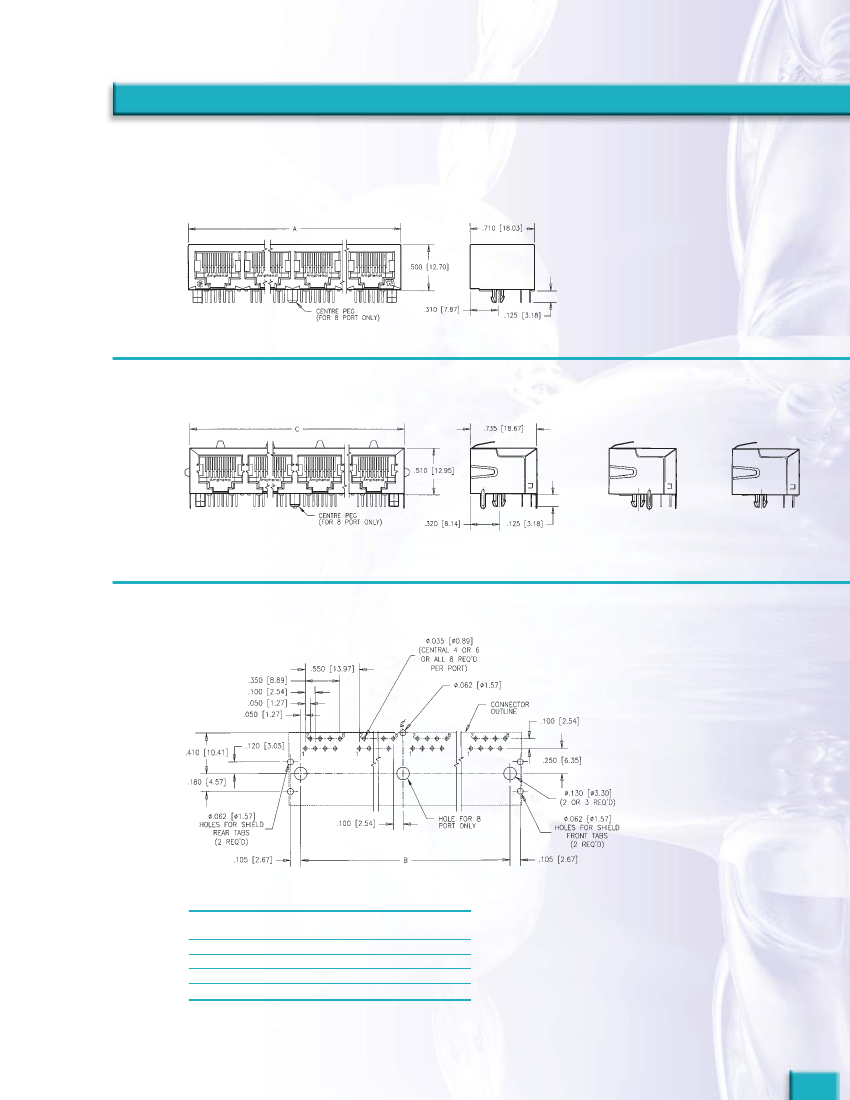

Multi Port (8 & 6 position)
NON-SHIELDED
SHIELDED
FRONT TAB
REAR TAB
N0 TAB
PCB LAYOUT
Number
of ports
2
4
6
8
A
1.200[30.48]
2.300[58.42]
3.400[86.36]
4.500[114.30]
B
1.000[25.40]
2.100[53.34]
3.200[81.28]
4.300[109.22]
C
1.230[31.24]
2.330[59.18]
3.430[87.12]
4.530[115.06]
Amphenol
®
Canada Corp. Telephone: (416) 754-5656 Fax: (416) 754-8668 E-mail: sales@amphenolcanada.com
13
