MCC3334: DescriptionHIGH ENERGY IGNITION CIRCUIT; CategoryAnalog mixed-signal IC The signal circuit; File Size9MB，4 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

MCC3334 Overview

HIGH ENERGY IGNITION CIRCUIT

Parameter Name	Attribute value
Maker	Motorola ( NXP )
package instruction	DIE-8
Reach Compliance Code	unknow
Analog Integrated Circuits - Other Types	ANALOG CIRCUIT
JESD-30 code	R-XUUC-N8
Number of terminals	8
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	UNSPECIFIED
encapsulated code	DIE
Encapsulate equivalent code	DIE OR CHIP
Package shape	RECTANGULAR
Package form	UNCASED CHIP
Certification status	Not Qualified
Maximum supply voltage (Vsup)	24 V
Minimum supply voltage (Vsup)	4 V
surface mount	YES
technology	BIPOLAR
Temperature level	AUTOMOTIVE
Terminal form	NO LEAD
Terminal location	UPPER

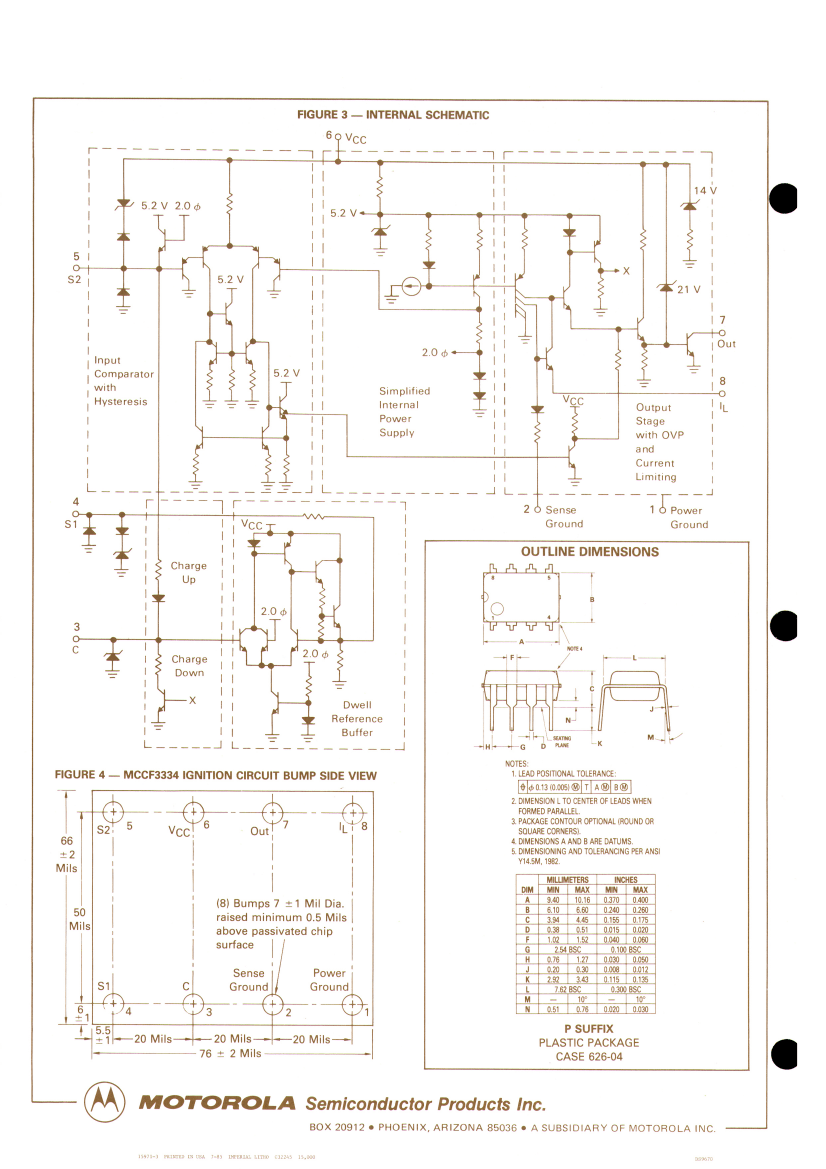

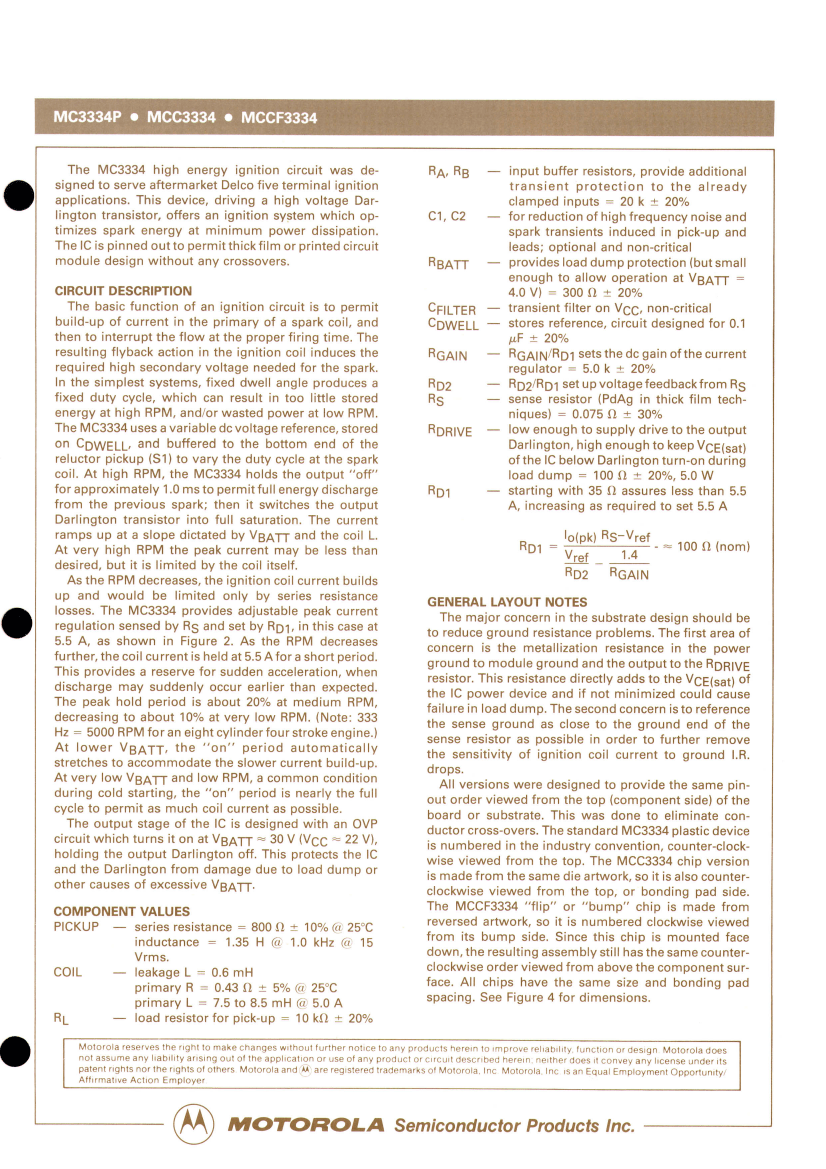

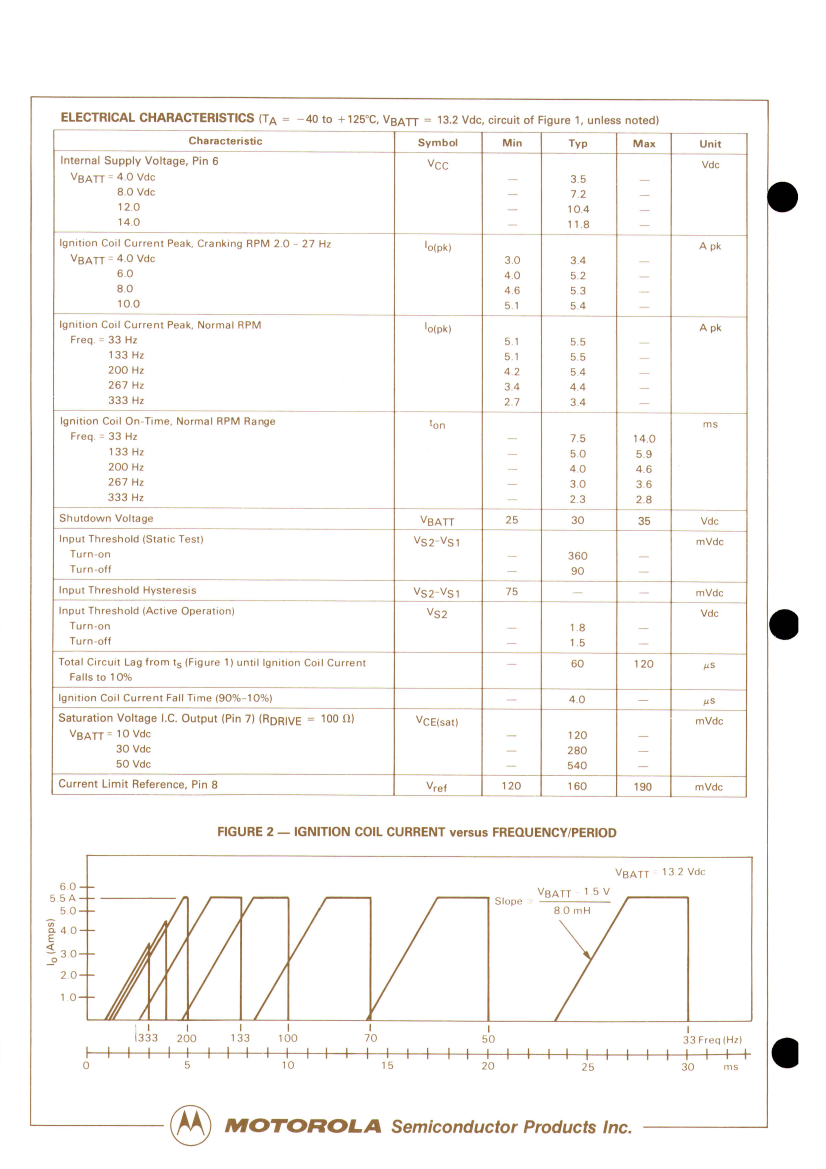

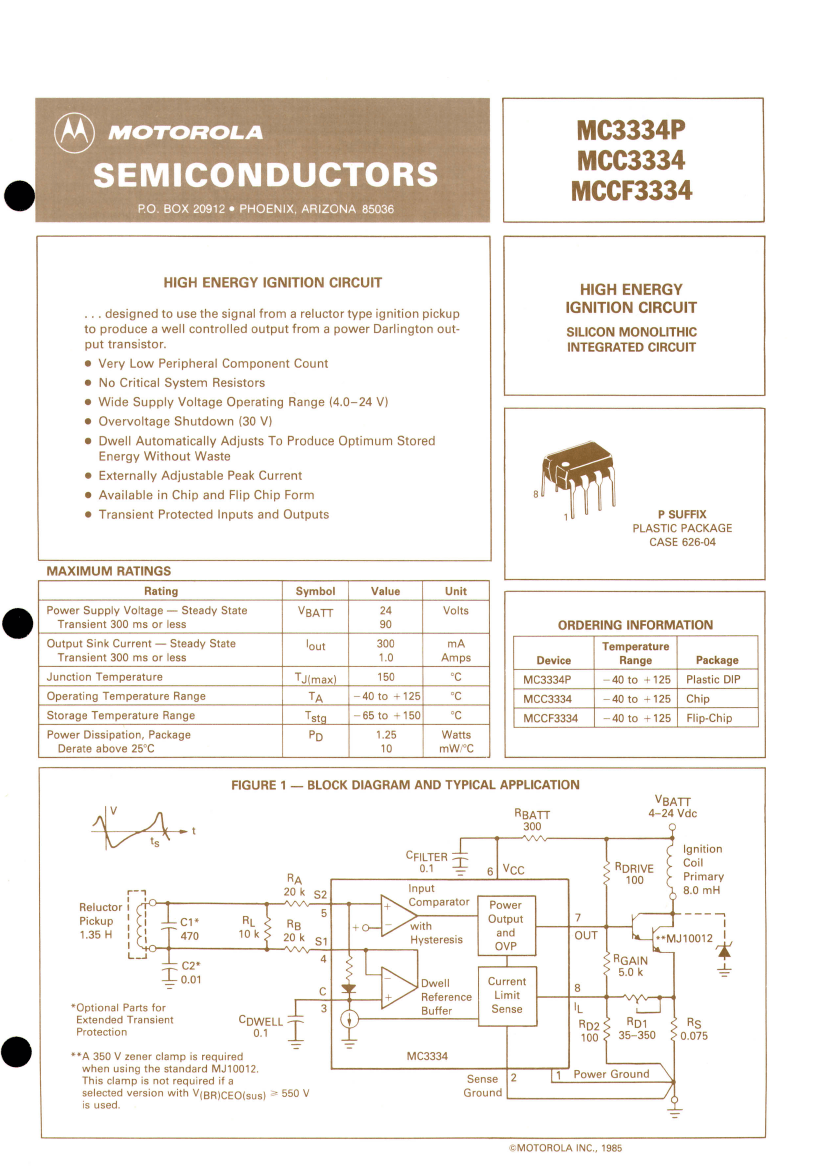

Freescale Semiconductor, Inc.

Freescale Semiconductor, Inc...

For More Information On This Product,

Go to: www.freescale.com

MC3334-DS9670/D, Rev. 0

	MCC3334	MC3334P	MCCF3334
Description	HIGH ENERGY IGNITION CIRCUIT	HIGH ENERGY IGNITION CIRCUIT	HIGH ENERGY IGNITION CIRCUIT
Maker	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )
package instruction	DIE-8	PLASTIC, DIP-8	FCP-8
Reach Compliance Code	unknow	unknow	unknow
Analog Integrated Circuits - Other Types	ANALOG CIRCUIT	ANALOG CIRCUIT	ANALOG CIRCUIT
JESD-30 code	R-XUUC-N8	R-PDIP-T8	R-XUUC-N8
Number of terminals	8	8	8
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
Package body material	UNSPECIFIED	PLASTIC/EPOXY	UNSPECIFIED
encapsulated code	DIE	DIP	DIE
Encapsulate equivalent code	DIE OR CHIP	DIP8,.3	FLIP CHIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	UNCASED CHIP	IN-LINE	UNCASED CHIP
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	24 V	24 V	24 V
Minimum supply voltage (Vsup)	4 V	4 V	4 V
surface mount	YES	NO	YES
technology	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE
Terminal form	NO LEAD	THROUGH-HOLE	NO LEAD
Terminal location	UPPER	DUAL	UPPER
Is it Rohs certified?	-	incompatible	incompatible
JESD-609 code	-	e0	e0
Peak Reflow Temperature (Celsius)	-	NOT SPECIFIED	NOT SPECIFIED
Terminal surface	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Maximum time at peak reflow temperature	-	NOT SPECIFIED	NOT SPECIFIED
