P675PC: DescriptionIEC Appliance Plug F, 70L C; File Size248KB，2 Pages; ManufacturerSCHURTER; Websitehttp://www.schurterinc.com/

Download Datasheet Compare View All

P675PC Overview

IEC Appliance Plug F, 70L C

Preview

Download Datasheet

View All

Connectors (Inlets/Outlets)

www.schurter.com/pg07

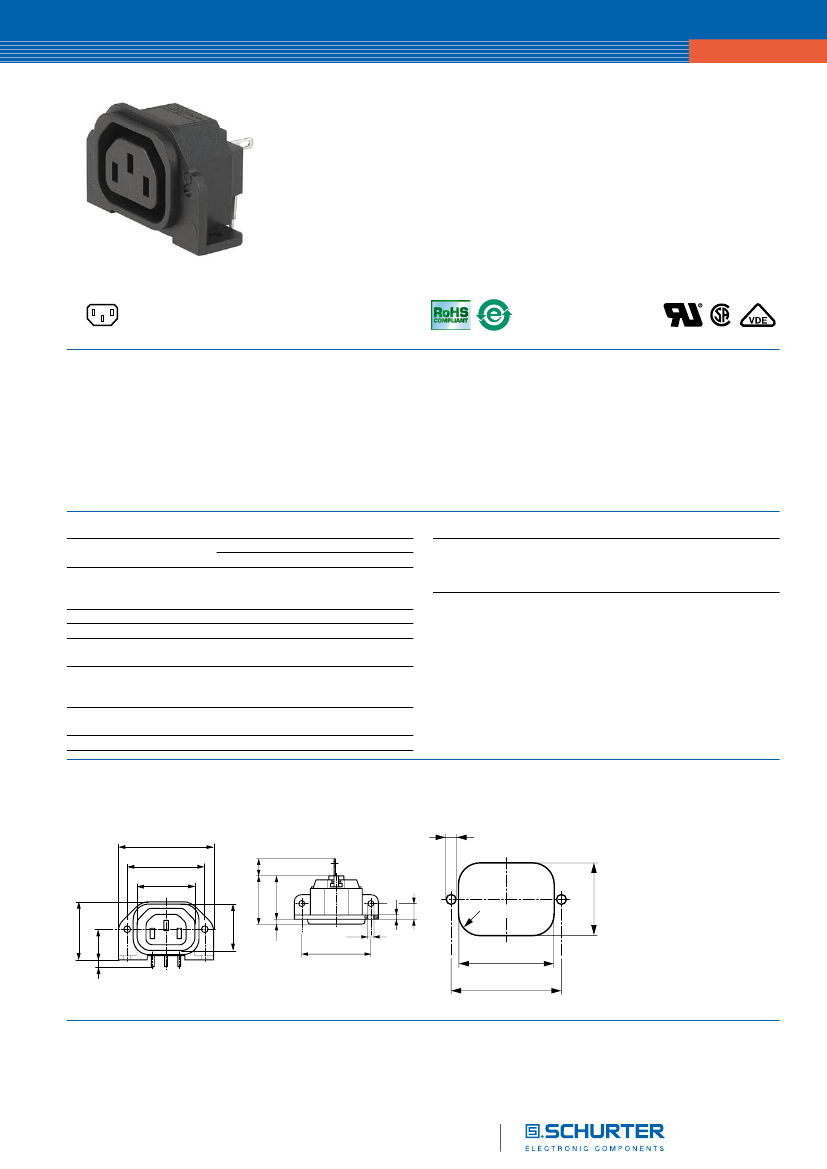

IEC Appliance Outlet F, 70°C

P675/PC

70° C

Description

- Panel Mount:

Screw-on mounting from rear-side

- 1 Function:

- Connector, Pin temperature 70 °C, Protection class I

- For PCB mounting

- On phase-out, not recommended for new design

Approvals

- VDE Certificate Number: 65981

- UL File Number: E93616

Technical Data

Ratings IEC

Ratings UL/CSA

Dielectric Strength

Allowable Operation Temp.

Degree of Protection

Protection Class

Terminal

Panel Thickness s

Material: Housing

Dimensions

49.6

33.9

10.3

28.2

3.45

2.36

10 A / 250 VAC; 50 Hz

15 A / 250 VAC; 60 Hz

> 2 kVAC between L-N

> 2 kVAC between L/N-PE

(50 Hz)

-25 °C to 70 °C

from front side IP 30 acc. to IEC 60529

Suitable for appliances with protection

class I acc. to IEC 61140

For PCB mounting ; Ground terminal:

Quick connect terminals 4.8 x 0.8 mm

straight

Screw: max 3 mm

Mounting screw torque max 0.5 Nm

Thermoplastic, black, UL 94V-0

max.R7.8

30.3

15.9

3.2

3.45

8.7

34.7

Connectors

26.4

-O

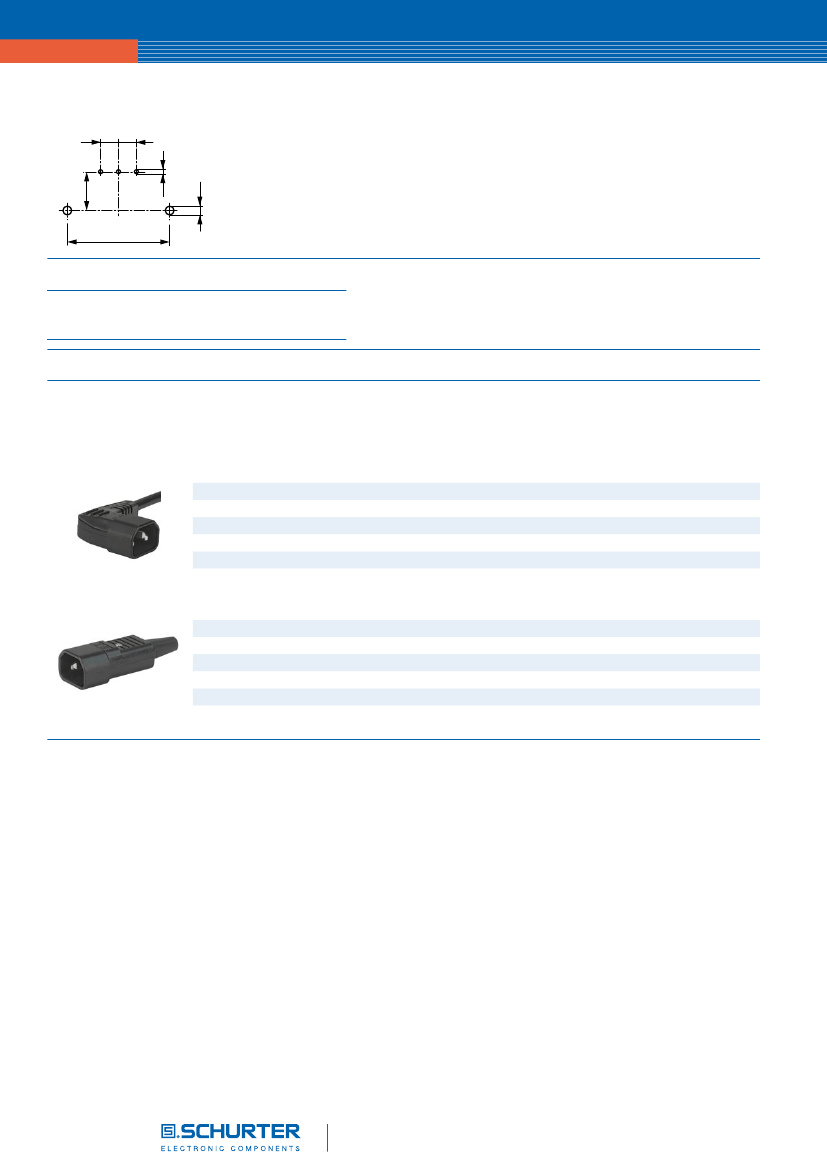

This type is Phase-out. Alternate type: 5001

Last order date: 31.12.2012

References

Weblinks

pdf-datasheet, html-datasheet, General Product Information, Approvals,

RoHS, CHINA-RoHS, Mating Connectors, e-Shop, SCHURTER-Stock-

Check, Distributor-Stock-Check, CAD-Drawings, Accessories, Detailed

request for product

Appliance Outlet

F acc. to IEC 60320,

UL 498, CSA C22.2 no. 42 (for cold

conditions) pin-temperature 70 °C, 10 A,

Protection Class I

P675PC Related Products

	P675PC	4300.0251
Description	IEC Appliance Plug F, 70L C	IEC Appliance Plug F, 70L C
