2SB1565F datasheet, PDF - EEWORLD Datasheet

2SB1565F: DescriptionPower Bipolar Transistor, 3A I(C), 60V V(BR)CEO, 1-Element, PNP, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220FN, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size39KB，1 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric View All

2SB1565F Overview

Power Bipolar Transistor, 3A I(C), 60V V(BR)CEO, 1-Element, PNP, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220FN, 3 PIN

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Parts packaging code	TO-220FN
package instruction	TO-220FN, 3 PIN
Contacts	3
Reach Compliance Code	compli
ECCN code	EAR99
Shell connection	ISOLATED
Maximum collector current (IC)	3 A
Collector-emitter maximum voltage	60 V
Configuration	SINGLE
Minimum DC current gain (hFE)	160
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
Number of components	1
Number of terminals	3
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	PNP
Maximum power dissipation(Abs)	25 W
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	15 MHz
Base Number Matches	1

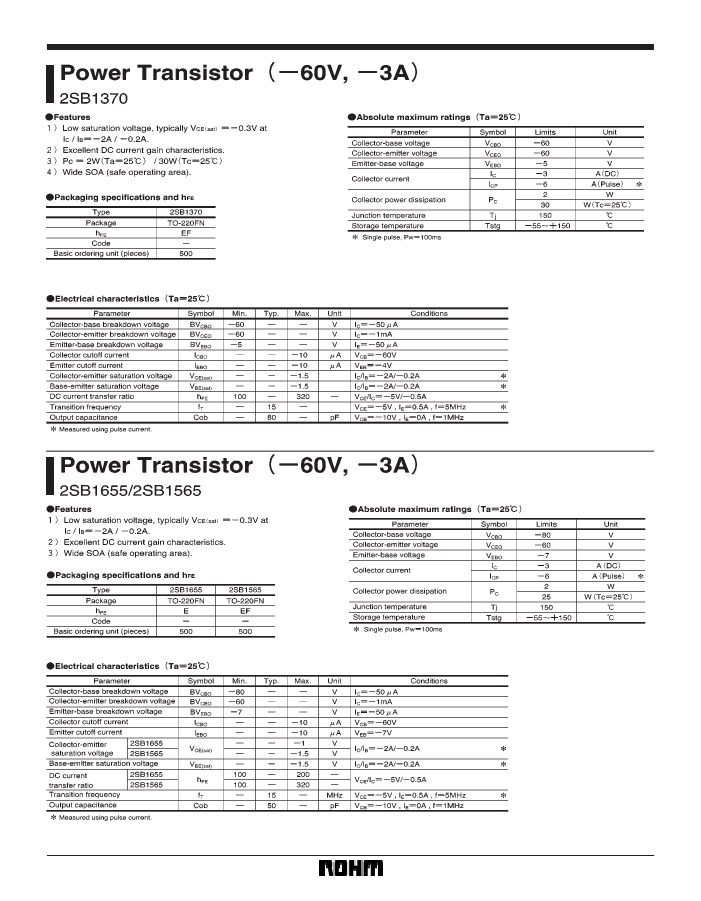

Transistors

2SB1370

2SB1655 / 2SB1565

(94L-411-B303)

(94L-456-B349)

319
