DS1010G-250 datasheet, PDF - EEWORLD Datasheet

DS1010G-250: DescriptionSilicon Delay Line, 1-Func, 10-Tap, True Output, CMOS, PDSO14,; Categorylogic logic; File Size74KB，6 Pages; ManufacturerDALLAS; Websitehttp://www.dalsemi.com

Download Datasheet Parametric View All

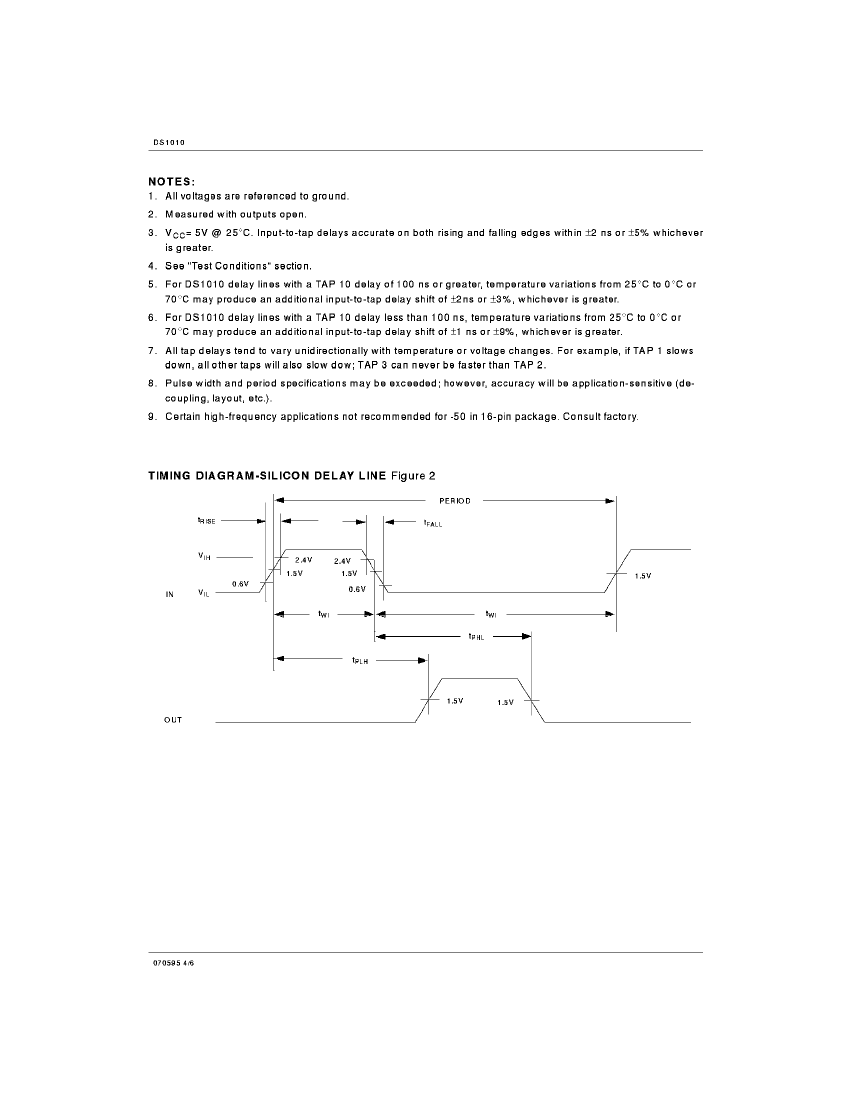

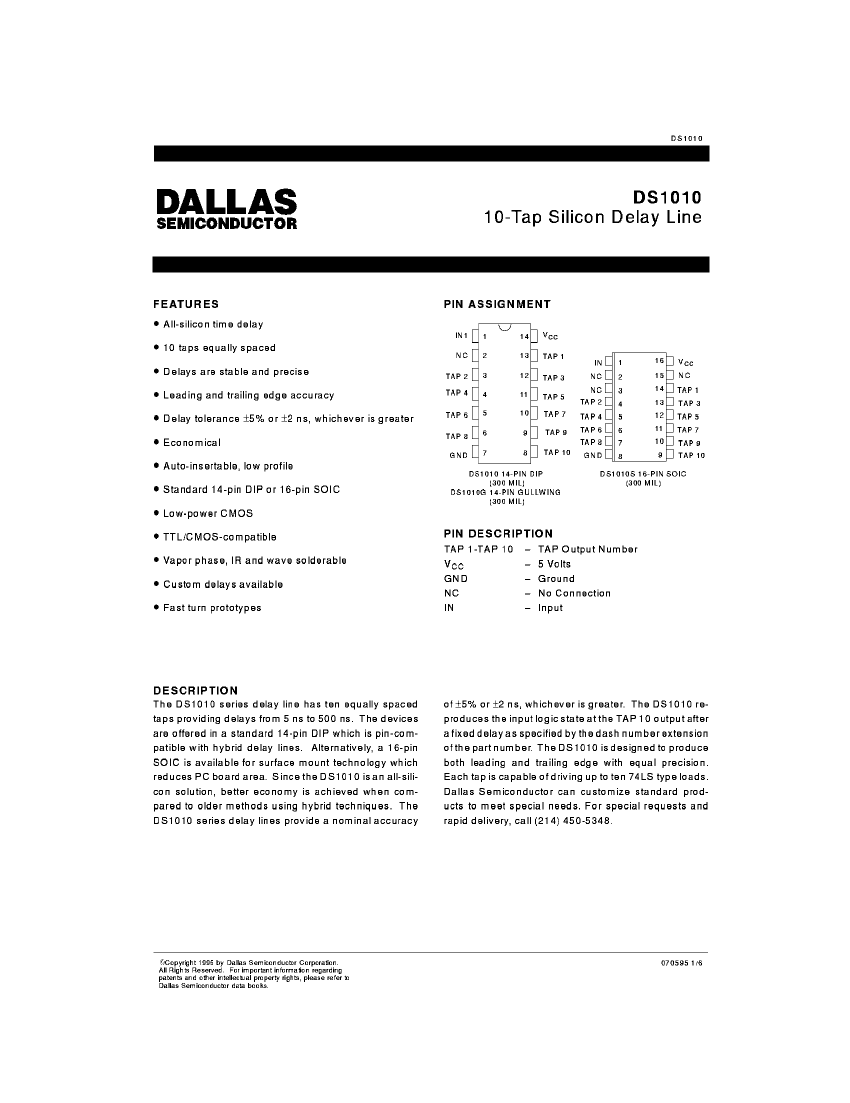

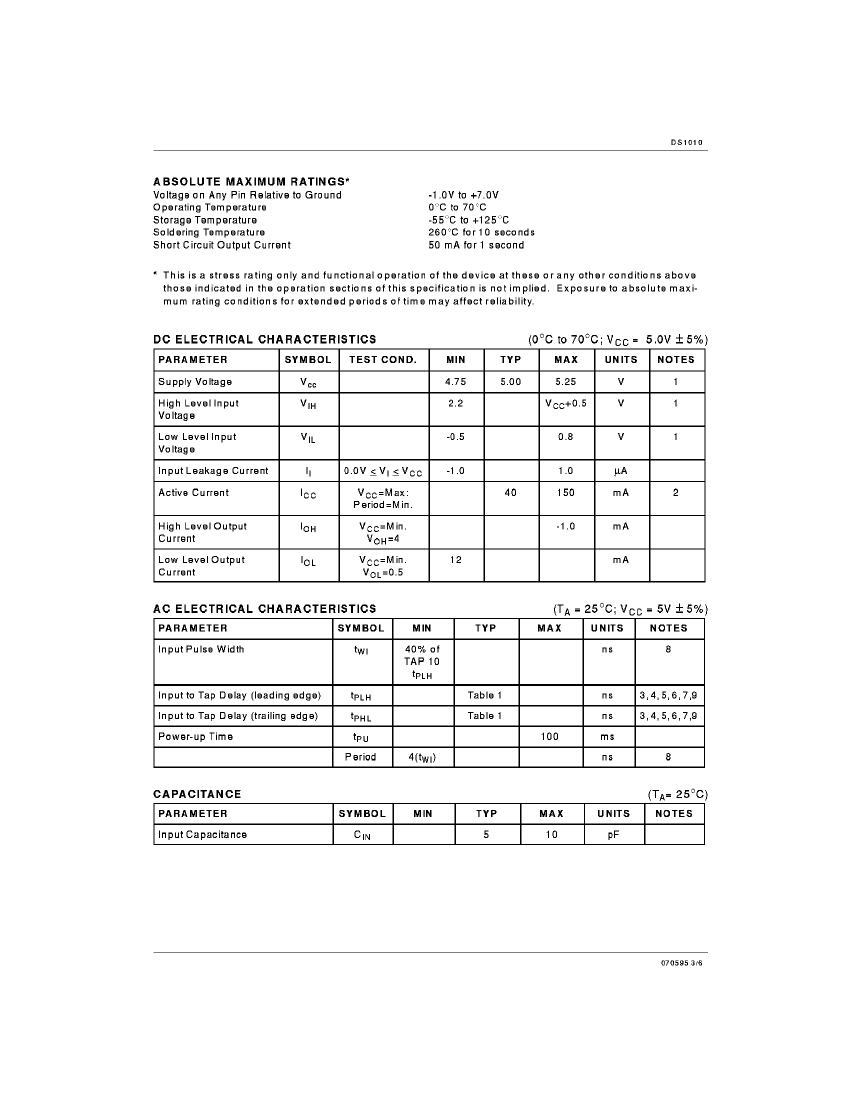

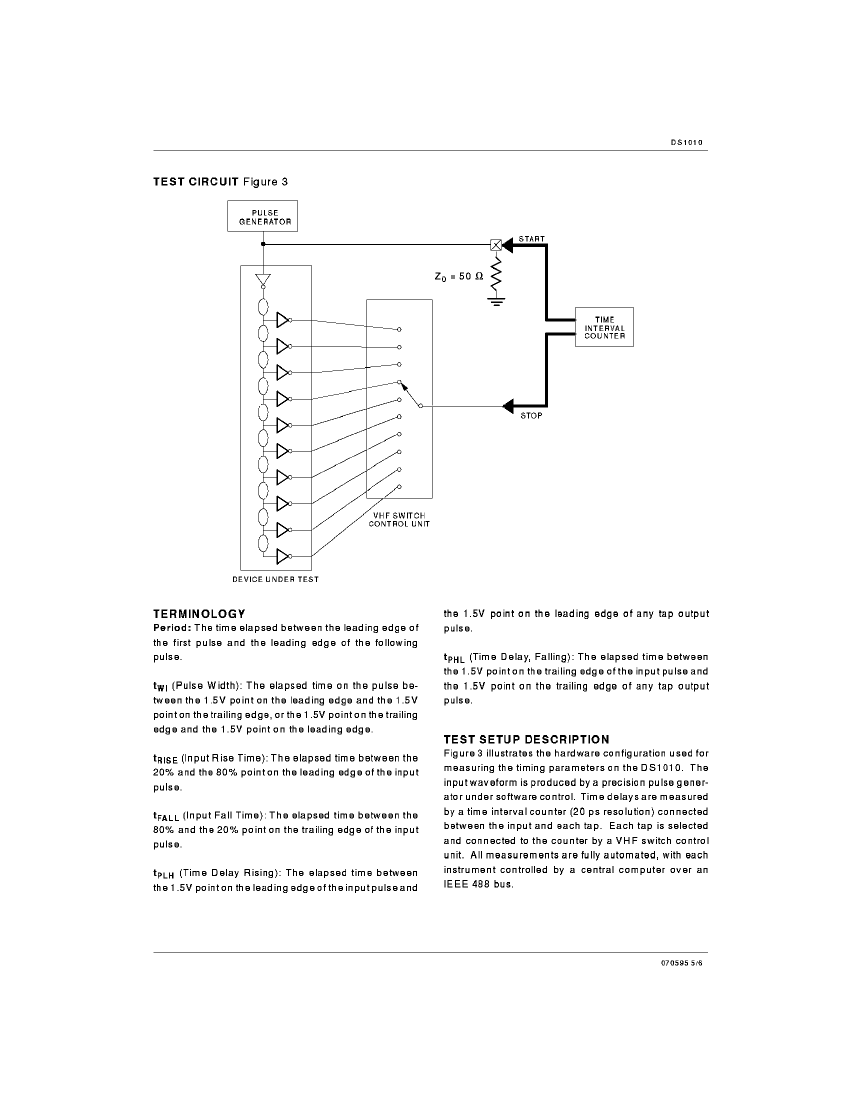

DS1010G-250 Overview

Silicon Delay Line, 1-Func, 10-Tap, True Output, CMOS, PDSO14,

Parameter Name	Attribute value
Maker	DALLAS
Reach Compliance Code	unknown
Other features	BOTH LEADING & TRAILING EDGE ACCURACY; MAX FAN OUT OF 10 74LS LOAD PER OUTPUT
series	CMOS/TTL
Input frequency maximum value (fmax)	2.5 MHz
JESD-30 code	R-PDSO-G14
Logic integrated circuit type	SILICON DELAY LINE
Number of functions	1
Number of taps/steps	10
Number of terminals	14
Maximum operating temperature	70 °C
Minimum operating temperature
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
programmable delay line	NO
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal location	DUAL
Total delay nominal (td)	250 ns
