B25671A5042A020 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> B25671A5042A020

B25671A5042A020: DescriptionFilm Capacitors - Power Factor Correction PoleCap capacitor; CategoryPassive components capacitor; File Size136KB，8 Pages; ManufacturerEPCOS (TDK)

Download Datasheet Parametric Compare View All

B25671A5042A020 Overview

Film Capacitors - Power Factor Correction PoleCap capacitor

B25671A5042A020 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	EPCOS (TDK)
package instruction	,
Reach Compliance Code	compli
ECCN code	EAR99
Other features	STANDARD: IEC60831-1/2
capacitance	16 µF
Capacitor type	FILM CAPACITOR
dielectric materials	POLYPROPYLENE
Installation features	STUD MOUNT
negative tolerance	5%
Number of terminals	2
Maximum operating temperature	55 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
positive tolerance	10%
Rated (AC) voltage (URac)	525 V
surface mount	NO
Terminal shape	FLEXIBLE WIRE

Preview

Download Datasheet

View All

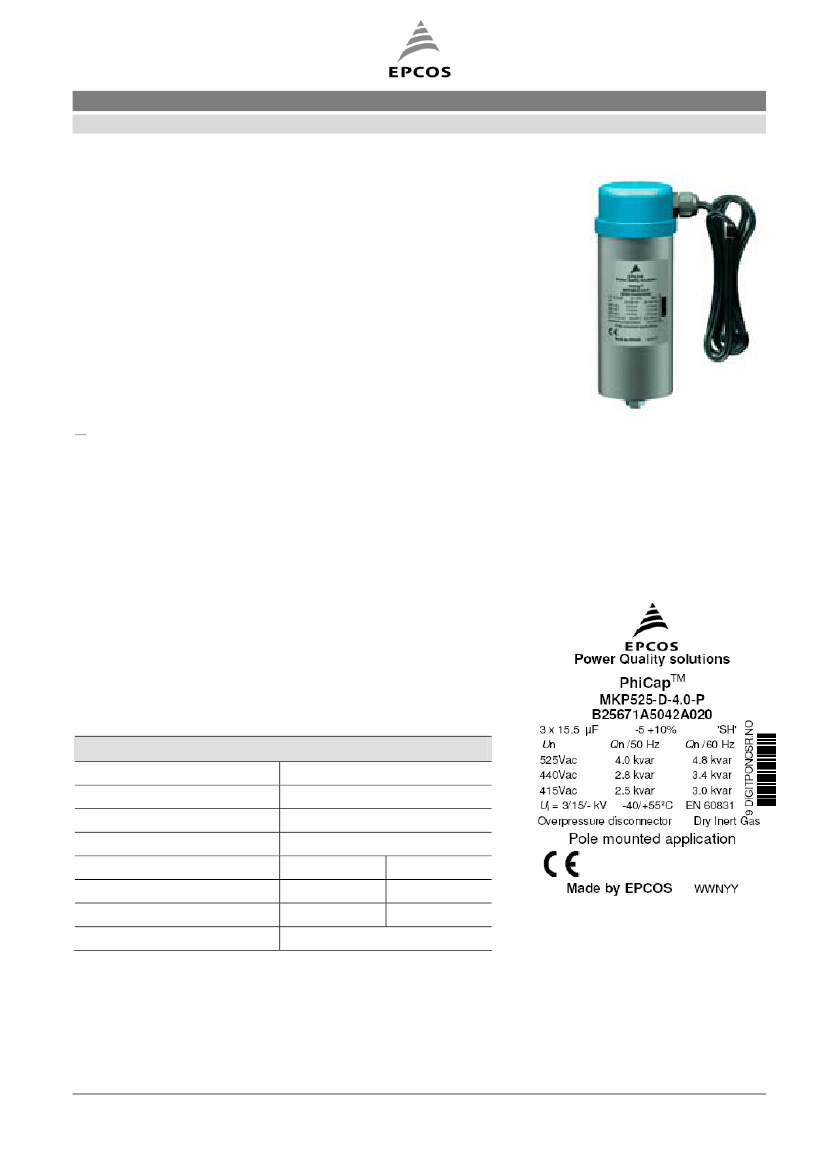

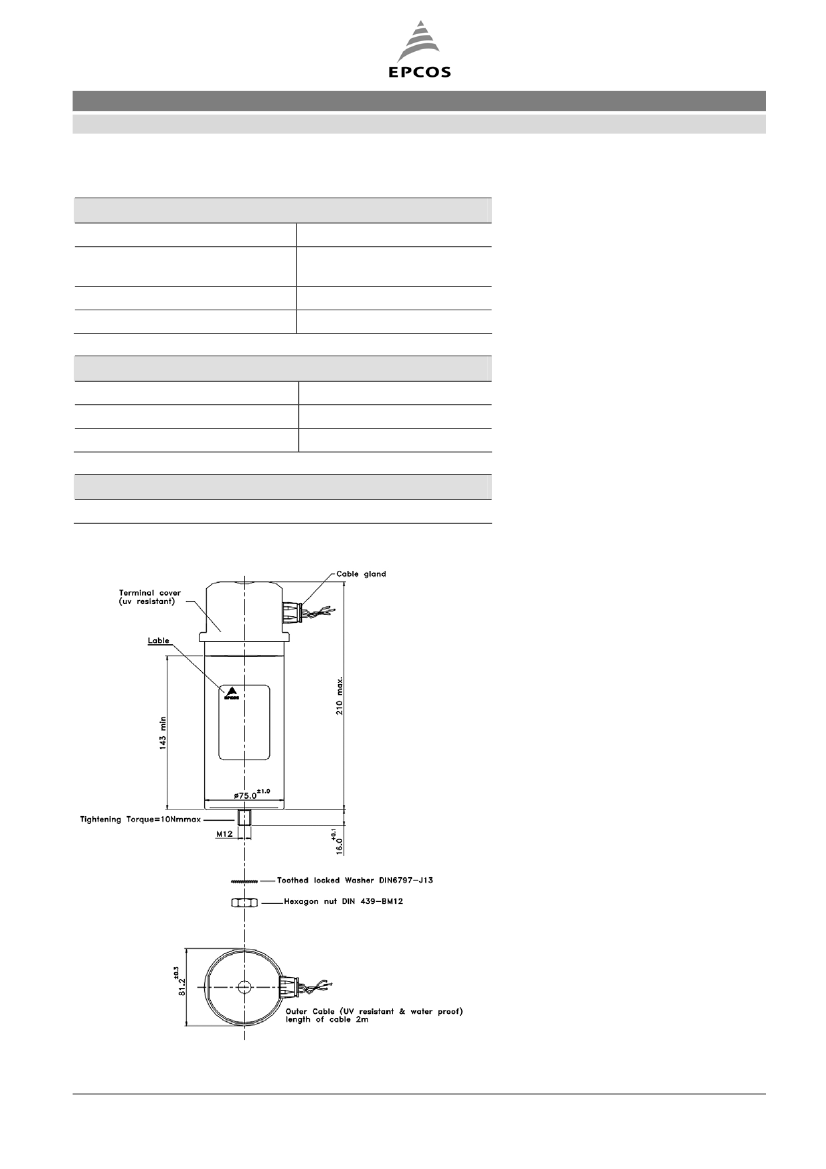

Film Capacitors – Power Factor Correction

PoleCap capacitor

Series/Type:

Ordering code:

Date:

Version:

MKP525-D-4-P

B25671A5042A020

November 2009

Content of header bars 1 and 2 of data sheet will be automatically entered in headers and footers! Please fill in the

table and then change the color to "white". This ensures that the table disappears (invisible) for the customer PDF.

Don't change formatting when entering or pasting text in the table and don't add any cell or line in and to it!

Identification/Classification 1

(header 1 + top left bar):

Identification/Classification 2

(header 2 + bottom left header bar):

Ordering code: (top right header bar)

Series/Type: (top right header bar)

Preliminary data (optional):

(if necessary)

Department:

Date:

Version:

FK PC PM PFC

November 2009

Film Capacitors – Power Factor Correction

PoleCap capacitor

B25671A5042A020

MKP525-D-4-P



EPCOS AG 2009. Reproduction, publication and dissemination of this publication, enclosures hereto and the information

contained therein without EPCOS' prior express consent is prohibited

Film Capacitors – Power Factor Correction

PoleCap capacitor

B25671A5042A020

MKP525-D-4-P

Cautions and warnings



In case of dents of more than 1 mm depth or any other mechanical damage, capacitors must not

be used at all.



This applies also in cases of oil leakages.



To ensure the full functionality of the overpressure disconnector, elastic elements must not be

hindered and a minimum space of 12 mm has to be kept above each capacitor.



Do not handle the capacitor before it is discharged.



Resonance cases must be avoided by appropriate application design in any case.



Handle capacitors carefully, because they may still be charged even after disconnection due to

faulty discharging devices.



Protect the capacitor properly against over current and short circuit.



Failure to follow cautions may result, worst case, in premature failures, bursting and fire.

Discharging

Capacitors must be discharged to a maximum of 10% of rated voltage before they are switched in

again. This prevents an electric impulse discharge in the application, influences the capacitor’s

service life and protects against electric shock. The capacitor must be discharged to 75 V or less

within 3 minutes. There must be not any switch, fuse or any other disconnecting device in the circuit

between the power capacitor and the discharging device. PoleCap-capacitors have a pre-mounted

ceramic discharge module; alternatively discharge reactors are available from EPCOS. Discharge and

short circuit capacitor before handling!

Service life expectancy

Electrical components do not have an unlimited service life expectancy; this applies to self-healing

capacitors too. The maximum service life expectancy may vary depending on the application the

capacitor is used in.

Safety

Electrical or mechanical misapplication of capacitors may be hazardous. Personal injury or property

damage may result from bursting of the capacitor or from expulsion of oil or melted material due to

mechanical disruption of the capacitor.



Ensure good, effective grounding for capacitor enclosures.



Provide means of disconnecting and insulating a faulty component/bank.



The terminals of capacitors, connected bus bars and cables as well as other devices may also be

energized.



Follow good engineering practice.

Thermal load/over-temperature

After installation of the capacitor it is necessary to verify that maximum hot-spot temperature is not

exceeded at extreme service conditions.

FK PC PM PFC

Please read

Cautions and warnings

and

Important notes

at the end of this document.

Page 5 of 8

November 2009
