HEDFS103G ....... HEDFS107G
1.0 Amp. Miniature Glass Passivated Ultrafast Surface Mount Bridge Rectifier
Voltage
200 V to 1000 V
Current
1.0 A
DFS
FEATURES
Ultrafast reverse recovery time for high frequency
Ideal for automated placement
High forward surge current capability
Solder dip 260ºC, 10s
Component in accordance to RoHS 2011/65/EU
and WEEE 2002/96/EC
Meets MSL level 1, per J-STD-020, LF maximum
peak of 250º C
MECHANICAL DATA
Case
:
DFS
Epoxy meets UL 94V-0 flammability rating.
Polarity
:
As marked on body.
Terminals
:
Matte tin plated leads, solderable per
MIL-STD-750 Method 2026, J-STD-002 and JESD22-B102.
Consumer grade, meets JESD 201 class 1A whisker test.
TYPICAL APPLICATIONS
Used in ac-to-dc bridge full wave rectification for SMPS,
lighting ballaster, adapter, battery charger, home appliances, office
equipment, and telecommunication applications..
Maximun Ratings and Electrical Characteristics at 25°C
Marking Code
HEDFS
HEDFS
HEDFS
HEDFS
HEDFS
103G
104G
105G
106G
107G
DFS103G DFS104G DFS105G DFS106G DFS107G
200
140
200
400
280
400
600
420
600
1.0 A
50 A
50 nS
25 pF
15 °C/W
40 °C/W
-55 to + 150 °C
-55 to + 150 °C
75 nS
800
560
800
1000
700
1000
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
T
rr
C
j
Maximum Recurrent Peak Reverse Voltage (V)
Maximum RMS Voltage (V)
Maximum DC Blocking Voltage (V)
Maximum Average Forward Rectified Current
@T
A
= 40 °C
Peak Forward Surge Current, 8.3 ms Single
Half Sine-wave Superimposed on Rated Load
(JEDEC method)
Max. reverse recovery time from
I
F
= 0.5 A ; I
R
= 1 A ; I
RR
= 0.25 A
Typical Junction Capacitance
R
th (j-l)
Typical Thermal Resistance (Note 2)
R
th (j-a)
T
j
Operating Temperature Range
T
stg
Storage Temperature Range
Electrical Characteristics at Tamb = 25 °C
V
F
I
R
Max. Instantaneous Forward Voltage @ 1.0A
Maximum DC Reverse Current @ T
A
= 25 °C
at Rated DC Blocking Voltage @ T
A
= 125 °C
1.0 V
1.3 V
5.0 µA
500 µA
1.7 V
Note: 1. DBS for Surface Mount Package.
2. Thermal Resistance from Junction to Ambient and from Junction to Lead Mounted
On P.C.B. with 5 x 5mm Copper Pads.
www.fagorelectronica.com
Document Name: hedfs
Version: Dec-11
Page Number: 1/4
HEDFS103G ....... HEDFS107G
1.0 Amp. Miniature Glass Passivated Ultrafast Surface Mount Bridge Rectifier
Ordering information
PREFERRED P/N
HEDFS106G TR
PACKAGE CODE
TR
DELIVERY MODE
13" diameter tape and reel
BASE QUANTITY
3,000
UNIT WEIGHT (g)
0.399
Package Outline Dimensions: (mm)
DFS
8.51
8.13
45°
3.3
3.05
0.33
0.22
5.2
5
10.3
9.8
6.5
6.2
Mounting Pad Layout
1.2
MC
WWY
1.2
1.02
Marking code
Year code
Week code
5.1
1.52
8.7
www.fagorelectronica.com
Document Name: hedfs
0.33
0.076
1.53
1.02
Version: Dec-11
Page Number: 2/4
HEDFS103G ....... HEDFS107G
1.0 Amp. Miniature Glass Passivated Ultrafast Surface Mount Bridge Rectifier

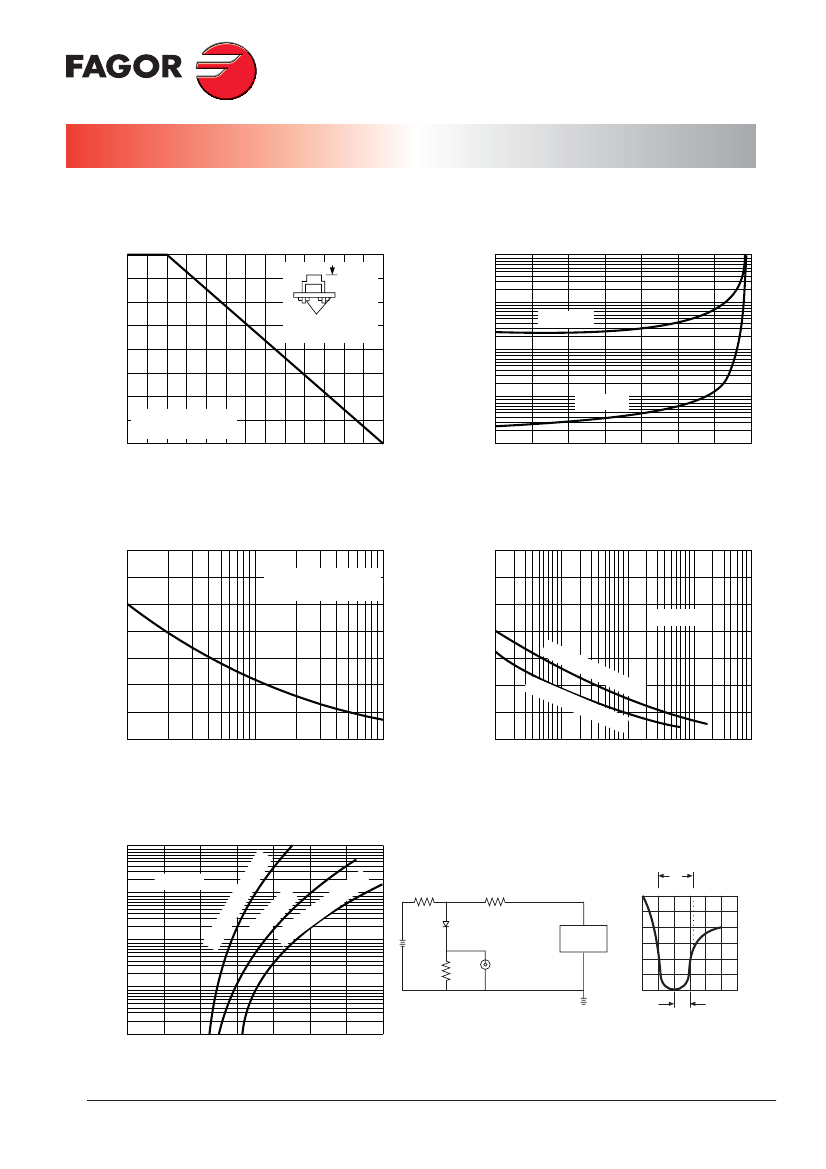

Ratings and Characteristics
(Ta 25 ºC unless otherwise noted)
1.0
1.5mm
PCB
Copper Pauls
13mm x13mm
I
R
, instantaneous reverse current (µA)
MAXIMUM FORWARD CURRENT
DERATING CURVE
TYPICAL REVERSE CHARACTERISTICS
1000
100
T
j
= 125 °C
I
F(AV)
, average forward Current (A)
0.5
10
1
T
j
= 25 °C
60Hz RESISTIVE OR
INDUCTIVE LOAD
0
20
Tamb, ambient temperature (°C)
40
60
80
100
120
140 150
0.1
0
Percent of rated peak reverse voltage (%)
20
40
60
80
100
120
140
I
FSM
, peak forward surge current (A)
MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
TYPICAL JUNCTION CAPACITANCE
60
50
40
30
20
10
0
1
2
5
10
Cj, junction capacitance (pF)
70
8.3ms Single Sine-wave
(JEDEC Method)
70
60
50
40
30
20
10
0
0.1
0.5
HE
T
j
= 25 °C
HE
DF
S1
03G
-HE
DF
DF
S1
S10
05G
6G
-H
ED
FS1
07G
20
50
Number of cycles at 60HZ
100
1
2
5
10 20
50 100 200 500 800
V
R
, reverse voltage (V)
I
F
, instantaneous forward current (A)
TYPICAL FORWARD CHARACTERISTICS
10
FS
10
4G
REVERSE RECOVERY TIME CHARACTERISTIC AND TEST
CIRCUIT DIAGRAM
7G
10
FS
D
HE
G-
6
10
FS
D
HE
50W
NON INDUCTIVE
10W
NON INDUCTIVE
+0.5A
(-)
PULSE
GENERATOR
(NOTE 2)
OSCILLOSCOPE
(NOTE 1)
(+)
trr
10
3G
HE
DF
S1
05
1
0.1
0.01
-H
ED
T
j
= 25 °C
G
DF
S
DUT
(+)
50Vdc
(approx)
(-)
0
-0.25A
HE
1W
NON
INDUCTIVE
-1.0A
NOTES: 1. Rise Time = 7ns max. Input Impedance =
1 megohm 22 pf
2. Rise Time = 10 ns max. Sourse Impedance =
50 ohms
1cm
SET TIME BASE FOR
5/ 10ns/ cm
0.001
0
0.2
V
F
, forward voltage (V)
0.4
0.6
0.8
1.0
1.2
1.4
www.fagorelectronica.com
Document Name: hedfs
Version: Dec-11
Page Number: 3/4
HEDFS103G ....... HEDFS107G
1.0 Amp. Miniature Glass Passivated Ultrafast Surface Mount Bridge Rectifier
Disclaimer
All product, product specifications and data are subject to change without notice to improve reliability,
function or design or otherwise.
Fagor Electrónica, S.Coop., its affiliates, agents, and employees, and all persons acting on its or their
behalf (collectively, "Fagor"), disclaim any and all liability for any errors, inaccuracies or incompleteness contained
in any datasheet or in any other disclosure relating to any product.
Fagor makes no warranty, representation or guarantee regarding the suitability of the products for any particular
purpose or the continuing production of any product. To the maximum extent permitted by applicable law,
Fagor disclaims (i) any and all liability arising out of the application or use of any product, (ii) any and all
liability, including without limitation special, consequential or incidental damages, and (iii) any and all implied
warranties, including warranties of fitness for particular purpose, non-infringement and merchantability.
Statements regarding the suitability of products for certain types of applications are based on Fagor's knowledge
of typical requirements that are often placed on Fagor products in generic applications. Such statements are not
binding statements about the suitability of products for a particular application. It is the customer's responsibility
to validate that a particular product with the properties described in the product specification is suitable for use in a
particular application. Parameters provided in datasheets and/or specifications may vary in different applications
and performance may vary over time. All operating parameters, including typical parameters, must be validated
for each customer application by the customer's technical experts. Product specifications do not expand or
otherwise modify Fagor's terms and conditions of purchase, including but nos limited to the warranty expressed
therein.
Except as expressly indicated in writing. Fagor products are not designed for use in medical, life-saving, or
life-sustaining applications or for any other application in which the failure of the Fagor product could result in
personal injury or death. Customers using or selling Fagor products not expressly indicated for use in such
applications do so at their own risk and agree to fully indemnify and hold Fagor and its distributors harmless from
and against any and all claims, liabilities, expenses and damages arising or resulting in connection with such use
or sale, including attomeys fees, even if such claim alleges that Fagor or its distributor was negligent regarding
the design or manufacture of the part. Please contact authorized Fagor personnel to obtain written terms and
conditions regarding products designed for such applications.
No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this
document or by any conduct of Fagor, Product names and markings noted herein may be trademarks of their
respective owners.
www.fagorelectronica.com
Document Name: hedfs
Version: Dec-11
Page Number: 4/4
