CTV6LZ-A3B3-19.680 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> CTV6LZ-A3B3-19.680

CTV6LZ-A3B3-19.680: DescriptionClipped Sine Output Oscillator, 19.68MHz Nom, ROHS COMPLIANT PACKAGE-6; CategoryPassive components oscillator; File Size702KB，1 Pages; ManufacturerCardinal Components; Environmental Compliance

Download Datasheet Parametric Compare View All

CTV6LZ-A3B3-19.680 Overview

Clipped Sine Output Oscillator, 19.68MHz Nom, ROHS COMPLIANT PACKAGE-6

CTV6LZ-A3B3-19.680 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Cardinal Components
Reach Compliance Code	compliant
Other features	TAPE AND REEL
Ageing	1 PPM/YEAR
Maximum control voltage	3 V
Minimum control voltage	1.65 V
Frequency Adjustment - Mechanical	YES
Frequency offset/pull rate	4 ppm
frequency stability	2.5%
Manufacturer's serial number	CTV6
Installation features	SURFACE MOUNT
Nominal operating frequency	19.68 MHz
Maximum operating temperature	75 °C
Minimum operating temperature	-30 °C
Oscillator type	CLIPPED SINE
Output impedance	10000 Ω
Output level	1 V
physical size	11.4mm x 9.6mm x 4.0mm
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	YES

Preview

Download Datasheet

View All

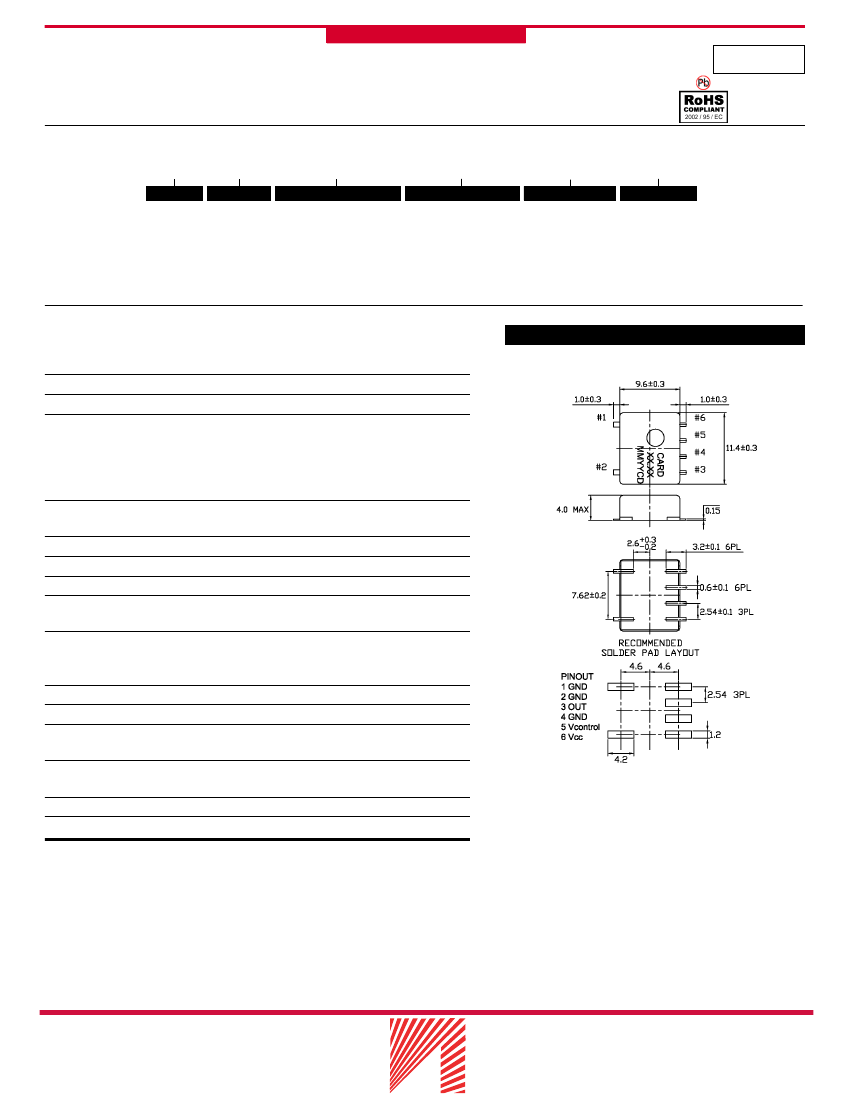

Surface Mount VC-TCXO

CARDINAL COMPONENTS

• 4.0 mm Max height

• Various input supply voltage options

Series CTV6

Part Numbering Example: CTV6 L Z - A3 B3 - 15.360

CTV6

SERIES

CTV6

15.360

FREQUENCY

VOLTAGE PACKAGING OPTIONS OPERATING TEMP.

STABILITY

A1 = -10°C ~+50°C

B3 = ±2.5 ppm

Blank = 5V Z = Tape and Reel

A2 = -10°C ~+60°C

L = 3.3V

A3 = -30°C ~+75°C

A4 = -40°C ~+75°C

Specifications:

Frequency Range:

Output Series:

Input Voltage:

12.000 MHz to 19.680 MHz

Clipped Sine

+5.0 VDC

+4.0 VDC

+3.7 VDC

+3.3 VDC

+3.0 VDC

±5%

Available Stability Options:

±2.5 ppm

CTV6

Operating Temperature

Range Options:

Frequency Tuning Range:

External Control Voltage:

Polarity Of Freg. Slope:

Output Voltage:

Frequency Trim Range

With Externally

Adjustable Trimmer:

Output Load:

Maximum Input Current:

Maximum Frequency

Aging at +25°C:

Freq. Stability Vs. Change

of Input Voltage of ±5%:

Storage Temperature:

Packaging:

-30°C to +75°C

±4.0 ppm Min.

+2.5 V to VDC -2.0V

Positive

1.0 Volt Peak to Peak

Minimum

±3.0 ppm Minimum

:+1.65

V to VDC +1.35V

10K OHM Parallel with 15 pf

2.0 mA

±1.0 ppm/yr

±0.3 ppm

-40°C to +85°C

Tape and Reel (1K per Reel)

155 Route 46 West

Wayne, NJ 07470

Rev:

VT-090414-13

Cardinal Components, Inc.

VT-7

TEL:

(973)785-1333

E-MAIL: sales@cardinalxtal.com

WEB: http://www.cardinalxtal.com

CTV6LZ-A3B3-19.680 Related Products

	CTV6LZ-A3B3-19.680	CTV6Z-A3B3-15.360	CTV6LZ-A3B3-15.360	CTV6LZ-A3B3-FREQ	CTV6LZ-A3B3-12.000	CTV6Z-A3B3-19.680	CTV6Z-A3B3-FREQ	CTV6Z-A3B3-12.000
Description	Clipped Sine Output Oscillator, 19.68MHz Nom, ROHS COMPLIANT PACKAGE-6	Clipped Sine Output Oscillator, 15.36MHz Nom, ROHS COMPLIANT PACKAGE-6	Clipped Sine Output Oscillator, 15.36MHz Nom, ROHS COMPLIANT PACKAGE-6	Clipped Sine Output Oscillator, 12MHz Min, 19.68MHz Max, ROHS COMPLIANT PACKAGE-6	Clipped Sine Output Oscillator, 12MHz Nom, ROHS COMPLIANT PACKAGE-6	Clipped Sine Output Oscillator, 19.68MHz Nom, ROHS COMPLIANT PACKAGE-6	Clipped Sine Output Oscillator, 12MHz Min, 19.68MHz Max, ROHS COMPLIANT PACKAGE-6	Clipped Sine Output Oscillator, 12MHz Nom, ROHS COMPLIANT PACKAGE-6
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Other features	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL
Ageing	1 PPM/YEAR	1 PPM/YEAR	1 PPM/YEAR	1 PPM/YEAR	1 PPM/YEAR	1 PPM/YEAR	1 PPM/YEAR	1 PPM/YEAR
Maximum control voltage	3 V	2.5 V	3 V	3 V	3 V	2.5 V	2.5 V	2.5 V
Minimum control voltage	1.65 V	0.5 V	1.65 V	1.65 V	1.65 V	0.5 V	0.5 V	0.5 V
Frequency Adjustment - Mechanical	YES	YES	YES	YES	YES	YES	YES	YES
Frequency offset/pull rate	4 ppm	4 ppm	4 ppm	4 ppm	4 ppm	4 ppm	4 ppm	4 ppm
frequency stability	2.5%	2.5%	2.5%	2.5%	2.5%	2.5%	2.5%	2.5%
Manufacturer's serial number	CTV6	CTV6	CTV6	CTV6	CTV6	CTV6	CTV6	CTV6
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Maximum operating temperature	75 °C	75 °C	75 °C	75 °C	75 °C	75 °C	75 °C	75 °C
Minimum operating temperature	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C
Oscillator type	CLIPPED SINE	CLIPPED SINE	CLIPPED SINE	CLIPPED SINE	CLIPPED SINE	CLIPPED SINE	CLIPPED SINE	CLIPPED SINE
Output impedance	10000 Ω	10000 Ω	10000 Ω	10000 Ω	10000 Ω	10000 Ω	10000 Ω	10000 Ω
Output level	1 V	1 V	1 V	1 V	1 V	1 V	1 V	1 V
physical size	11.4mm x 9.6mm x 4.0mm	11.4mm x 9.6mm x 4.0mm	11.4mm x 9.6mm x 4.0mm	11.4mm x 9.6mm x 4.0mm	11.4mm x 9.6mm x 4.0mm	11.4mm x 9.6mm x 4.0mm	11.4mm x 9.6mm x 4.0mm	11.4mm x 9.6mm x 4.0mm
Maximum supply voltage	3.465 V	5.25 V	3.465 V	3.465 V	3.465 V	5.25 V	5.25 V	5.25 V
Minimum supply voltage	3.135 V	4.75 V	3.135 V	3.135 V	3.135 V	4.75 V	4.75 V	4.75 V
Nominal supply voltage	3.3 V	5 V	3.3 V	3.3 V	3.3 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
Maker	Cardinal Components	Cardinal Components	Cardinal Components	-	-	-	Cardinal Components	Cardinal Components
Nominal operating frequency	19.68 MHz	15.36 MHz	15.36 MHz	-	12 MHz	19.68 MHz	-	12 MHz
Base Number Matches	-	1	1	1	1	1	-	-
