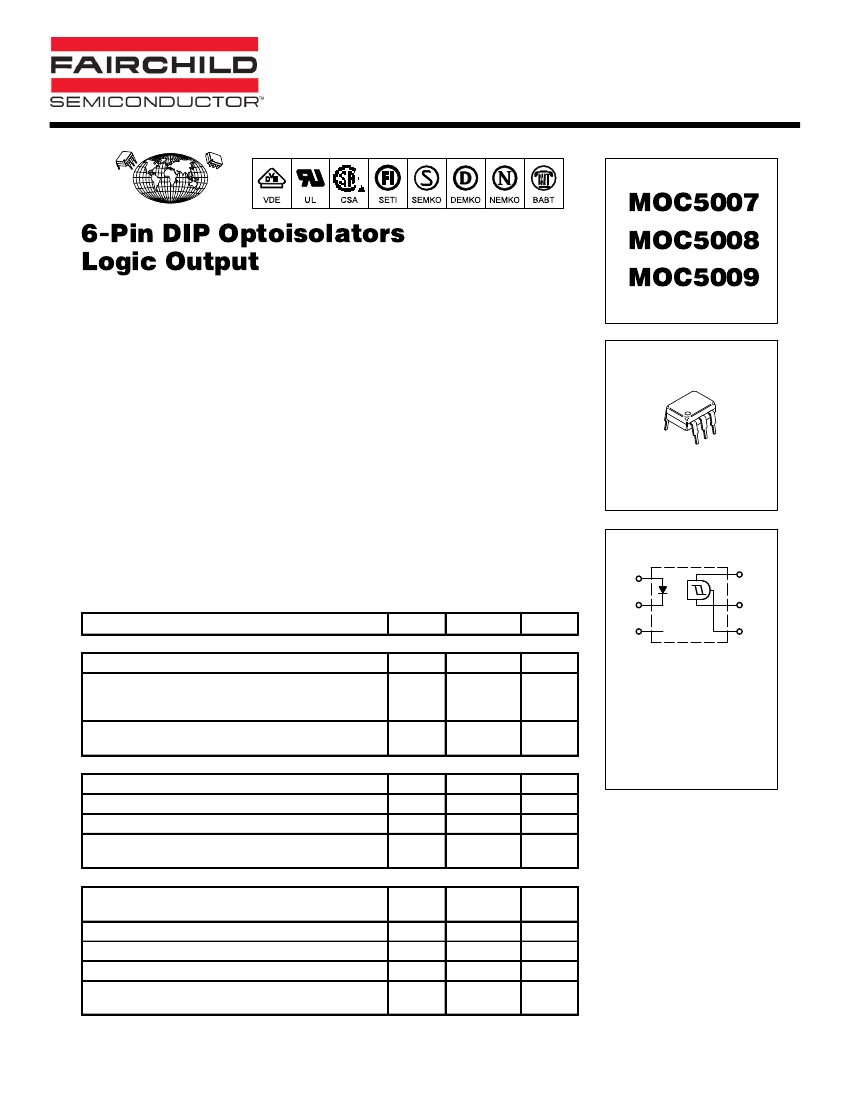

GlobalOptoisolator™
6-Pin DIP Optoisolators
Logic Output
The MOC5007, MOC5008 and MOC5009 have a gallium arsenide IRED
optically coupled to a high–speed integrated detector with Schmitt trigger
output. Ideal for applications requiring electrical isolation, fast response time,
noise immunity and digital logic compatibility.
•
•
•
•
•
•
Guaranteed Switching Times — ton, toff 4
< µs
Built–In ON/OFF Threshold Hysteresis
High Data Rate, 1 MHz Typical (NRZ)
Wide Supply Voltage Capability
Microprocessor Compatible Drive
To order devices that are tested and marked per VDE 0884 requirements, the
suffix ”V” must be included at end of part number. VDE 0884 is a test option.
MOC5007
MOC5008
MOC5009
6
1
Applications
•
Interfacing Computer Terminals to Peripheral Equipment
•
Digital Control of Power Supplies
•
Line Receiver — Eliminates Noise
•
Digital Control of Motors and Other Servo Machine Applications
•
Logic to Logic Isolator
•
Logic Level Shifter — Couples TTL to CMOS
MAXIMUM RATINGS
(TA = 25°C unless otherwise noted)
Rating
INPUT LED
Reverse Voltage
Forward Current — Continuous
Forward Current —
Peak
Pulse Width = 300
µs,
2% Duty Cycle
LED Power Dissipation @ TA = 25°C
Derate above 25°C
OUTPUT DETECTOR
Output Voltage Range
Supply Voltage Range
Output Current
Detector Power Dissipation @ TA = 25°C
Derate above 25°C
TOTAL DEVICE
Total Device Power Dissipation @ TA = 25°C
Derate above 25°C
Maximum Operating Temperature
Storage Temperature Rang
Soldering Temperature (10 s)
Isolation Surge Voltage(1)
(Peak ac Voltage, 60 Hz, 1 Second Duration)
PD
TA
Tstg
TL
VISO
250
2.94
– 40 to + 85
– 55 to +150
260
7500
mW
mW/°C
°C
°C
°C
Vac(pk)
Vo
VCC
IO
PD
0 –16
3 –16
50
150
1.76
Volts
Volts
mA
mW
mW/°C
VR
IF
6
60
1.2
120
1.41
Volts
mA
Amp
mW
mW/°C
Symbol
Value
Unit
STANDARD THRU HOLE
SCHEMATIC
1
2
3
6
5
4
PIN 1.
2.
3.
4.
PD
ANODE
CATHODE
NC
OPEN COLLECTOR
OUTPUT
5. GROUND
6. VCC
1. Isolation surge voltage is an internal device dielectric breakdown rating.
1.
For this test, Pins 1 and 2 are common, and Pins 4, 5 and 6 are common.
MOC5007, MOC5008, MOC5009
ELECTRICAL CHARACTERISTICS
(TA = 25°C unless otherwise noted)(1)
Characteristic
INPUT LED
Reverse Leakage Current (VR = 3 V, RL = 1 MΩ)
Forward Voltage (IF = 10 mA)
Forward Voltage
(IF = 0.3 mA)
Capacitance (VR = 0 V, f = 1 MHz)
OUTPUT DETECTOR
Operating Voltage
Supply Current (IF = 0, VCC = 5 V)
Output Current, High (IF = 0, VCC = Vo = 15 V)
COUPLED
Supply Current (IF = IF(on), VCC = 5 V)
Output Voltage, Low (RL = 270
Ω,
VCC = 5 V, IF = IF(on))
Threshold Current, ON
(RL = 270
Ω,
VCC = 5 V)
Threshold Current, OFF
(RL = 270
Ω,
VCC = 5 V)
Hysteresis Ratio (RL = 270
Ω,
VCC = 5 V)
Isolation Voltage(2) 60 Hz, AC Peak, 1 second, TA = 25°C
Turn–On Time
Fall Time
Turn–Off Time
Rise Time
RL = 270
Ω
(3)
VCC = 5 V,
IF = IF(on)
TA = 25°C
MOC5007
MOC5008
MOC5009
MOC5007
MOC5008, 5009
ICC(on)
VOL
IF(on)
—
—
—
—
—
0.3
0.3
0.5
1.6
0.2
1.2
—
—
0.75
—
0.75
5
0.4
1.6
4
10
—
—
0.9
mA
Volts
mA
VCC
ICC(off)
IOH
3
—
—
—
1
—
15
5
100
Volts
mA
µA
IR
VF
C
—
—
0.75
—
0.05
1.2
0.95
18
10
1.5
—
—
µA
Volts
pF
Symbol
Min
Typ
1)
Max
Unit
IF(off)
IF(off)
IF(on)
VISO
ton
tf
toff
tr
mA
7500
—
—
—
—
—
1.2
0.1
1.2
0.1
—
4
—
4
—
Vac(pk)
µs
1. Always design to the specified minimum/maximum electrical limits (where applicable).
2. For this test, IRED Pins 1 and 2 are common and Output Gate Pins 4, 5, 6 are common.
3. RL value effect on switching time is negligible.
ICC
IF
IF (on)
Vin
ton
Vo
toff
tr = tf = 0.01
µs
Z = 50
Ω
2
5
1
6
4
RL
5V
270
Ω
VO (OPEN COLLECTOR OUTPUT)
tf
tr
Figure 1. Switching Test Circuit
MOC5007, MOC5008, MOC5009

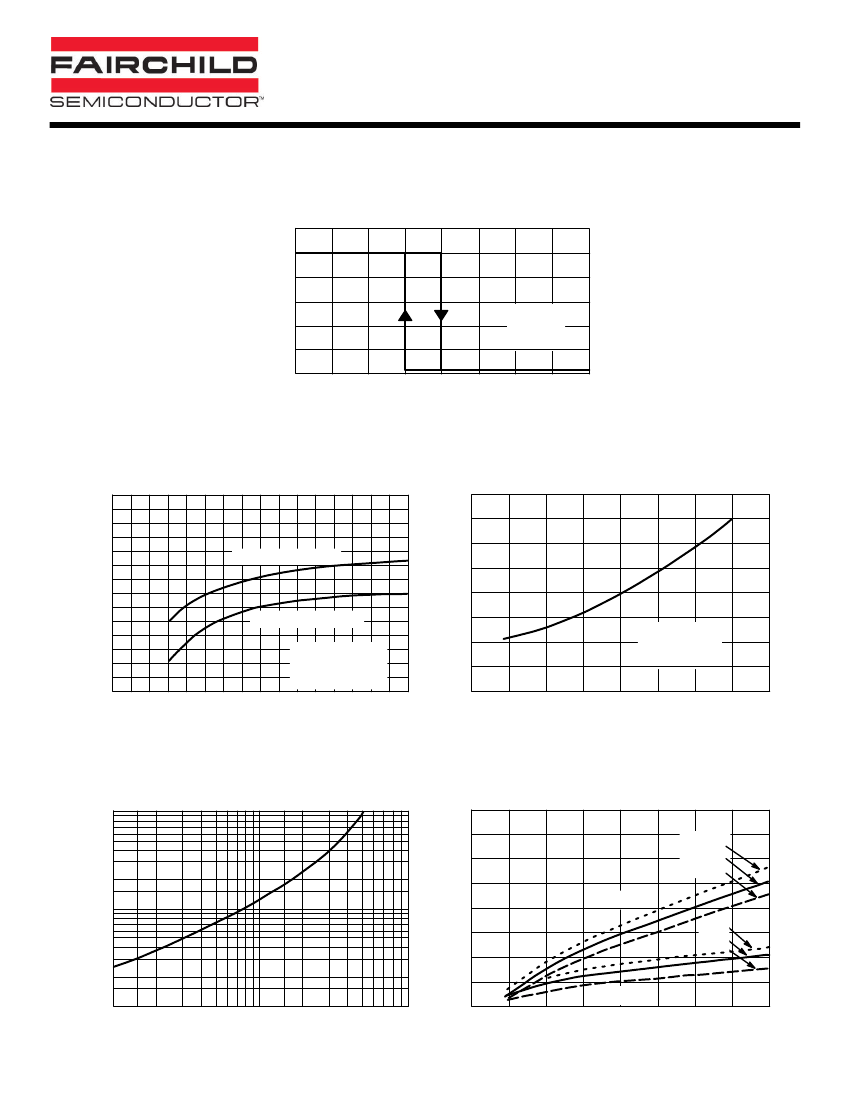

TYPICAL CHARACTERISTICS
VO, OUTPUT VOLTAGE (VOLTS)
6
5
4
3
2
1
0
0
VOL
0.75
1
IF, INPUT CURRENT (mA)
2
IF(off)
IF(on)
RL = 270
Ω
VCC = 5 V
TA = 25°C
VOH
Figure 2. Transfer Characteristics for MOC5007
1.6
1.4
1.2
1
0.8
0.6
0.4
0
2
4
TURN OFF THRESHOLD
IF NORMALIZED TO
IF(on) AT VCC = 5 V
TA = 25°C
6
8
10
12
VCC, SUPPLY VOLTAGE (VOLTS)
14
TURN ON THRESHOLD
IF(on), IF(off), THRESHOLD CURRENT (NORMALIZED)
IF, THRESHOLD CURRENT (NORMALIZED)
1.6
1.4
1.2
1
0.8
0.6
NORMALIZED TO
VCC = 5 V
TA = 25°C
–50
–25
0
25
50
TA, TEMPERATURE (°C)
75
100
Figure 3. Threshold Current versus Supply Voltage
Figure 4. Threshold Current versus Temperature
VOL , OUTPUT VOLTAGE, LOW (VOLTS)
1
0.5
6
0.2
0.1
0.05
0.02
1
2
5
10
20
IO, LOAD CURRENT (mA)
50
100
IC , SUPPLY CURRENT (mA)
TA = 0°C
25°C
70°C
IF = 5 mA
0°C
25°C
70°C
4
2
0
0
2
IF = 0 mA
4
6
8
10
12
VCC, SUPPLY VOLTAGE (VOLTS)
14
16
Figure 5. Output Voltage, Low versus Load Current
Figure 6. Supply Current versus Supply Voltage
MOC5007, MOC5008, MOC5009

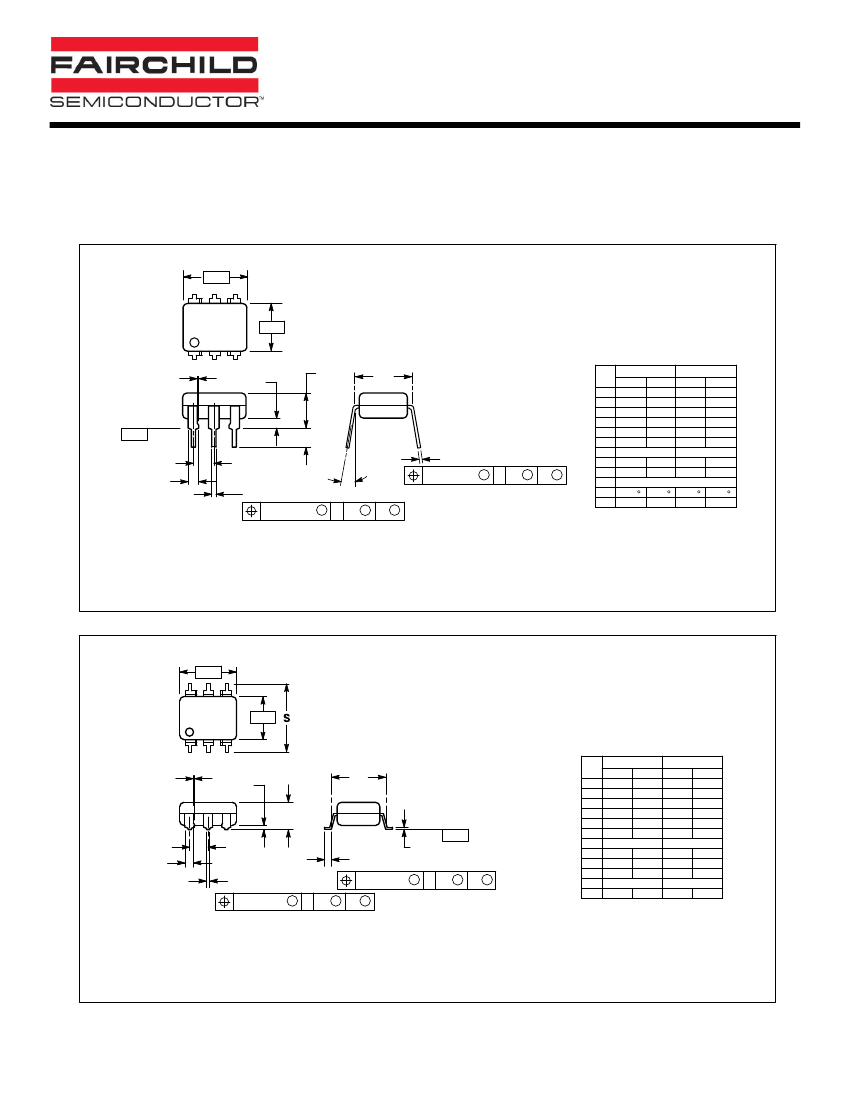

PACKAGE DIMENSIONS
–A–
6
4
NOTES:
1. DIMENSIONING AND TOLERANCING PER ANSI
Y14.5M, 1982.
2. CONTROLLING DIMENSION: INCH.
3. DIMENSION L TO CENTER OF LEAD WHEN
FORMED PARALLEL.
DIM
A
B
C
D
E
F
G
J
K
L
M
N
INCHES
MIN
MAX
0.320
0.350
0.240
0.260
0.115
0.200
0.016
0.020
0.040
0.070
0.010
0.014
0.100 BSC
0.008
0.012
0.100
0.150
0.300 BSC
0
_
15
_
0.015
0.100
MILLIMETERS
MIN
MAX
8.13
8.89
6.10
6.60
2.93
5.08
0.41
0.50
1.02
1.77
0.25
0.36
2.54 BSC
0.21
0.30
2.54
3.81
7.62 BSC
0
_
15
_
0.38
2.54
–B–
1
3
STYLE 5:
PIN 1.
2.
3.
4.
5.
6.
ANODE
CATHODE
NC
OUTPUT
GROUND
VCC
F
4 PL
N
C
L
–T–
SEATING
PLANE
K
G
J
6 PL
0.13 (0.005)
T A
M
M
E
6 PL
D
6 PL
0.13 (0.005)
M
M
T B
M
A
M
B
M
THRU HOLE
–A–
6
1
4
–B–
3
S
NOTES:
1. DIMENSIONING AND TOLERANCING PER ANSI
Y14.5M, 1982.
2. CONTROLLING DIMENSION: INCH.
INCHES
MIN
MAX
0.320
0.350
0.240
0.260
0.115
0.200
0.016
0.020
0.040
0.070
0.010
0.014
0.100 BSC
0.020
0.025
0.008
0.012
0.006
0.035
0.320 BSC
0.332
0.390
MILLIMETERS
MIN
MAX
8.13
8.89
6.10
6.60
2.93
5.08
0.41
0.50
1.02
1.77
0.25
0.36
2.54 BSC
0.51
0.63
0.20
0.30
0.16
0.88
8.13 BSC
8.43
9.90
F
4 PL
H
C
L
–T–
G
E
6 PL
D
6 PL
0.13 (0.005)
M
J
K
6 PL
0.13 (0.005)
T A
M
M
SEATING
PLANE
T B
M
A
M
B
M
DIM
A
B
C
D
E
F
G
H
J
K
L
S
SURFACE MOUNT
MOC5007, MOC5008, MOC5009
–A–
6
4
–B–
1
3
NOTES:
1. DIMENSIONING AND TOLERANCING PER ANSI
Y14.5M, 1982.
2. CONTROLLING DIMENSION: INCH.
3. DIMENSION L TO CENTER OF LEAD WHEN
FORMED PARALLEL.
DIM
A
B
C
D
E
F
G
J
K
L
N
INCHES
MIN
MAX
0.320
0.350
0.240
0.260
0.115
0.200
0.016
0.020
0.040
0.070
0.010
0.014
0.100 BSC
0.008
0.012
0.100
0.150
0.400
0.425
0.015
0.040
MILLIMETERS
MIN
MAX
8.13
8.89
6.10
6.60
2.93
5.08
0.41
0.50
1.02
1.77
0.25
0.36
2.54 BSC
0.21
0.30
2.54
3.81
10.16
10.80
0.38
1.02
F
4 PL
N
C
L
–T–
SEATING
PLANE
G
D
6 PL
K
0.13 (0.005)
M
J
T A
M
E
6 PL
B
M
0.4" LEAD SPACING
