ECM40UT32-C Overview

Power Supply Module,

ECM40UT32-C Parametric

Parameter Name	Attribute value
Maker	XP Power
Reach Compliance Code	compliant

Preview

Download Datasheet

View All

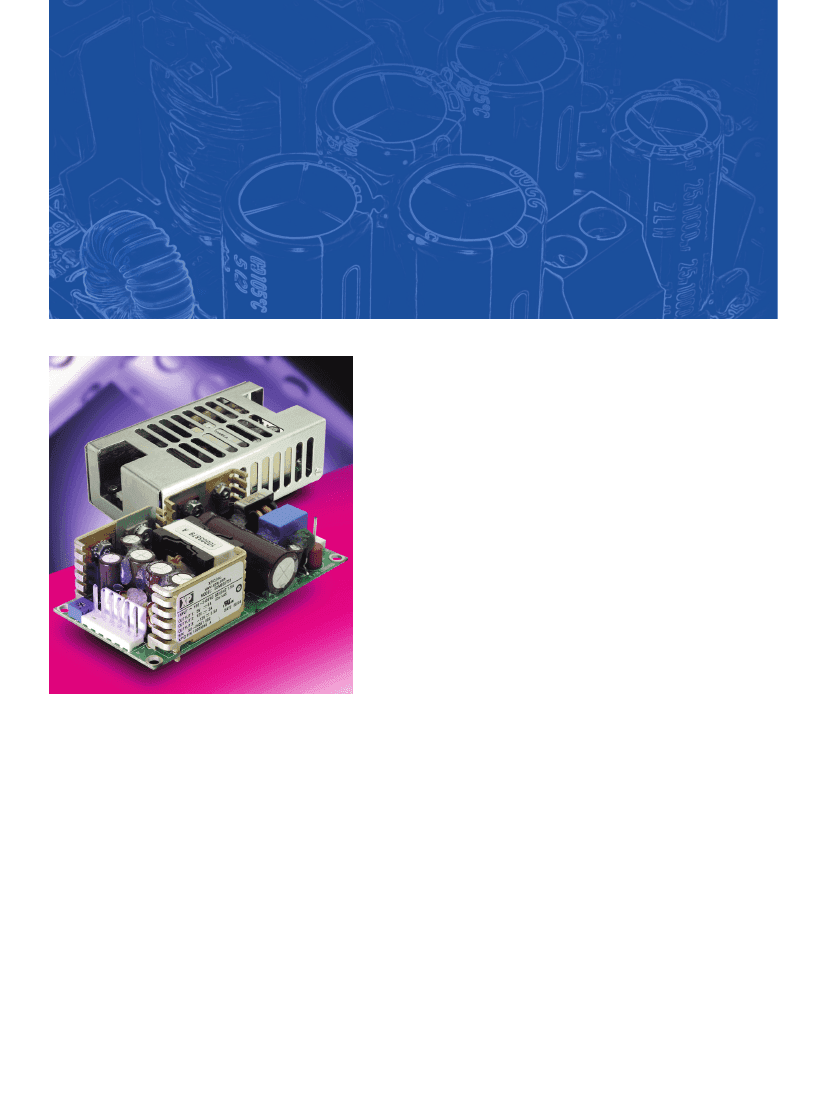

ECM40-60

•

40 & 60 Watt Models

Small Size 2.0”x 4.0”x 1.2”

Low Leakage Current

Industrial & Medical Approvals

Full Load Available Convection Cooled

Wide Operating Temperature 0 °C to +70 °C

Level B Conducted Emissions

EN61000 Compliant

Universal AC Input 90-264 VAC

Input Frequency 47-63 & 440 Hz

Single & Multiple Outputs

Cover Kits Available

Mating Connector & Loom Kits Available

Approved for Class I and Class II applications, the ECM range of single and multiple output AC-DC, 40-60 W power supplies

from XP feature the world's smallest footprint for units of these ratings. Both are just 2" x 4" (50.8 mm x 101.6 mm) and 1.2"

(30.48 mm) high. Furthermore, these high-density power supplies meet EN55032 Level B conducted emissions with maximum

leakage currents of 100 µA at 115 VAC or 200 µA at 230 VAC. As a result, these switchers are equally suitable for industrial, IT

and medical applications, with no price premium for meeting medical requirements.

The ECM40-60 series have single output versions from 5 V to 48 VDC, adjustable by ±10%, and dual and triple output

versions covering combinations of 3.3 V, 5 V, 12 V, 15 V and 24 V. They are dual-fused for compliance with IEC60601-1 and

efficiency is 80-85%, depending upon the model, so minimal excess heat is generated.

The power supplies deliver full power between 0 °C and +50 °C and will operate at up to +70 °C with derating and only 5

CFM of cooling. Comprehensive overvoltage, overload and short circuit protection is built in. Covers, looms and connector kits

are available.
