M8050
Features
•
•
•
•
Halogen Free Available Upon Request By Adding Suffix "-HF"
Moisture Sensitivity Level 1
Epoxy Meets UL 94 V-0 Flammability Rating
Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS
Compliant. See Ordering Information)
Maximum Ratings @ 25°C Unless Otherwise Specified
•
•
•
Operating Junction Temperature Range: -55℃ to +150℃
Storage Temperature Range: -55℃ to +150℃
Thermal Resistance: 200℃/W Junction to Ambient
Parameter
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Continuous Collector Current
Power Dissipation
Symbol
V
CBO
V
CEO
V
EBO
I
C
P
D
Rating
40
25
6
800
625
Unit
V
V
V
mA
mW
NPN Silicon
Plastic-Encapsulate
Transistor
TO-92
A
Marking Code:
Y11
Internal Structure
C
B
E
1.EMITTER
2.BASE
3.COLLECTOR
E
B
G
1
2
3
C
D
DIM
A
B
C
D
E
G
DIMENSIONS
INCHES
MM
NOTE
MIN MAX MIN MAX
0.169 0.185 4.30 4.70
0.169 0.185 4.30 4.70
0.500 ----- 12.70 -----
0.015 0.022 0.38 0.55
0.130 0.146 3.30 3.70
0.095 0.105 2.42 2.67 Straight Lead
0.173 0.220 4.40 5.60
Bent
Rev.3-1-01012019
1/4
MCCSEMI.COM
M8050
Electrical Characteristics @ T
A
=25°C Unless Otherwise Specified
Parameter
Collector-Base Breakdown Voltage
Collector-Emitter Breakdown Voltage
Emitter-Base Breakdown Voltage
Collector-Base Cutoff Current
Collector Cutoff Current
DC Current Gain
Collector-Emitter Saturation Voltage
Base-Emitter Saturation Voltage
Transition Frequency
Symbol
V
(BR)CBO
V
(BR)CEO
V
(BR)EBO
I
CBO
I
CEO
h
FE(1)
h
FE(2)
h
FE(3)
V
CE(sat)
V
BE(sat)
f
T
150
45
120
40
0.5
1.2
V
V
MHz
300
Min
40
25
6
0.1
0.1
Typ
Max
Units
V
V
V
µA
µA
I
C
=1mA, I
B
=0
I
E
=100µA, I
C
=0
V
CB
=35V, I
E
=0
V
CE
=20V, I
B
=0
V
CE
=1V, I
C
=5mA
V
CE
=1V, I
C
=100mA
V
CE
=1V, I
C
=800mA
I
C
=800mA, I
B
=80mA
I
C
=800mA, I
B
=80mA
V
CE
=6V, I
C
=20mA, f=30MHz
Conditions
I
C
=100µA, I
E
=0
Classification of h
FE(2)
Rank
Range
C
120-200
D
160-300
Rev.3-1-01012019
2/4
MCCSEMI.COM
M8050

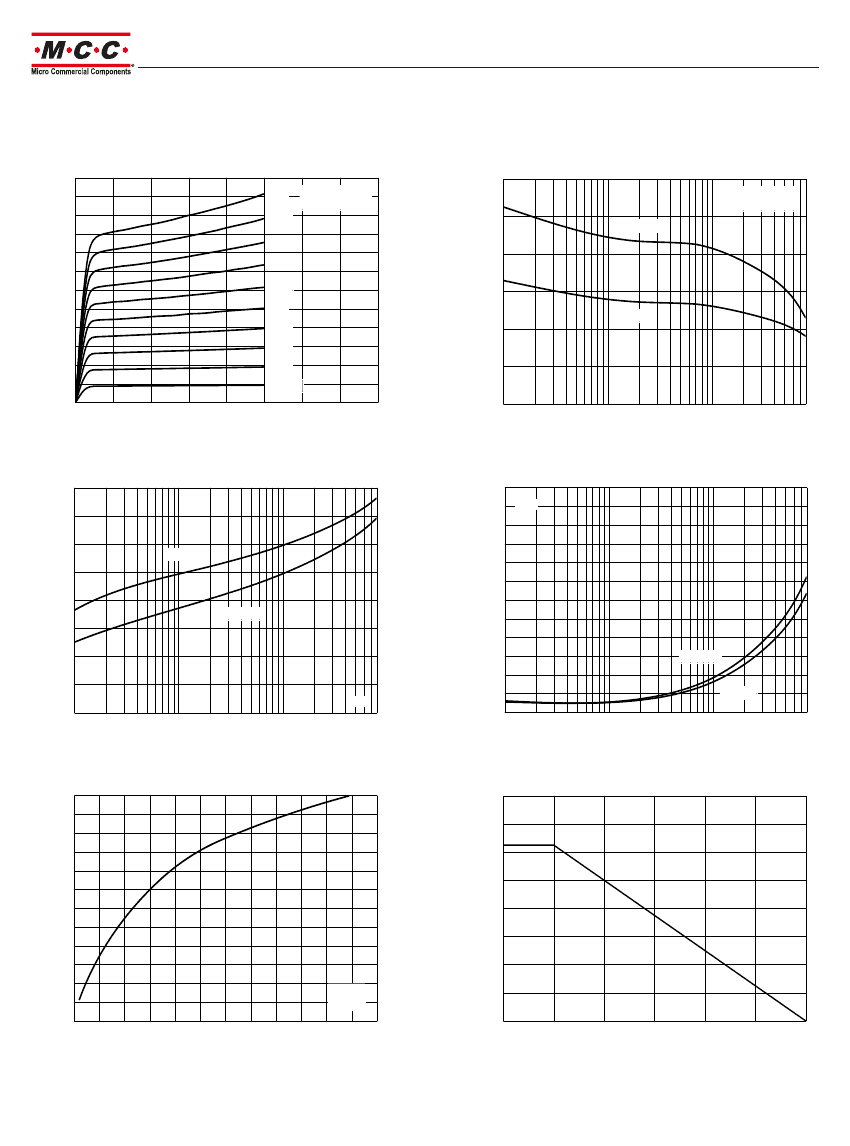

Curve Characteristics
Fig. 1 - Static Characteristics
300
0.8mA
Fig. 2 - DC Current Gain Characteristics
600
Common Emitter
V
CE
= 1V
T
A
=100°C
250
Common Emitter
T
A
=25°C
0.72mA
0.64mA
0.56mA
Collector Current (mA)
150
0.48mA
0.4mA
DC Current Gain
200
400
100
T
A
=25°C
200
0.32mA
0.24mA
50
0.16mA
I
B
=0.08mA
0
0
2
4
6
8
0
1
10
100
800
Collector-Emitter Voltage (V)
Collector Current (mA)
Fig. 3 - Base-Emitter Saturation Voltage Characteristics
1000
300
Fig. 4 - Collector-Emitter Saturation Voltage Characteristics
Collector-Emitter Saturation Voltage (mV)
β=10
250
Base-Emitter Saturation Voltage (mV)
800
T
A
=25°C
200
600
T
A
=100°C
150
100
T
A
=100°C
50
T
A
=25°C
0
1
10
100
800
400
β=10
200
1
10
100
800
Collector Current (mA)
Collector Current (mA)
Fig. 5 - Transition frequency Characteristics
300
0.8
Fig. 6 - Collector Power Derating Curve
Collector Power Dissipation (W)
V
CE
=6V
T
A
=25°C
250
Transition frequency (MHz)
0.6
200
150
0.4
100
0.2
50
0
0
10
20
30
40
50
60
0.0
0
25
50
75
100
125
150
Collcetor Current (mA)
Ambient Temperature (°C)
Rev.3-1-01012019
3/4
MCCSEMI.COM
M8050
Ordering Information
Device
Part Number-AP
Part Number-BP
Note : Adding "-HF" Suffix for Halogen Free, eg. Part Number-TP-HF
Packing
Ammo Packing: 20Kpcs/Carton
Bulk: 100Kpcs/Carton
***IMPORTANT NOTICE***
Micro Commercial Components Corp.
reserves the right to make changes without further notice to any product herein to
make corrections, modifications , enhancements , improvements , or other changes .
Micro Commercial Components
Corp
. does not assume any liability arising out of the application or use of any product described herein; neither does it
convey any license under its patent rights ,nor the rights of others . The user of products in such applications shall assume all
risks of such use and will agree to hold
Micro Commercial Components Corp
. and all the companies whose products are
represented on our website, harmless against all damages.
***LIFE SUPPORT***
MCC's products are not authorized for use as critical components in life support devices or systems without the express
written approval of Micro Commercial Components Corporation.
***CUSTOMER AWARENESS***
Counterfeiting of semiconductor parts is a growing problem in the industry. Micro Commercial Components (MCC) is taking
strong measures to protect ourselves and our customers from the proliferation of counterfeit parts. MCC strongly encourages
customers to purchase MCC parts either directly from MCC or from Authorized MCC Distributors who are listed by country on
our web page cited below. Products customers buy either from MCC directly or from Authorized MCC Distributors are genuine
parts, have full traceability, meet MCC's quality standards for handling and storage.
MCC will not provide any warranty
coverage or other assistance for parts bought from Unauthorized Sources.
MCC is committed to combat this global
problem and encourage our customers to do their part in stopping this practice by buying direct or from authorized
distributors.
Rev.3-1-01012019
4/4
MCCSEMI.COM
