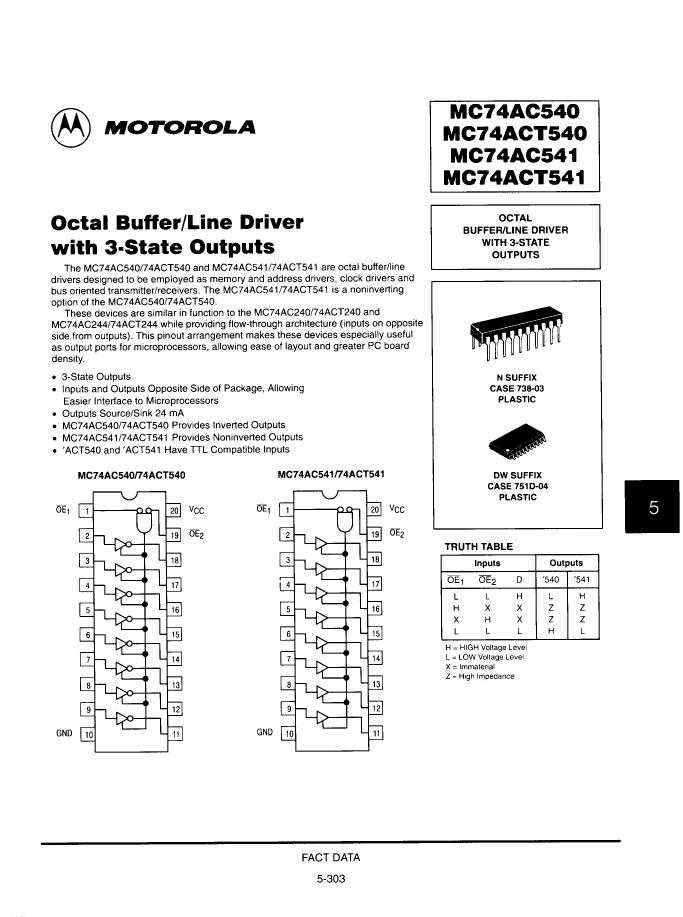

MC74ACT540DW datasheet, PDF - EEWORLD Datasheet

MC74ACT540DW: DescriptionIC,BUFFER/DRIVER,SINGLE,8-BIT,ACT-CMOS,SOP,20PIN,PLASTIC; Categorylogic logic; File Size245KB，6 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

MC74ACT540DW Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MC74ACT540DW	-	-	View	Buy Now

IC,BUFFER/DRIVER,SINGLE,8-BIT,ACT-CMOS,SOP,20PIN,PLASTIC

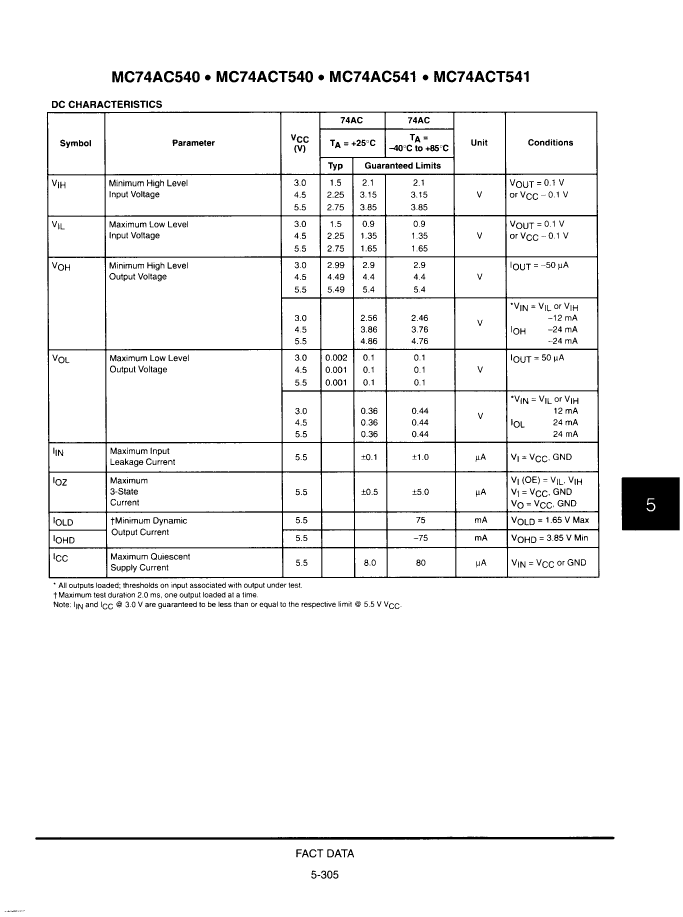

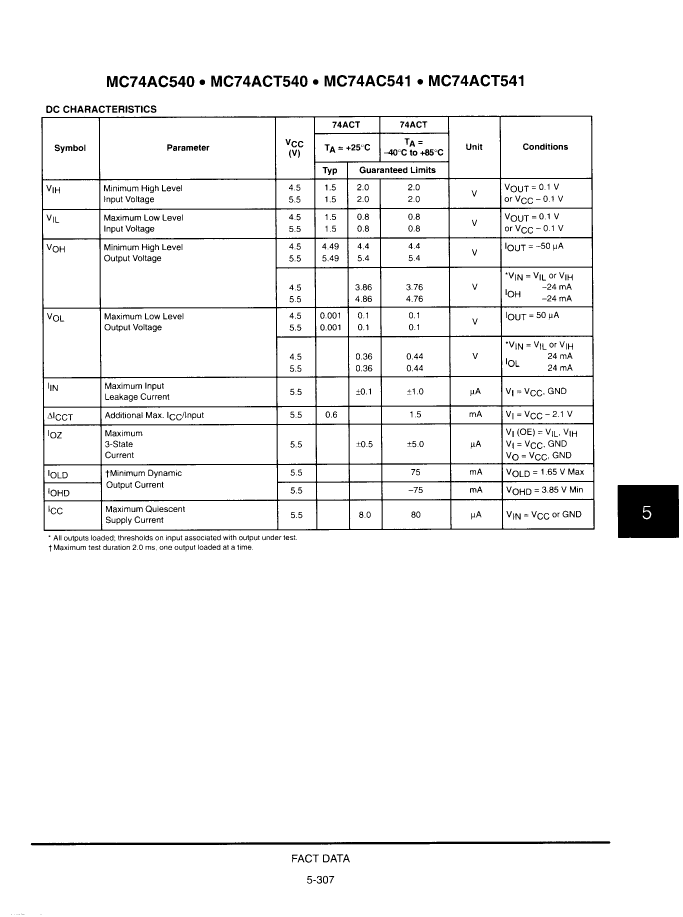

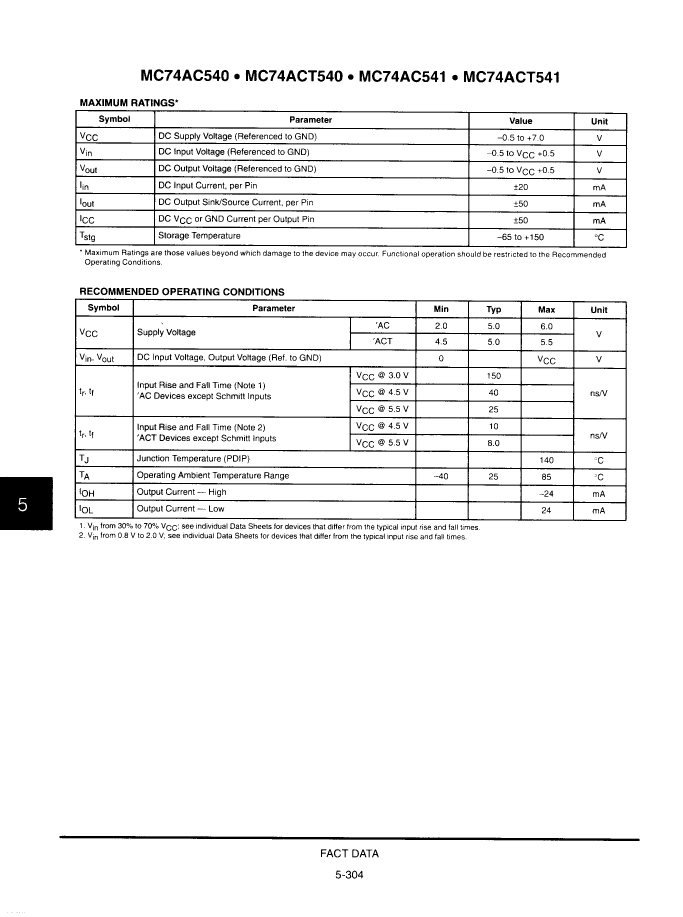

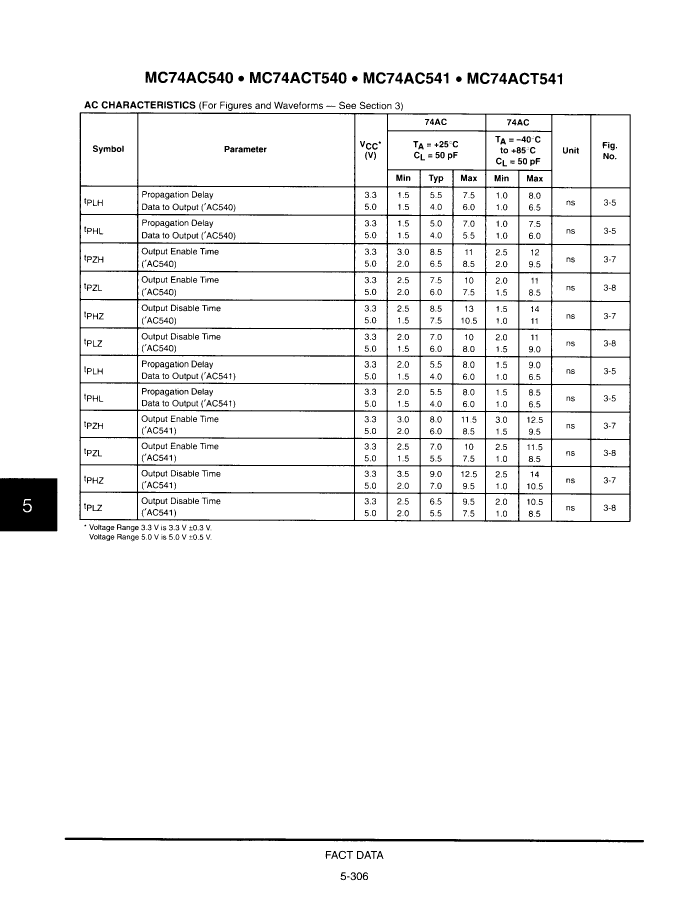

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	NXP
package instruction	SOP, SOP20,.4
Reach Compliance Code	unknown
Control type	ENABLE LOW
JESD-30 code	R-PDSO-G20
JESD-609 code	e0
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
MaximumI(ol)	0.024 A
Number of digits	8
Number of functions	1
Number of terminals	20
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	INVERTED
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP20,.4
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	5 V
Prop。Delay @ Nom-Sup	8.5 ns
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL

	MC74ACT540DW	MC74ACT541N
Description	IC,BUFFER/DRIVER,SINGLE,8-BIT,ACT-CMOS,SOP,20PIN,PLASTIC	IC,BUFFER/DRIVER,SINGLE,8-BIT,ACT-CMOS,DIP,20PIN,PLASTIC
Is it Rohs certified?	incompatible	incompatible
package instruction	SOP, SOP20,.4	DIP, DIP20,.3
Reach Compliance Code	unknown	unknown
Control type	ENABLE LOW	ENABLE LOW
JESD-30 code	R-PDSO-G20	R-PDIP-T20
JESD-609 code	e0	e0
Load capacitance (CL)	50 pF	50 pF
Logic integrated circuit type	BUS DRIVER	BUS DRIVER
MaximumI(ol)	0.024 A	0.024 A
Number of digits	8	8
Number of functions	1	1
Number of terminals	20	20
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Output characteristics	3-STATE	3-STATE
Output polarity	INVERTED	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP
Encapsulate equivalent code	SOP20,.4	DIP20,.3
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE
power supply	5 V	5 V
Prop。Delay @ Nom-Sup	8.5 ns	8.5 ns
Certification status	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	NO
technology	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL
