598456015000003 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 598456015000003

598456015000003: DescriptionBoard Euro Connector, 15 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size47KB，1 Pages; ManufacturerKyocera

Download Datasheet Parametric Compare View All

598456015000003 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	598456015000003	-	-	View	Buy Now

598456015000003 Overview

Board Euro Connector, 15 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Receptacle

598456015000003 Parametric

Parameter Name	Attribute value
Maker	Kyocera
Reach Compliance Code	unknown
Other features	STANDARDS: MIL-C-55302; DIN 41612; IEC 603-1, STAGGERED CONFIGURATION
Body/casing type	RECEPTACLE
Connector type	BOARD EURO CONNECTOR
Contact point gender	FEMALE
DIN compliance	YES
Filter function	NO
IEC compliance	YES
MIL compliance	YES
Manufacturer's serial number	8456
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	PANEL
Number of rows loaded	2
Terminal pitch	10.16 mm
Termination type	SOLDER
Total number of contacts	15
UL Flammability Code	94V-0

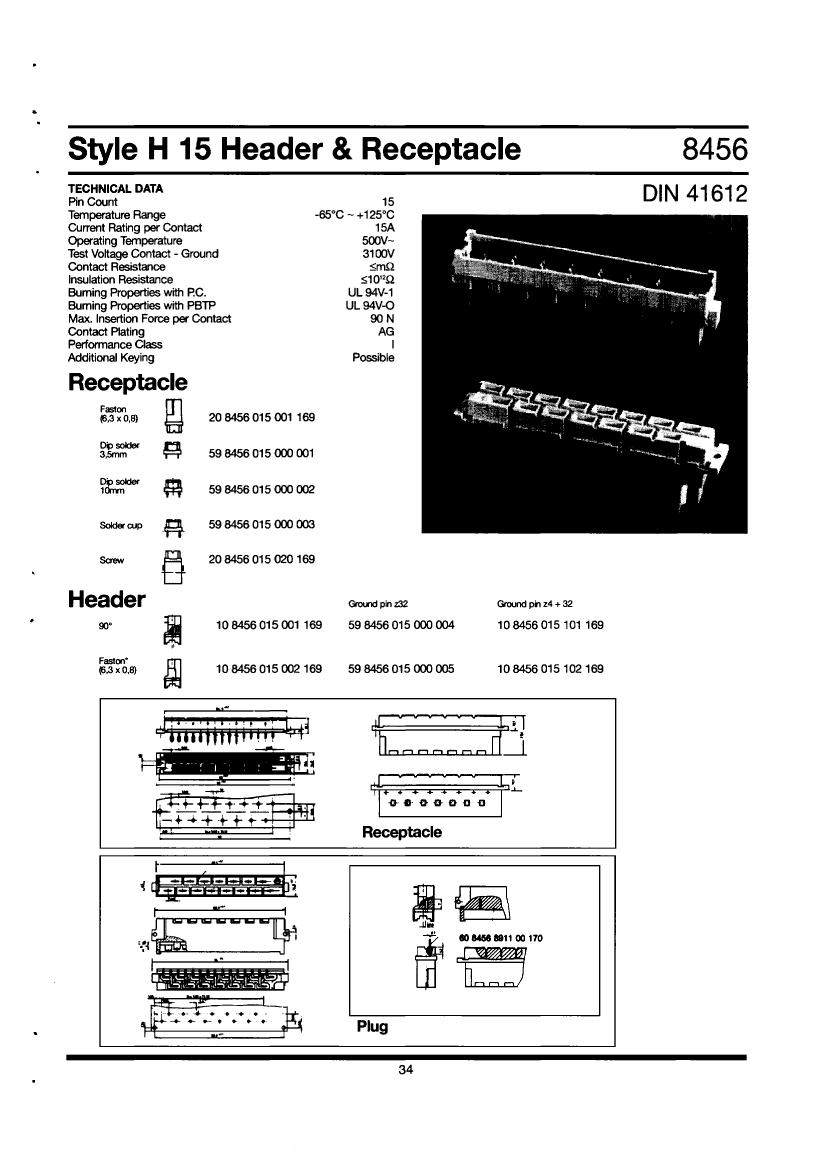

Preview

Download Datasheet

View All

598456015000003 Related Products

	598456015000003	108456015101169	108456015102169	208456015020169	108456015001169	208456015001169	108456015002169	598456015000002	598456015000004	598456015000005
Description	Board Euro Connector, 15 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Receptacle	Board Euro Connector, 15 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal, Plug	Board Euro Connector, 15 Contact(s), 2 Row(s), Male, Straight, Plug	Board Euro Connector, 15 Contact(s), 2 Row(s), Female, Straight, Screw Terminal, Receptacle	Board Euro Connector, 15 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal, Plug	Board Euro Connector, 15 Contact(s), 2 Row(s), Female, Straight, Receptacle	Board Euro Connector, 15 Contact(s), 2 Row(s), Male, Straight, Plug	Board Euro Connector, 15 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Receptacle	Board Euro Connector, 15 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal, Plug	Board Euro Connector, 15 Contact(s), 2 Row(s), Male, Straight, Plug
Reach Compliance Code	unknown	unknow	unknow	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	STANDARDS: MIL-C-55302; DIN 41612; IEC 603-1, STAGGERED CONFIGURATION	STANDARDS: MIL-C-55302; DIN 41612; IEC 603-1, STAGGERED CONFIGURATION	STANDARDS: MIL-C-55302; DIN 41612; IEC 603-1, FASTON, STAGGERED CONFIGURATION	STANDARDS: MIL-C-55302; DIN 41612; IEC 603-1, STAGGERED CONFIGURATION	STANDARDS: MIL-C-55302; DIN 41612; IEC 603-1, STAGGERED CONFIGURATION	STANDARDS: MIL-C-55302; DIN 41612; IEC 603-1, FASTON, STAGGERED CONFIGURATION	STANDARDS: MIL-C-55302; DIN 41612; IEC 603-1, FASTON, STAGGERED CONFIGURATION	STANDARDS: MIL-C-55302; DIN 41612; IEC 603-1, STAGGERED CONFIGURATION	STANDARDS: MIL-C-55302; DIN 41612; IEC 603-1, STAGGERED CONFIGURATION	STANDARDS: MIL-C-55302; DIN 41612; IEC 603-1, FASTON, STAGGERED CONFIGURATION
Body/casing type	RECEPTACLE	PLUG	PLUG	RECEPTACLE	PLUG	RECEPTACLE	PLUG	RECEPTACLE	PLUG	PLUG
Connector type	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR
Contact point gender	FEMALE	MALE	MALE	FEMALE	MALE	FEMALE	MALE	FEMALE	MALE	MALE
DIN compliance	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
MIL compliance	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
Manufacturer's serial number	8456	8456	8456	8456	8456	8456	8456	8456	8456	8456
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	RIGHT ANGLE	STRAIGHT	STRAIGHT	RIGHT ANGLE	STRAIGHT	STRAIGHT	STRAIGHT	RIGHT ANGLE	STRAIGHT
Number of rows loaded	2	2	2	2	2	2	2	2	2	2
Terminal pitch	10.16 mm	10.16 mm	10.16 mm	10.16 mm	10.16 mm	10.16 mm	10.16 mm	10.16 mm	10.16 mm	10.16 mm
Total number of contacts	15	15	15	15	15	15	15	15	15	15
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Installation type	PANEL	BOARD	BOARD	-	BOARD	-	BOARD	BOARD	BOARD	BOARD
Termination type	SOLDER	SOLDER	-	SCREW	SOLDER	-	-	SOLDER	SOLDER	-
Base Number Matches	-	1	1	1	1	1	1	1	-	-
