CXK58257AYM-85LX datasheet, PDF

Datasheet> All Categories > storage> storage> CXK58257AYM-85LX

CXK58257AYM-85LX: DescriptionStandard SRAM, 32KX8, 85ns, CMOS, PDSO28; Categorystorage storage; File Size563KB，10 Pages; ManufacturerSONY; Websitehttp://www.sony.co.jp

Download Datasheet Parametric Compare View All

CXK58257AYM-85LX Overview

Standard SRAM, 32KX8, 85ns, CMOS, PDSO28

CXK58257AYM-85LX Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	SONY
package instruction	TSSOP, TSSOP28,.53,22
Reach Compliance Code	unknown
Maximum access time	85 ns
I/O type	COMMON
JESD-30 code	R-PDSO-G28
JESD-609 code	e0
memory density	262144 bit
Memory IC Type	STANDARD SRAM
memory width	8
Number of terminals	28
word count	32768 words
character code	32000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
organize	32KX8
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Encapsulate equivalent code	TSSOP28,.53,22
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Parallel/Serial	PARALLEL
power supply	5 V
Certification status	Not Qualified
reverse pinout	YES
Maximum standby current	0.00002 A
Minimum standby current	2 V
Maximum slew rate	0.06 mA
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.55 mm
Terminal location	DUAL

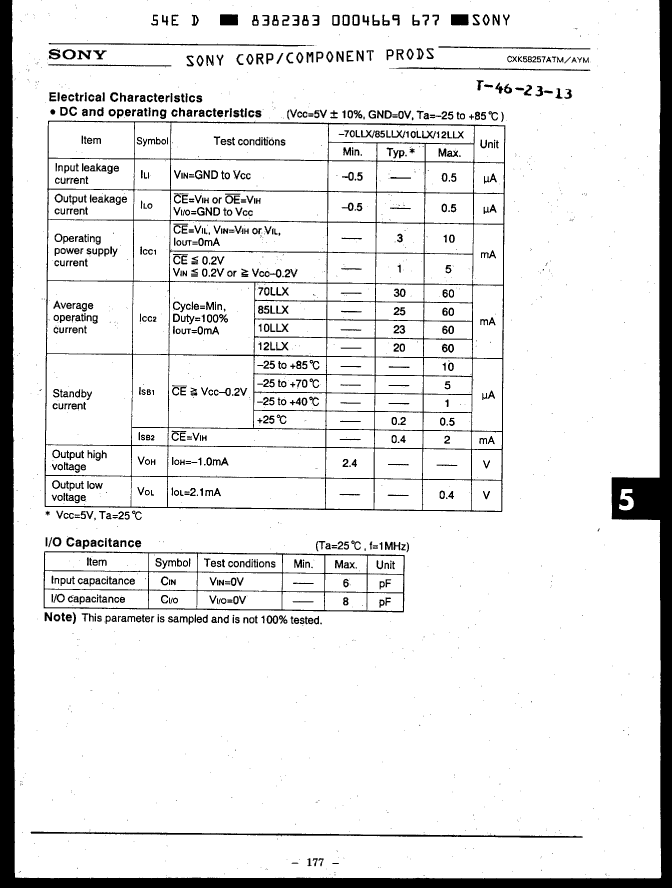

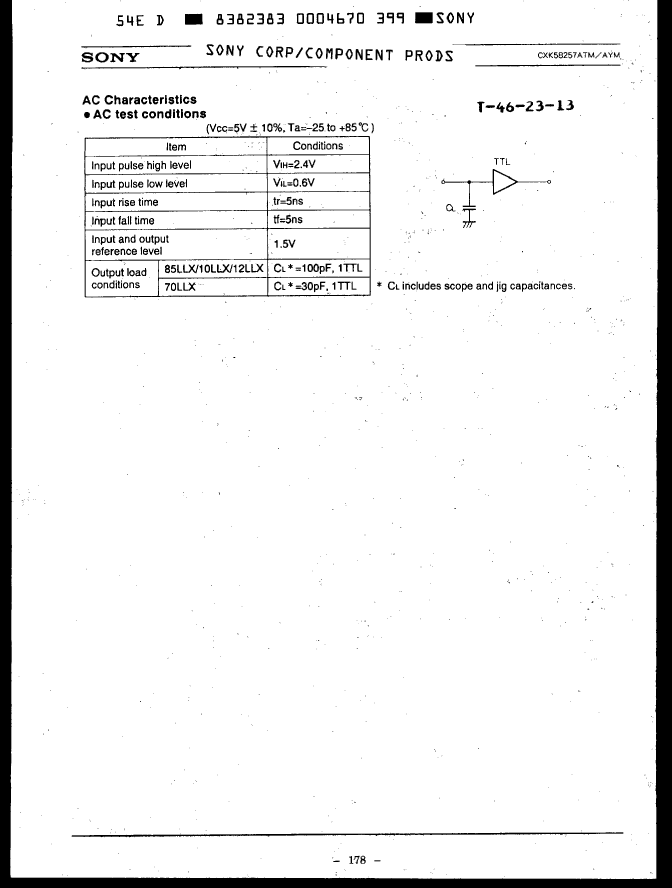

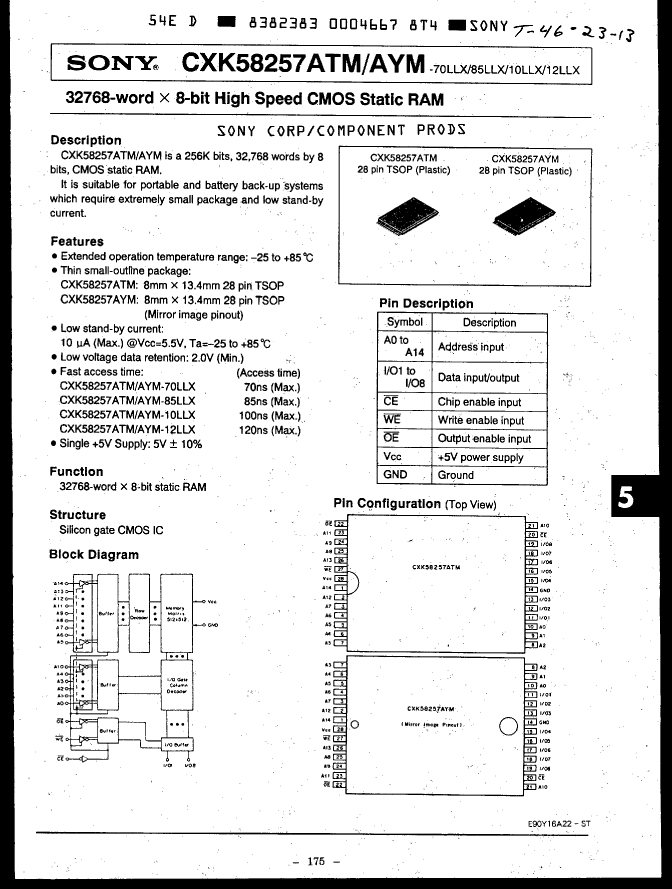

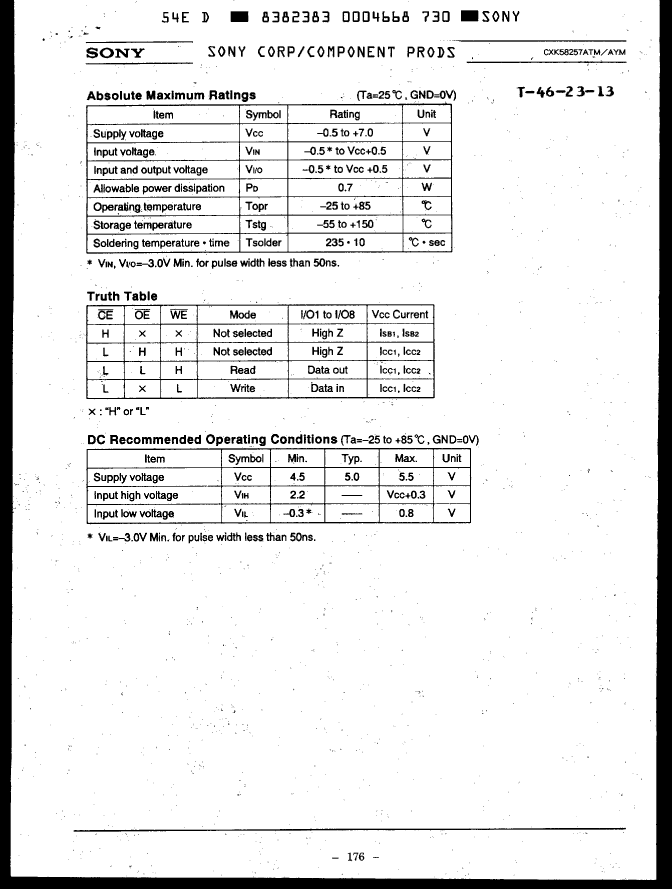

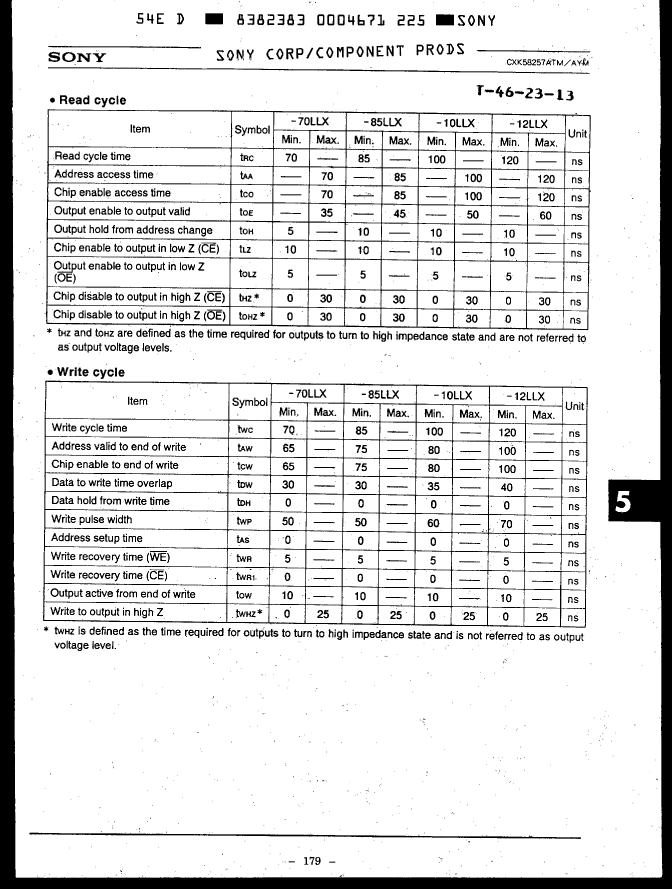

Preview

Download Datasheet

View All

CXK58257AYM-85LX Related Products

	CXK58257AYM-85LX	CXK58257ATM-12LX	CXK58257ATM-70LX	CXK58257ATM-85LX	CXK58257AYM-10LX	CXK58257AYM-12LX	CXK58257ATM-10LX	CXK58257AYM-70LX
Description	Standard SRAM, 32KX8, 85ns, CMOS, PDSO28	Standard SRAM, 32KX8, 120ns, CMOS, PDSO28	Standard SRAM, 32KX8, 70ns, CMOS, PDSO28	Standard SRAM, 32KX8, 85ns, CMOS, PDSO28	Standard SRAM, 32KX8, 100ns, CMOS, PDSO28	Standard SRAM, 32KX8, 120ns, CMOS, PDSO28	Application Specific SRAM, 32KX8, 100ns, CMOS, PDSO28	Standard SRAM, 32KX8, 70ns, CMOS, PDSO28
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	TSSOP, TSSOP28,.53,22	TSSOP, TSSOP28,.53,22	TSSOP, TSSOP28,.53,22	TSSOP, TSSOP28,.53,22	TSSOP, TSSOP28,.53,22	TSSOP, TSSOP28,.53,22	TSSOP, TSSOP28,.53,22	TSSOP, TSSOP28,.53,22
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Maximum access time	85 ns	120 ns	70 ns	85 ns	100 ns	120 ns	100 ns	70 ns
I/O type	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON
JESD-30 code	R-PDSO-G28	R-PDSO-G28	R-PDSO-G28	R-PDSO-G28	R-PDSO-G28	R-PDSO-G28	R-PDSO-G28	R-PDSO-G28
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
memory density	262144 bit	262144 bit	262144 bit	262144 bit	262144 bit	262144 bit	262144 bit	262144 bit
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	APPLICATION SPECIFIC SRAM	STANDARD SRAM
memory width	8	8	8	8	8	8	8	8
Number of terminals	28	28	28	28	28	28	28	28
word count	32768 words	32768 words	32768 words	32768 words	32768 words	32768 words	32768 words	32768 words
character code	32000	32000	32000	32000	32000	32000	32000	32000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
organize	32KX8	32KX8	32KX8	32KX8	32KX8	32KX8	32KX8	32KX8
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSSOP	TSSOP	TSSOP	TSSOP	TSSOP	TSSOP	TSSOP	TSSOP
Encapsulate equivalent code	TSSOP28,.53,22	TSSOP28,.53,22	TSSOP28,.53,22	TSSOP28,.53,22	TSSOP28,.53,22	TSSOP28,.53,22	TSSOP28,.53,22	TSSOP28,.53,22
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum standby current	0.00002 A	0.00002 A	0.00002 A	0.00002 A	0.00002 A	0.00002 A	0.00002 A	0.00002 A
Minimum standby current	2 V	2 V	2 V	2 V	2 V	2 V	2 V	2 V
Maximum slew rate	0.06 mA	0.06 mA	0.06 mA	0.06 mA	0.06 mA	0.06 mA	0.06 mA	0.06 mA
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	OTHER	OTHER	OTHER	OTHER	OTHER	OTHER	OTHER	OTHER
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.55 mm	0.55 mm	0.55 mm	0.55 mm	0.55 mm	0.55 mm	0.55 mm	0.55 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Base Number Matches	-	1	1	1	1	1	-	-
