MCM67H618FN18 datasheet, PDF - EEWORLD Datasheet

MCM67H618FN18: DescriptionCache SRAM, 64KX18, 18ns, BICMOS, PQCC52, PLASTIC, LCC-52; Categorystorage storage; File Size570KB，9 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric View All

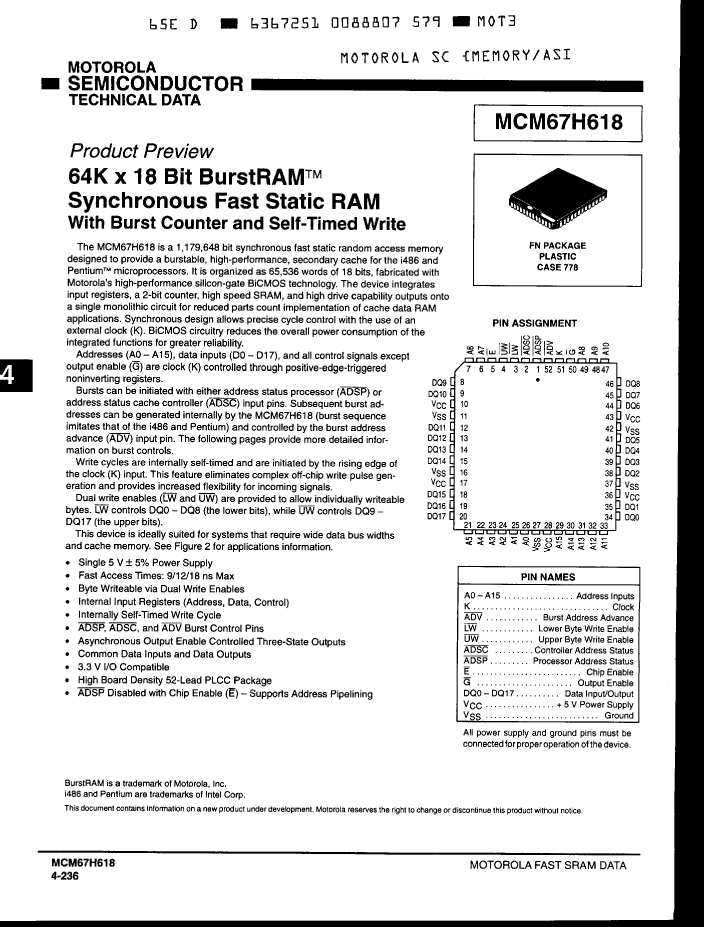

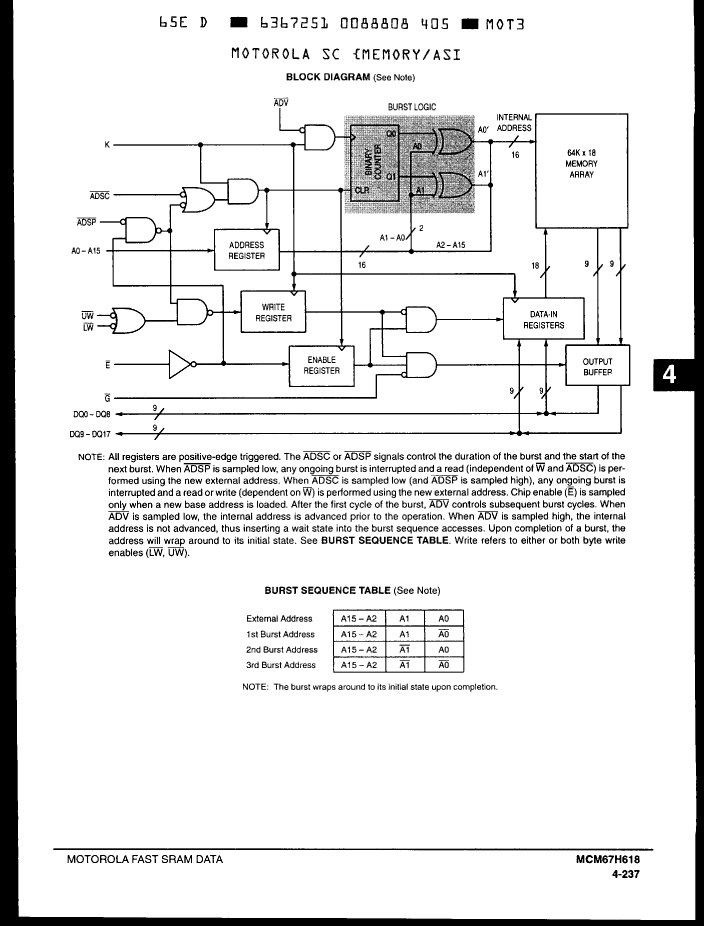

MCM67H618FN18 Overview

Cache SRAM, 64KX18, 18ns, BICMOS, PQCC52, PLASTIC, LCC-52

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Motorola ( NXP )
package instruction	PLASTIC, LCC-52
Reach Compliance Code	unknown
ECCN code	3A991.B.2.A

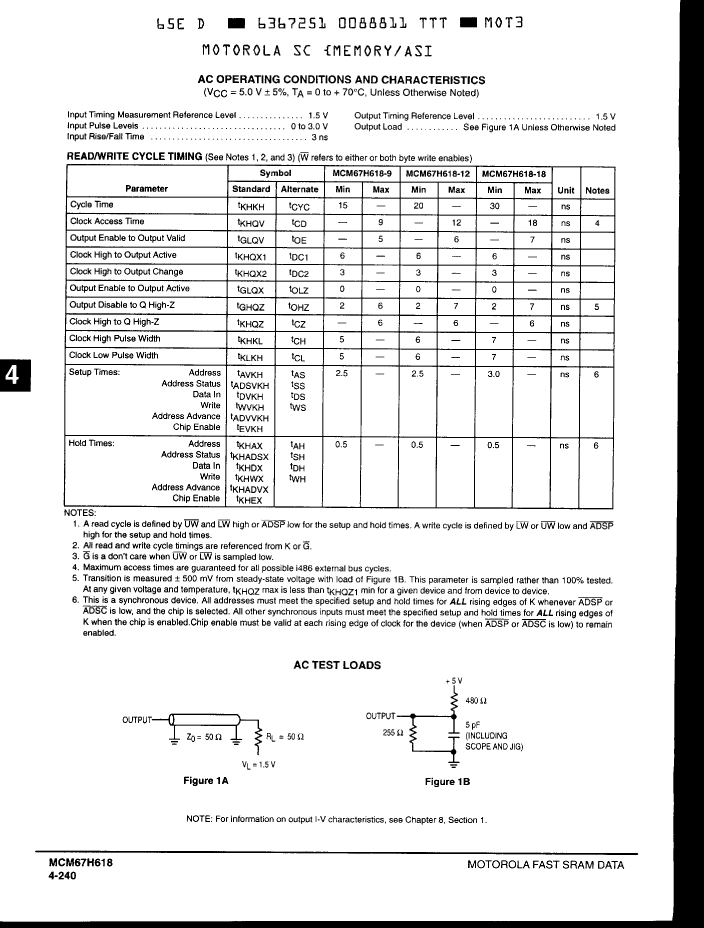

Maximum access time	18 ns
Other features	OUTPUT REGISTER
I/O type	COMMON
JESD-30 code	S-PQCC-J52
JESD-609 code	e0
length	19.1262 mm
memory density	1179648 bit
Memory IC Type	CACHE SRAM
memory width	18
Number of functions	1
Number of ports	1
Number of terminals	52
word count	65536 words
character code	64000

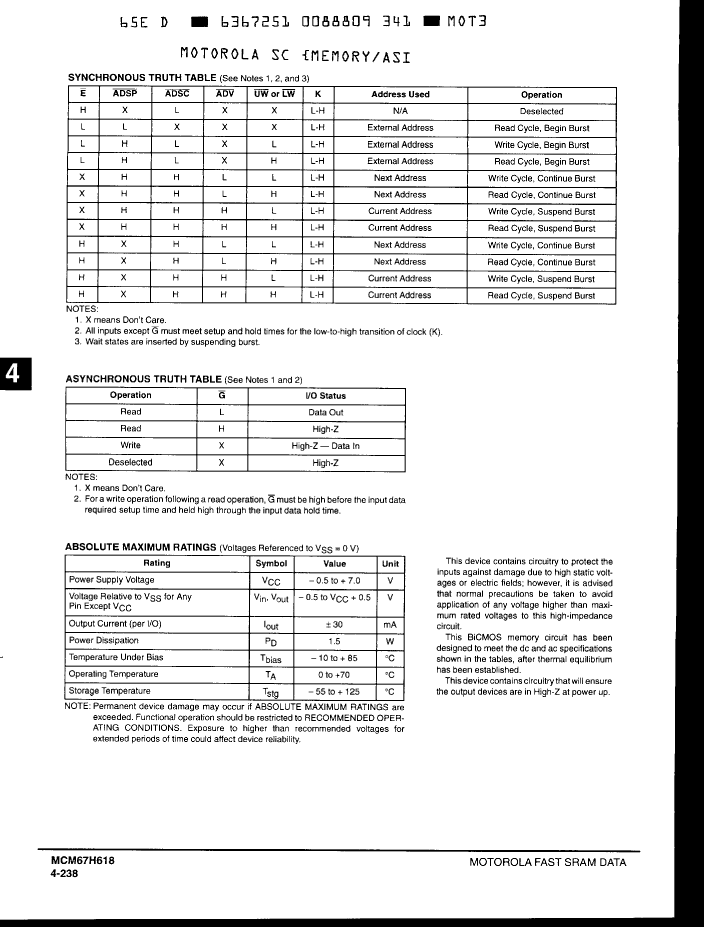

Operating mode	SYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	64KX18
Output characteristics	3-STATE
Exportable	YES
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Encapsulate equivalent code	LDCC52,.8SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED

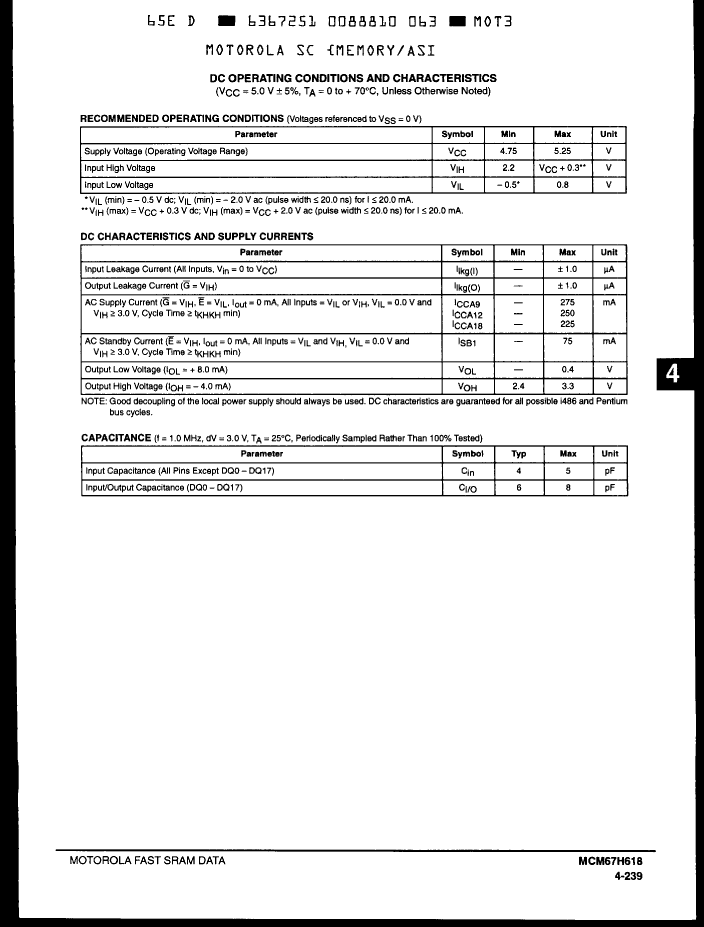

power supply	5 V
Certification status	Not Qualified
Maximum seat height	4.57 mm
Maximum standby current	0.075 A
Minimum standby current	4.75 V
Maximum slew rate	0.225 mA
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	BICMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	19.1262 mm
