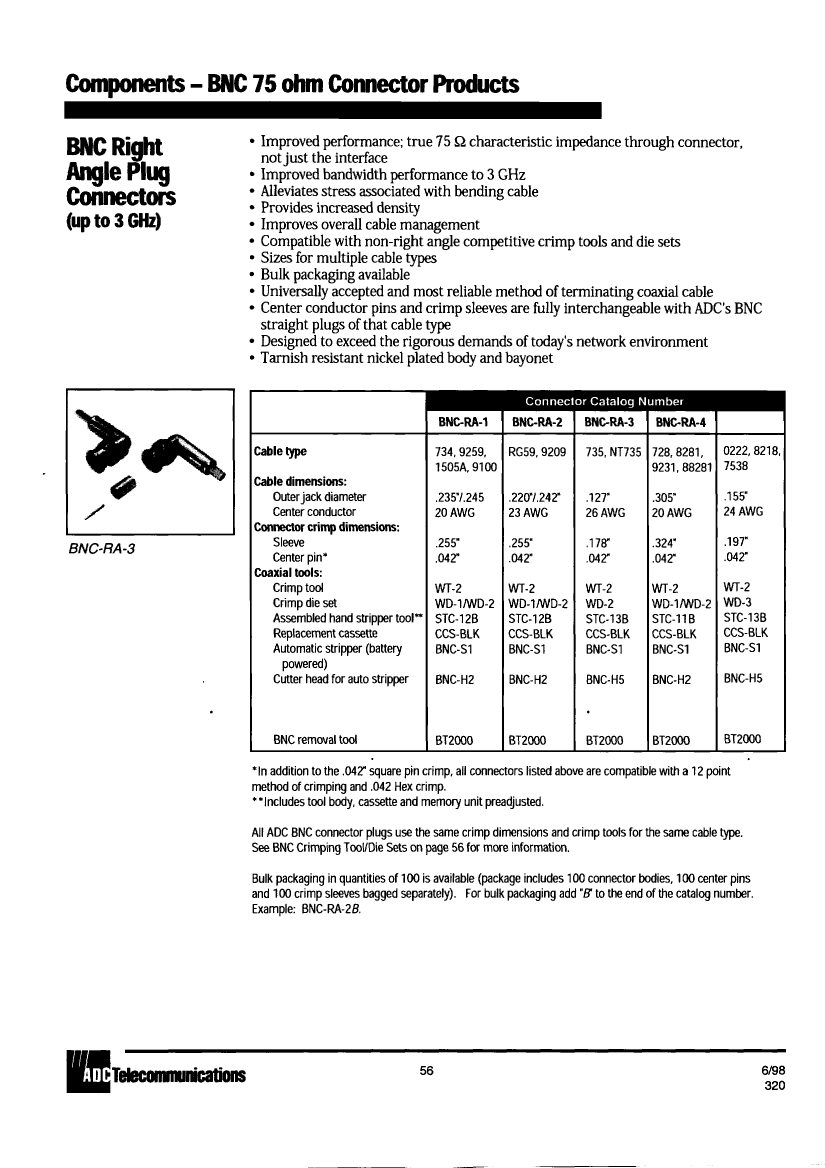

BNC-RA-3B datasheet, PDF - EEWORLD Datasheet

BNC-RA-3B: DescriptionCABLE TERMINATED, MALE, BNC CONNECTOR, CRIMP; CategoryThe connector The connector; File Size49KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

BNC-RA-3B Overview

CABLE TERMINATED, MALE, BNC CONNECTOR, CRIMP

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	TE Connectivity
Reach Compliance Code	unknown
Characteristic impedance	75 Ω
Connector type	RF BNC CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Coupling type	BAYONET
Filter function	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Installation method	RIGHT ANGLE
Installation type	CABLE
Maximum operating frequency	3 GHz
Panel mounting	NO
Termination type	CRIMP

	BNC-RA-3B	1699278	1699272	BNC-RA-4B	BNC-RA-2B	BNC-RA-1B
Description	CABLE TERMINATED, MALE, BNC CONNECTOR, CRIMP	CABLE TERMINATED, MALE, BNC CONNECTOR, CRIMP	CABLE TERMINATED, MALE, BNC CONNECTOR, CRIMP	CABLE TERMINATED, MALE, BNC CONNECTOR, CRIMP, PLUG	CABLE TERMINATED, MALE, BNC CONNECTOR, CRIMP, PLUG	CABLE TERMINATED, MALE, BNC CONNECTOR, CRIMP
Reach Compliance Code	unknown	compliant	compliant	unknown	unknown	unknown
Characteristic impedance	75 Ω	75 Ω	75 Ω	75 Ω	75 Ω	75 Ω
Connector type	RF BNC CONNECTOR	RF BNC CONNECTOR	RF BNC CONNECTOR	RF BNC CONNECTOR	RF BNC CONNECTOR	RF BNC CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE
Coupling type	BAYONET	BAYONET	BAYONET	BAYONET	BAYONET	BAYONET
Filter function	NO	NO	NO	NO	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Maximum operating frequency	3 GHz	3 GHz	3 GHz	3 GHz	3 GHz	3 GHz
Panel mounting	NO	NO	NO	NO	NO	NO
Termination type	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP
Is it Rohs certified?	conform to	conform to	conform to	-	-	conform to
Maker	TE Connectivity	-	-	TE Connectivity	TE Connectivity	TE Connectivity
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	-	NOT SPECIFIED
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	-	NOT SPECIFIED
Body/casing type	-	PLUG	PLUG	PLUG	PLUG	-
