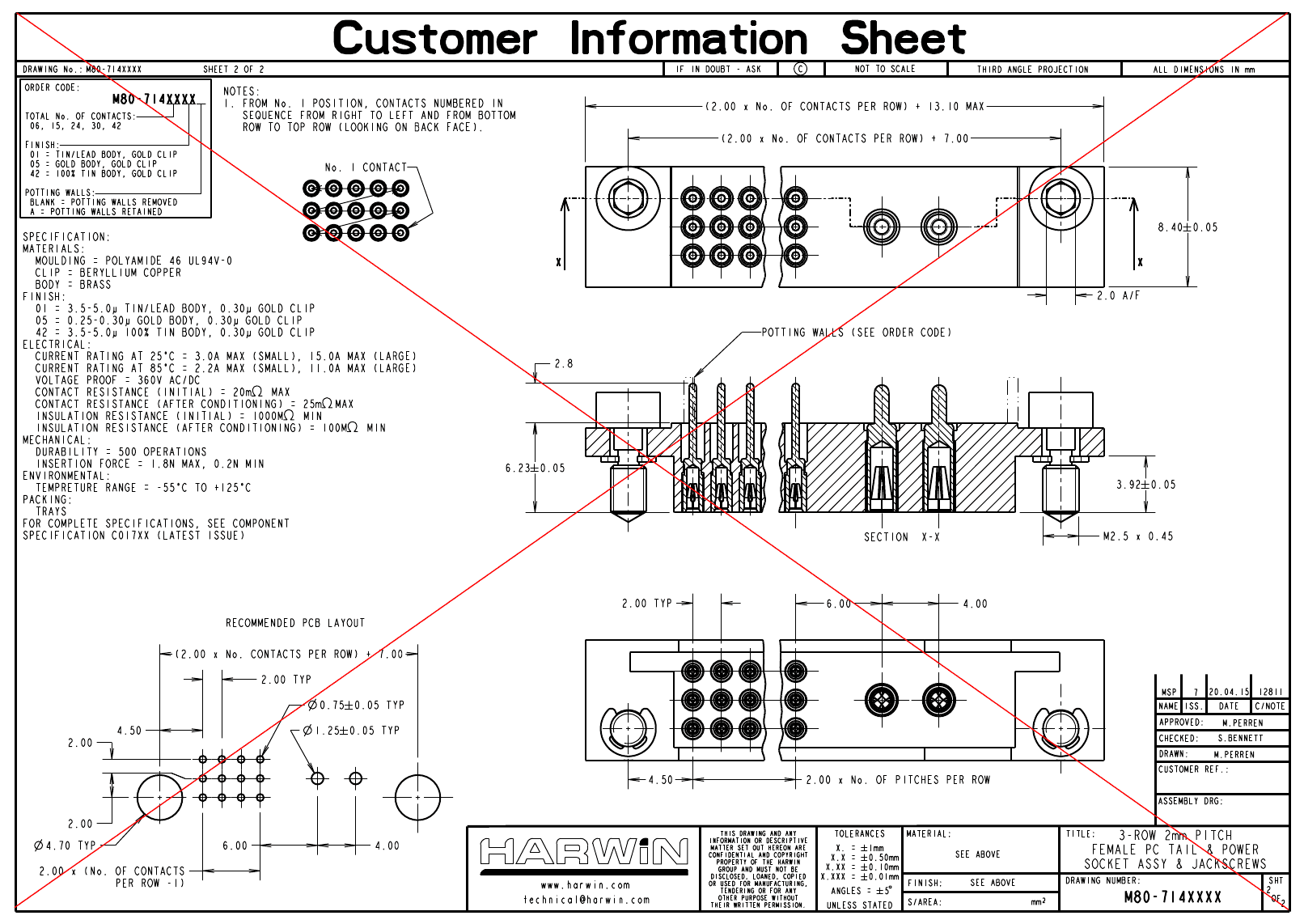

M80-7140642A datasheet, PDF - EEWORLD Datasheet

M80-7140642A: DescriptionBoard Connector, 8 Contact(s), Female, Straight, Solder Terminal, Guide Slot, Socket,; CategoryThe connector The connector; File Size92KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/; Environmental Compliance

Download Datasheet Parametric View All

M80-7140642A Overview

Board Connector, 8 Contact(s), Female, Straight, Solder Terminal, Guide Slot, Socket,

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Harwin
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	POTTING WALLS RETAINED
body width	0.331 inch
subject depth	0.245 inch
body length	0.673 inch
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact arrangement	S6P2
Contact to complete cooperation	GOLD (12)
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
Contact resistance	25 mΩ
Contact style	HYBRID
DIN compliance	NO
Durability	500 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	2.78 N
Insulation resistance	100000000 Ω
insulator material	POLYAMIDE
JESD-609 code	e3
MIL compliance	NO
Mixed contacts	YES
Installation option 1	GUIDE SLOT
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD AND PANEL
Number of connectors	ONE
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Plating thickness	12u inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Shell material	POLYAMIDE46
Termination type	SOLDER
Total number of contacts	8
UL Flammability Code	94V-0

OBSOLETE
