B25673A4152A080: DescriptionFilm capacitors - Power Factor Correction; CategoryPassive components capacitor; File Size343KB，8 Pages; ManufacturerEPCOS (TDK)

Download Datasheet Parametric Compare View All

B25673A4152A080 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	B25673A4152A080	-	-	View	Buy Now

B25673A4152A080 Overview

Film capacitors - Power Factor Correction

B25673A4152A080 Parametric

Parameter Name	Attribute value
Maker	EPCOS (TDK)
package instruction	,
Reach Compliance Code	unknow
ECCN code	EAR99
capacitance	69.1 µF
Capacitor type	FILM CAPACITOR
dielectric materials	POLYPROPYLENE
Installation features	STUD MOUNT
negative tolerance	5%
Number of terminals	2
Maximum operating temperature	55 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
positive tolerance	10%
Rated (AC) voltage (URac)	480 V
Guideline	IEC60831-1/2
surface mount	NO
Terminal shape	BINDING POST

Preview

Download Datasheet

View All

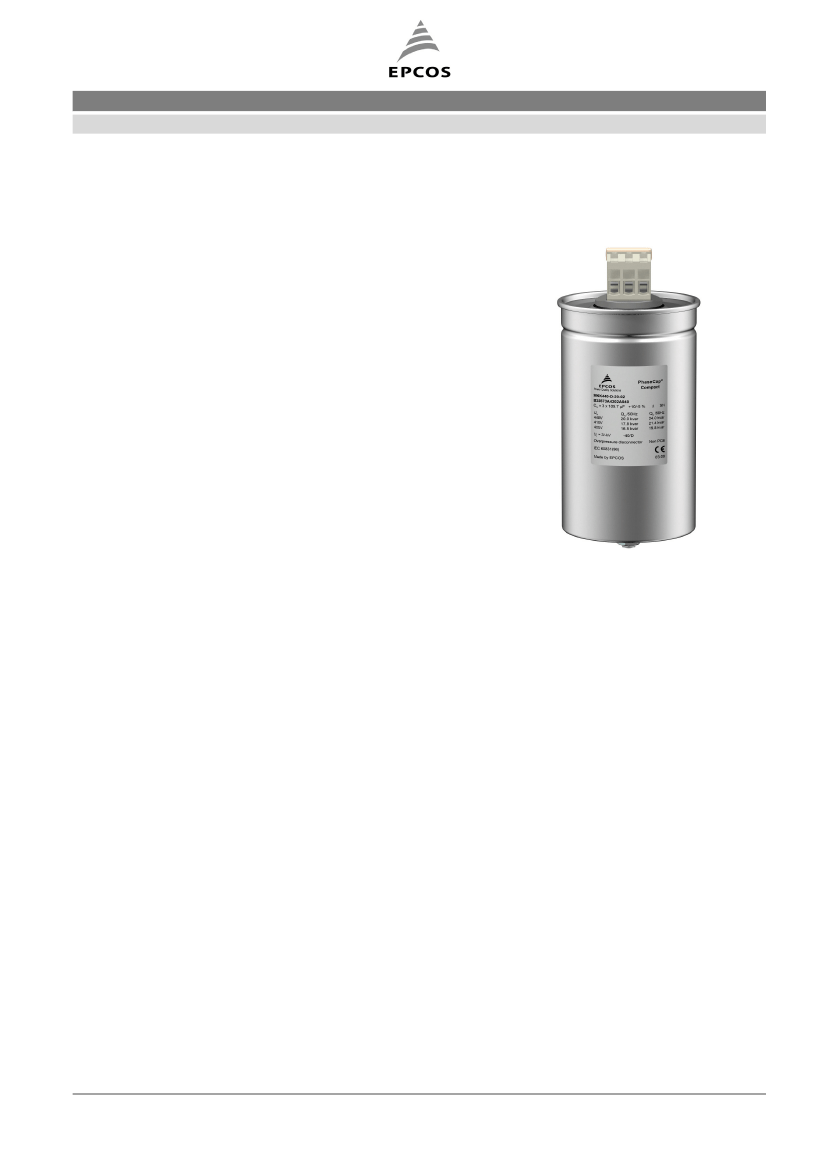

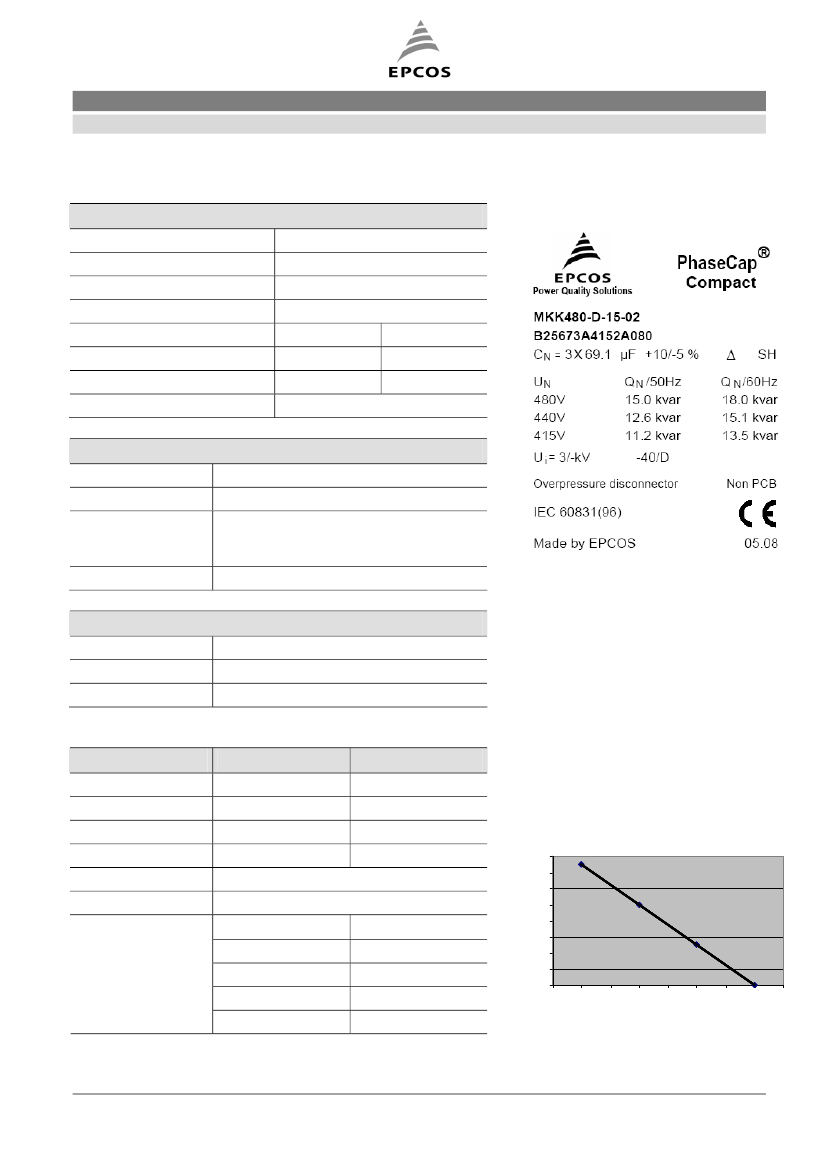

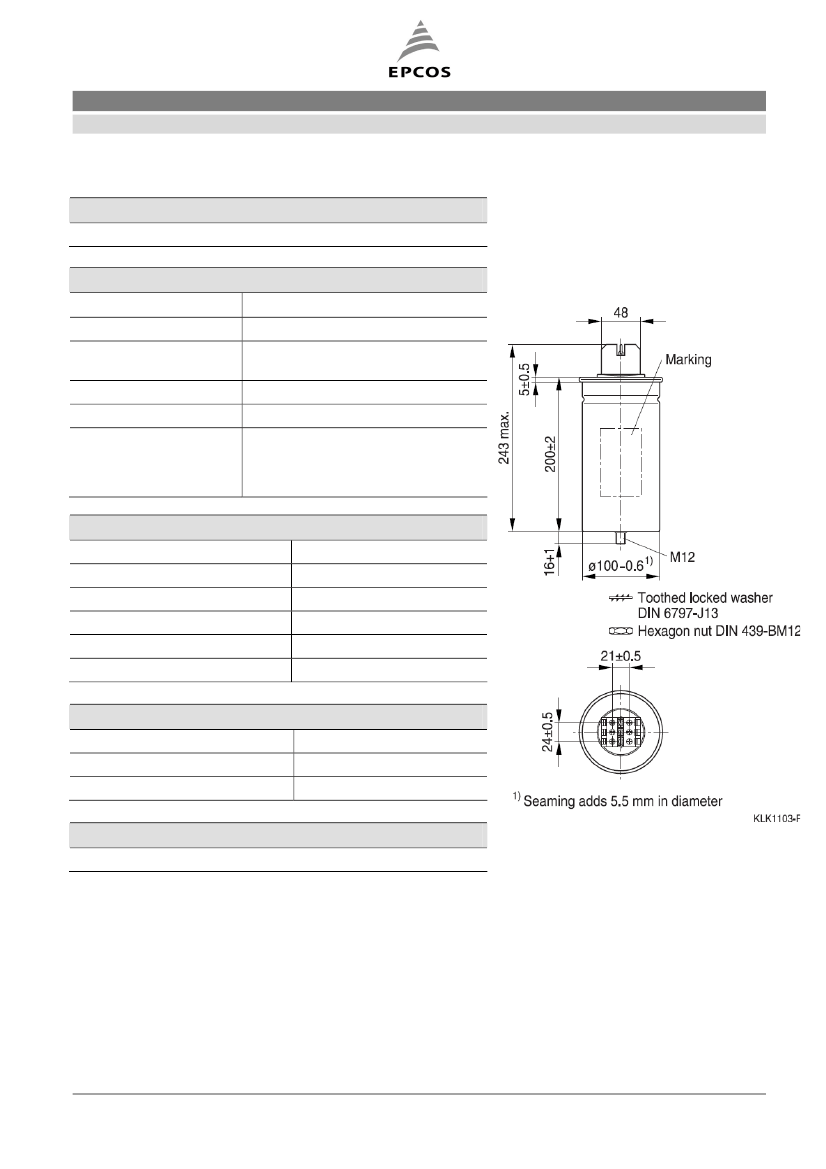

Film capacitors – Power Factor Correction

PhaseCap Compact capacitors

Series/Type:

Ordering code:

Date:

Version:

MKK480-D-15-02

B25673A4152A080

May 2009

Content of header bars 1 and 2 of data sheet will be automatically entered in headers and footers! Please fill in the

table and then change the color to "white". This ensures that the table disappears (invisible) for the customer PDF.

Don't change formatting when entering or pasting text in the table and don't add any cell or line in and to it!

Identification/Classification 1

(header 1 + top left bar):

Identification/Classification 2

(header 2 + bottom left header bar):

Ordering code: (top right header bar)

Series/Type: (top right header bar)

Preliminary data (optional):

(if necessary)

Department:

Date:

Version:

FK PC PM PFC

May 2009

Film capacitors – Power Factor Correction

PhaseCap Compact capacitors

B25673A4152A080

MKK480-D-15-02



EPCOS AG 2009. Reproduction, publication and dissemination of this publication, enclosures hereto and the information

contained therein without EPCOS' prior express consent is prohibited

Film capacitors – Power Factor Correction

PhaseCap Compact capacitors

B25673A4152A080

MKK480-D-15-02

Cautions and warnings



In case of dents of more than 1 mm depth or any other mechanical damage, capacitors must not

be used at all.



This applies also in cases of oil leakages.



To ensure the full functionality of the overpressure disconnector, elastic elements must not be

hindered and a minimum space of 12 mm has to be kept above each capacitor.



Do not handle the capacitor before it is discharged.



Resonance cases must be avoided by appropriate application design in any case.



Handle capacitors carefully, because they may still be charged even after disconnection due to

faulty discharging devices.



Protect the capacitor properly against over current and short circuit.



Failure to follow cautions may result, worst case, in premature failures, bursting and fire.

Discharging

Capacitors must be discharged to a maximum of 10% of rated voltage before they are switched in

again. This prevents an electric impulse discharge in the application, influences the capacitor’s

service life and protects against electric shock. The capacitor must be discharged to 75 V or less

within 3 minutes. There must be not any switch, fuse or any other disconnecting device in the circuit

between the power capacitor and the discharging device. PhaseCap Compact capacitors have a pre-

mounted ceramic discharge module; alternatively discharge reactors are available from EPCOS.

Discharge and short circuit capacitor before handling!

Service life expectancy

Electrical components do not have an unlimited service life expectancy; this applies to self-healing

capacitors too. The maximum service life expectancy may vary depending on the application the

capacitor is used in.

Safety

Electrical or mechanical misapplication of capacitors may be hazardous. Personal injury or property

damage may result from bursting of the capacitor or from expulsion of oil or melted material due to

mechanical disruption of the capacitor.



Ensure good, effective grounding for capacitor enclosures.



Provide means of disconnecting and insulating a faulty component/bank.



The terminals of capacitors, connected bus bars and cables as well as other devices may also be

energized.



Follow good engineering practice.

Thermal load/over-temperature

After installation of the capacitor it is necessary to verify that maximum hot-spot temperature is not

exceeded at extreme service conditions.

FK PC PM PFC

Please read

Cautions and warnings

and

Important notes

at the end of this document.

Page 5 of 8

May 2009

B25673A4152A080 Related Products

	B25673A4152A080
Description	Film capacitors - Power Factor Correction
Maker	EPCOS (TDK)
Reach Compliance Code	unknow
ECCN code	EAR99
capacitance	69.1 µF
Capacitor type	FILM CAPACITOR
dielectric materials	POLYPROPYLENE
Installation features	STUD MOUNT
negative tolerance	5%
Number of terminals	2
Maximum operating temperature	55 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
positive tolerance	10%
Rated (AC) voltage (URac)	480 V
Guideline	IEC60831-1/2
surface mount	NO
Terminal shape	BINDING POST
