M80-7172401A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> M80-7172401A

M80-7172401A: DescriptionBoard Connector, 24 Contact(s), 3 Row(s), Female, Straight, Solder Terminal, Locking, Socket,; CategoryThe connector The connector; File Size87KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/

Download Datasheet Parametric Compare View All

M80-7172401A Overview

Board Connector, 24 Contact(s), 3 Row(s), Female, Straight, Solder Terminal, Locking, Socket,

M80-7172401A Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Harwin
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	TRAY PKG
body width	0.333 inch
subject depth	0.247 inch
body length	1.146 inch
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact arrangement	S24P2
Contact to complete cooperation	GOLD (12)
Contact completed and terminated	Tin/Lead (Sn/Pb)
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
Contact resistance	25 mΩ
Contact style	HYBRID
DIN compliance	NO
Durability	500 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	2.78 N
Insulation resistance	100000000 Ω
insulator material	POLYAMIDE
JESD-609 code	e0
MIL compliance	NO
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	3
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Plating thickness	12u inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	24
UL Flammability Code	94V-0

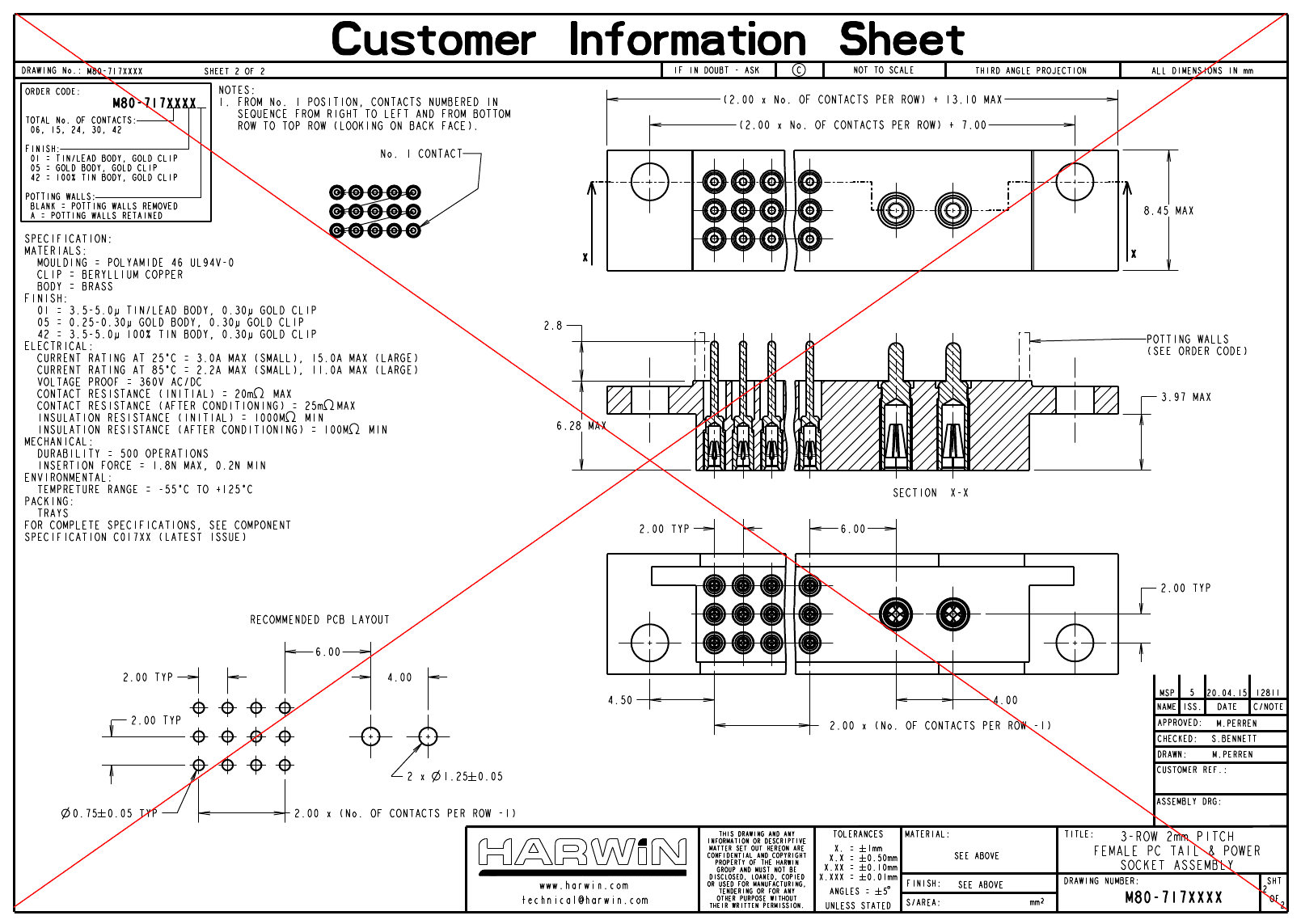

Preview

Download Datasheet

View All

OBSOLETE

M80-7172401A Related Products

	M80-7172401A	M80-7174205A	M80-7170601A	M80-7170605A	M80-7171501A	M80-7171505A	M80-7172405A	M80-7173001A	M80-7173005A	M80-7174201A
Description	Board Connector, 24 Contact(s), 3 Row(s), Female, Straight, Solder Terminal, Locking, Socket,	Board Connector, 44 Contact(s), Female, Straight, Solder Terminal, Locking, Plug,	Board Connector, 6 Contact(s), 3 Row(s), Female, Straight, Solder Terminal, Locking, Socket,	Board Connector, 8 Contact(s), Female, Straight, Solder Terminal, Locking, Plug,	Board Connector, 15 Contact(s), 3 Row(s), Female, Straight, Solder Terminal, Locking, Socket,	Board Connector, 17 Contact(s), Female, Straight, Solder Terminal, Locking, Plug,	Board Connector, 26 Contact(s), Female, Straight, Solder Terminal, Locking, Plug,	Board Connector, 30 Contact(s), 3 Row(s), Female, Straight, Solder Terminal, Locking, Socket,	Board Connector, 32 Contact(s), Female, Straight, Solder Terminal, Locking, Plug,	Board Connector, 42 Contact(s), 3 Row(s), Female, Straight, Solder Terminal, Locking, Socket,
Is it lead-free?	Contains lead	Lead free	Contains lead	Lead free	Contains lead	Lead free	Lead free	Contains lead	Lead free	Contains lead
Is it Rohs certified?	incompatible	conform to	incompatible	conform to	incompatible	conform to	conform to	incompatible	conform to	incompatible
Maker	Harwin	Harwin	Harwin	Harwin	Harwin	Harwin	Harwin	Harwin	Harwin	Harwin
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	TRAY PKG	TRAY PKG	TRAY PKG	TRAY PKG	TRAY PKG	TRAY PKG	TRAY PKG	TRAY PKG	TRAY PKG	TRAY PKG
body width	0.333 inch	0.333 inch	0.333 inch	0.333 inch	0.333 inch	0.333 inch	0.333 inch	0.333 inch	0.333 inch	0.333 inch
subject depth	0.247 inch	0.247 inch	0.247 inch	0.247 inch	0.247 inch	0.247 inch	0.247 inch	0.247 inch	0.247 inch	0.247 inch
body length	1.146 inch	1.618 inch	0.673 inch	0.673 inch	0.909 inch	0.909 inch	1.146 inch	1.303 inch	1.303 inch	1.618 inch
Body/casing type	SOCKET	PLUG	SOCKET	PLUG	SOCKET	PLUG	PLUG	SOCKET	PLUG	SOCKET
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact arrangement	S24P2	S42P2	S6P2	S6P2	S15P2	S15P2	S24P2	S30P2	S30P2	S42P2
Contact to complete cooperation	GOLD (12)	NOT SPECIFIED	GOLD (12)	NOT SPECIFIED	GOLD (12)	NOT SPECIFIED	NOT SPECIFIED	GOLD (12)	NOT SPECIFIED	GOLD (12)
Contact completed and terminated	Tin/Lead (Sn/Pb)	Gold (Au)	Tin/Lead (Sn/Pb)	Gold (Au)	Tin/Lead (Sn/Pb)	Gold (Au)	Gold (Au)	Tin/Lead (Sn/Pb)	Gold (Au)	Tin/Lead (Sn/Pb)
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	BERYLLIUM COPPER	NOT SPECIFIED	BERYLLIUM COPPER	NOT SPECIFIED	BERYLLIUM COPPER	NOT SPECIFIED	NOT SPECIFIED	BERYLLIUM COPPER	NOT SPECIFIED	BERYLLIUM COPPER
Contact resistance	25 mΩ	25 mΩ	25 mΩ	25 mΩ	25 mΩ	25 mΩ	25 mΩ	25 mΩ	25 mΩ	25 mΩ
Contact style	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID
Durability	500 Cycles	500 Cycles	500 Cycles	500 Cycles	500 Cycles	500 Cycles	500 Cycles	500 Cycles	500 Cycles	500 Cycles
maximum insertion force	2.78 N	2.78 N	2.78 N	2.78 N	2.78 N	2.78 N	2.78 N	2.78 N	2.78 N	2.78 N
Insulation resistance	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω
insulator material	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE
JESD-609 code	e0	e4	e0	e4	e0	e4	e4	e0	e4	e0
Mixed contacts	NO	YES	NO	YES	NO	YES	YES	NO	YES	NO
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Plating thickness	12u inch	12u inch	12u inch	12u inch	12u inch	12u inch	12u inch	12u inch	12u inch	12u inch
Rated current (signal)	3 A	3 A	3 A	3 A	3 A	3 A	3 A	3 A	3 A	3 A
Guideline	UL	UL	UL	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	24	44	6	8	15	17	26	30	32	42
