M27/367-01T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> M27/367-01T

M27/367-01T: DescriptionGeneral Purpose Inductor; CategoryPassive components inductor; File Size2MB，2 Pages; ManufacturerGowanda Electronics

Download Datasheet Parametric View All

M27/367-01T Overview

General Purpose Inductor

M27/367-01T Parametric

Parameter Name	Attribute value
Maker	Gowanda Electronics
package instruction	CHIP
Reach Compliance Code	compliant
ECCN code	EAR99
uppercase and lowercase codes	4923
structure	Rectangular
core material	Ferrite
DC Resistance	0.008 Ω
Nominal inductance(L)	0.22 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Maximum operating temperature	130 °C
Minimum operating temperature	-55 °C
Package height	5.33 mm
Package length	12.44 mm
Package form	SMT
Package width	5.84 mm
method of packing	TR, 12 Inch
Maximum rated current	7 A
Guideline	MIL-PRF-27/367
Shape/Size Description	RECTANGULAR PACKAGE
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	J BEND
Test frequency	0.001 MHz
Tolerance	15%

Preview

Download Datasheet

View All

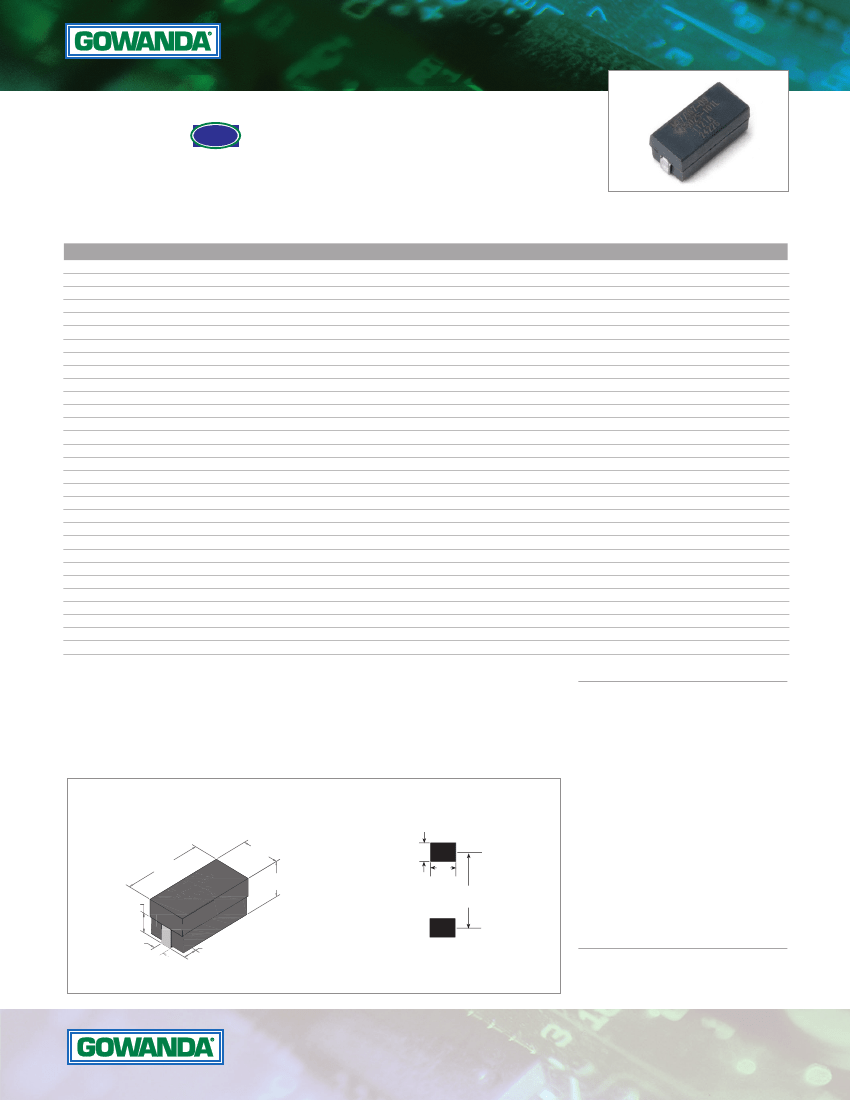

QPL POWER INDUCTORS - SURFACE MOUNT

MLP5025

M27/367 Ferrite Core

TRADITIONAL

Wirewound, Molded, Level T Qualified, MIL-PRF-27

Outgassing Tested per ASTM E-595 (*)

PART

NUMBER

MLP5025-220LT

MLP5025-270LT

MLP5025-330LT

MLP5025-390LT

MLP5025-470LT

MLP5025-560LT

MLP5025-680LT

MLP5025-820LT

MLP5025-101LT

MLP5025-121LT

MLP5025-151LT

MLP5025-181LT

MLP5025-221LT

MLP5025-271LT

MLP5025-331LT

MLP5025-391LT

MLP5025-471LT

MLP5025-561LT

MLP5025-681LT

MLP5025-821LT

MLP5025-102LT

MLP5025-122LT

MLP5025-152LT

MLP5025-182LT

MLP5025-222LT

MLP5025-272LT

MLP5025-332LT

MLP5025-392LT

MLP5025-472LT

MIL

DASH

NUMBER

01T

02T

03T

04T

05T

06T

07T

08T

09T

10T

11T

12T

13T

14T

15T

16T

17T

18T

19T

20T

21T

22T

23T

24T

25T

26T

27T

28T

29T

L µH

@1 kHz *

DCR

OHMS

MAX

FERRITE CORE

CURRENT

RATING

A DC

7.00

6.75

6.50

6.25

6.00

5.80

5.70

5.60

5.50

4.69

4.45

4.34

3.70

3.41

3.23

3.07

2.90

2.79

2.61

2.51

2.36

2.24

2.11

1.82

1.61

1.48

1.33

1.12

1.04

INC I

A DC

7.00

6.75

6.50

6.25

6.00

5.80

5.70

5.60

5.50

4.69

4.45

4.34

3.70

3.41

3.23

3.07

2.90

2.79

2.61

2.51

2.36

2.24

2.11

1.82

1.61

1.48

1.33

1.12

1.04

0.22

0.0080

0.27

0.0085

0.33

0.0090

0.39

0.0095

0.47

0.0100

0.56

0.0105

0.68

0.0110

0.82

0.0120

1.00

0.0130

1.20

0.0180

1.50

0.0200

1.80

0.0210

2.20

0.0290

2.70

0.0340

3.30

0.0380

3.90

0.0420

4.70

0.0470

5.60

0.0510

6.80

0.0580

8.20

0.0630

0.0710

0.0790

0.0890

0.1190

0.1520

0.1790

0.2220

0.3150

MARKING: M27/367-XXT (MIL DASH NO.)

MLP5025-XXXLT

0.3620

(GOWANDA DASH NO.)

XXXXY (DATE CODE & LOT SYMBOL)

24226 (GOWANDA CAGE CODE)

0.230/0.250

(5.84/6.35)

All part numbers provide 10% tolerance on inductance

* Measured at 1 V ac open circuit with no dc current at 1 kHz

continued next page

0.490/0.520

(12.45/13.21)

0.120

(3.04)

REF

0.055/0.075

(1.40/1.91)

MARKING: M27/367-XXT (MIL DASH NO.)

MLP5025-XXXLT (GOWANDA DASH NO.)

XXXXY (DATE CODE & LOT SYMBOL)

24226 (GOWANDA CAGE CODE)

0.230/0.250

(5.84/6.35)

0.210/0.230

(5.33/5.84)

OVER TERMINAL

NOTES:

Operating Temperature Range:

-55°C to +130°C

0.210/0.230

•

(5.33/5.84)

OVER TERMINAL

• Current Rating is based on a 45°C temperature

rise at an ambient temperature of 85°C

• Incremental Current is the approximate value

that will cause a 5% maximum decrease in

inductance at a zero dc current

• DWV 1000 Vrms @ Sea Level

500 Vrms @ 70,000 Feet

• Grade 5, encapsulated

• Weight maximum 1.5 grams

• Level T Product is 100% Tested In Accordance

with MIL-PRF-27 Group A Subgroup 1

which includes Thermal Shock, Burn In, and

Radiographic Inspection Tests

0.050 (1.27) MIN TYP

RECOMMENDED FOOT PRINT

0.130 (3.30)

0.165

(4.19)

0.490/0.520

(12.45/13.21)

0.120

(3.04)

REF

0.055/0.075

(1.40/1.91)

0.440

(11.18)

*Meets a TML (Total Mass Loss) requirement

of 1.0% maximum when tested in accordance

with ASTM E-595

TAPE AND REEL SPECS:

in. (mm)

0.050 (1.27) MIN TYP

RECOMMENDED FOOT PRINT

0.130 (3.30)

0.165

(4.19)

Pcs./Reel maximum:

Pitch between parts:

Tape width:

Reel diameter:

800

12 mm

24 mm

13 in.

One Magnetics Pkwy, Gowanda, NY 14070 • (t) 716-532-2234 • (f) 716-532-2702 • sales@gowanda.com

(11.18)

www.gowanda.com

0.440

041714
