QEF8-040-05.0-L-D-A-TR: DescriptionBoard Stacking Connector, 80 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size449KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

QEF8-040-05.0-L-D-A-TR Overview

Board Stacking Connector, 80 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, ROHS COMPLIANT

QEF8-040-05.0-L-D-A-TR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	2 weeks
Other features	EDGE RATE CONTACT, E.L.P
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	TIN OVER NICKEL
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	0.8 mm
Termination type	SURFACE MOUNT
Total number of contacts	80

Preview

Download Datasheet

View All

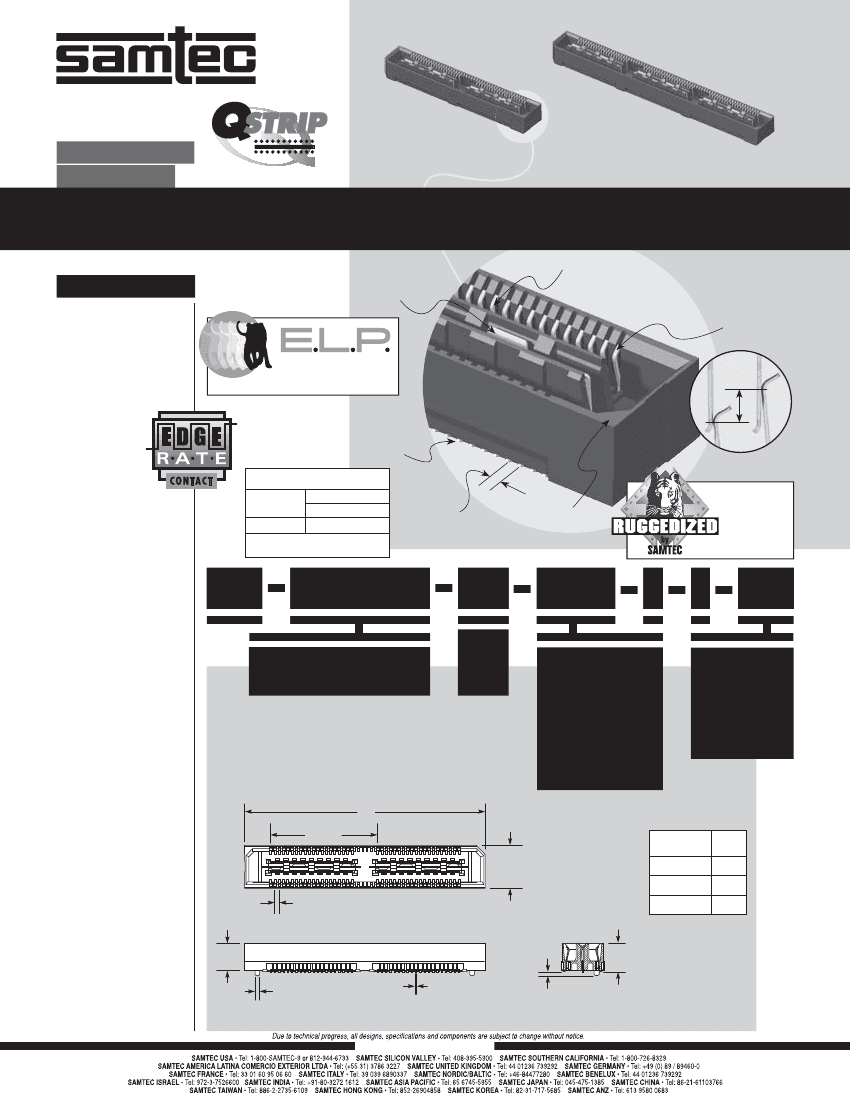

F-211 SUPPLEMENT

®

QEF8–040–05.0–L–D–A

QEF8–060–05.0–L–D–A

(0,80mm) .0315"

QEF8 SERIES

EDGE RATE CONTACT GROUND PLANE

SPECIFICATIONS

For complete speciﬁcations and

recommended PCB layouts see

www.samtec.com?QEF8

Insulator Material:

Black LCP

Terminal Material:

BeCu

Plating:

Au over 50µ"

(1,27µm) Ni

Current Rating:

Testing Now!

Operating Temp

Range:

Testing Now!

Voltage Rating:

Testing Now!

Max Cycles:

Testing Now!

RoHS Compliant:

Yes

™

Board Mates:

QEM8

Integral metal

plane for power

or ground

TM

Robust Edge Rate

contact improves

“Zippered” unmating

Increased

insertion depth

and contact wipe

EXTENDED LIFE PRODUCT

10 year Mixed Flowing Gas with 30µ" Gold

Call Samtec for maximum cycles mated with QEM8

(1,40mm)

.055"

NOMINAL

WIPE

™

Footprint

compatible

with QSE

Series

MATED HEIGHT*

QEM8

LEAD

STYLE

QEF8 LEAD STYLE

–05.0

(10,00) .394

• Edge Rate

™

contacts

Processing:

Lead–Free Solderable:

Yes

SMT Lead Coplanarity:

(0,10mm) .004" max

–05.0

*Processing conditions will

affect mated height.

(0,80mm)

.0315" pitch

Polarized

• Increased

contact wipe

QEF8

NO. OF POSITIONS

PER ROW

LEAD

STYLE

PLATING

OPTION

D

A

OTHER

OPTION

–05.0

–020, –040, –060

(40 total positions per bank)

= 5mm

Body

Height

–S

= 30µ" (0,76µm)

Gold on Signal Pins

and Ground Plane,

Matte Tin on tails

–K

= (8,25mm) .325" DIA

Polyimide Film

Pick & Place Pad

–L

= 10µ" (0,25µm)

Gold on Signal Pins

and Ground Plane,

Matte Tin on tails

–TR

= Tape & Reel

Packaging

A

(20,00)

.7875

01

NO. OF

POSITIONS

A

(25,02)

0.985

(45,02)

1.772

(65,02)

2.560

(7,95)

.313

(0,80)

.0315

02

–020

–040

–060

(0,69)

.027

(5,01)

.197

(0,90)

.035

DIA

(0,23)

.009

(5,25)

.206

Note:

Some lengths,

styles and options are

non-standard, non-returnable.
