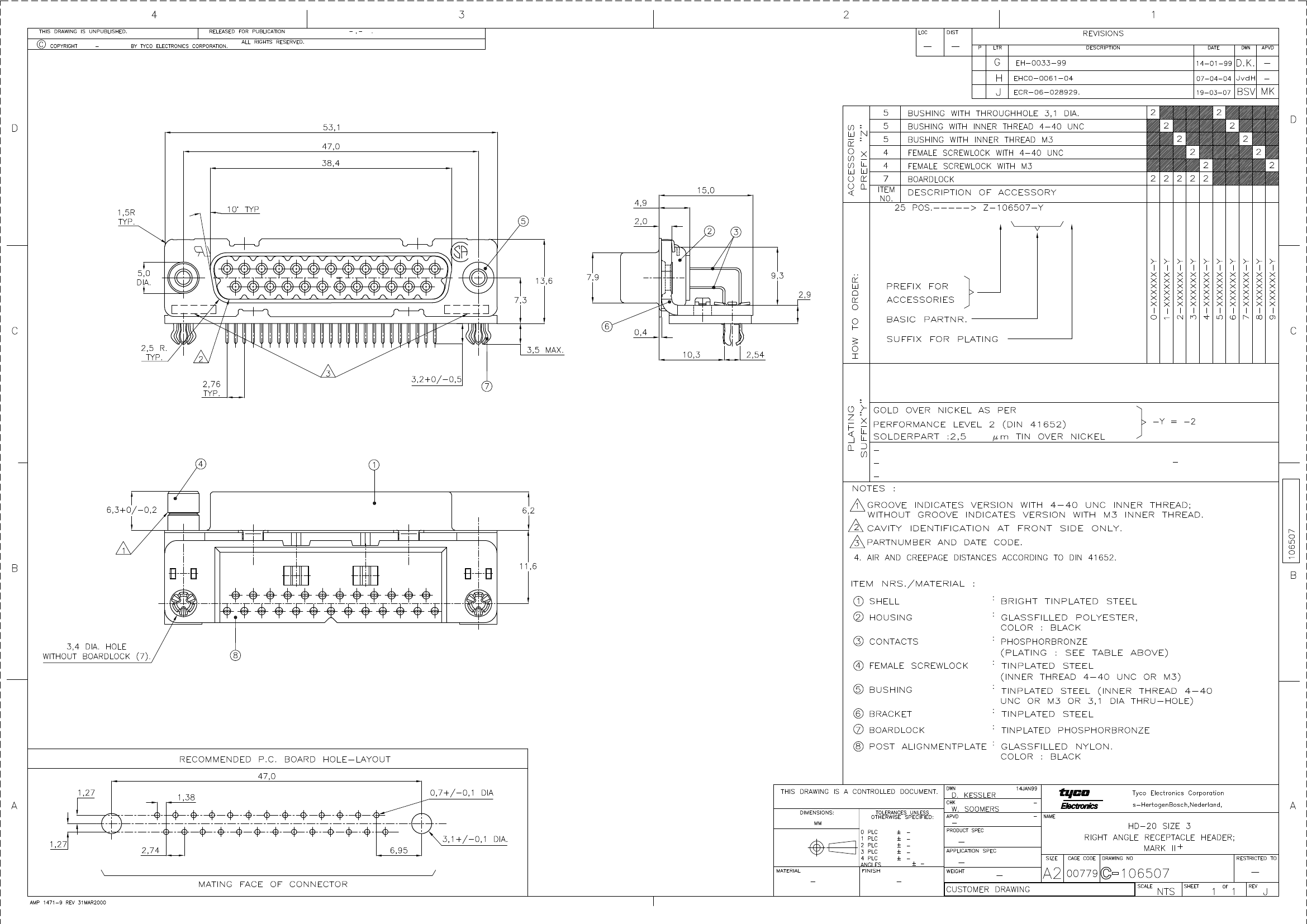

25 CONTACT(S), FEMALE, D SUBMINIATURE CONNECTOR, SOLDER, RECEPTACLE
| Parameter Name | Attribute value |
| Is it lead-free? | Lead free |
| Is it Rohs certified? | conform to |
| Maker | TE Connectivity |
| Reach Compliance Code | not_compliant |
| ECCN code | EAR99 |
| Other features | AMPLIMITE |
| body width | 0.535 inch |
| subject depth | 0.591 inch |
| body length | 2.091 inch |
| Body/casing type | RECEPTACLE |
| Connector type | D SUBMINIATURE CONNECTOR |
| Contact to complete cooperation | GOLD OVER NICKEL |
| Contact completed and terminated | Tin (Sn) - with Nickel (Ni) barrier |
| Contact point gender | FEMALE |
| Contact material | PHOSPHOR BRONZE |
| contact mode | STAGGERED |
| Contact resistance | 30 mΩ |
| Contact style | RND PIN-SKT |
| DIN compliance | NO |
| Dielectric withstand voltage | 1000VAC V |
| empty shell | NO |
| Filter function | NO |
| IEC compliance | NO |
| maximum insertion force | 2.224 N |
| Insulation resistance | 5000000000 Ω |
| Insulator color | BLACK |
| insulator material | GLASS FILLED POLYESTER |
| JESD-609 code | e3 |
| MIL compliance | NO |
| Manufacturer's serial number | 106507 |
| Plug information | NO |
| Mixed contacts | NO |
| Installation option 1 | M3 |
| Installation option 2 | LOCKING |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD AND PANEL |
| PCB row number | 2 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 105 °C |
| Minimum operating temperature | -55 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | STAGGERED |
| PCB contact row spacing | 2.54 mm |
| Plating thickness | 30u inch |
| Rated current (signal) | 6 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Shell surface | TIN |
| Shell material | STEEL |
| Housing size | 3/B |
| Terminal length | 0.126 inch |
| Terminal pitch | 2.7686 mm |
| Termination type | SOLDER |
| Total number of contacts | 25 |
| UL Flammability Code | 94V-0 |
| Evacuation force-minimum value | .2085 N |
| 7-106507-2 | 0-106507-2 | 9-106507-2 | |
|---|---|---|---|
| Description | 25 CONTACT(S), FEMALE, D SUBMINIATURE CONNECTOR, SOLDER, RECEPTACLE | 25 CONTACT(S), FEMALE, D SUBMINIATURE CONNECTOR, SOLDER, RECEPTACLE | 25 CONTACT(S), FEMALE, D SUBMINIATURE CONNECTOR, SOLDER, RECEPTACLE |
| Maker | TE Connectivity | TE Connectivity | TE Connectivity |
| Reach Compliance Code | not_compliant | unknown | unknown |
| ECCN code | EAR99 | EAR99 | EAR99 |
| body width | 0.535 inch | 0.535 inch | 0.535 inch |
| subject depth | 0.591 inch | 0.591 inch | 0.591 inch |
| body length | 2.091 inch | 2.091 inch | 2.091 inch |
| Body/casing type | RECEPTACLE | RECEPTACLE | RECEPTACLE |
| Connector type | D SUBMINIATURE CONNECTOR | D SUBMINIATURE CONNECTOR | D SUBMINIATURE CONNECTOR |
| Contact to complete cooperation | GOLD OVER NICKEL | GOLD OVER NICKEL | GOLD OVER NICKEL |
| Contact completed and terminated | Tin (Sn) - with Nickel (Ni) barrier | TIN (98) OVER NICKEL | TIN (98) OVER NICKEL |
| Contact point gender | FEMALE | FEMALE | FEMALE |
| Contact material | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE |
| contact mode | STAGGERED | STAGGERED | STAGGERED |
| Contact resistance | 30 mΩ | 30 mΩ | 30 mΩ |
| Contact style | RND PIN-SKT | RND PIN-SKT | RND PIN-SKT |
| DIN compliance | NO | NO | NO |
| Dielectric withstand voltage | 1000VAC V | 1000VAC V | 1000VAC V |
| empty shell | NO | NO | NO |
| Filter function | NO | NO | NO |
| IEC compliance | NO | NO | NO |
| maximum insertion force | 2.224 N | 2.224 N | 2.224 N |
| Insulation resistance | 5000000000 Ω | 5000000000 Ω | 5000000000 Ω |
| Insulator color | BLACK | BLACK | BLACK |
| insulator material | GLASS FILLED POLYESTER | GLASS FILLED POLYESTER | GLASS FILLED POLYESTER |
| JESD-609 code | e3 | e3 | e3 |
| MIL compliance | NO | NO | NO |
| Plug information | NO | NO | NO |
| Mixed contacts | NO | NO | NO |
| Installation option 1 | M3 | LOCKING | M3 |
| Installation option 2 | LOCKING | BOARDLOCK | LOCKING |
| Installation method | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE |
| Installation type | BOARD AND PANEL | BOARD AND PANEL | BOARD AND PANEL |
| PCB row number | 2 | 2 | 2 |
| Number of rows loaded | 2 | 2 | 2 |
| Maximum operating temperature | 105 °C | 105 °C | 105 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| PCB contact pattern | STAGGERED | STAGGERED | STAGGERED |
| PCB contact row spacing | 2.54 mm | 2.54 mm | 2.54 mm |
| Plating thickness | 30u inch | 30u inch | 30u inch |
| Rated current (signal) | 6 A | 6 A | 6 A |
| Guideline | UL | UL | UL |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Shell surface | TIN | TIN | TIN |
| Shell material | STEEL | STEEL | STEEL |
| Housing size | 3/B | 3/B | 3/B |
| Terminal length | 0.126 inch | 0.126 inch | 0.126 inch |
| Terminal pitch | 2.7686 mm | 2.7686 mm | 2.7686 mm |
| Termination type | SOLDER | SOLDER | SOLDER |
| Total number of contacts | 25 | 25 | 25 |
| Evacuation force-minimum value | .2085 N | .2085 N | .2085 N |
| Other features | AMPLIMITE | - | AMPLIMITE |
| Manufacturer's serial number | 106507 | - | 106507 |
| UL Flammability Code | 94V-0 | - | 94V-0 |
