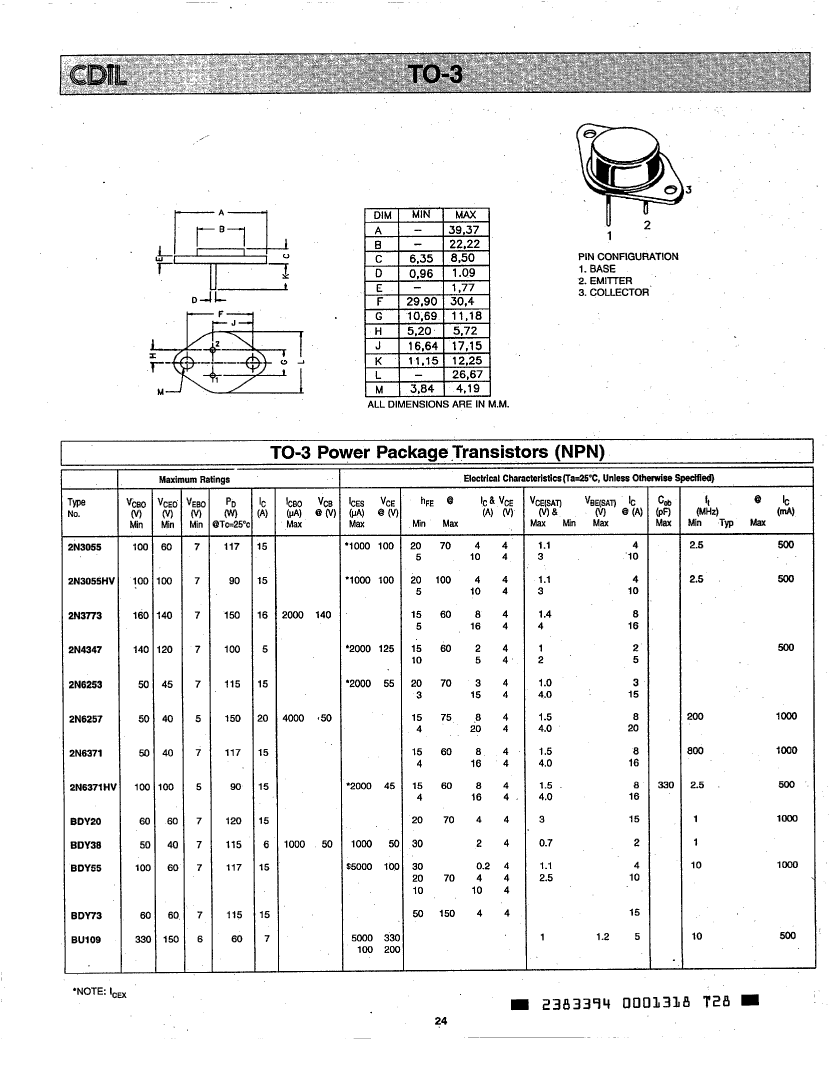

Power Bipolar Transistor, 15A I(C), 60V V(BR)CEO, 1-Element, NPN, Silicon, TO-3, Metal, 2 Pin

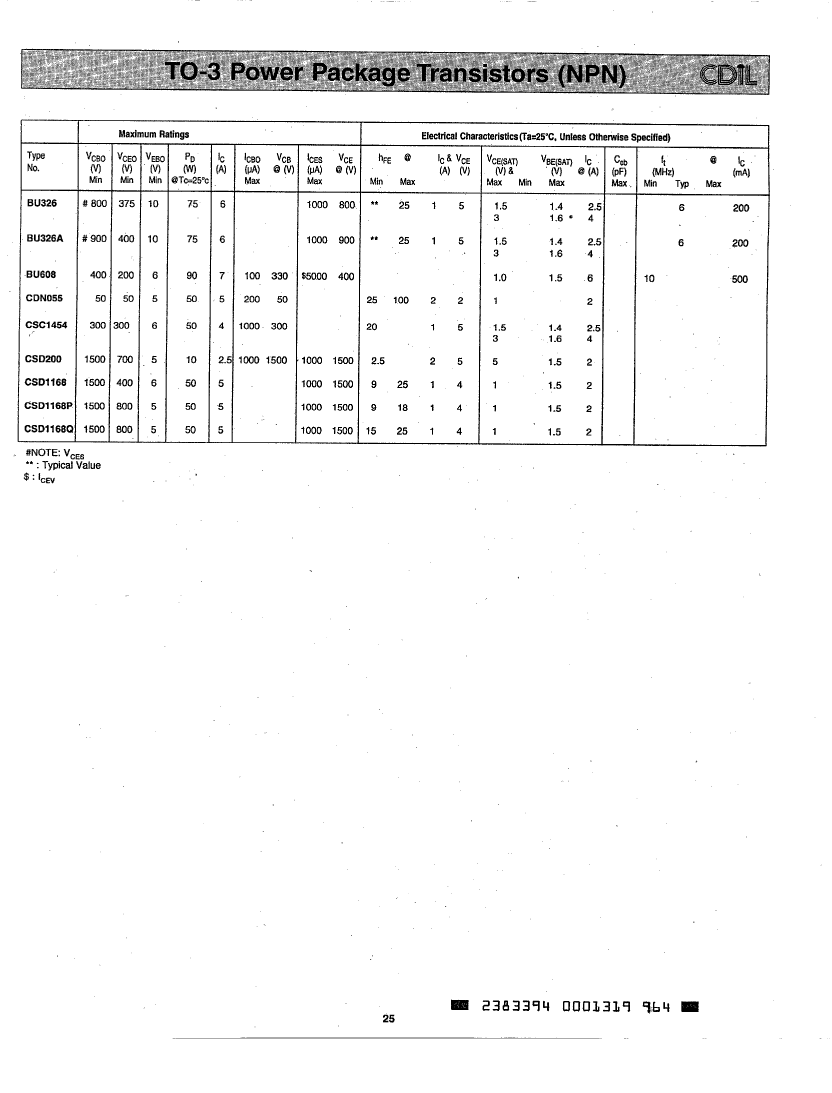

| Parameter Name | Attribute value |
| Is it lead-free? | Contains lead |
| Is it Rohs certified? | conform to |
| Maker | CDIL[Continental Device India Pvt. Ltd.] |
| package instruction | FLANGE MOUNT, O-MBFM-P2 |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Shell connection | COLLECTOR |
| Maximum collector current (IC) | 15 A |
| Collector-emitter maximum voltage | 60 V |
| Configuration | SINGLE |
| Minimum DC current gain (hFE) | 2 |
| JEDEC-95 code | TO-3 |
| JESD-30 code | O-MBFM-P2 |
| Number of components | 1 |
| Number of terminals | 2 |
| Maximum operating temperature | 175 °C |
| Package body material | METAL |
| Package shape | ROUND |
| Package form | FLANGE MOUNT |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| Polarity/channel type | NPN |
| Maximum power consumption environment | 120 W |
| Maximum power dissipation(Abs) | 115 W |
| Certification status | Not Qualified |
| surface mount | NO |
| Terminal form | PIN/PEG |
| Terminal location | BOTTOM |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| Transistor component materials | SILICON |
| Nominal transition frequency (fT) | 10 MHz |
| BDY55 | 2N6371HV | CSC1454 | CSD1168 | CSD1168P | CSD1168Q | CSD200 | |
|---|---|---|---|---|---|---|---|
| Description | Power Bipolar Transistor, 15A I(C), 60V V(BR)CEO, 1-Element, NPN, Silicon, TO-3, Metal, 2 Pin | Power Bipolar Transistor, 15A I(C), 100V V(BR)CEO, 1-Element, NPN, Silicon, TO-3, Metal, 2 Pin | Power Bipolar Transistor, 4A I(C), 1-Element, NPN, Silicon, TO-3, Metal, 2 Pin | Power Bipolar Transistor, 5A I(C), 1-Element, NPN, Silicon, TO-3, Metal, 2 Pin | Power Bipolar Transistor, 5A I(C), 1-Element, NPN, Silicon, TO-3, Metal, 2 Pin | Power Bipolar Transistor, 5A I(C), 1-Element, NPN, Silicon, TO-3, Metal, 2 Pin | Power Bipolar Transistor, 2.5A I(C), 1-Element, NPN, Silicon, TO-3, Metal, 2 Pin |
| Is it lead-free? | Contains lead | Contains lead | Contains lead | Contains lead | Contains lead | Contains lead | Contains lead |
| Is it Rohs certified? | conform to | conform to | incompatible | conform to | conform to | conform to | conform to |
| package instruction | FLANGE MOUNT, O-MBFM-P2 | FLANGE MOUNT, O-MBFM-P2 | FLANGE MOUNT, O-MBFM-P2 | FLANGE MOUNT, O-MBFM-P2 | FLANGE MOUNT, O-MBFM-P2 | FLANGE MOUNT, O-MBFM-P2 | FLANGE MOUNT, O-MBFM-P2 |
| Reach Compliance Code | compliant | compli | compliant | compliant | compliant | compliant | compliant |
| Shell connection | COLLECTOR | COLLECTOR | COLLECTOR | COLLECTOR | COLLECTOR | COLLECTOR | COLLECTOR |
| Maximum collector current (IC) | 15 A | 15 A | 4 A | 5 A | 5 A | 5 A | 2.5 A |
| Configuration | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| Minimum DC current gain (hFE) | 2 | 4 | 20 | 9 | 9 | 15 | 2.5 |
| JEDEC-95 code | TO-3 | TO-3 | TO-3 | TO-3 | TO-3 | TO-3 | TO-3 |
| JESD-30 code | O-MBFM-P2 | O-MBFM-P2 | O-MBFM-P2 | O-MBFM-P2 | O-MBFM-P2 | O-MBFM-P2 | O-MBFM-P2 |
| Number of components | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Package body material | METAL | METAL | METAL | METAL | METAL | METAL | METAL |
| Package shape | ROUND | ROUND | ROUND | ROUND | ROUND | ROUND | ROUND |
| Package form | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Polarity/channel type | NPN | NPN | NPN | NPN | NPN | NPN | NPN |
| Maximum power dissipation(Abs) | 115 W | 90 W | 50 W | 50 W | 50 W | 50 W | 10 W |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| surface mount | NO | NO | NO | NO | NO | NO | NO |
| Terminal form | PIN/PEG | PIN/PEG | PIN/PEG | PIN/PEG | PIN/PEG | PIN/PEG | PIN/PEG |
| Terminal location | BOTTOM | BOTTOM | BOTTOM | BOTTOM | BOTTOM | BOTTOM | BOTTOM |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Transistor component materials | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON |
| Base Number Matches | - | 1 | 1 | 1 | 1 | 1 | - |
| JESD-609 code | - | - | e0 | e0 | e0 | e0 | e0 |
