PC817X8NSZ0FA datasheet, PDF - EEWORLD Datasheet

PC817X8NSZ0FA: DescriptionTransistor Output Optocoupler, 1-Element, 5000V Isolation,; CategoryLED optoelectronic/LED photoelectric; File Size975KB，13 Pages; ManufacturerSHARP; Websitehttp://sharp-world.com/products/device/; Environmental Compliance

Download Datasheet Parametric View All

PC817X8NSZ0FA Overview

Transistor Output Optocoupler, 1-Element, 5000V Isolation,

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	SHARP
Reach Compliance Code	unknown
Maximum forward current	0.05 A
Maximum forward voltage	1.4 V
Maximum insulation voltage	5000 V
Installation features	THROUGH HOLE MOUNT
Number of components	1
Maximum on-state current	0.05 A
Maximum operating temperature	100 °C
Minimum operating temperature	-30 °C
Maximum power dissipation	0.15 W
Maximum response time	0.000018 s
surface mount	NO

Technical Document

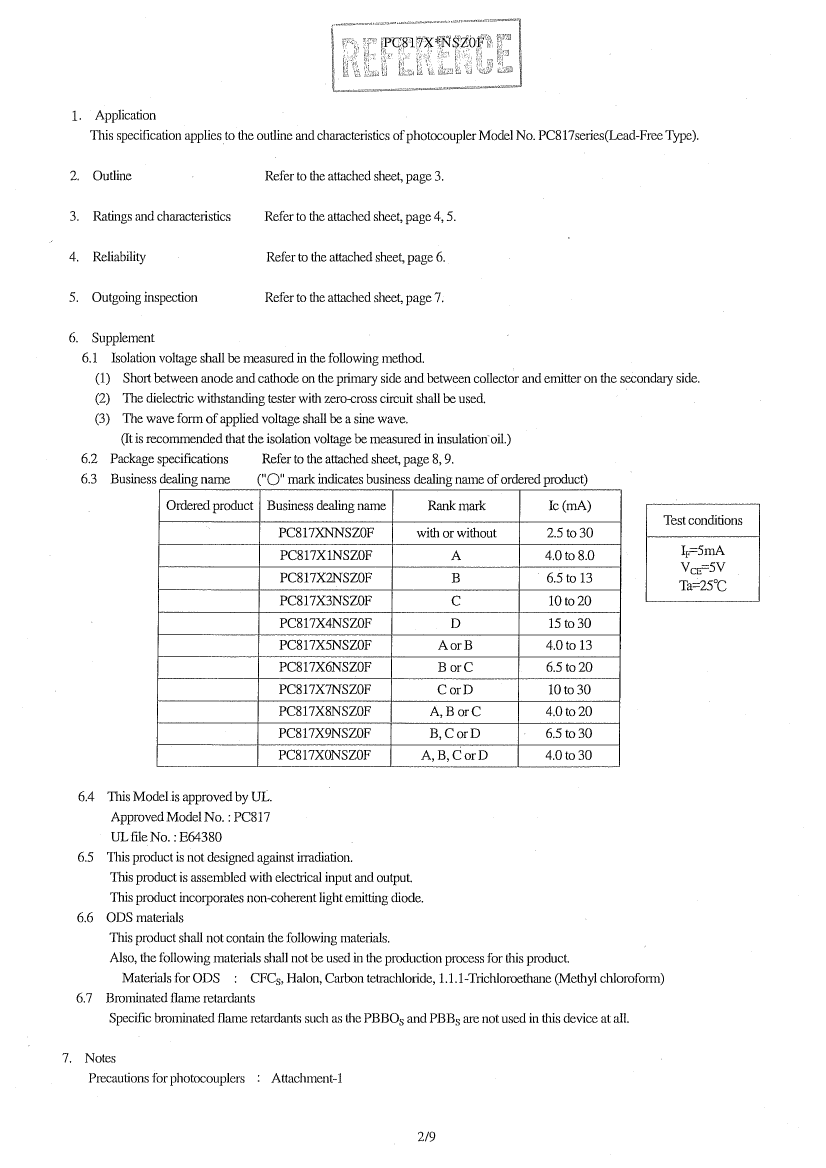

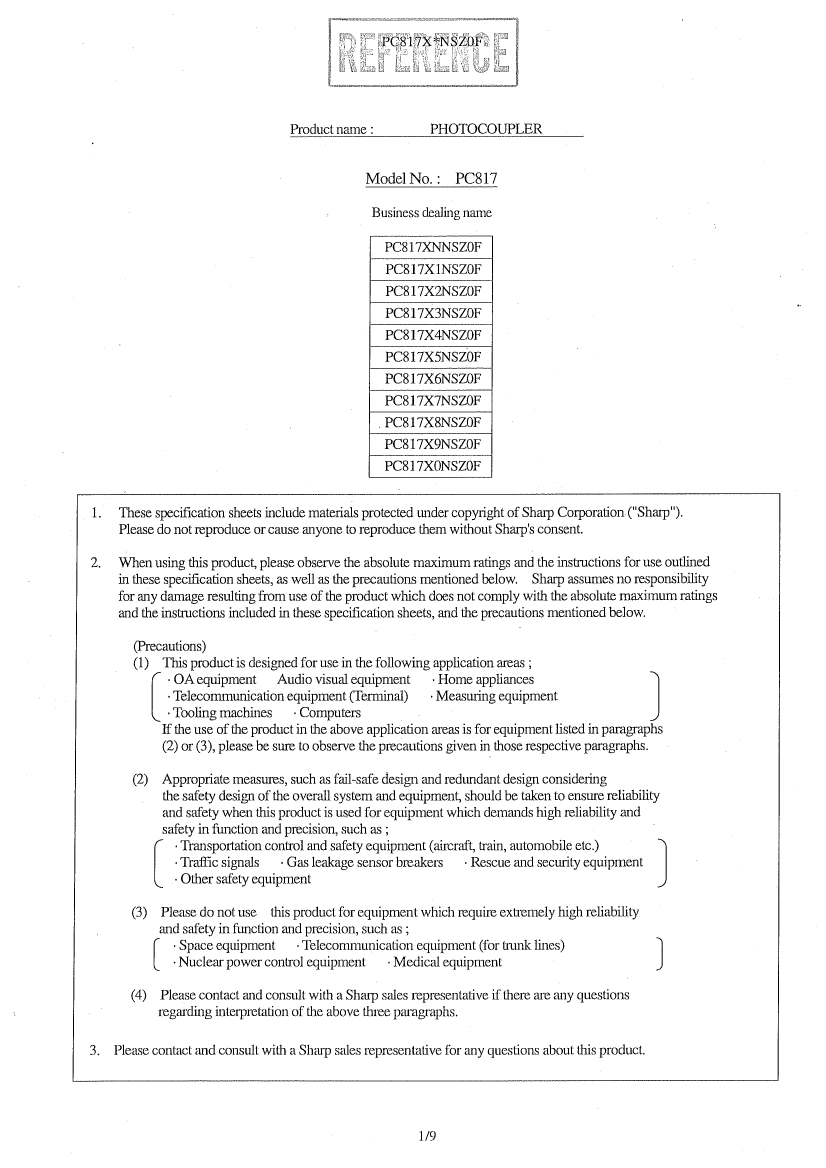

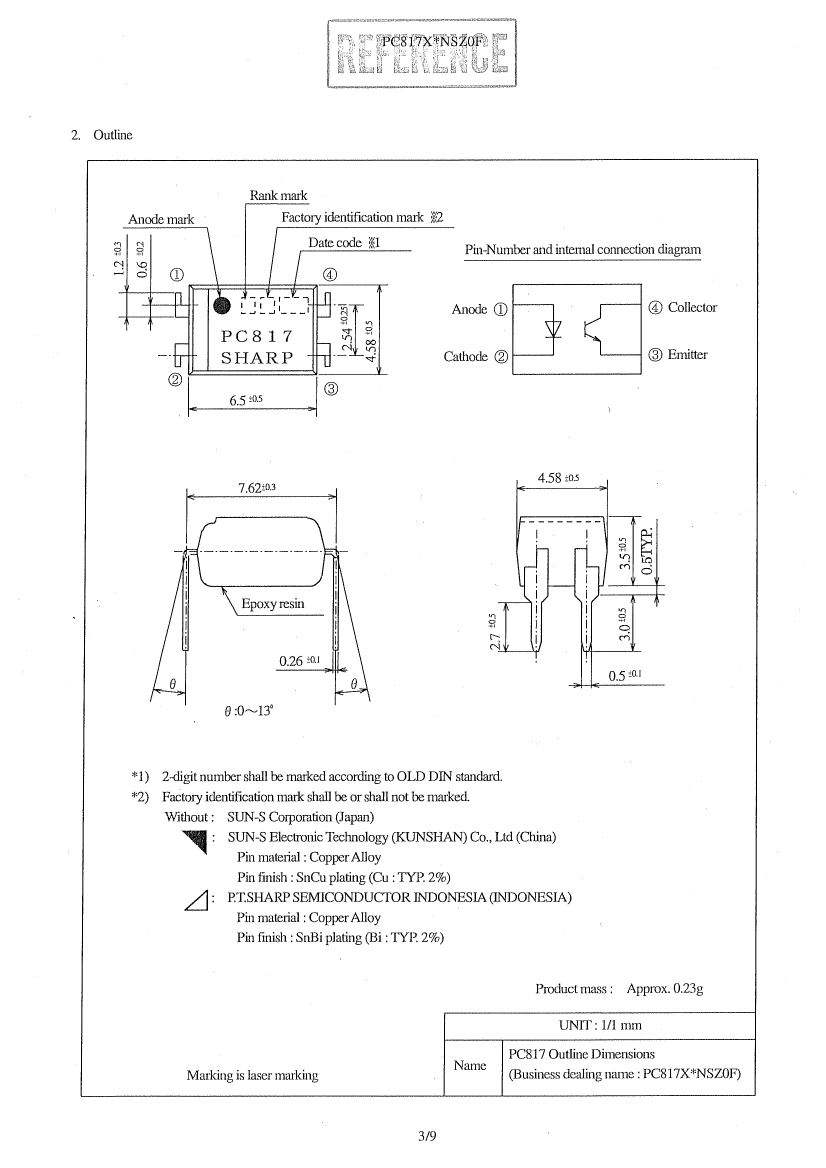

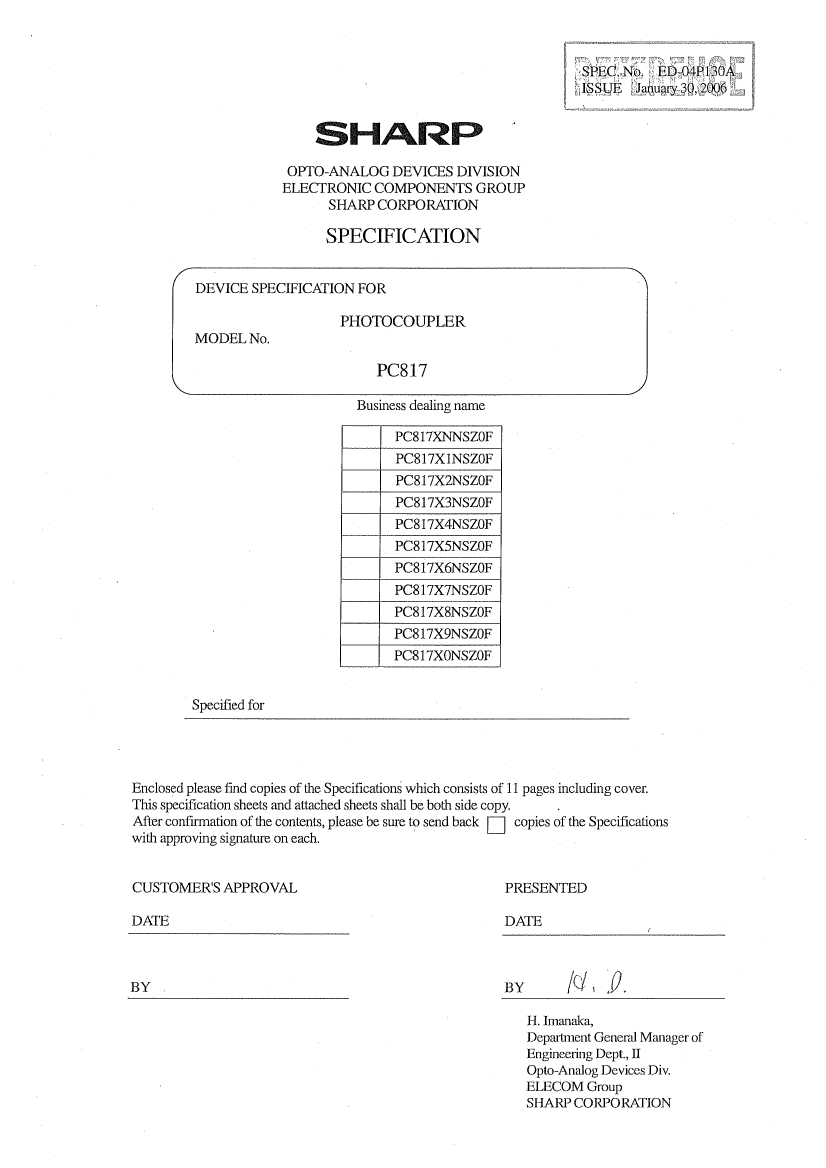

Photocoupler Specification

EC/Opto Group

PC817XxNSZ0F Series DC Photocoupler

Product Specification

January 2006

PC817XxNSZ0F Series Specification for part numbers:

PC817XNNSZ0F

PC817X1NSZ0F

PC817X2NSZ0F

PC817X3NSZ0F

PC817X4NSZ0F

PC817X5NSZ0F

PC817X6NSZ0F

PC817X7NSZ0F

PC817X8NSZ0F

PC817X9NSZ0F

PC817X0NSZ0F
