B40A60D datasheet, PDF - EEWORLD Datasheet

B40A60D: DescriptionSilicon Controlled Rectifier, 40A I(T)RMS, 40000mA I(T), 600V V(DRM), 600V V(RRM), 2 Element; CategoryAnalog mixed-signal IC Trigger device; File Size209KB，6 Pages; ManufacturerInternational Rectifier （ Infineon ）; Websitehttp://www.irf.com/

Download Datasheet Parametric View All

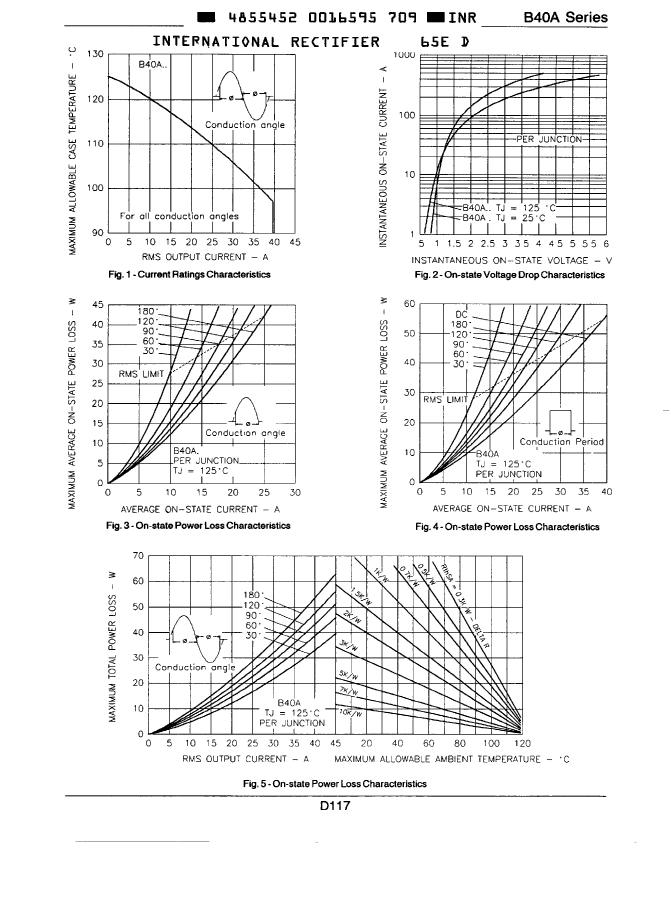

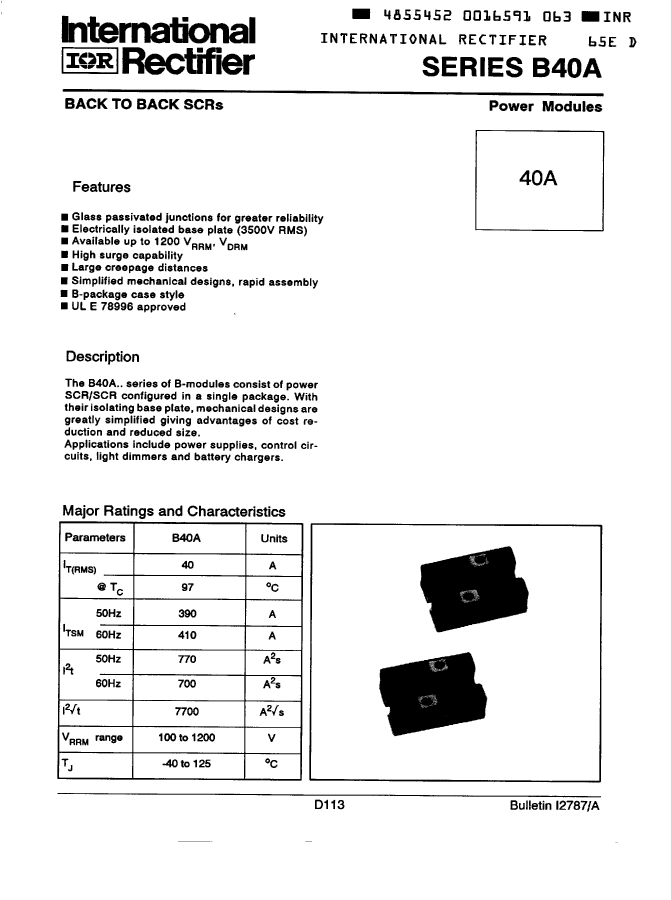

B40A60D Overview

Silicon Controlled Rectifier, 40A I(T)RMS, 40000mA I(T), 600V V(DRM), 600V V(RRM), 2 Element

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	International Rectifier （ Infineon ）

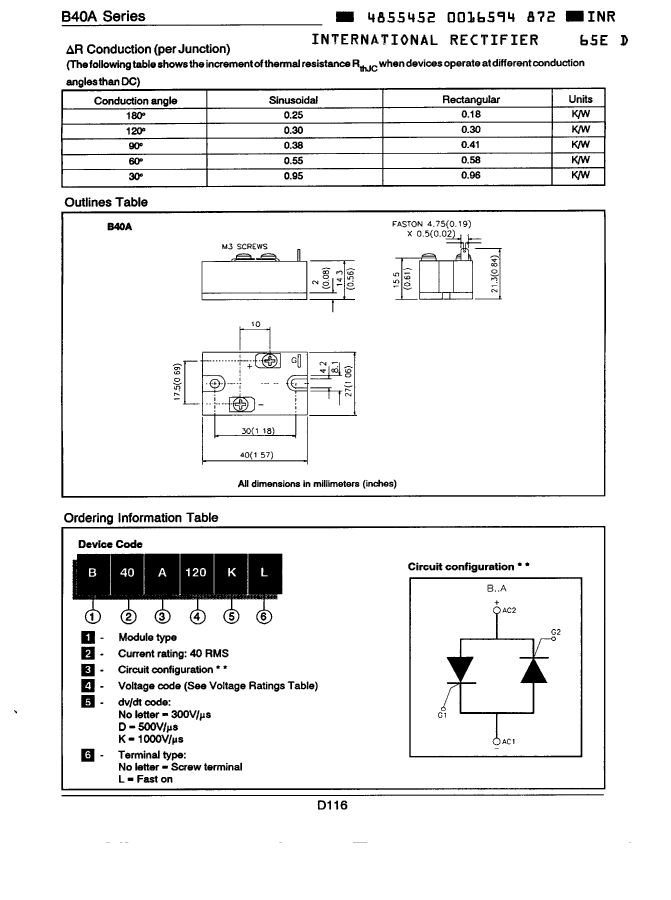

package instruction	FLANGE MOUNT, R-PUFM-X4
Reach Compliance Code	compliant
Shell connection	ISOLATED

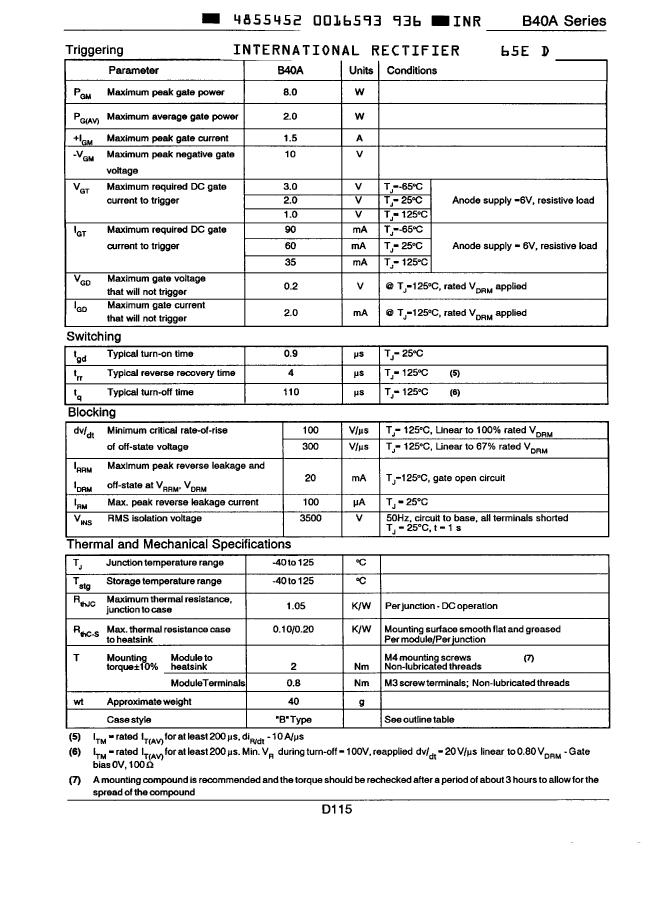

Nominal circuit commutation break time	110 µs
Configuration	ANTI-PARALLEL, 2 ELEMENTS
Critical rise rate of minimum off-state voltage	500 V/us
Maximum DC gate trigger current	60 mA
Maximum DC gate trigger voltage	2 V
Quick connection description	G
Description of screw terminals	2AK
Maximum holding current	100 mA
JESD-30 code	R-PUFM-X4
JESD-609 code	e0
Maximum leakage current	20 mA
On-state non-repetitive peak current	410 A
Number of components	2
Number of terminals	4
Maximum on-state current	40000 A
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified

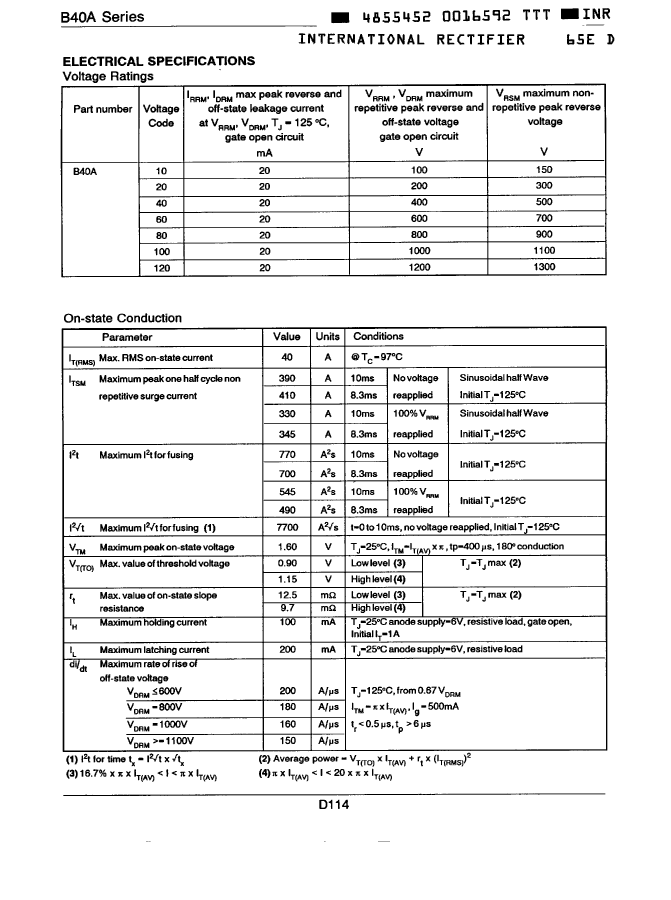

Maximum rms on-state current	40 A
Maximum repetitive peak off-state leakage current	20000 µA
Off-state repetitive peak voltage	600 V
Repeated peak reverse voltage	600 V
surface mount	NO
Terminal surface	TIN LEAD
Terminal form	UNSPECIFIED
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger device type	SCR
