BT169DAMO datasheet, PDF - EEWORLD Datasheet

BT169DAMO: DescriptionSilicon Controlled Rectifier, 500mA I(T), 400V V(DRM),; CategoryAnalog mixed-signal IC Trigger device; File Size158KB，5 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/; Environmental Compliance

Download Datasheet Parametric View All

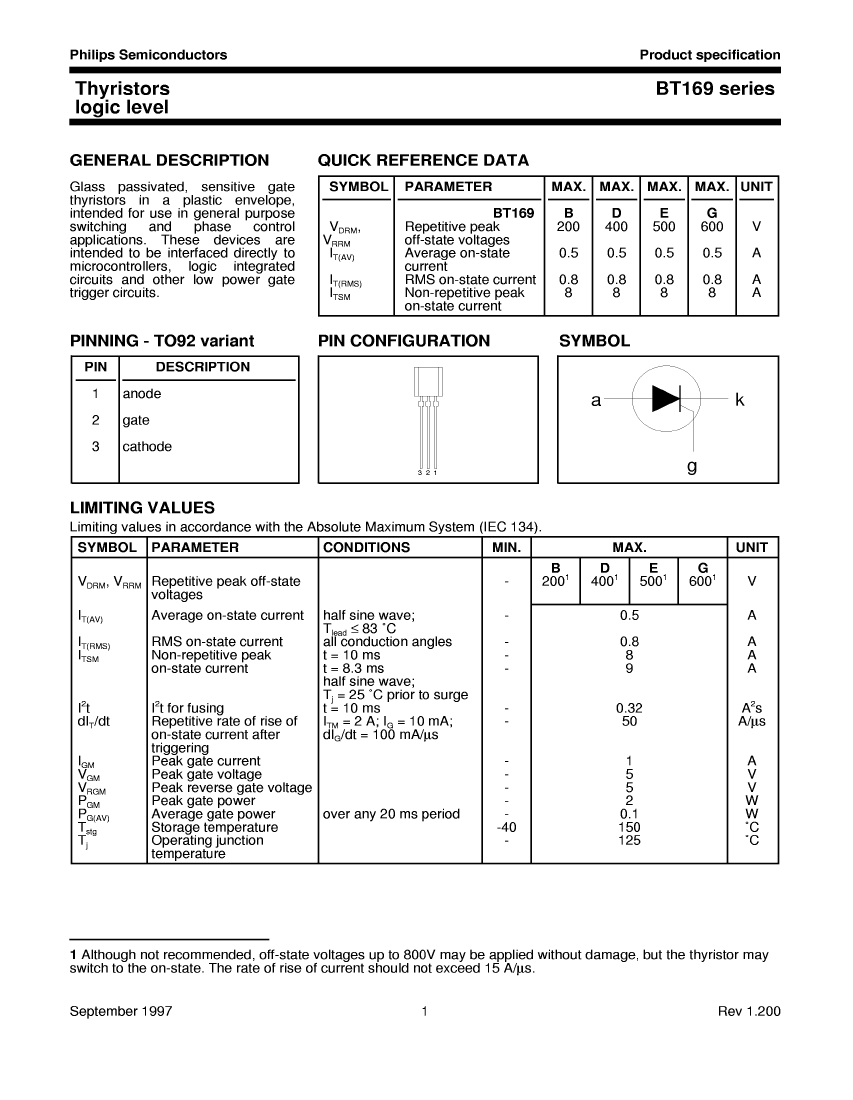

BT169DAMO Overview

Silicon Controlled Rectifier, 500mA I(T), 400V V(DRM),

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	,
Reach Compliance Code	unknown

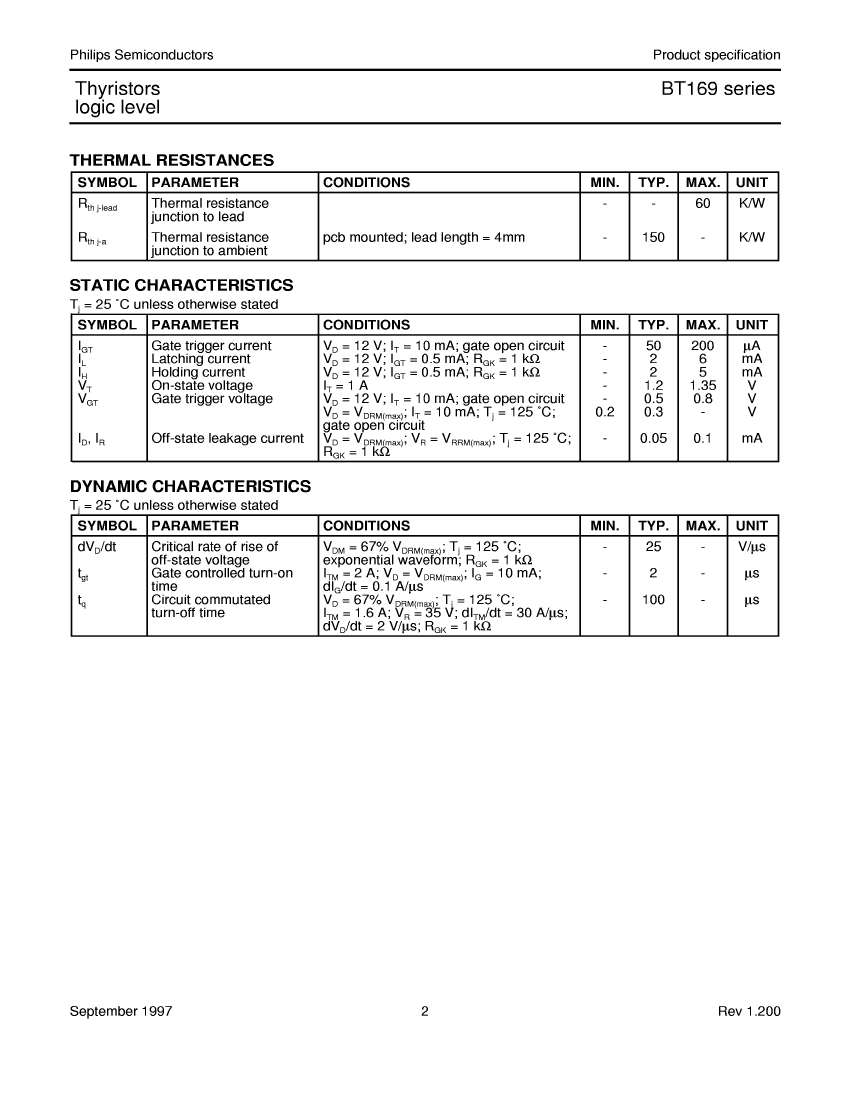

Nominal circuit commutation break time	100 µs
Critical rise rate of minimum off-state voltage	25 V/us

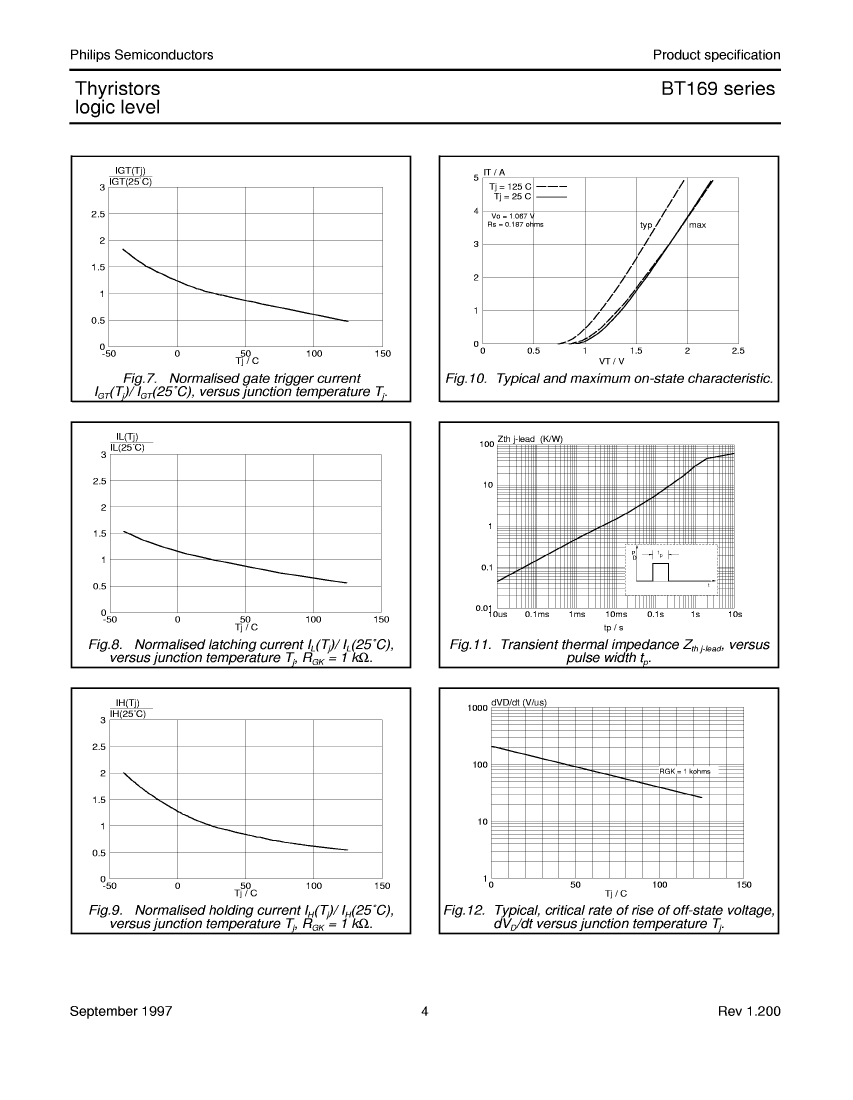

Maximum DC gate trigger current	0.2 mA
Maximum DC gate trigger voltage	0.8 V
Maximum holding current	5 mA
JESD-609 code	e3
Maximum leakage current	0.1 mA

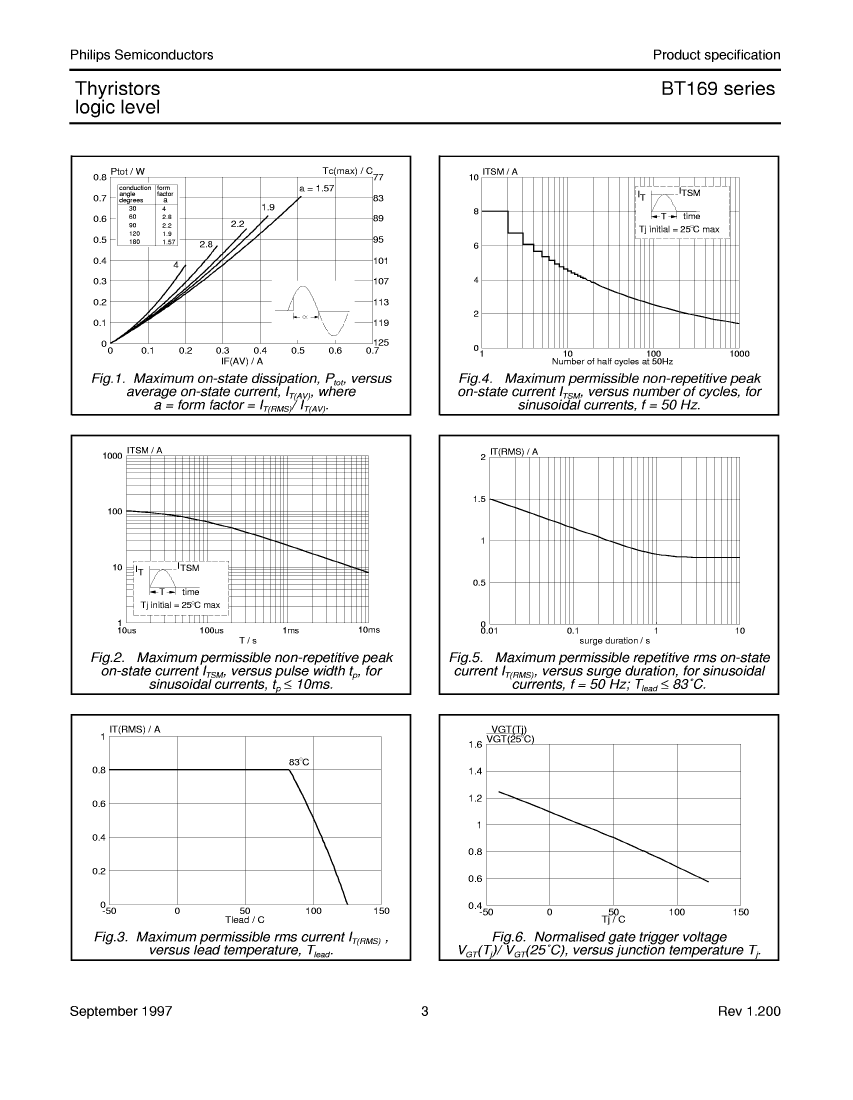

On-state non-repetitive peak current	8 A
Maximum on-state voltage	1.3 V
Maximum on-state current	500 A
Maximum operating temperature	125 °C
Off-state repetitive peak voltage	400 V

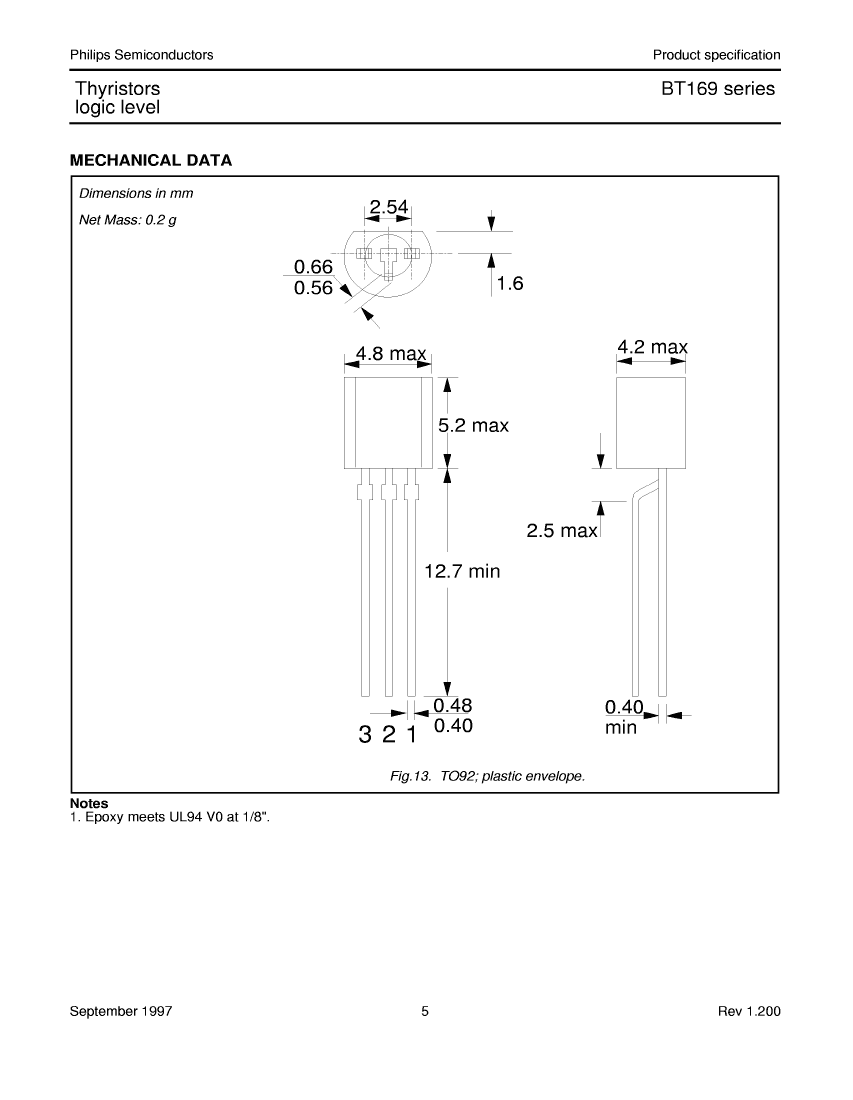

surface mount	NO
Terminal surface	Matte Tin (Sn)
Trigger device type	SCR
