BTB06-400TW datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Trigger device> BTB06-400TW

BTB06-400TW: Description400V, 6A, 4 QUADRANT LOGIC LEVEL TRIAC, TO-220AB, PLASTIC, TO-220AB, 3 PIN; CategoryAnalog mixed-signal IC Trigger device; File Size181KB，5 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

BTB06-400TW Overview

400V, 6A, 4 QUADRANT LOGIC LEVEL TRIAC, TO-220AB, PLASTIC, TO-220AB, 3 PIN

BTB06-400TW Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	STMicroelectronics
Parts packaging code	TO-220AB
package instruction	PLASTIC, TO-220AB, 3 PIN
Contacts	3
Reach Compliance Code	not_compliant
Configuration	SINGLE
Critical rise rate of commutation voltage - minimum value	1.3 V/us
Critical rise rate of minimum off-state voltage	20 V/us
Maximum DC gate trigger current	5 mA
Maximum DC gate trigger voltage	1.5 V
Maximum holding current	15 mA
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
JESD-609 code	e3
Number of components	1
Number of terminals	3
Maximum operating temperature	110 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum rms on-state current	6 A
Maximum repetitive peak off-state leakage current	10 µA
Off-state repetitive peak voltage	400 V
surface mount	NO
Terminal surface	Matte Tin (Sn)
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Trigger device type	4 QUADRANT LOGIC LEVEL TRIAC

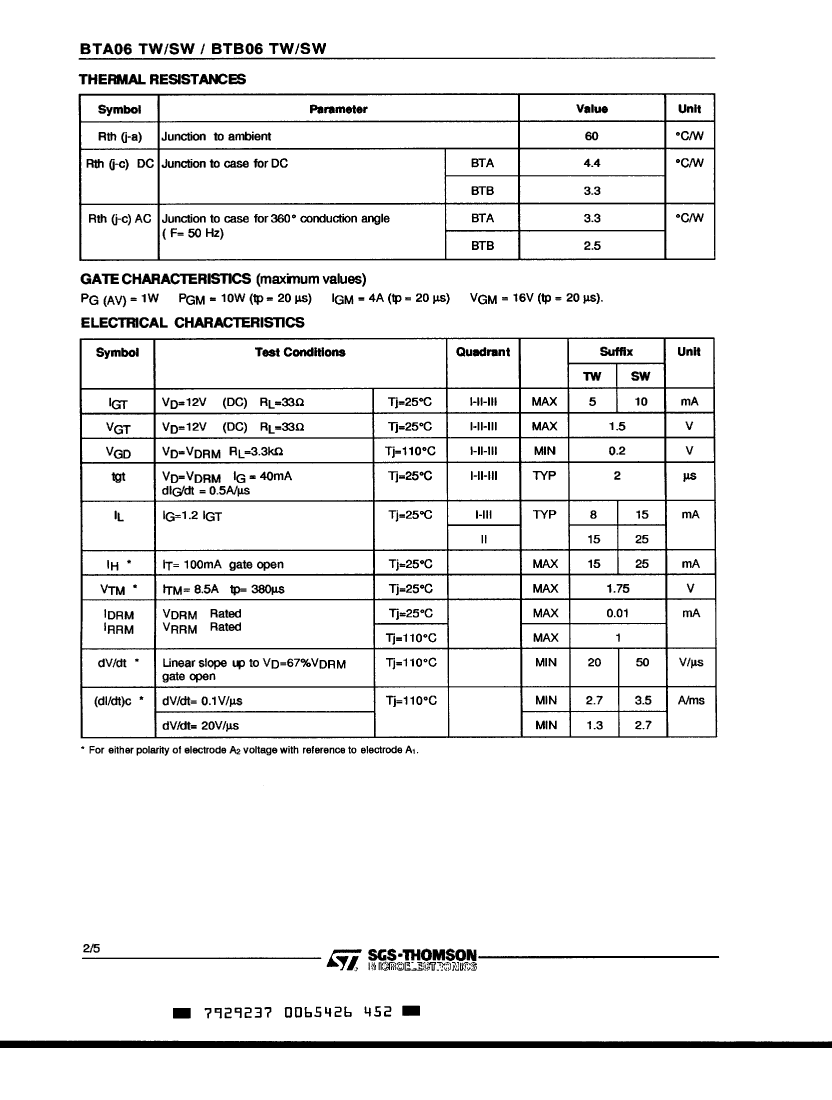

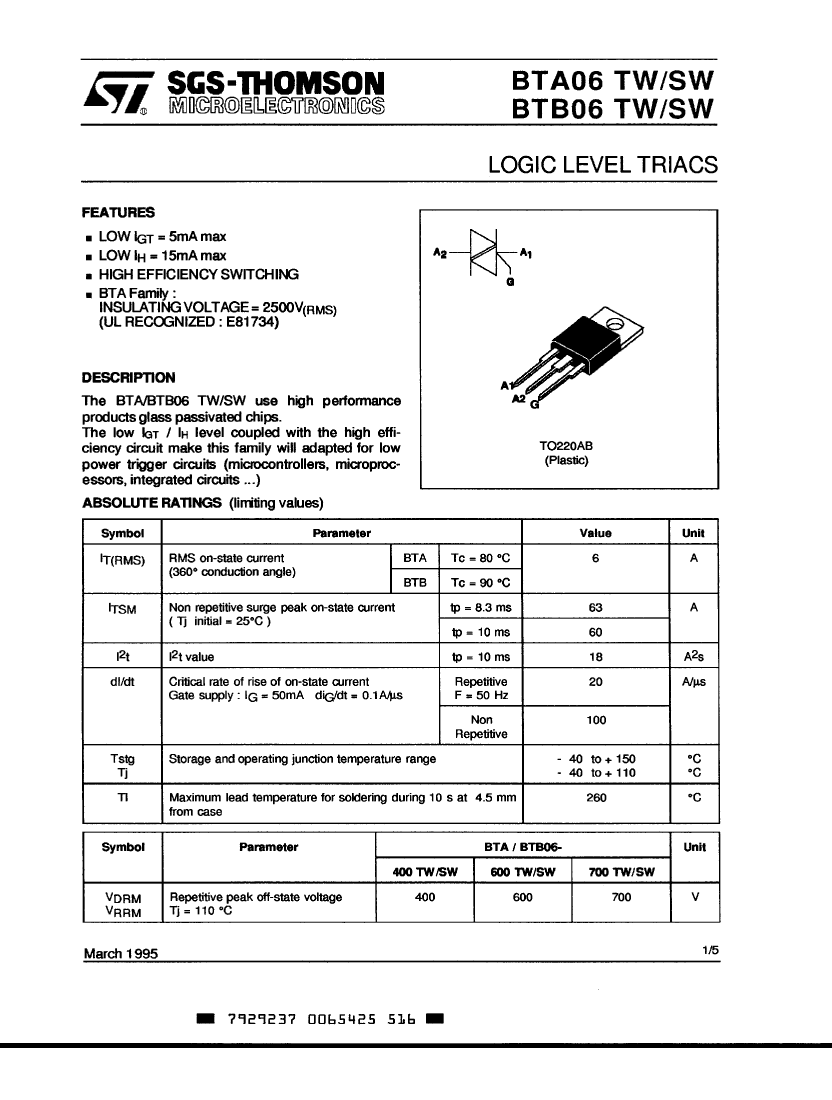

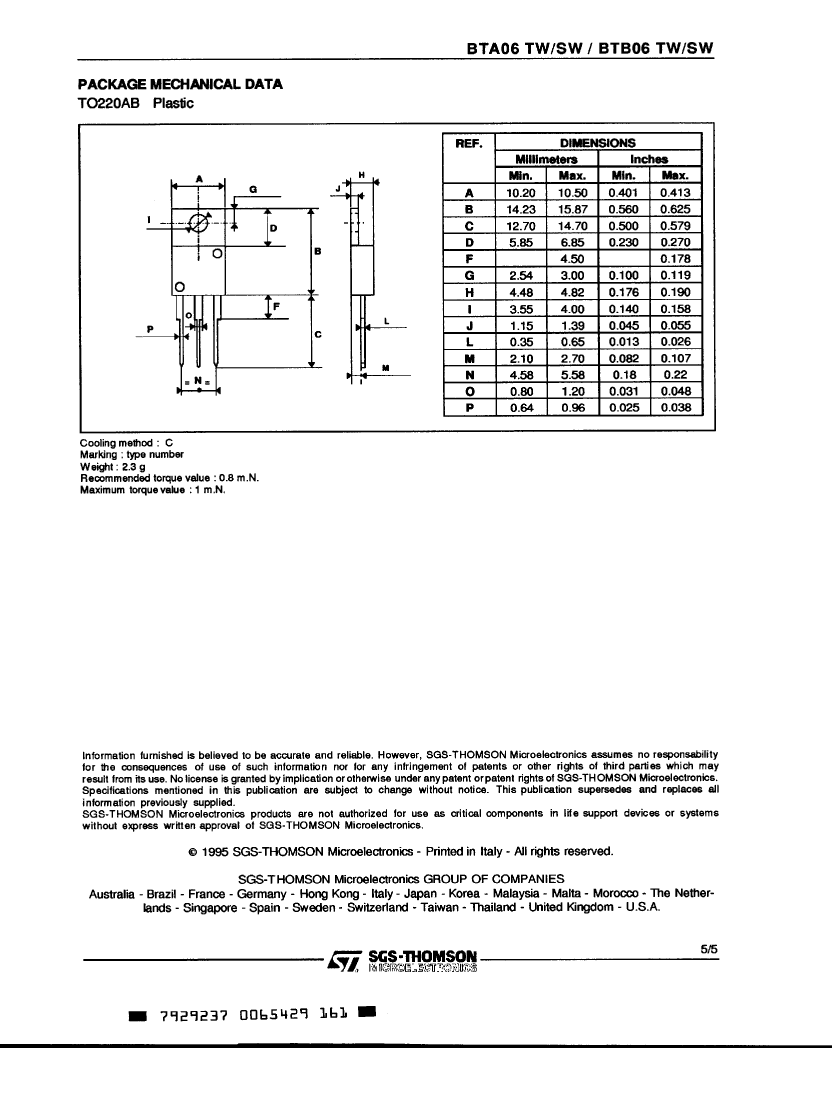

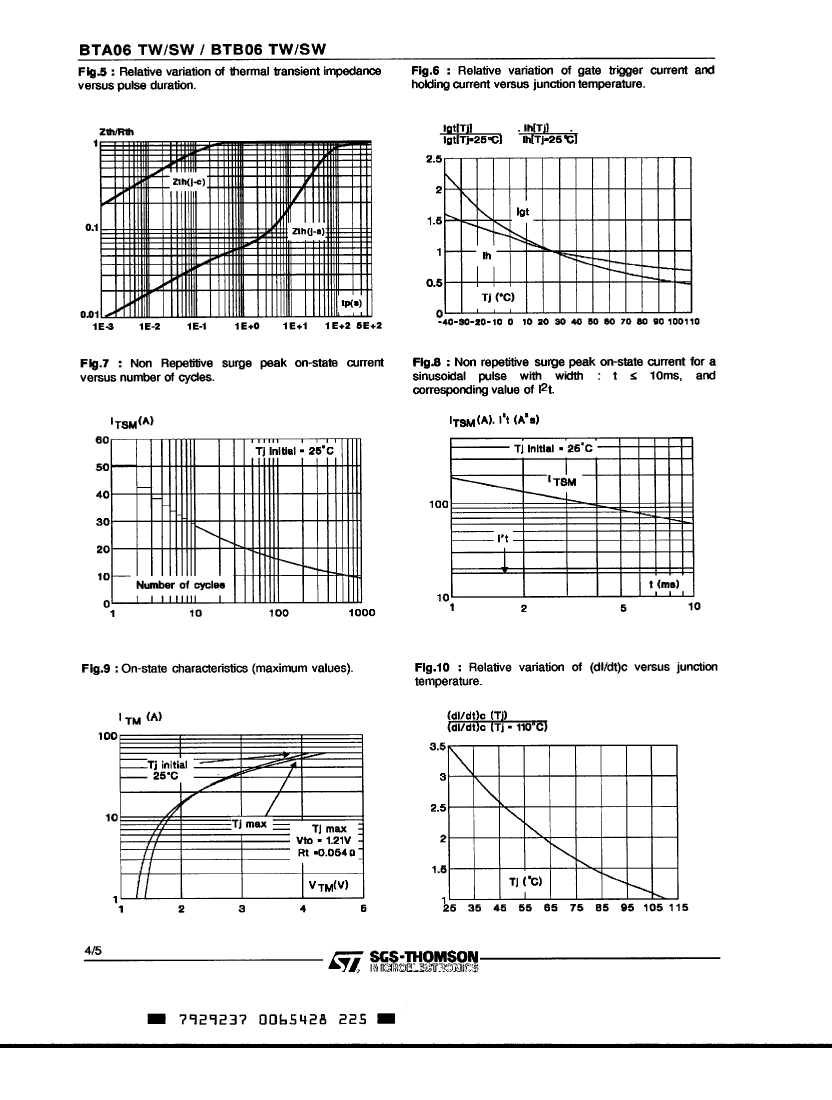

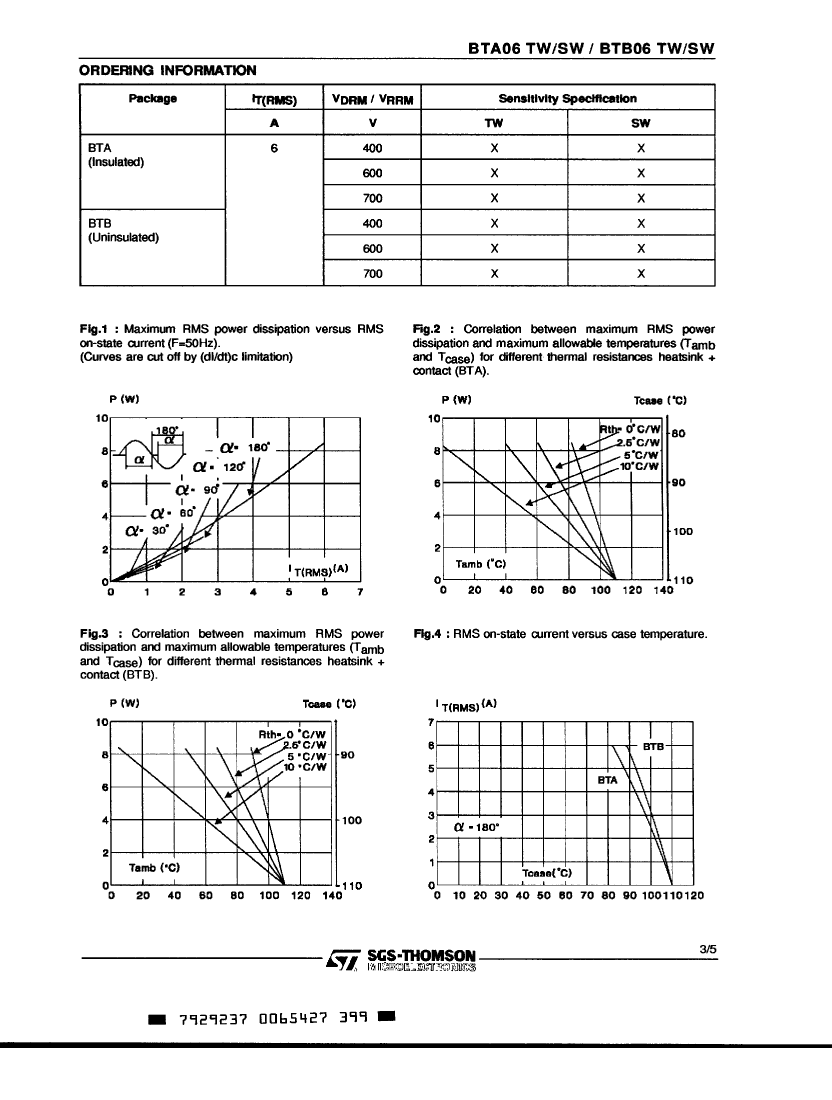

Preview

Download Datasheet

View All

BTB06-400TW Related Products

	BTB06-400TW	BTA06-700SW	BTA06-700TW	BTA06-400TW	BTB06-400SW	BTB06-700TW	BTA06-400SW
Description	400V, 6A, 4 QUADRANT LOGIC LEVEL TRIAC, TO-220AB, PLASTIC, TO-220AB, 3 PIN	700V, 6A, 4 QUADRANT LOGIC LEVEL TRIAC, TO-220AB, PLASTIC, TO-220AB, 3 PIN	700V, 6A, 4 QUADRANT LOGIC LEVEL TRIAC, TO-220AB, PLASTIC, TO-220AB, 3 PIN	400V, 6A, 4 QUADRANT LOGIC LEVEL TRIAC, TO-220AB, PLASTIC, TO-220AB, 3 PIN	400V, 6A, 4 QUADRANT LOGIC LEVEL TRIAC, TO-220AB, PLASTIC, TO-220AB, 3 PIN	700V, 6A, 4 QUADRANT LOGIC LEVEL TRIAC, TO-220AB, PLASTIC, TO-220AB, 3 PIN	400V, 6A, 4 QUADRANT LOGIC LEVEL TRIAC, TO-220AB, PLASTIC, TO-220AB, 3 PIN
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics
Parts packaging code	TO-220AB	TO-220AB	TO-220AB	TO-220AB	TO-220AB	TO-220AB	TO-220AB
package instruction	PLASTIC, TO-220AB, 3 PIN	PLASTIC, TO-220AB, 3 PIN	PLASTIC, TO-220AB, 3 PIN	PLASTIC, TO-220AB, 3 PIN	PLASTIC, TO-220AB, 3 PIN	PLASTIC, TO-220AB, 3 PIN	PLASTIC, TO-220AB, 3 PIN
Contacts	3	3	3	3	3	3	3
Reach Compliance Code	not_compliant	not_compliant	compliant	not_compliant	not_compliant	not_compliant	not_compliant
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Critical rise rate of commutation voltage - minimum value	1.3 V/us	2.7 V/us	1.3 V/us	1.3 V/us	2.7 V/us	1.3 V/us	2.7 V/us
Critical rise rate of minimum off-state voltage	20 V/us	50 V/us	20 V/us	20 V/us	50 V/us	20 V/us	50 V/us
Maximum DC gate trigger current	5 mA	10 mA	5 mA	5 mA	10 mA	5 mA	10 mA
Maximum DC gate trigger voltage	1.5 V	1.5 V	1.5 V	1.5 V	1.5 V	1.5 V	1.5 V
Maximum holding current	15 mA	25 mA	15 mA	15 mA	25 mA	15 mA	25 mA
JEDEC-95 code	TO-220AB	TO-220AB	TO-220AB	TO-220AB	TO-220AB	TO-220AB	TO-220AB
JESD-30 code	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3
JESD-609 code	e3	e3	e3	e3	e3	e3	e3
Number of components	1	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3	3
Maximum operating temperature	110 °C	110 °C	110 °C	110 °C	110 °C	110 °C	110 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum rms on-state current	6 A	6 A	6 A	6 A	6 A	6 A	6 A
Maximum repetitive peak off-state leakage current	10 µA	10 µA	10 µA	10 µA	10 µA	10 µA	10 µA
Off-state repetitive peak voltage	400 V	700 V	700 V	400 V	400 V	700 V	400 V
surface mount	NO	NO	NO	NO	NO	NO	NO
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Trigger device type	4 QUADRANT LOGIC LEVEL TRIAC	4 QUADRANT LOGIC LEVEL TRIAC	4 QUADRANT LOGIC LEVEL TRIAC	4 QUADRANT LOGIC LEVEL TRIAC	4 QUADRANT LOGIC LEVEL TRIAC	4 QUADRANT LOGIC LEVEL TRIAC	4 QUADRANT LOGIC LEVEL TRIAC
Shell connection	-	ISOLATED	ISOLATED	ISOLATED	-	-	ISOLATED
