BTB06-700A: Description700V, 6A, 4 QUADRANT LOGIC LEVEL TRIAC, TO-220AB, PLASTIC, TO-220AB, 3 PIN; CategoryAnalog mixed-signal IC Trigger device; File Size64KB，5 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

BTB06-700A Overview

700V, 6A, 4 QUADRANT LOGIC LEVEL TRIAC, TO-220AB, PLASTIC, TO-220AB, 3 PIN

BTB06-700A Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	STMicroelectronics
Parts packaging code	TO-220AB
package instruction	PLASTIC, TO-220AB, 3 PIN
Contacts	3
Reach Compliance Code	not_compliant
Other features	SENSITIVE GATE
Configuration	SINGLE
Critical rise rate of minimum off-state voltage	0.00001 V/us
Maximum DC gate trigger current	10 mA
Maximum DC gate trigger voltage	2.5 V
Maximum holding current	25 mA
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
JESD-609 code	e3
Maximum leakage current	0.75 mA
Number of components	1
Number of terminals	3
Maximum operating temperature	110 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum rms on-state current	6 A
Off-state repetitive peak voltage	700 V
surface mount	NO
Terminal surface	Matte Tin (Sn)
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger device type	4 QUADRANT LOGIC LEVEL TRIAC

Preview

Download Datasheet

View All

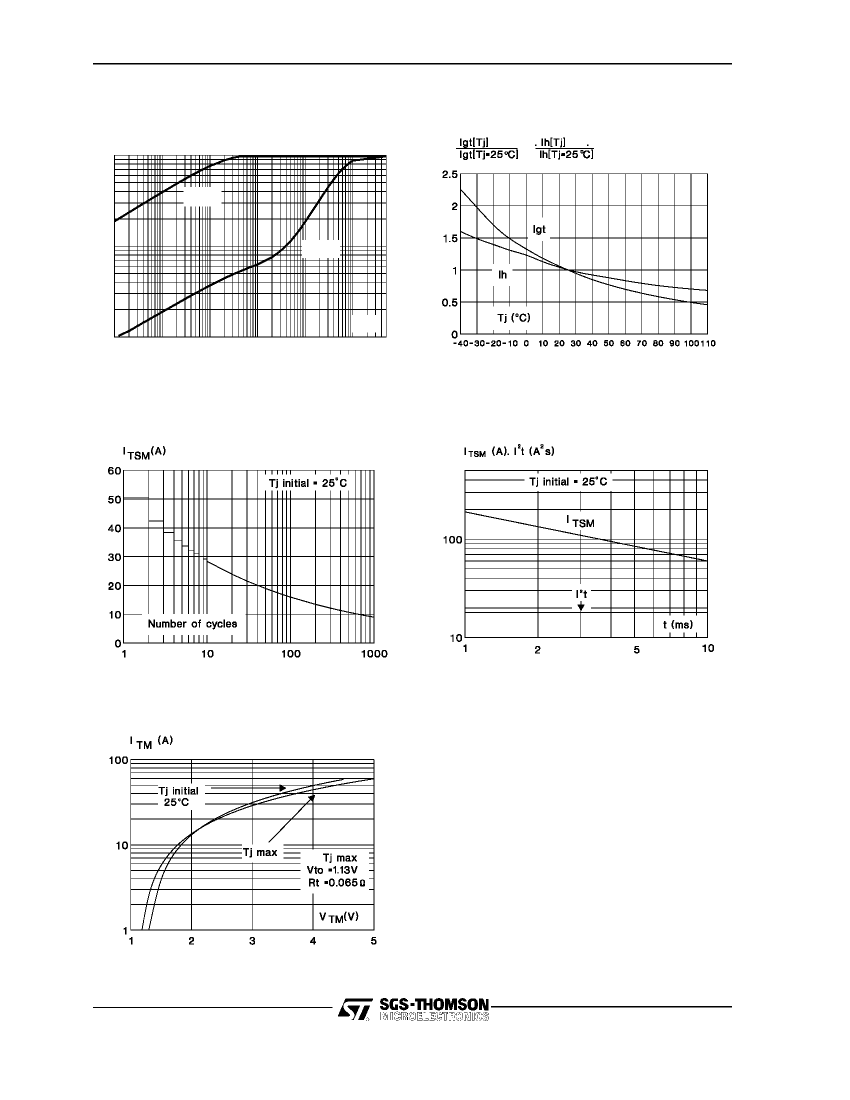

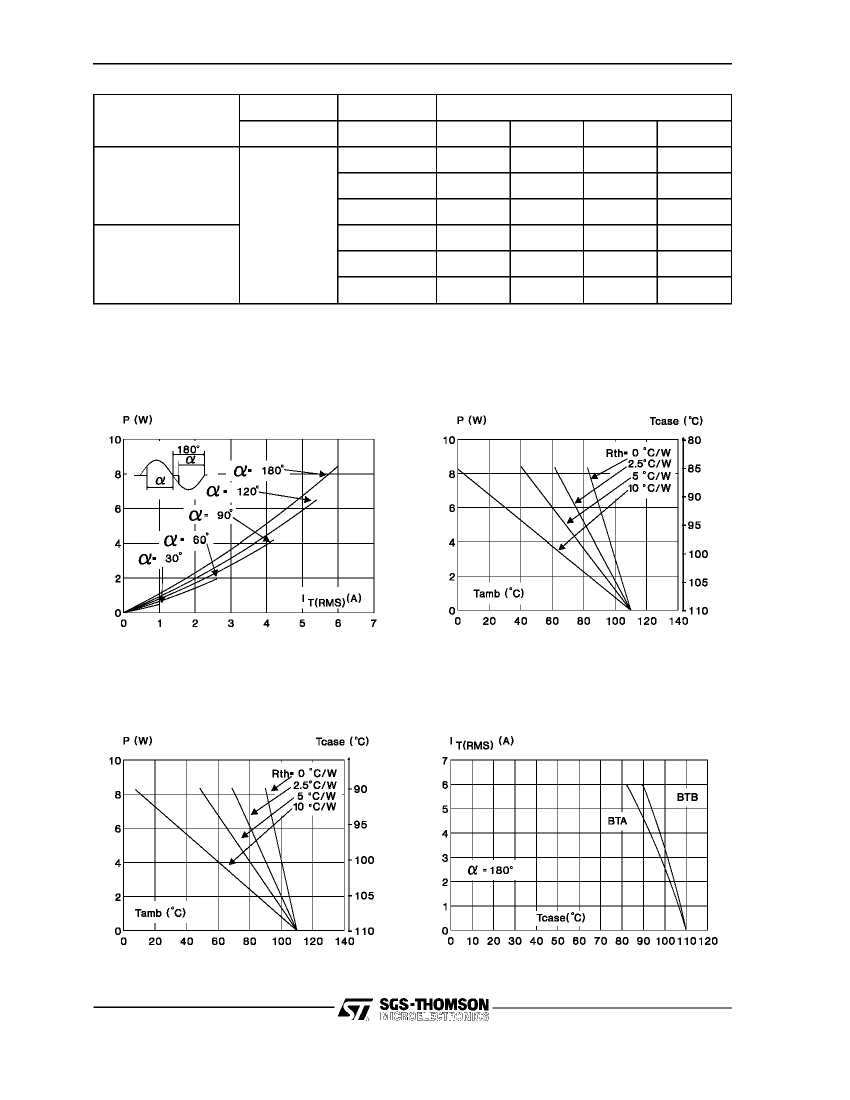

BTA06 T/D/S/A

BTB06 T/D/S/A

SENSITIVE GATE TRIACS

FEATURES

VERY LOW I

= 10mA max

LOW I

= 15mA max

BTA Family :

INSULATING VOLTAGE = 2500V

(RMS)

(UL RECOGNIZED : E81734)

DESCRIPTION

The BTA/BTB06 T/D/S/A triac family are high per-

formance glass passivated PNPN devices.

These parts are suitables for general purpose ap-

plications where gate high sensitivity is required.

Application on 4Q such as phase control and static

switching.

ABSOLUTE RATINGS

(limiting values)

Symbol

IT(RMS)

RMS on-state current

(360° conduction angle)

Non repetitive surge peak on-state current

( Tj initial = 25°C )

I2 t value

Critical rate of rise of on-state current

Gate supply : IG = 50mA diG/dt = 0.1A/µs

Parameter

BTA

BTB

ITSM

TO220AB

(Plastic)

Value

Tc = 85°C

Tc = 90°C

tp = 8.3 ms

tp = 10 ms

- 40 to + 150

- 40 to + 110

260

Unit

I2 t

dI/dt

tp = 10 ms

Repetitive

F = 50 Hz

Non

Repetitive

A2s

A/µs

Tstg

Storage and operating junction temperature range

Maximum lead temperature for soldering during 10 s at 4.5 mm

from case

Parameter

400 T/D/S/A

°C

Symbol

BTA / BTB06-

600 T/D/S/A

600

700 T/D/S/A

700

Unit

VDRM

VRRM

Repetitive peak off-state voltage

Tj = 110°C

400

March 1995

1/5
