BTB06-700AW datasheet, PDF - EEWORLD Datasheet

BTB06-700AW: DescriptionTRIAC,700V V(DRM),6A I(T)RMS,TO-220; CategoryAnalog mixed-signal IC Trigger device; File Size106KB，4 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric Compare View All

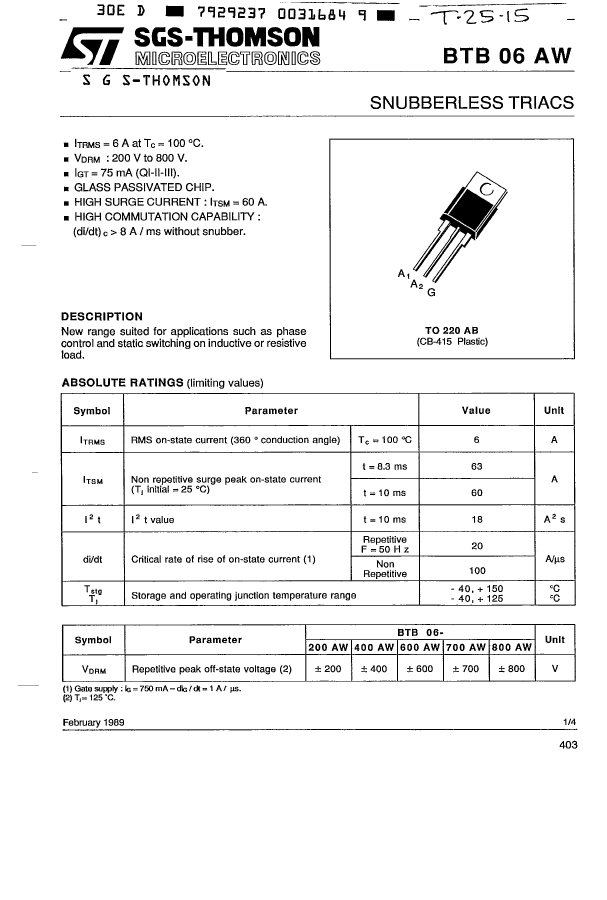

BTB06-700AW Overview

TRIAC,700V V(DRM),6A I(T)RMS,TO-220

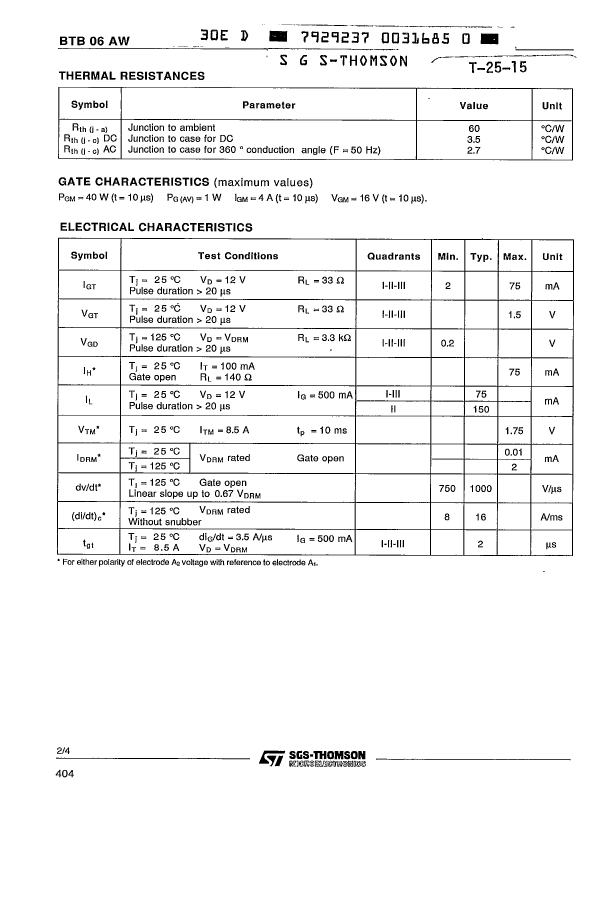

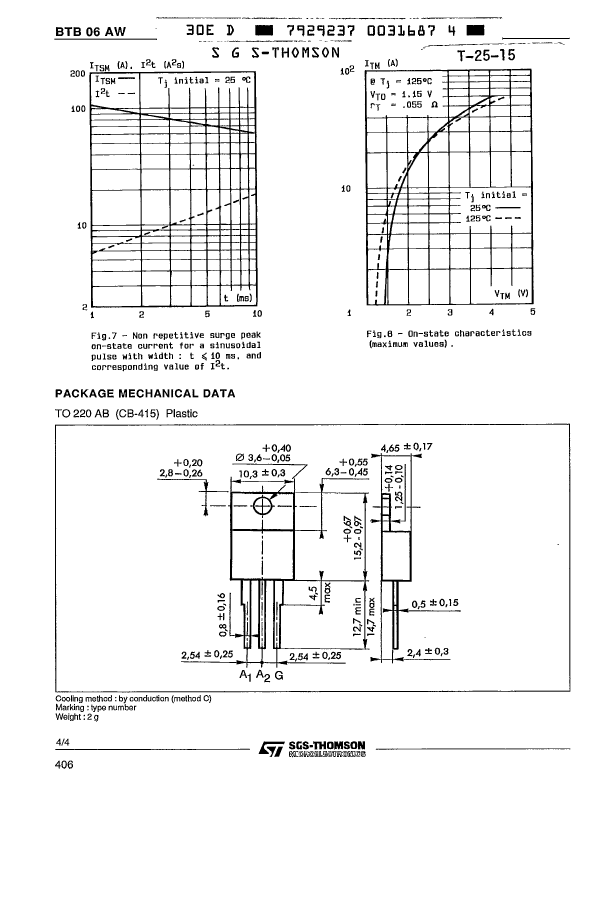

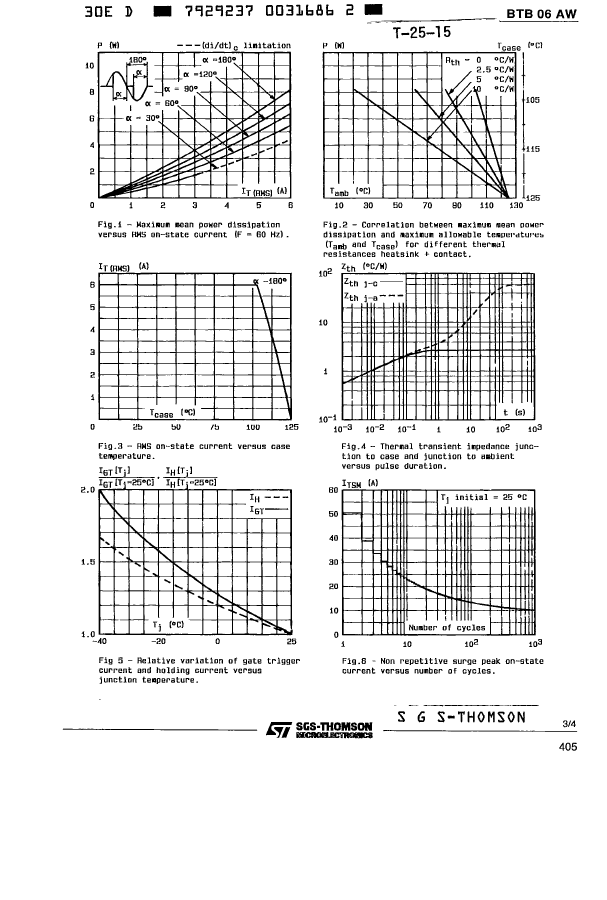

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	STMicroelectronics
package instruction	,
Reach Compliance Code	not_compliant
Critical rise rate of commutation voltage - minimum value	8 V/us
Critical rise rate of minimum off-state voltage	750 V/us
Maximum DC gate trigger current	75 mA
Maximum DC gate trigger voltage	1.5 V
Maximum holding current	75 mA
JESD-609 code	e0
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Maximum rms on-state current	6 A
Off-state repetitive peak voltage	700 V
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Trigger device type	TRIAC

	BTB06-700AW	BTB06-200AW	BTB06-600AW	BTB06-800AW	BTB06-400AW
Description	TRIAC,700V V(DRM),6A I(T)RMS,TO-220	TRIAC,200V V(DRM),6A I(T)RMS,TO-220	TRIAC,600V V(DRM),6A I(T)RMS,TO-220	TRIAC,800V V(DRM),6A I(T)RMS,TO-220	TRIAC,400V V(DRM),6A I(T)RMS,TO-220
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant
Critical rise rate of commutation voltage - minimum value	8 V/us	8 V/us	8 V/us	8 V/us	8 V/us
Critical rise rate of minimum off-state voltage	750 V/us	750 V/us	750 V/us	750 V/us	750 V/us
Maximum DC gate trigger current	75 mA	75 mA	75 mA	75 mA	75 mA
Maximum DC gate trigger voltage	1.5 V	1.5 V	1.5 V	1.5 V	1.5 V
Maximum holding current	75 mA	75 mA	75 mA	75 mA	75 mA
JESD-609 code	e0	e0	e0	e0	e0
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Maximum rms on-state current	6 A	6 A	6 A	6 A	6 A
Off-state repetitive peak voltage	700 V	200 V	600 V	800 V	400 V
surface mount	NO	NO	NO	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Trigger device type	TRIAC	TRIAC	TRIAC	TRIAC	TRIAC
Maker	STMicroelectronics	-	STMicroelectronics	STMicroelectronics	STMicroelectronics
