HD74LS13FP-EL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> HD74LS13FP-EL

HD74LS13FP-EL: DescriptionNAND Gate, LS Series, 2-Func, 4-Input, TTL, PDSO14, FP-14DA; Categorylogic logic; File Size46KB，5 Pages; ManufacturerHitachi （Renesas ）; Websitehttp://www.renesas.com/eng/

Download Datasheet Parametric Compare View All

HD74LS13FP-EL Overview

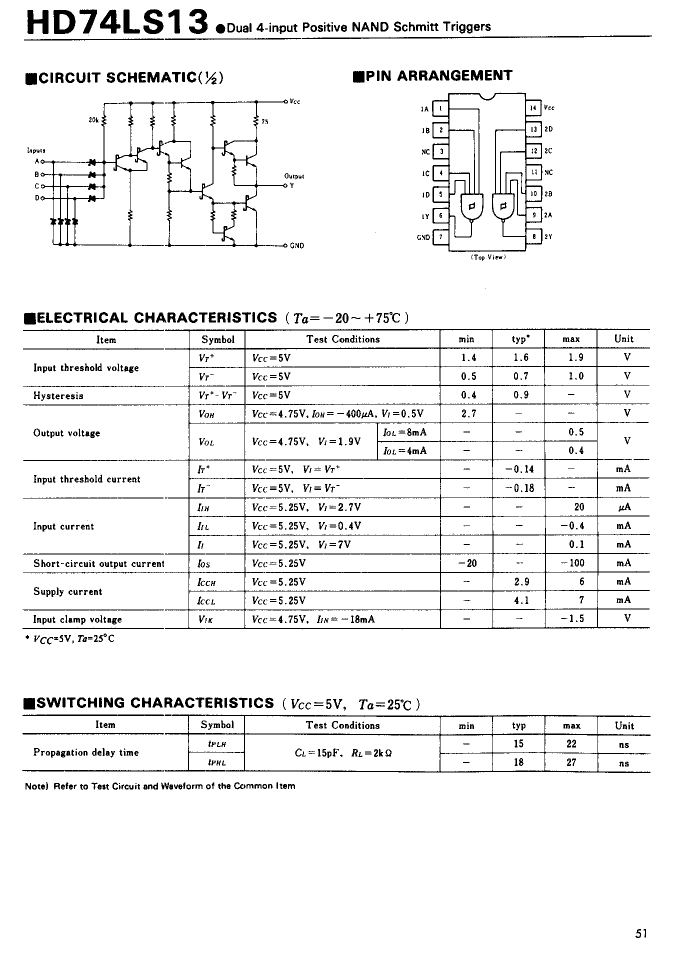

NAND Gate, LS Series, 2-Func, 4-Input, TTL, PDSO14, FP-14DA

HD74LS13FP-EL Parametric

Parameter Name	Attribute value
Maker	Hitachi （Renesas ）
Parts packaging code	SOIC
package instruction	SOP,
Contacts	14
Reach Compliance Code	unknown
series	LS
JESD-30 code	R-PDSO-G14
length	10.06 mm
Logic integrated circuit type	NAND GATE
Number of functions	2
Number of entries	4
Number of terminals	14
Maximum operating temperature	75 °C
Minimum operating temperature	-20 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
propagation delay (tpd)	27 ns
Certification status	Not Qualified
Maximum seat height	2.2 mm
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	COMMERCIAL EXTENDED
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	5.5 mm

Preview

Download Datasheet

View All
