SSM2018TN datasheet, PDF - EEWORLD Datasheet

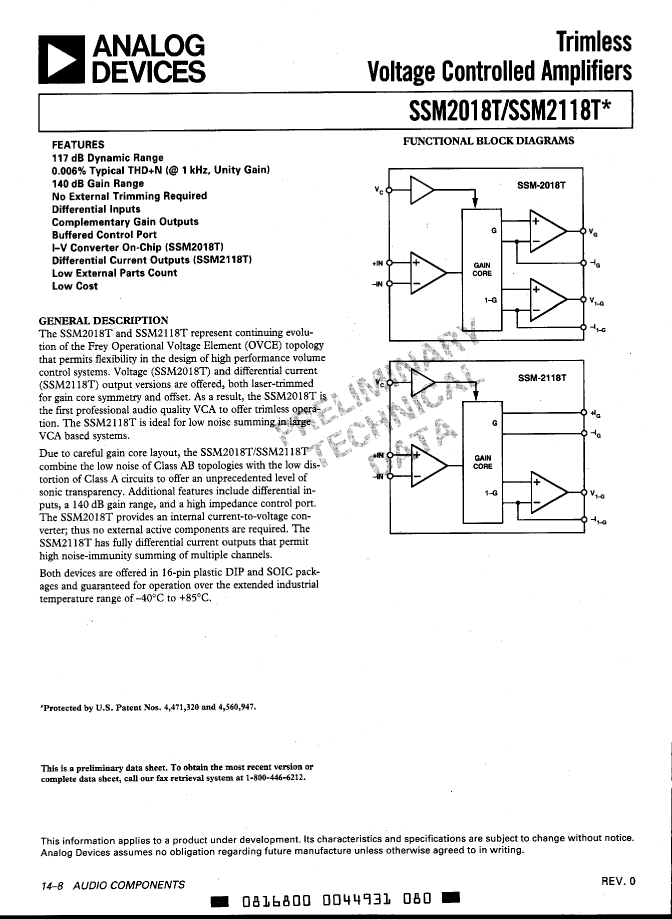

SSM2018TN: DescriptionIC,VOLTAGE CONTROLLED GAIN AMPLIFIER,BIPOLAR,DIP,16PIN,PLASTIC; CategoryAnalog mixed-signal IC The signal circuit; File Size313KB，4 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Parametric Compare View All

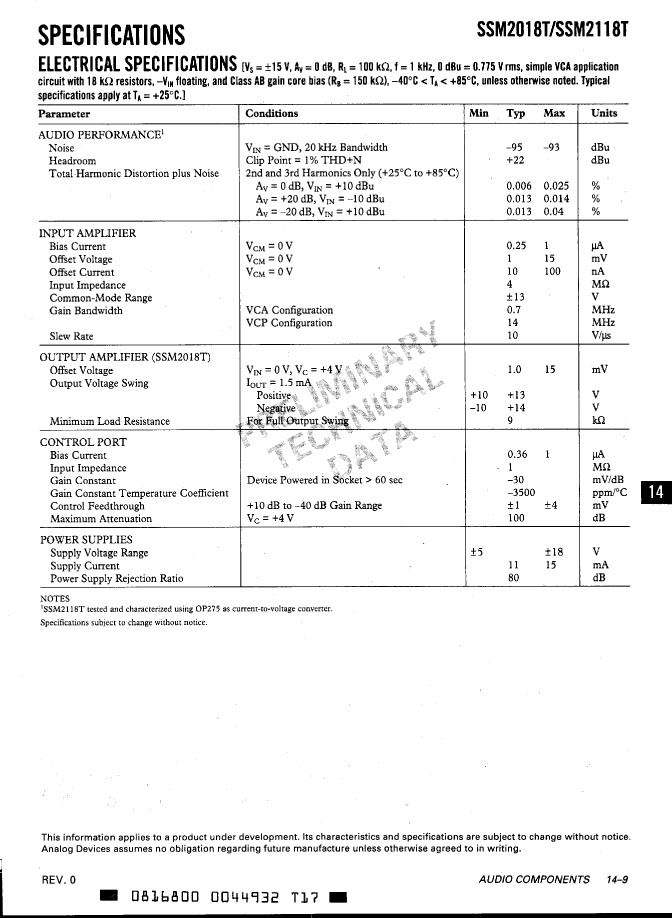

SSM2018TN Overview

IC,VOLTAGE CONTROLLED GAIN AMPLIFIER,BIPOLAR,DIP,16PIN,PLASTIC

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	ADI
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	ANALOG CIRCUIT
JESD-30 code	R-PDIP-T16
JESD-609 code	e0
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	+-15 V
Certification status	Not Qualified
Maximum supply current (Isup)	15 mA
Nominal supply voltage (Vsup)	15 V
surface mount	NO
technology	BIPOLAR
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

	SSM2018TN	SSM2018TR
Description	IC,VOLTAGE CONTROLLED GAIN AMPLIFIER,BIPOLAR,DIP,16PIN,PLASTIC	IC,VOLTAGE CONTROLLED GAIN AMPLIFIER,BIPOLAR,SOP,16PIN,PLASTIC
Is it Rohs certified?	incompatible	incompatible
Maker	ADI	ADI
Reach Compliance Code	unknown	unknown
Analog Integrated Circuits - Other Types	ANALOG CIRCUIT	ANALOG CIRCUIT
JESD-30 code	R-PDIP-T16	R-PDSO-G16
JESD-609 code	e0	e0
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V
Number of terminals	16	16
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	SOP
Encapsulate equivalent code	DIP16,.3	SOP16,.4
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE
power supply	+-15 V	+-15 V
Certification status	Not Qualified	Not Qualified
Maximum supply current (Isup)	15 mA	15 mA
Nominal supply voltage (Vsup)	15 V	15 V
surface mount	NO	YES
technology	BIPOLAR	BIPOLAR
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	GULL WING
Terminal pitch	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL
