R114566020W datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> R114566020W

R114566020W: DescriptionRF SMB Connector, Male, Panel Mount, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size61KB，1 Pages; ManufacturerRadiall; Websitehttps://www.radiall.com/

Download Datasheet Parametric Compare View All

R114566020W Overview

RF SMB Connector, Male, Panel Mount, Solder Terminal, Receptacle

R114566020W Parametric

Parameter Name	Attribute value
Maker	Radiall
Reach Compliance Code	unknown
Other features	STANDARDS: MIL-C-39012; IEC 169-10, CAPTIVE CENTER CONTACT
Body/casing type	RECEPTACLE
Characteristic impedance	50 Ω
Connector type	RF SMB CONNECTOR
Contact point gender	MALE
Coupling type	SNAP
DIN compliance	NO
Filter function	NO
IEC compliance	YES
insulator material	POLYTETRAFLUORO ETHYLENE
MIL compliance	YES
Manufacturer's serial number	SMB
Plug information	MULTIPLE MATING PARTS AVAILABLE
Installation method	STRAIGHT
Maximum operating frequency	4 GHz
Options	GENERAL PURPOSE
Panel mounting	YES
Termination type	SOLDER

Preview

Download Datasheet

View All

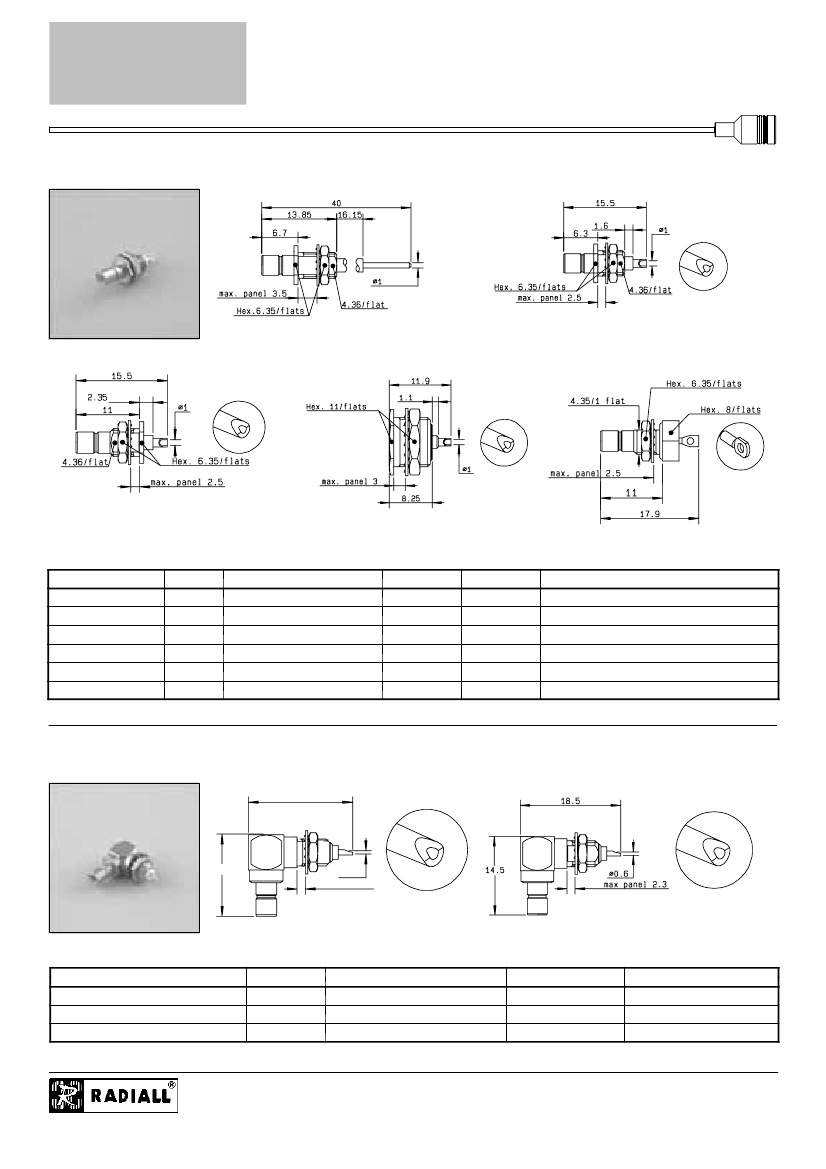

SMB

BULKHEAD RECEPTACLES

STRAIGHT BULKHEAD RECEPTACLES (MALE CENTER CONTACT)

Fig. 1

Fig. 2

Fig. 3

part number

R114 552 400D

R114 553 000

R114 554 000

R114 566 000

R114 566 020

R114 603 000

fig.

captive center contact

yes

Fig. 4

panel

P01

P10

P01

finish

Gold

Nickel

Gold

front mount

rear mount

Fig. 5

note

front mount/extended dielectric

front mount/recessed

hermetically sealed

RIGHT ANGLE BULKHEAD RECEPTACLES (MALE CENTER CONTACT)

15.5

14.1

Ø0.6

max panel 2.4

Fig. 1

part number

R114 670 000

R114 670 020

R114 671 000*D

upon request

fig.

fig

captive center contact

yes

panel

P01

Fig. 2

finish

Gold

Nickel

Gold

* packaging: unit

R114566020W Related Products

	R114566020W	R114670020W	R114671000W	R114552400	R114566000	R114566020	R114566000W	R114552400W
Description	RF SMB Connector, Male, Panel Mount, Solder Terminal, Receptacle	RF SMB Connector, Male, Panel Mount, Solder Terminal, Receptacle	RF SMB Connector, Male, Panel Mount, Solder Terminal, Receptacle	RF SMB Connector, Male, Panel Mount, Solder Terminal, Receptacle,	RF SMB Connector, Male, Panel Mount, Solder Terminal, Receptacle	RF SMB Connector, Male, Panel Mount, Solder Terminal, Receptacle	RF SMB Connector, Male, Panel Mount, Solder Terminal, Receptacle	RF SMB Connector, Male, Panel Mount, Solder Terminal, Receptacle
Maker	Radiall	Radiall	Radiall	Radiall	Radiall	Radiall	Radiall	Radiall
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	STANDARDS: MIL-C-39012; IEC 169-10, CAPTIVE CENTER CONTACT	STANDARDS: MIL-C-39012; IEC 169-10, CAPTIVE CENTER CONTACT	STANDARDS: MIL-C-39012; IEC 169-10, CAPTIVE CENTER CONTACT	STANDARDS: MIL-C-39012; IEC 169-10, CAPTIVE CENTER CONTACT	STANDARDS: MIL-C-39012; IEC 169-10, CAPTIVE CENTER CONTACT	STANDARDS: MIL-C-39012; IEC 169-10, CAPTIVE CENTER CONTACT	STANDARDS: MIL-C-39012; IEC 169-10, CAPTIVE CENTER CONTACT	STANDARDS: MIL-C-39012; IEC 169-10, CAPTIVE CENTER CONTACT
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
Connector type	RF SMB CONNECTOR	RF SMB CONNECTOR	RF SMB CONNECTOR	RF SMB CONNECTOR	RF SMB CONNECTOR	RF SMB CONNECTOR	RF SMB CONNECTOR	RF SMB CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Coupling type	SNAP	SNAP	SNAP	SNAP	SNAP	SNAP	SNAP	SNAP
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	YES	YES	YES	YES	YES	YES	YES	YES
insulator material	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE
MIL compliance	YES	YES	YES	YES	YES	YES	YES	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Installation method	STRAIGHT	RIGHT ANGLE	RIGHT ANGLE	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Maximum operating frequency	4 GHz	4 GHz	4 GHz	4 GHz	4 GHz	4 GHz	4 GHz	4 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	YES	YES	YES	YES	YES	YES	YES	YES
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Manufacturer's serial number	SMB	SMB	SMB	-	SMB	SMB	SMB	SMB
