2SA1480D datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> 2SA1480D

2SA1480D: Description0.1A, 300V, PNP, Si, POWER TRANSISTOR, TO-126ML, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size142KB，5 Pages; ManufacturerSANYO; Websitehttp://www.semic.sanyo.co.jp/english/index-e.html

Download Datasheet Parametric Compare View All

2SA1480D Overview

0.1A, 300V, PNP, Si, POWER TRANSISTOR, TO-126ML, 3 PIN

2SA1480D Parametric

Parameter Name	Attribute value
Parts packaging code	SIP
package instruction	FLANGE MOUNT, R-PSFM-T3
Contacts	3
Reach Compliance Code	unknow
Shell connection	ISOLATED
Maximum collector current (IC)	0.1 A
Collector-emitter maximum voltage	300 V
Configuration	SINGLE
Minimum DC current gain (hFE)	60
JESD-30 code	R-PSFM-T3
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Polarity/channel type	PNP
Maximum power dissipation(Abs)	7 W
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	150 MHz
Base Number Matches	1

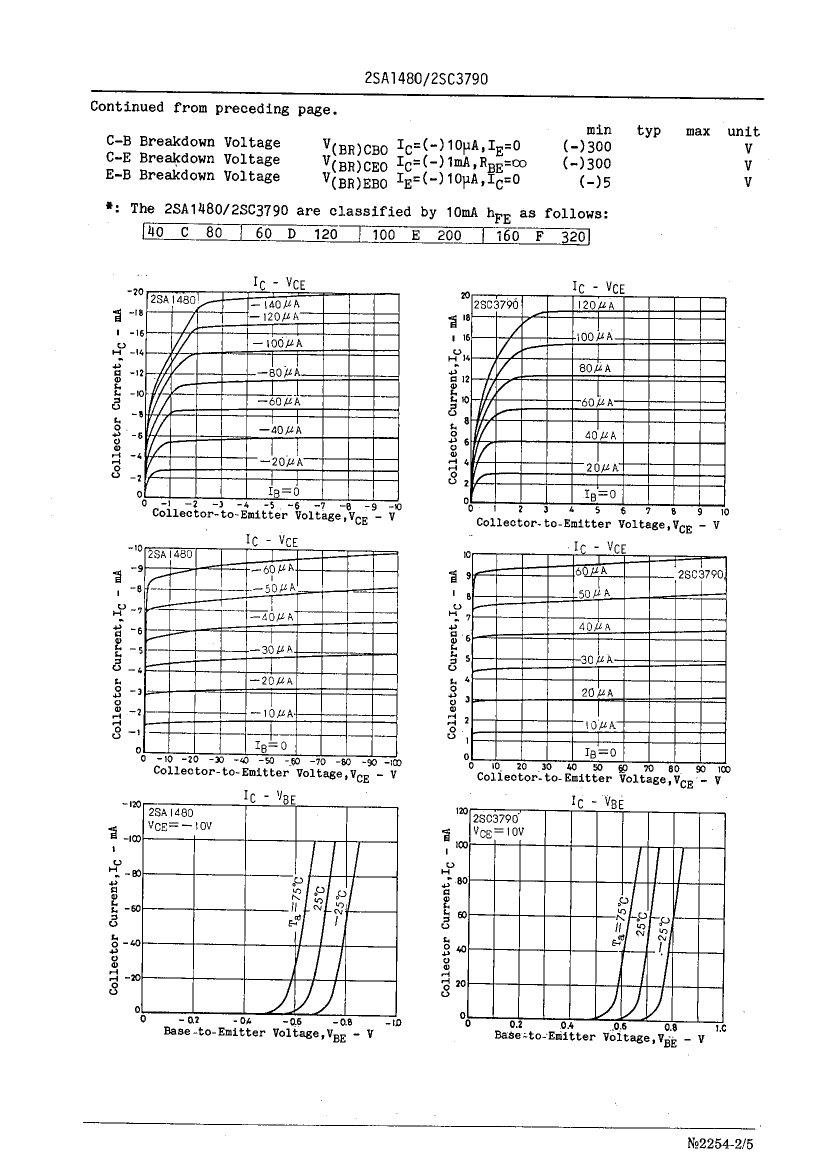

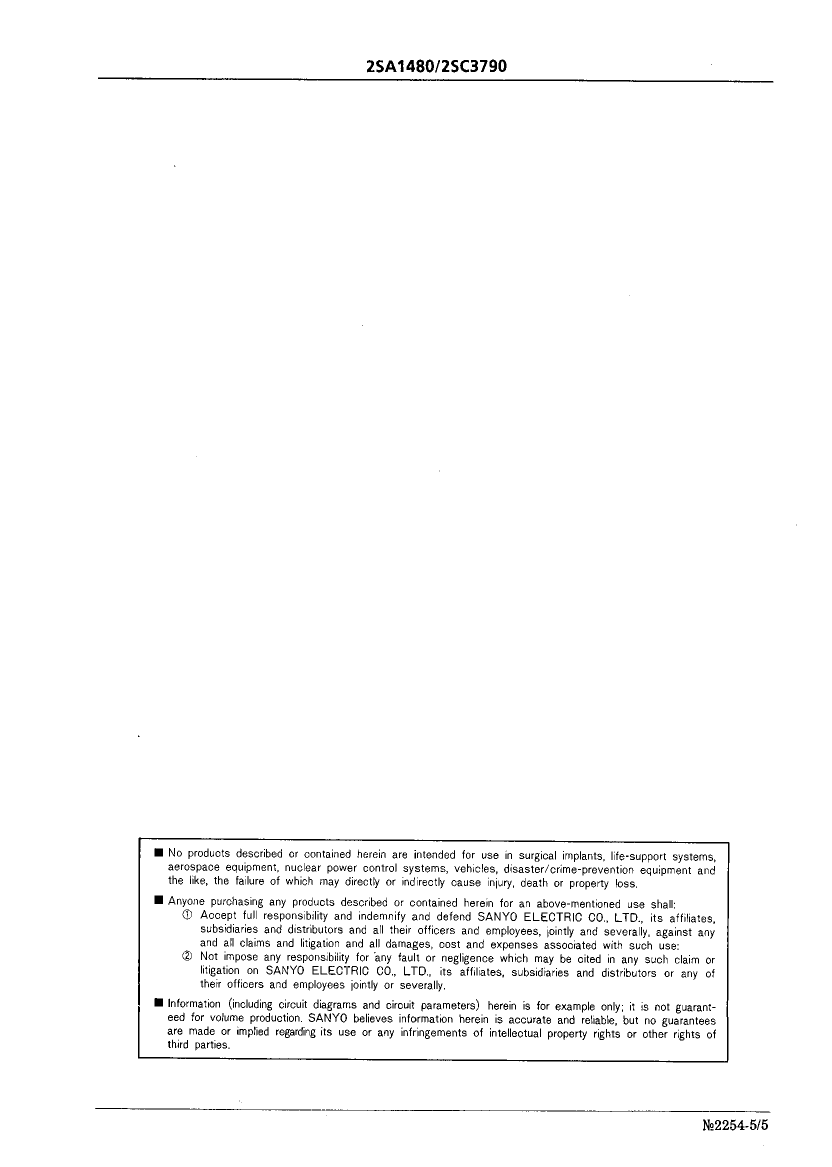

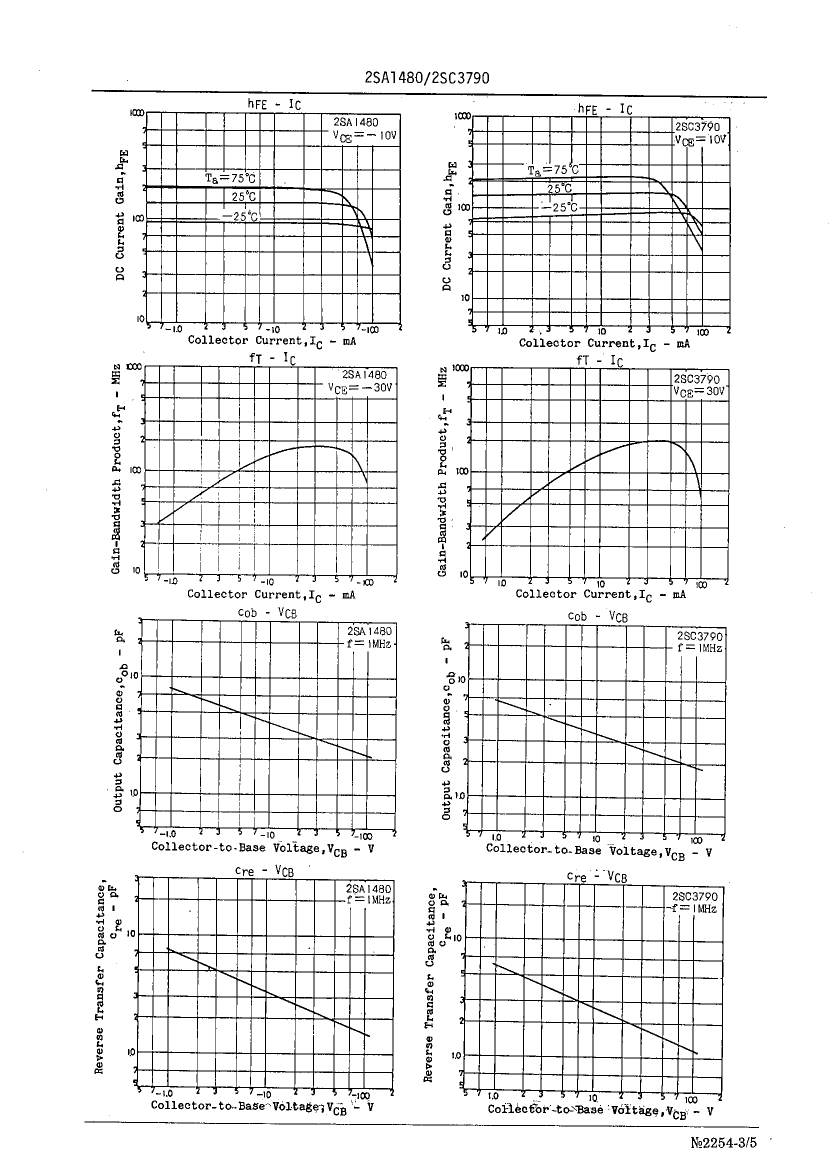

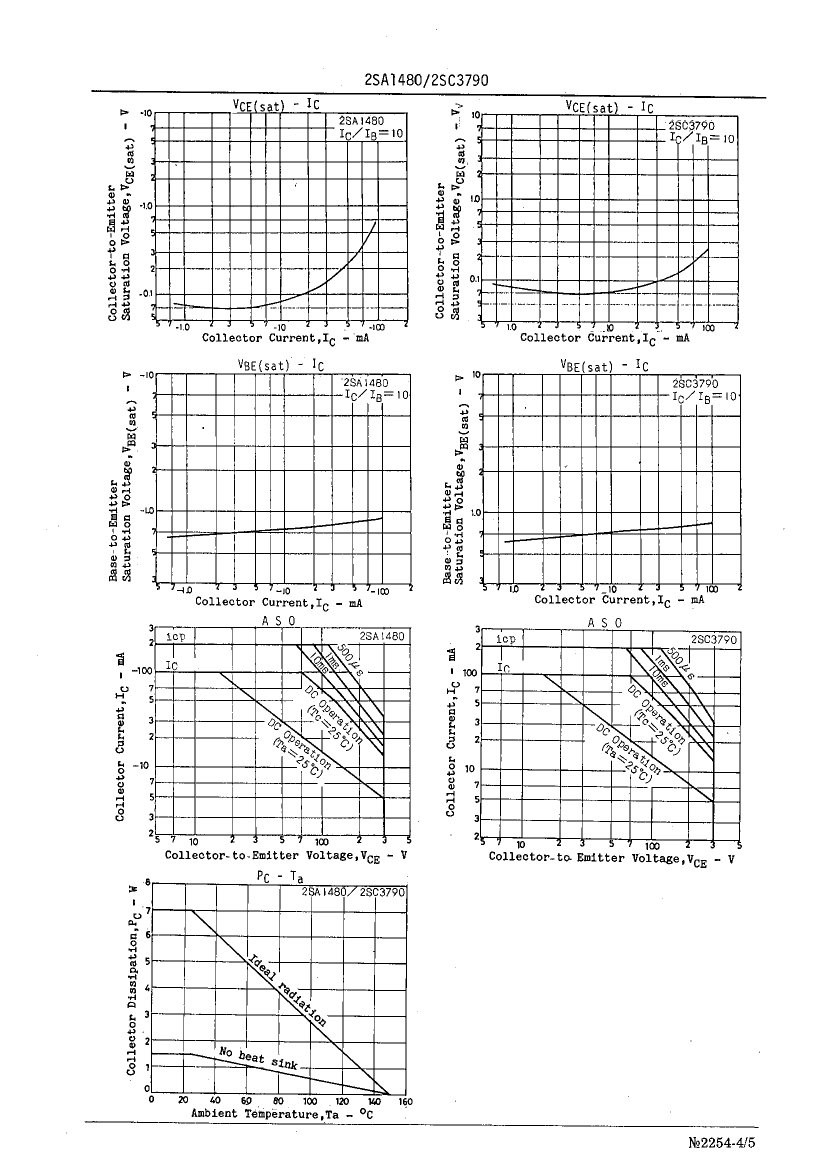

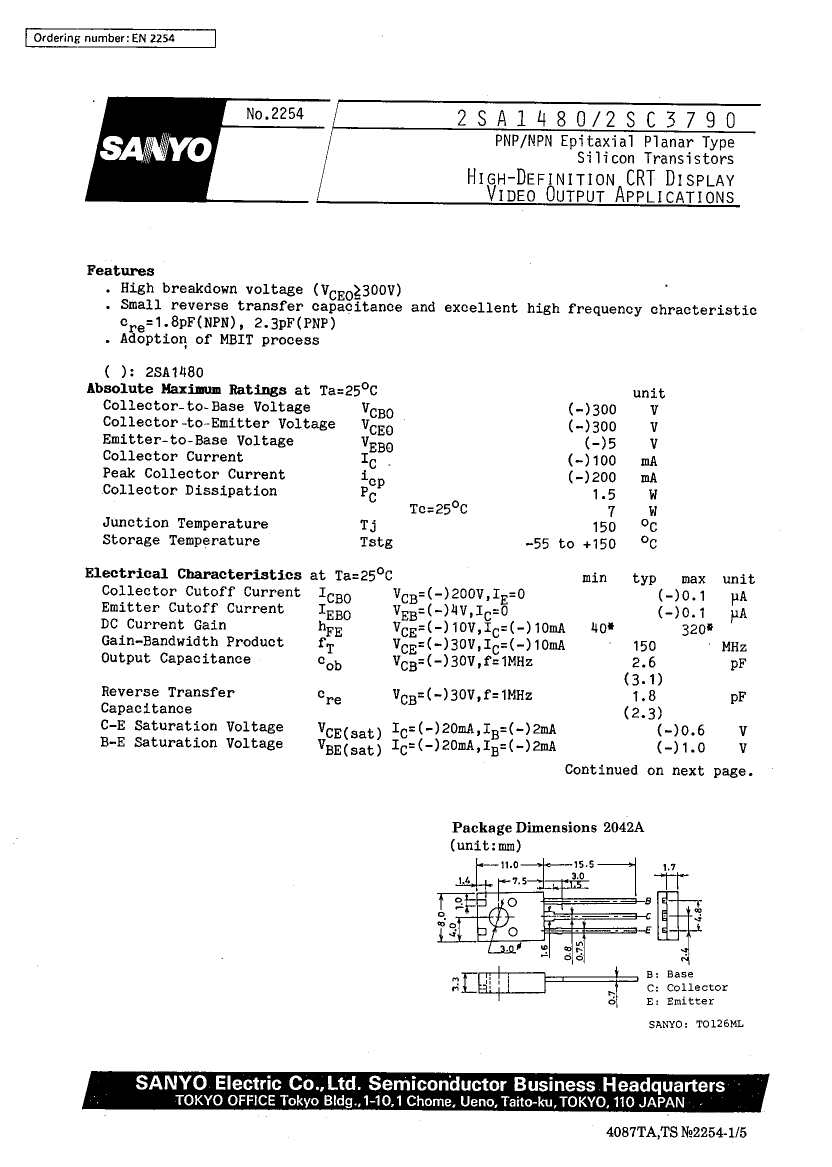

Preview

Download Datasheet

View All

2SA1480D Related Products

	2SA1480D	2SC3790D	2SC3790E	2SC3790F	2SA1480E
Description	0.1A, 300V, PNP, Si, POWER TRANSISTOR, TO-126ML, 3 PIN	0.1A, 300V, NPN, Si, POWER TRANSISTOR, TO-126ML, 3 PIN	0.1A, 300V, NPN, Si, POWER TRANSISTOR, TO-126ML, 3 PIN	0.1A, 300V, NPN, Si, POWER TRANSISTOR, TO-126ML, 3 PIN	0.1A, 300V, PNP, Si, POWER TRANSISTOR, TO-126ML, 3 PIN
Parts packaging code	SIP	SIP	SIP	SIP	SIP
package instruction	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3
Contacts	3	3	3	3	3
Reach Compliance Code	unknow	unknown	unknown	unknow	unknow
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Maximum collector current (IC)	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A
Collector-emitter maximum voltage	300 V	300 V	300 V	300 V	300 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Minimum DC current gain (hFE)	60	60	100	160	100
JESD-30 code	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3
Number of components	1	1	1	1	1
Number of terminals	3	3	3	3	3
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Polarity/channel type	PNP	NPN	NPN	NPN	PNP
Maximum power dissipation(Abs)	7 W	7 W	7 W	7 W	7 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
transistor applications	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	150 MHz	150 MHz	150 MHz	150 MHz	150 MHz
Base Number Matches	1	-	-	1	1
